StarTech.com SV831DUSBA Manuel utilisateur

SV831DUSBA

8 Port USB Console KVM

Switch with Audio

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses and can radiate radio frequency energy and, if not installed and

used in accordance with the instructions, may cause harmful interference to radio com-

munications. However, there is no guarantee that interference will not occur in a particu-

lar installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an en-

dorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this doc-

ument, StarTech.com hereby acknowledges that all trademarks, registered trademarks,

service marks, and other protected names and/or symbols contained in this manual and

related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction .................................................................... 1

Features ......................................................................................1

Package Contents .......................................................................1

Installation....................................................................... 2

Device Connection ......................................................................2

Connecting Computers to the Console........................................4

USB Only.................................................................................4

PS/2 Only ................................................................................4

Cascaded Conﬁgurations ............................................................4

Operation......................................................................... 7

Push Button controls ...................................................................7

K/M Reset....................................................................................7

Auto Scan ....................................................................................7

OSD (On Screen Display) Operation.............................. 8

Auto Scan ....................................................................................12

Manual Scan................................................................................12

Hot-key commands......................................................................14

Sun/Mac Keyboard Mapping .......................................................16

Speciﬁcations.................................................................. 18

Technical Support........................................................... 19

Warranty Information...................................................... 19

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com 8 Port USB Console KVM

Switch with Audio. This product offers a reliable and efﬁcient way to man-

age multiple computers in server rooms, or any other environment where

space is at a premium and provides the added beneﬁt of audio switching

capability.

Features

Auto-scan function automatically selects computers sequentially•

Cascade conﬁguration expands system capability•

Hotkey functions allow easy computer access/switching•

Identiﬁes and selects computers by name assignment•

OSD security option protected against unauthorized computer use•

Unique cables offer convenient, space-saving connections•

Package Contents

1 x Mounting Bracket•

1 x Power Cord•

1 x PS/2 keyboard and mouse Y cable•

1 x StarView 8 Port KVM Switch•

1 x User Manual•

Instruction Manual

Installation

Warning: Prior to installation, please ensure that all computers and

KVM switch(es) are powered down.

Device Connection

The SV831DUSB is designed for use with both USB and PS/2 console

connections, and is equipped with two slide switch console selectors

used for the selection of USB or PS/2 modes for the mouse and keyboard

(shown below).

There are three connection patterns that correspond with the slide switch

as follows:

PS/2 Keyboard and PS/2 Mouse:1. A PS/2 Y-connector (provided) will

be required for this connection to allow both the mouse and keyboard

to be connected to the PS/2 port. The mouse and keyboard slide

switches must be switched to the left.

Keyboard

Mouse

USB

PS/2

Instruction Manual

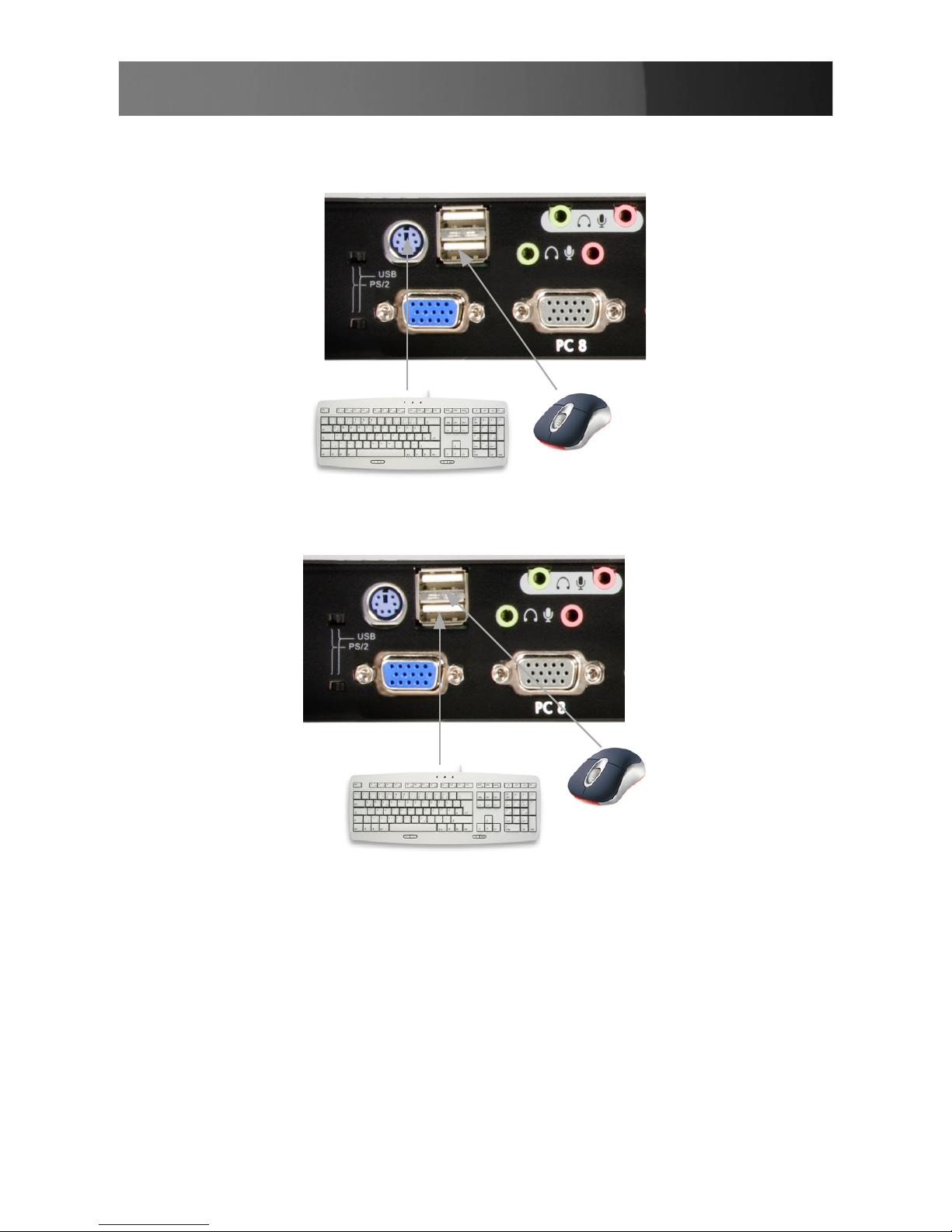

PS/2 Keyboard and USB Mouse:2. The mouse slide switch must be

switched to the right, while the keyboard slide switch must be switched

to the left.

USB Keyboard and USB Mouse:3. Both the keyboard and mouse

switches must be switched to the right.

Please note: When conﬁguring the switch as a slave in a cascaded

conﬁguration, PS/2 Keyboard and Mouse is the only mode

that can be used. As such, SV431DUSB cannot be

conﬁgured as a slave in a cascaded setup, as it does not

provide a slide switch selector.

Instruction Manual

Connecting Computers to the Console

USB Only

To connect a computer controlled by USB peripherals, use a 1-to-2 cable

(SVECONUSx) to connect from one of the PC Ports located on the rear

panel of the KVM switch to the USB and Video ports on the computer, as

shown below.

PS/2 Only

To connect a computer controlled by PS/2 peripherals, use a 1-to-3 cable

(SVECONx) to connect from one of the PC ports to the PS/2 keyboard

and mouse, as well as the video port of the computer.

VGA Port

USB Port

1-to-2

cable

Instruction Manual

Cascaded Congurations

Please note: The master KVM Switch must have equal or more PC x

ports than that of the slave kvm unit. For example, if an 8-port switch is

the master, an 8-port or 4-port switch can be a slave, but not a 16-port

switch.

Please note: PS/2-only models can be cascaded with USB+PS/2 univer-

sal models.

Please note: To be used as slaves in a cascaded conﬁguration, the slide

switch on SV831DUSBA must be adjusted to PS/2 mode.

The ports labelled PC 1 - PC 8 can be connected to either a computer

or a slave unit CONSOLE port, as shown below. Use only 1-to-3 (PS/2)

cables to connect the master’s PC ports and slave CONSOLE port, as

shown below.

1-to-3 cable

Slave

Master

Instruction Manual

The maximum number of computers controlled by a master/slave con-

ﬁguration with all 8-port units is 64, including 8 slaves and each slave unit

connecting to 8 computers as depicted below:

DC9V, 500mA

Master

Slave

Computers

Instruction Manual

Operation

You may select a computer by pressing the front panel push button

directly, by issuing hot-key commands or by activating the OSD window.

The front panel indicator changes to reﬂect the computer port selected

(red) and whether the port is connected to a powered computer (green).

The indicator ﬂashes red when it is in either Auto Scan or Manual Scan

mode.

Push Button controls

To select control of an attached computer, press the front panel button

that corresponds with the assigned computer number. For 16 port mod-

els, 1 to 8 represents the lower 8 ports, while A to H indicates the higher

ports. Ports 1 and A share the same pushbutton, as do 2 and B, 3 and C

etc.

Example: If port 1 is already selected and you wish to switch to Port A,

tap the shared pushbutton once to select Port A. If Port 1 is not selected,

press and hold pushbutton 1 for two seconds to select Port A.

K/M Reset

K/M Reset resolves the majority of problems developed by keyboard and/

or mouse device replacement or conﬁguration changes. Press down but-

tons 1 and 2 simultaneously for 2 seconds to reconﬁgure the whole sys-

tem without having to turn off the KVM switch or any attached computers.

Auto Scan

This KVM switch provides an easy to use feature to start Auto Scanning.

To use this function, simultaneously press buttons 7 and 8 and hold for

two seconds. (SV431DUSB uses buttons 3 and 4 to launch this function).
