StarTech.com SAT3540U2E Manuel utilisateur

External Multi Bay Hard

Drive Enclosure

3.5” 4 Drive eSATA USB External

Multi Bay Hard Drive Enclosure

SAT3540U2E

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Installation....................................................................... 2

Hardware Installation...................................................................3

Driver Installation.........................................................................4

How to Use ...................................................................... 5

eSATA/USB Connectivity .............................................................5

Fan Speed Control ......................................................................5

Synchronization Mode.................................................................6

Troubleshooting .............................................................. 7

Speciﬁcations.................................................................. 8

Technical Support........................................................... 9

Warranty Information...................................................... 9

Introduction

StarTech.com’s SAT3540U2E External Multi Bay Enclosure is a high-

performance 4-drive SATA enclosure that connects to host systems

through eSATA and/or USB.

Packaging Contents

1 x SAT3540U2E enclosure•

1 x Screw driver and screw kit•

4 x Hard Drive Handles•

1 x Universal Power Adapter with 3 Power Cords (NA/UK/EU)•

1 x eSATA cable•

1 x USB cable•

1 x Instruction Manual•

System Requirements

USB or eSATA enabled computer system•

Microsoft Windows• ®2000/XP/Server 2003/Vista, Mac OS®X or

Linux®

Installation

Front View

Rear View

eSATA port

USB port

80mm Cooling

Fan (removable)

Front Door

release

Drive Power/

Activity LED

Fan Switch

Interface Switch

Sync Switch

eSATA/USB Mode LED

Power LED

Power

Button Sync Mode

LED

Fan Speed

LED

eSATA/USB

Link LED

Fan Mode

LED

Hardware Installation

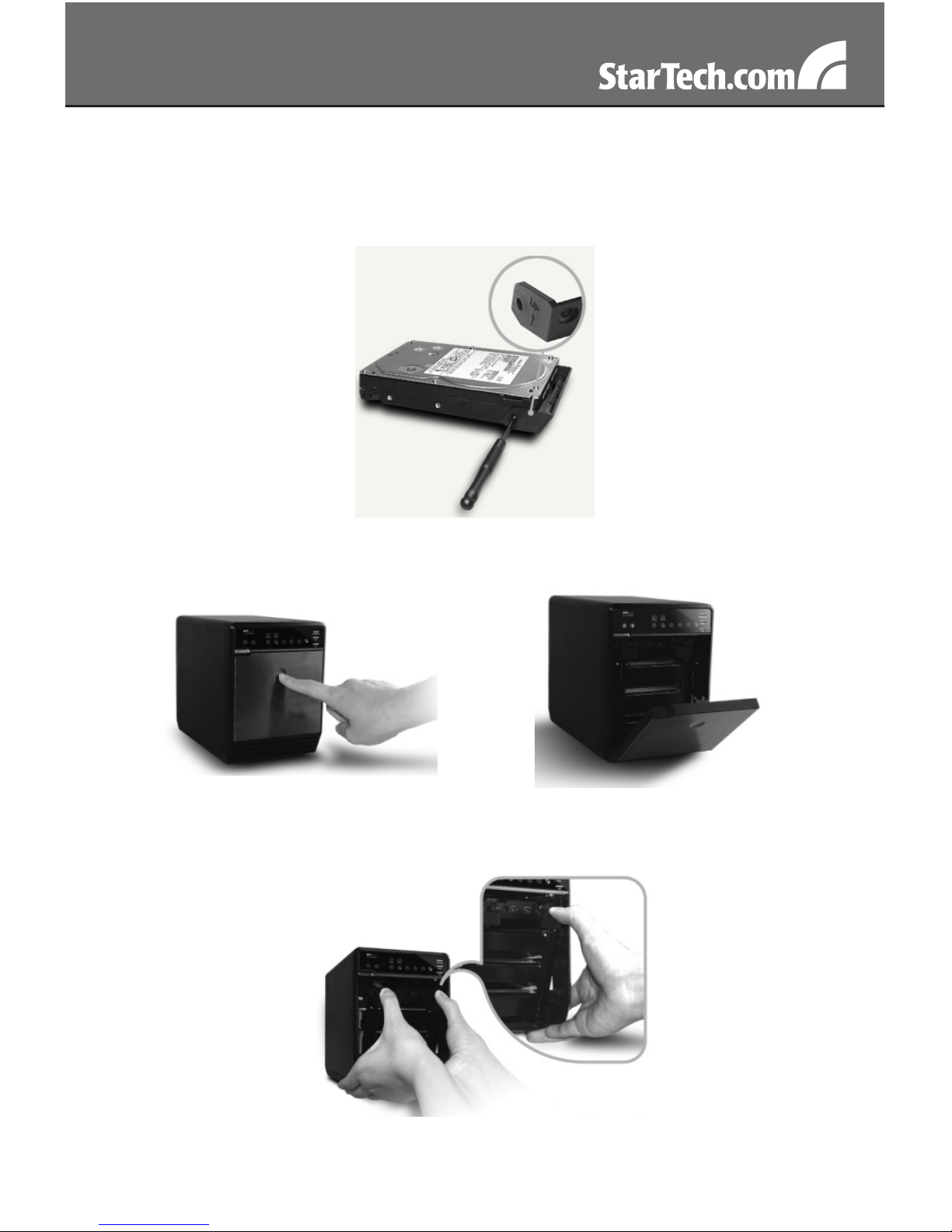

Secure the included Hard Drive Handles to the hard drives with the1.

supplied screws and screw driver.

Press the front door in to release the latch and open the door. The2.

door is also removable for easier access.

Inside will be a metal drive cage in front of the drive bays. Along3.

the top of the drive cage are two small tabs. Press them down to

release the cage and remove it.

Remove the card board inserts (if ﬁrst time setup) and then insert4.

the hard drives into the slots. If installing less than 4 drives, ensure

a drive is installed in the bottom slot. This will help when reinstalling

the metal cage. Hard drives can be removed from the enclosure by

pressing down on the handles, then pulling them out.

Once all of the hard drives are installed, reinstall the metal cage5.

and front door. Make sure the bottom of the cage stays inside of the

track before closing the cover.

Connect the power adapter DIN connector into the side of the6.

enclosure and power up the enclosure.

Driver Installation

Windows 2000/XP/Server 2003/Vista, Mac OS X, Linux

No driver installation is required for these operating systems, as this

enclosure is natively supported, so the drivers are already installed.

How to Use

eSATA/USB Connectivity

The enclosure features two separate host interfaces, which can be

physically connected at the same time, however only one will be active

at a time. The enclosure could even be connected to two different

computers, one over eSATA and the other over USB, and then switched

between. The eSATA and USB Link LEDs, located above the Power

button, will indicate which interfaces are connected, while the eSATA

and USB Mode LEDs will indicate which interface is currently active.

LED Status Description

ON eSATA connection detection

OFF

ON USB connection detection

OFF

ON eSATA interface active

OFF

ON USB interface active

OFF

To switch between interfaces, press the ‘Interface’ button.

Fan Speed Control

The cooling Smart Fan is automatically controlled by an integrated

thermal sensor, but can also be set manually. The fan is capable of

running at 3 different speeds depending on the temperature range of

the enclosure (less than 45oC, between 45-54oC, and greater than

55oC), or set manually to run constantly at one speed.

LED Status Description

ON Smart Fan Auto Mode

OFF

ON Smart Fan Manual Mode

OFF

ON Low Speed - 1200RPM

(Manual Mode only)

OFF

ON Medium Speed - 1800RPM

(Manual Mode only)

OFF

ON High Speed - 2500RPM

(Manual Mode only)

OFF

Pressing the ‘Fan’ button will toggle between Auto and Manual modes

and toggle between the different manual fan speeds.

Synchronization Mode

This enclosure features a Synchronization Mode that allows it to power

off when the host computer it is connected to is powered off or the

interface cable is disconnected.

LED Status Description

Blue When the host connection is off, the enclosure will

power off in 15 seconds.

Orange When the host connection is off, the enclosure will

immediately power off.

OFF The enclosure will only power on/off via the Power

button.

Pressing the ‘Sync’ button will toggle between the different modes.

Troubleshooting

Only one drive shows up over eSATA

If only one of the installed hard drives is visible on the computer when

connected over eSATA, ensure that the eSATA port on your computer

system supports Port Multiplier technology.
