StarTech.com INFOSAFE SAT3540ER Manuel utilisateur

SAT3540ER

4 Drive eSATA Multi RAID

Hard Drive Enclosure

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital de-

vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or

more of the following measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected

names and/or symbols of third-party companies not related in any way to StarTech.com. Where

they occur these references are for illustrative purposes only and do not represent an endorse-

ment of a product or service by StarTech.com, or an endorsement of the product(s) to which

this manual applies by the third-party company in question. Regardless of any direct acknowl-

edgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all

trademarks, registered trademarks, service marks, and other protected names and/or symbols

contained in this manual and related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction ................................................................................... 1

Features ......................................................................................1

Package Contents .......................................................................1

SAT3540ER Installation................................................................. 4

Hardware Overview .....................................................................4

Hardware Installation...................................................................6

Installing the SAT3540ER Manager Conﬁguration Utility ............7

Getting Started .............................................................................. 10

Start the SAT3540ER Manager ...................................................10

Microsoft® Windows....................................................................10

SAT3540ER Status Window ........................................................11

Basic Conﬁguration ...................................................................... 13

Basic Conﬁguration Wizard .........................................................13

Volume Conﬁguration ..................................................................15

Administering the SAT3540ER ..................................................... 18

Change Password .......................................................................18

Manage Conﬁguration Files.........................................................18

Import Conﬁguration File .............................................................19

Save a Conﬁguration File ............................................................20

Manage Client Connection to the Daemon..................................21

Set up a Remote Connection ......................................................22

Conﬁgure Safe Volume Rebuild Storage Policy...........................23

Conﬁgure a Rebuild.....................................................................25

Firmware Installation (Upgrade) ..................................................26

Instruction Manual

Monitoring the SAT3540ER........................................................... 27

Monitor Drive Status....................................................................27

Review Event Logs......................................................................28

Conﬁguring Email Notiﬁcation .....................................................29

Speciﬁcations ................................................................................ 31

Technical Support ......................................................................... 32

Warranty Information .................................................................... 32

Instruction Manual

Introduction

Thank you for purchasing a StarTech.com InfoSafe 4 Drive eSATA Multi

RAID Hard Drive Enclosure. This innovative storage solution supports the

conﬁguration and management of multiple storage devices connected to

a single host, as well as a robust feature set - including easy to use RAID

conﬁguration, automated disk rebuilding, and virtualization capabilities.

Features

80mm internal fan for enhanced hard drive cooling•

Each hard drive bay is hot swappable•

Easy to read LEDs indicate system/drive status and activity•

Single rear eSATA interface with Port Multiplier support to host to•

manage access to each hard drive

Supports data transfer rates up to 3 Gbps•

Supports up to four 3.5” SATA I/II HDD Supports•

Package Contents

1 x Drive Enclosure•

1 x Driver CD•

1 x Drive Management Software Disk•

1 x eSATA Cable•

1 x Instruction Manual•

1 x PCI Express Controller Card•

1 x Power Adapter•

Instruction Manual

SAT3540ER RAID Storage Policies

Before you use the SAT3540ER Manager to conﬁgure the Storage

Appliance, take a minute to study the following terms. The terms

represent SAT3540ER conﬁguration options or storage policies for

mapping the physical to the virtual drives. You’ll choose from these

policies during the conﬁguration process.Your choice is important and

impacts how you can best use the SAT3540ER Storage Appliance.

JBOD

A storage policy that grants the host PC direct access to

a physical disk drive. With JBOD (Just a Bunch Of Disks),

the number of available drives is equal to the number of

physical drives. JBOD is also called the bypass mode

because the host bypasses the SteelVine virtualization

engine to access the disk directly.

Safe

A storage policy conﬁguration in which all data is stored

in duplicate on separate disks to protect against data loss

due to disk failure (also called Mirroring). At least two

drives mirror each other at all times, equivalent to RAID

1. Every write operation goes to both disks. Safe mode

provides the highest level of data protection, but halves

the amount of storage space since all data must be stored

twice.

To implement the Safe storage policy, the Basic

Conﬁguration Wizard creates a volume which consists of

two hard disk drives that mirror each other. A remaining

hard disk drive can be speciﬁed as a Hot Spare in the

Advanced Menu.

Big

A storage policy conﬁguration in which multiple physical

drives are strung together (concatenated, also called

Spanning) and treated as one large volume. Big provides

the maximum amount of storage space but no additional

performance or data redundancy. This conﬁguration allows

you to increase logical volume size beyond the capacity of

individual drives.

The Basic Conﬁguration Wizard implements the Big

storage policy by concatenating all the hard disk drives

into a single volume.

Instruction Manual

Fast

A storage policy conﬁguration in which I/O processing

is balanced evenly to all disks in a method known as

striping, equivalent to RAID 0.

Fast offers the best performance in terms of speed, but

no data redundancy. Striping increases storage operation

speed by using several disk drives in parallel. Each

portion of data is divided into segments that are written to

different disks simultaneously. Striping provides improved

performance but does not enhance reliability because

there is no way to retrieve or reconstruct data stored on a

failed drive.

To implement the Fast storage policy, the Basic

Conﬁguration Wizard creates a single volume of up to four

hard disk drives in a striped format.

Safe + Big

A storage policy conﬁguration in which one-half of the

available storage space is concatenated. The other half

mirrors the ﬁrst half to provide full data redundancy.

The Safe + Big storage policy conﬁguration mirrors the

concatenated disks to create a volume consisting of four

disk drives.

Safe + Fast

A volume conﬁguration in which an array of stripes is

created. Each stripe consists of two mirrored drives. Safe

+ Fast provides the I/O load balancing features of striping

and the added reliability of mirrored data, equivalent to

RAID 1+0.

In the Safe + Fast storage policy, data is written to

mirrored disks in a striped format to create a volume

consisting of four disk drives.

Instruction Manual

SAT3540ER Installation

Hardware Overview

Power

Receptor for the provided Power Adapter (12VDV, Maximum 8.23 Amps,

100-240V AC, 50-60Hz)

Ports

DC IN - Power DC jack.

eSATA port - Connect your eSATA port to the computer being used.

Buttons

Fan SW - Fan ON/OFF switch.

SYS. Rst - System reset button.

LEDs

Power LEDs Green Power ON.

Ready LEDs Green System ready.

Error LEDs Red System error.

eSATA Link LEDs Green Valid connection from eSATA port to

computer.

eSATA Act LEDs

Yellow

The device is active.

HDD A / B / C / D Link Green HDD A / HDD B / HDD C / HDD D

ready.

HDD A / B / C / D Act Yellow Data transmitting on HDD A / HDD B /

HDD C / HDD D.

Instruction Manual

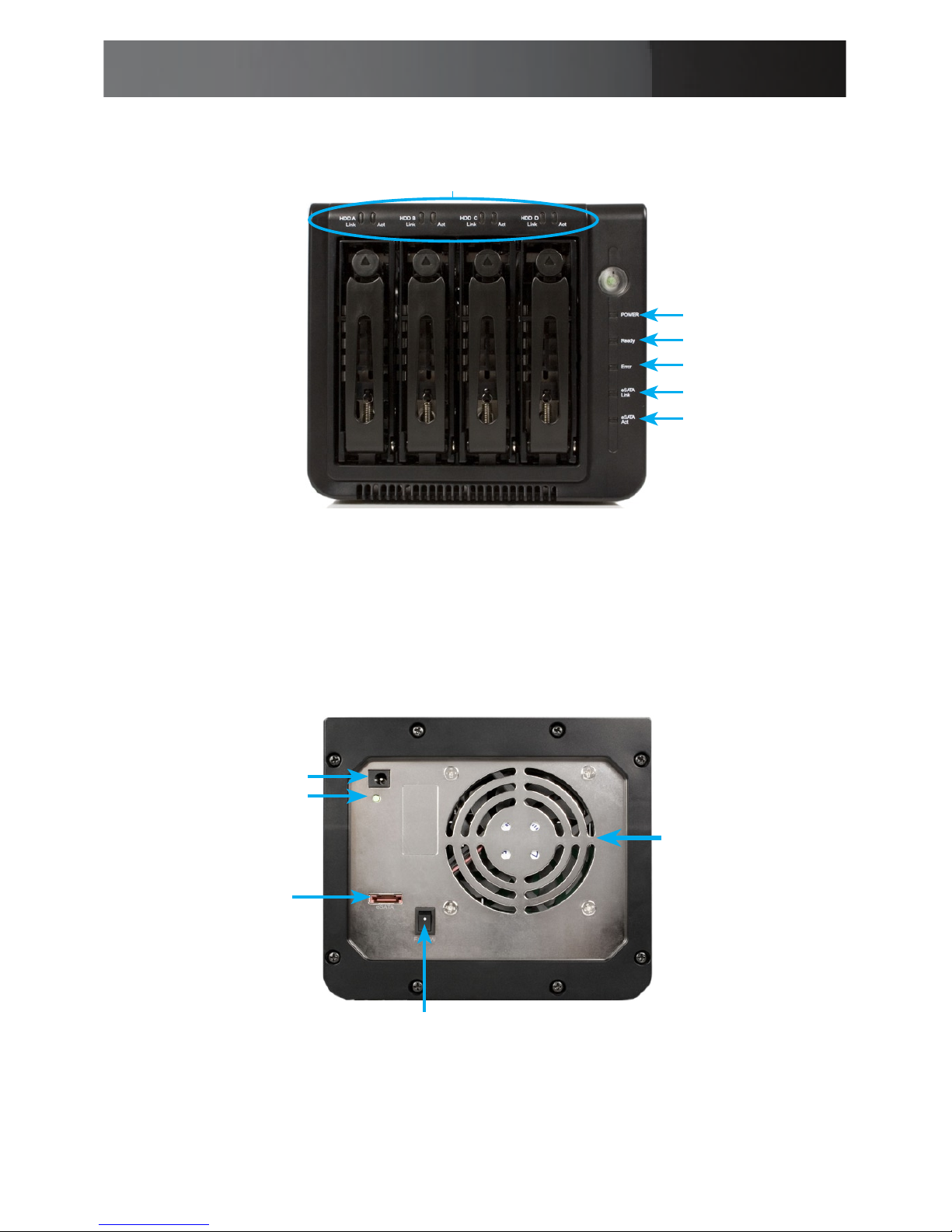

Front View

Rear View

Link/Activity LEDs (Drives A - D)

Power LED

Ready LED

Error LED

eSATA Link LED

eSATA Activity LED

Fan Switch

Cooling Fan

DC In

System Reset

eSATA

Connection

to host

Instruction Manual

Hardware Installation

In order to run the SAT3540ER Manager, you must ﬁrst install the Silicon

Image PCIE card and its associated driver. The card provides a software

and hardware link between the PC that functions as the host computer

and the SAT3540ER Storage Appliance.

Install the PCIE Card and Driver

Prior to physically installing the PCI Express card in the host computer,

please install the necessary Driver software. To do so:

Insert the Driver CD in the CD/DVD-ROM drive. Browse to the folder1.

titled X:\Driver\Auto-install for Windows XP & Vista (where X desig-

nates the location of the CD/DVD-ROM drive.

Double-click on the ﬁle titled2. SiI3531-W-D_15171. Follow the Installa-

tion Wizard to complete the installation.

Turn off the PC. Remove the host computer case cover, and install the3.

PCI Express card in an available PCI Express slot. Replace the host

computer case cover and power the computer back on.

Connect the SAT3540ER to the Host Computer

The SAT3540ER Storage Appliance houses four conﬁgurable hard

drives. After installing the PCI Express card and drivers, connect the host

computer to the SAT3540ER Storage Appliance using an eSATA cable

(included). To install drives within SAT3540ER:

Locate and press the release button and pull out the drive tray.1.

Release Button

Table des matières

Autres manuels StarTech.com Enceinte

StarTech.com

StarTech.com SATBP125VP Manuel utilisateur

StarTech.com

StarTech.com IDECASE525F Manuel utilisateur

StarTech.com

StarTech.com SAT2510U3REM Manuel du système

StarTech.com

StarTech.com INFOSAFE SAT2510BU2 Manuel utilisateur

StarTech.com

StarTech.com 8STHSB1SATSASBA Manuel utilisateur

StarTech.com

StarTech.com 8STS25SLOTR Manuel utilisateur

StarTech.com

StarTech.com SAT2510BU32 Manuel utilisateur

StarTech.com

StarTech.com SECTBLTPOS2 Manuel utilisateur

StarTech.com

StarTech.com S351BMU33ETG Manuel utilisateur

StarTech.com

StarTech.com InfoSafe UNI3510U2EB Manuel utilisateur

StarTech.com

StarTech.com SMS1BMU313 Manuel utilisateur

StarTech.com

StarTech.com RK1219WALH Manuel utilisateur

StarTech.com

StarTech.com DRW110ATA Manuel

StarTech.com

StarTech.com S2510BU3PWPS Manuel utilisateur

StarTech.com

StarTech.com SATCASE25OTG Manuel utilisateur

StarTech.com

StarTech.com 8STS251BPU31C3 Manuel utilisateur

StarTech.com

StarTech.com S3510BMU33ET Manuel utilisateur

StarTech.com

StarTech.com S352BMU3N Manuel utilisateur

StarTech.com

StarTech.com 4POSTRACK25 Manuel utilisateur

StarTech.com

StarTech.com InfoSafe SAT2510BU2B Manuel utilisateur

StarTech.com

StarTech.com S352BU313R Manuel utilisateur

StarTech.com

StarTech.com InfoSafe SAT2510BU2B Manuel utilisateur

StarTech.com

StarTech.com SAT3540U3ER Manuel du système

StarTech.com

StarTech.com ATXFULL635V Manuel

Manuels Enceinte populaires d'autres marques

SilentiumPC

SilentiumPC Armis AR5 Manuel

Pulsar

Pulsar 17/TRP80/DSPR Manuel utilisateur

Thermaltake

Thermaltake V150 TG Manuel utilisateur

MSI

MSI MPG SEKIRA 500X Manuel utilisateur

Antec

Antec Dark fleet DF-10 Manuel utilisateur

Nexans

Nexans WTC05 Manuel utilisateur

Peavey

Peavey DS 1502 Manuel utilisateur

D-Link

D-Link ShareCenter Pro DNS-1550-04 Manuel utilisateur

Rosewill

Rosewill RX82-U(JBOD) Manuel utilisateur

QNAP

QNAP SAS JBOD CLI 1.0 Manuel utilisateur

GAMDIAS

GAMDIAS Talos P1 Manuel utilisateur

Auvs

Auvs KR615 Manuel utilisateur

Digitus

Digitus DA-71114 Manuel utilisateur

CommScope

CommScope FDH 3000 Manuel utilisateur

FS FHD-FWME4 Manuel utilisateur

JBL

JBL CS1215T Manuel utilisateur

Pulsar

Pulsar ARAD-S4 Manuel utilisateur

Pulsar

Pulsar AWO454 Manuel utilisateur
