StarTech.com PEXESAT322I Manuel du système

2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext

StarTech ID: PEXESAT322I

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or

external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board

jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one

of each, as needed.

The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be

connected over a single cable when necessary to maximize the number of SATA device connections while

reducing the amount of cabling required.

The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling

you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based

optical drives (CD-ROM, DVD-ROM, Blu-Ray).

The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime

technical support.

Applications

Upgrade an older PCIe-based system with SATA 6Gbps connectivity, to better utilize faster SATA drives

Add more internal SATA ports to a computer system, for connecting additional storage drives and/or

optical drives

Add internal and/or external SATA III ports to a computer through a single PCI Express slot, with the

option to change the available connections to external/internal, as needed based on updated system

requirements or applications

Features

Two internal/external switchable SATA ports

Compliant with SATA revision 3.0, which can support up to 6Gbps of bandwidth

Support for SATA-based optical drives (CD/DVD/BD)

Uses existing SATA I/II cabling

Supports Native Command Queuing (NCQ) and ATA/ ATAPI commands

Port Multiplier FIS-based and Command-based switching supported

Compliant with PCI Express 2.0 standards

Includes Low Profile/Half-Height installation bracket

Technical Specifications

Warranty 2 Years

Bus Type PCI Express

Card Type Standard Profile (LP bracket incl.)

Chipset ID ASMEDIA ASM1061

Interface PCI Express

Port Style Integrated on Card

Ports 2

Connector Type(s) 1 - PCI Express x1 Male

External Ports 2 - eSATA (7 pin; Data) Plug

Internal Ports 2 - SATA (7 pin; Data) Plug

LBA support 48-bit

Port Multiplier Yes

RAID No

Type and Rate SATA III (6 Gbps)

OS Compatibility Windows XP(32/64-bit)/ Server 2003(32/64-bit)/ Server 2008 R2/ Vista(32/64-bit)/

7(32/64-bit)/ 8 (32/64-bit)

Product Height 20 mm [0.8 in]

Product Length 121 mm [4.8 in]

Product Weight 60 g [2.1 oz]

Product Width 67 mm [2.6 in]

Humidity 5% ~ 85% RH

Operating

Temperature

0°C to 50°C (32°F to 122°F)

Storage Temperature -20°C to 60°C (-4°F to 140°F)

Shipping (Package)

Weight

100 g [3.5 oz]

Included in Package 1 - PCIe SATA Controller

Included in Package 1 - SATA Cable

Included in Package 1 - Low Profile Bracket

Included in Package 1 - Driver CD

Included in Package 1 - Instruction Manual

Certifications, Reports and Compatibility

Autres manuels pour PEXESAT322I

Autres manuels StarTech.com Matériel informatique

StarTech.com

StarTech.com USBDUPE17 Manuel utilisateur

StarTech.com

StarTech.com CF2IDE18 Manuel utilisateur

StarTech.com

StarTech.com PEX4S553B Manuel utilisateur

StarTech.com

StarTech.com 16C1050 Manuel utilisateur

StarTech.com

StarTech.com EC1394B2 Manuel utilisateur

StarTech.com

StarTech.com CARDBUS CB420USB Manuel utilisateur

StarTech.com

StarTech.com PEX2MPEX Manuel utilisateur

StarTech.com

StarTech.com ECUSB3S1 Manuel utilisateur

StarTech.com

StarTech.com 4P6G-PCIE-SATA-CARD Manuel utilisateur

StarTech.com

StarTech.com EC2S55254 Manuel utilisateur

StarTech.com

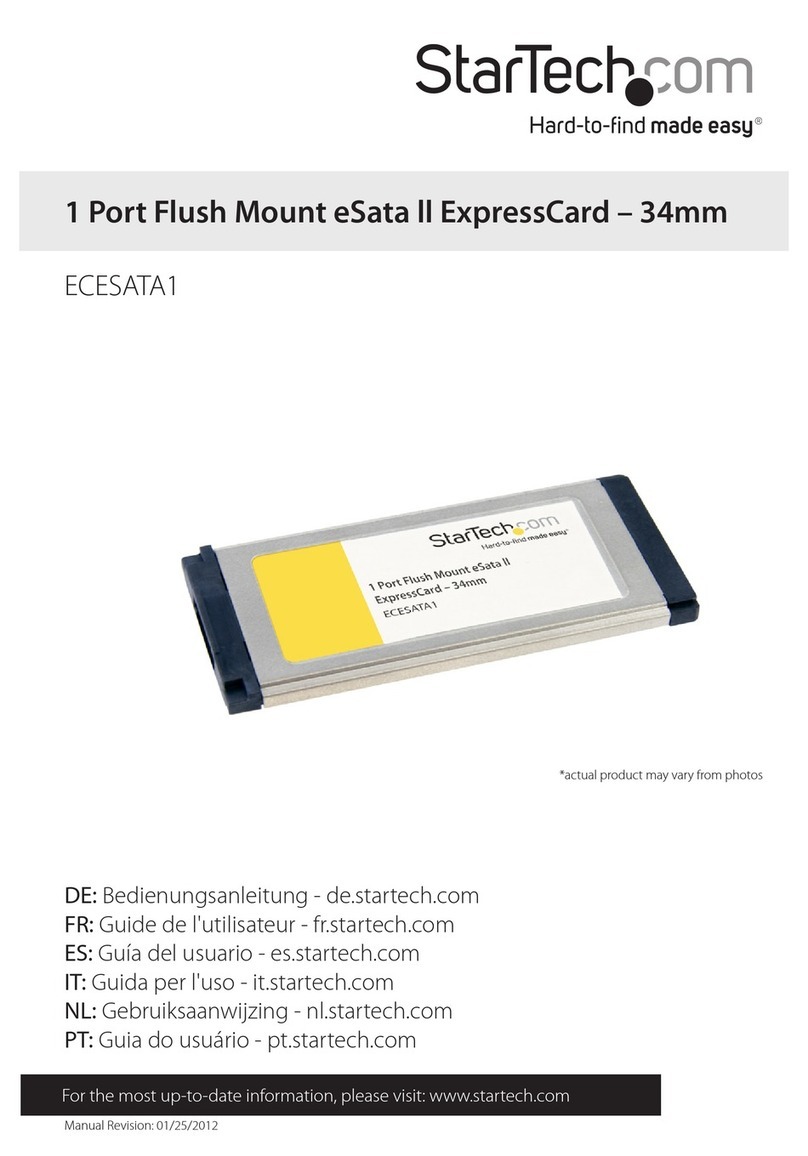

StarTech.com ECESATA1 Manuel utilisateur
