StarTech.com ECESATA22 Manuel utilisateur

eSATA ExpressCard Adapter

ECESATA22 Instruction Manual

Actual product may vary from photo

2 Port ExpressCard eSATA2 Drive Controller Card

FFCCCCCCoommpplliiaanncceeSSttaatteemmeenntt

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

UUsseeooffTTrraaddeemmaarrkkss,,RReeggiisstteerreeddTTrraaddeemmaarrkkss,,aanndd

ootthheerrPPrrootteecctteeddNNaammeessaannddSSyymmbboollss

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only and

do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company in

question. Regardless of any direct acknowledgement elsewhere in the body of this

document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Instruction Manual

TTaabblleeooffCCoonntteennttss

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Installation and usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Verifying successful driver installation . . . . . . . . . . . . . . . . . . . . . . . . .2

Connecting eSATA drives to the ExpressCard . . . . . . . . . . . . . . . . . . .2

Removing the connected drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Removing the ExpressCard from the computer . . . . . . . . . . . . . . . . . .3

Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Instruction Manual

Thank you for purchasing a StarTech.com Two Port eSATA ExpressCard Adapter. This

product allows notebook users to experience the high performance capability of eSATA

storage, providing up to 250Mbps bandwidth, as well as support for Native Command

Queue (NCQ) hard drives.

IInnttrroodduuccttiioonn

Features

BBeeffoorreeYYoouuBBeeggiinn

•Compliant with ExpressCard Specification 1.0 and ExpressCard 34 Form Factor

•Works with SATA I and SATA II devices

•Hot pluggable

•One available ExpressCard Slot

System Requirements

•Supports Windows 2000/XP/2003 Server/Vista

•1 x 2 Port eSATA ExpressCard Adapter

Package Contents

•1 x Driver CD

This package should contain:

•Operating System: Windows® 2000/XP/2003/Vista

•1 x User Manual

Instruction Manual

IInnssttaallllaattiioonnaanndduussaaggee

To verify that the necessary software has been installed:

1. Right-click on My Computer and select Manage.

2. Choose Device Manager.

3. Left-click on the (+) symbol located next to SCSI and RAID controller.

4. Silicon Image SiI 3132 SATALink Controller should be displayed. Right-click on

this listing and select Properties. Under the General tab, you should see that This

device is working properly.

Connecting eSATA drives to the ExpressCard

To begin using your eSATA drive(s) with ECESATA22, simply insert the eSATA connector

provided by the peripheral or attached cable (not included with ECESATA22) into one of

the eSATA ports provided by the ExpressCard.

1. Insert the ExpressCard into an available ExpressCard / 54 or 34mm slot. Since this

card is hot-pluggable, this can be performed while the computer is on or off. Once

the card has been inserted, ensure the computer is powered, to proceed with

installation.

2. Windows will detect that the card has been inserted, and will prompt for driver

installation.

3. Insert the Drivers & Utility CD (included) into the CD/DVDROM drive, and browse to

D:\ Silicon Image/SIL3132/Windows. Press OK to confirm selection.

4. Press Next to continue the installation.

5. Follow the on screen instructions, clicking on Finish to conclude installation.

Verifying successful driver installation

WARNING: Do not disconnect any cables or power sources while the hard

drive is active. This can result in data loss and possible damage to the hard

drive. If you wish to remove the attached external storage, please see the

section entitled Removing the ExpressCard from the computer.

Instruction Manual

Removing the connected drive

1. Close all windows and quit all running applications that are stored on the drive or that

are using data stored on the drive.

2. Click on the Safely Remove Hardware icon in your system tray and select the

installed eSATA drive. This will terminate any communication between the host

computer and the drive, making it safe to remove. Once complete, Windows will

display a message when it is safe to disconnect the interface cable or turn off the

drive.

Removing the ExpressCard from the computer

To remove the ExpressCard from the computer, gently pull the card from the

ExpressCard slot.

Instruction Manual

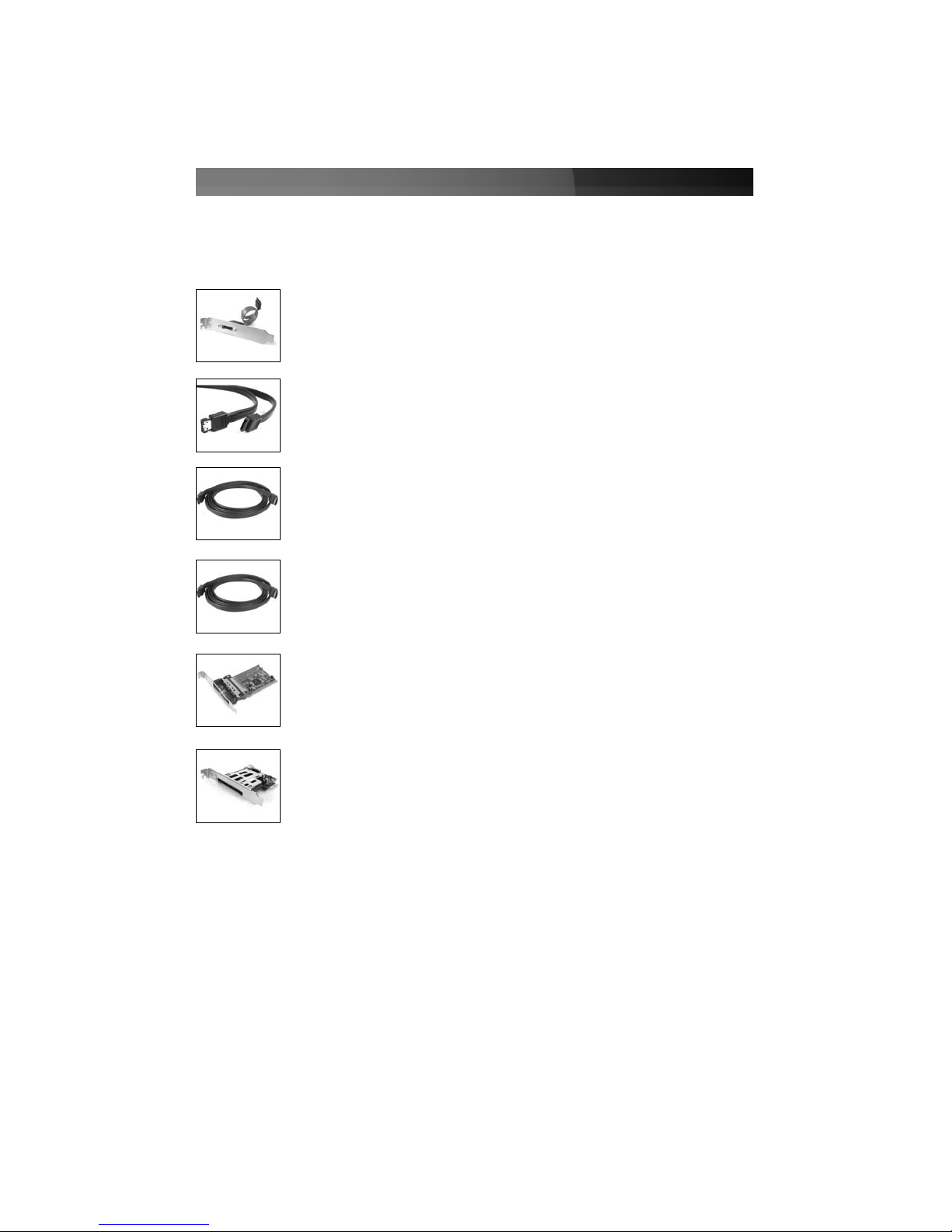

ESATAPLATE1

1 ft eSATA Data Internal to External Slot Plate

SATA2ESATA6

6 Ft Shielded External eSATA to SATA Cable M/M

ESATA6

6' Shielded External eSATA Cable M/M

ESATCASE2

Dual 3.5" Drive eSATA to SATA HD Enclosure

AAcccceessssoorryyPPrroodduuccttssffrroommSSttaarrTTeecchh..ccoomm

Contact your local StarTech.com dealer or visit www.startech.com for cables or other

accessories that will help you get the best performance out of your new product.

ESATA3

3 Ft Shielded External eSATA Cable M/M

PEX2EC

PCI-Express to ExpressCard Adapter

Instruction Manual

TTeecchhnniiccaallSSuuppppoorrtt

StarTech.com’s lifetime technical support is an integral part of our commitment to provide

industry-leading solutions. If you ever need help with your product, visit

www.startech.com/support and access our comprehensive selection of online tools,

documentation, and downloads.

WWaarrrraannttyyIInnffoorrmmaattiioonn

This product is backed by a lifetime warranty. In addition, StarTech.com warrants its

products against defects in materials and workmanship for the periods noted, following

the initial date of purchase. During this period, the products may be returned for repair, or

replacement with equivalent products at our discretion. The warranty covers parts and

labor costs only. StarTech.com does not warrant its products from defects or damages

arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their

officers, directors, employees or agents) for any damages (whether direct or indirect,

special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business,

or any pecuniary loss, arising out of or related to the use of the product exceed the

actual price paid for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations or exclusions

contained in this statement may not apply to you.

SSppeecciiffiiccaattiioonnss

Bus Type ExpressCard

Connectors 2 x eSATA

Maximum Data Transfer Rate 3.0 Gbps

OS Support Windows® 2000/XP/2003/Vista

Regulatory Certifications CE, FCC, ROHS

Revised: 1 March 2007 (Rev. A)

AAbboouuttSSttaarrTTeecchh..ccoomm

StarTech.com is “The Professionals’ Source for Hard-to-Find Computer

Parts”. Since 1985, we have been providing IT professionals with the

quality products they need to complete their solutions. We offer an

unmatched selection of computer parts, cables, server management

solutions and A/V products and serve a worldwide market through our

locations in the United States, Canada, the United Kingdom and Taiwan.

Visit www.startech.com for complete information about all our products

and to access exclusive interactive tools such as the Parts Finder and the

KVM Reference Guide. StarTech.com makes it easy to complete almost

any IT solution. Find out for yourself why our products lead the industry in

performance, support, and value.
