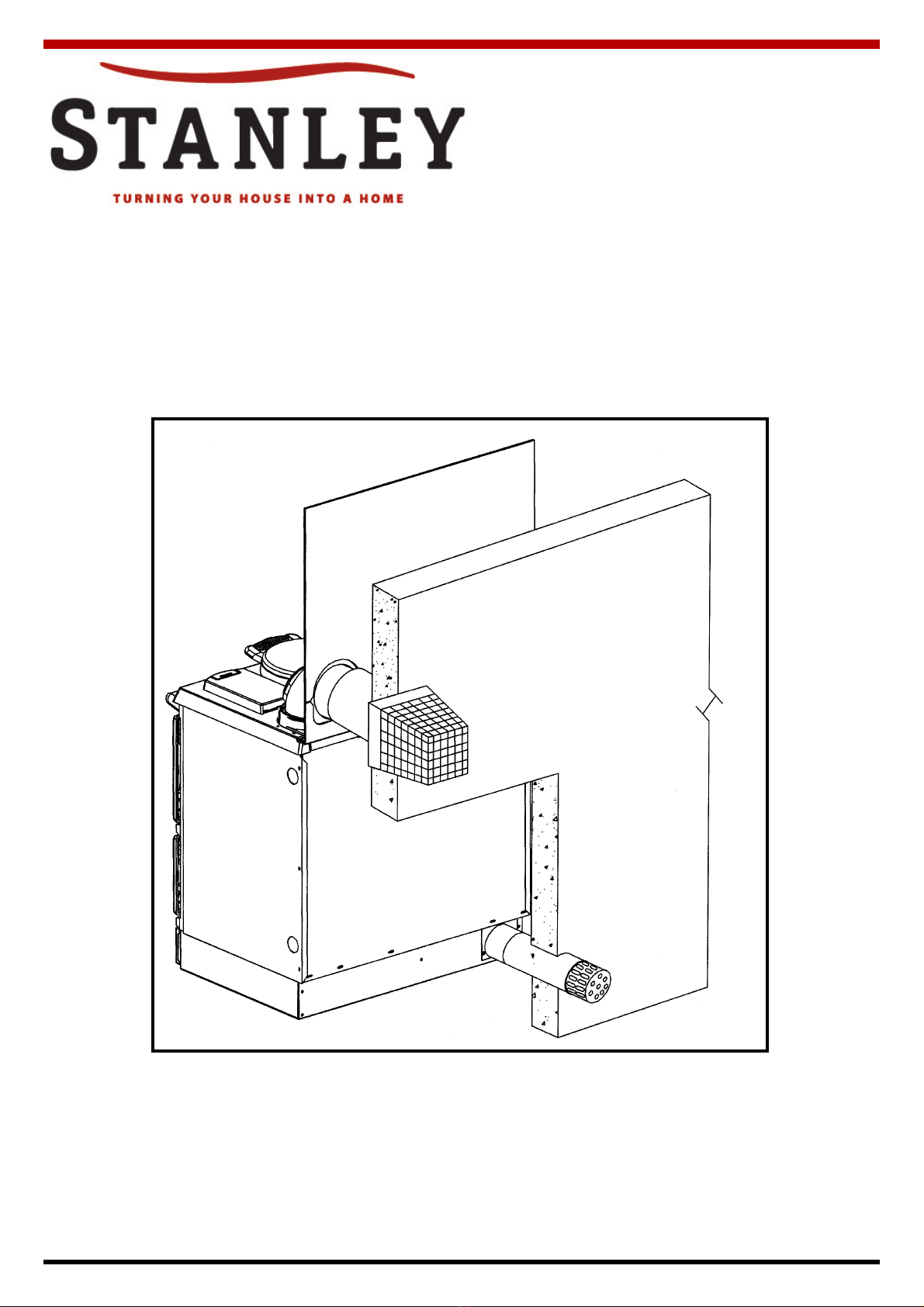

BRANDON OIL MK3

FAN FLUE KIT

INSTALLATION MANUAL

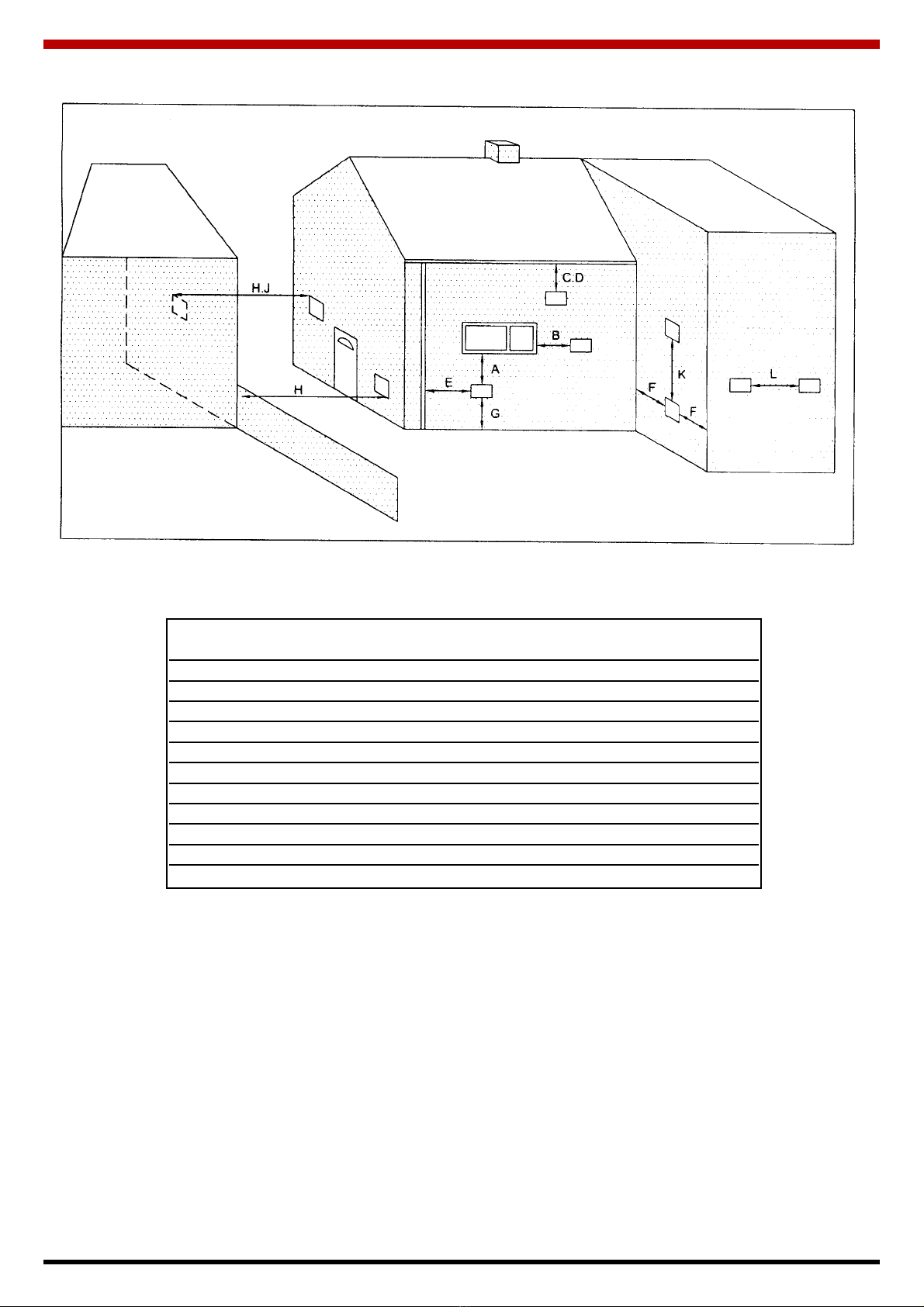

POSITION OF FAN FLUE TERMINAL FOR OIL FIRED COOKERS

OIL FIRED COOKERS

ADirectly below an opening, air brick, window etc.. 600

BHorizontally to an opening, air brick, window etc.. 600

CBelow a gutter, eaves or balcony with protection 75

DBelow a gutter or a balcony without protection 600

EFrom vertical sanitary pipework 300

FFrom an internal or external corner 300

GAbove ground or balcony level 300

HFrom a surface or boundary facing the terminal 600

JFrom a terminal facing the terminal 1200

K Vertically from a terminal on the same wall 1500

LHorizontally from a terminal on the same wall 750

Refer to part of the Building Regulations England and Wales, Irish Building Regulations. B.S. 5410 Part 1, and

Part F of the Building Standards (Scotland) Regulations.

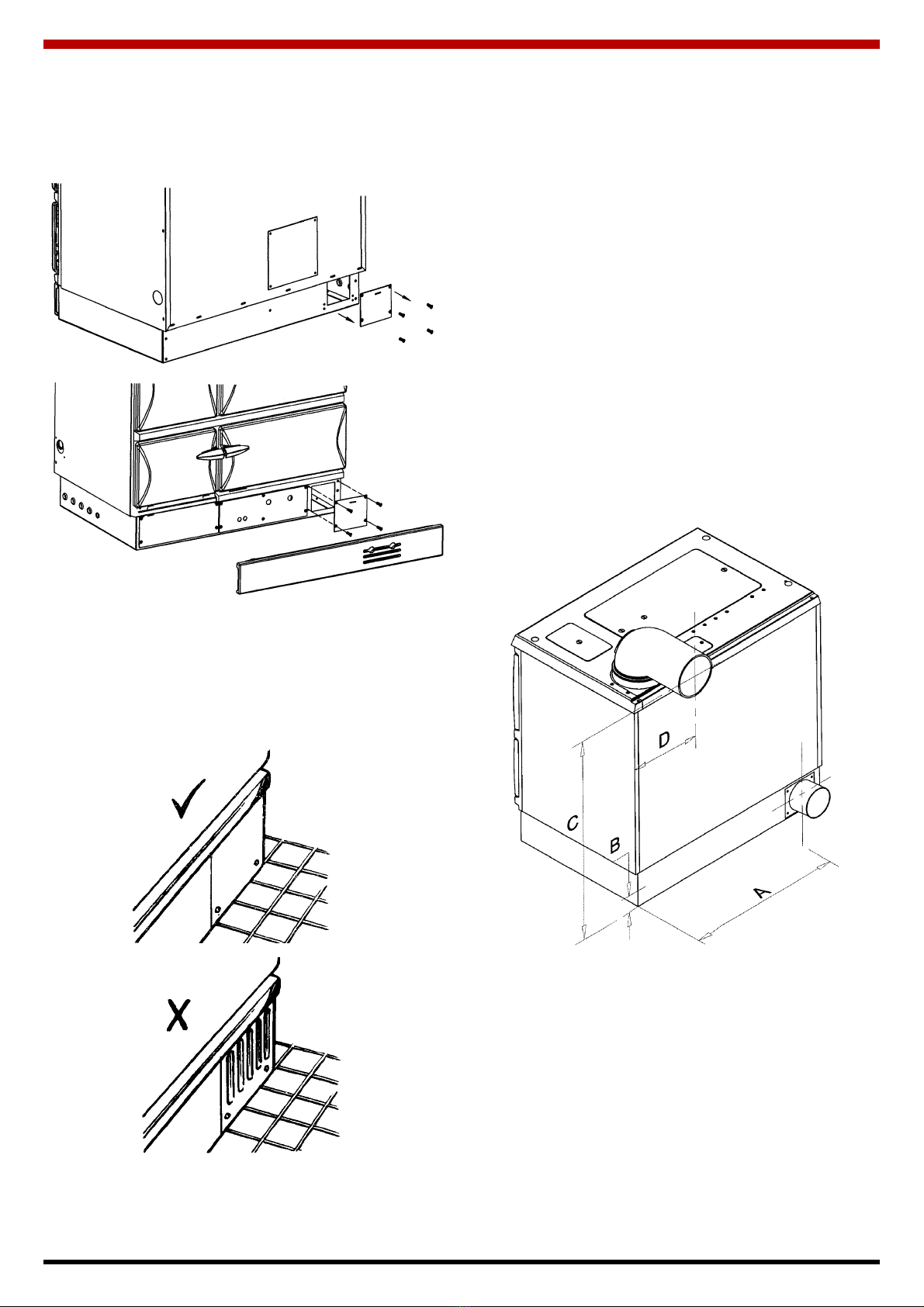

STEP 1.

(a Remove the cover plate from the Air inlet back

panel by removing the fixing screws. (Fig. 1).

(b) Remove the plinth on the front of the cooker by

sliding it approx 10mm to the left and then

pulling it straight out.

hand side after removing the air inlet plate. (see

fig.2).

(b) Cut the Air inlet duct (item 5) to the required

length, allowing for the connection to the

cooker, the cooker wall clearance and the air

inlet terminal. (item 6).

air spigot (item 4) and secure using one of the

jubilee clips. (item 7.)

STEP 3.

(a) Make two openings through the wall, one a

150mm (6”) and one 250mm (10”) diameter,

where the cooker is to be located. The 150mm

(6”) opening is for the primary air inlet duct. The

250mm (10”) is for the fan flue terminal

assembly. See (fig. 5) for fixing centres.

STEP 4.

(a) Position cooker against wall allowing for the

minimum clearance. (See cooker clearances in

Installation & Commissioning manual).

STEP 5.

(a) Fit cast iron bend to cooker hob.

(b) Connect the fan flue terminal assembly (item 1.)

to the cast iron bend.

secured.

(d) Seal the primary air inlet duct and fan flue

terminal to wall, using either an approved

refractory or suitable fire cement.

Fig.1

Fig.3

Fig.4

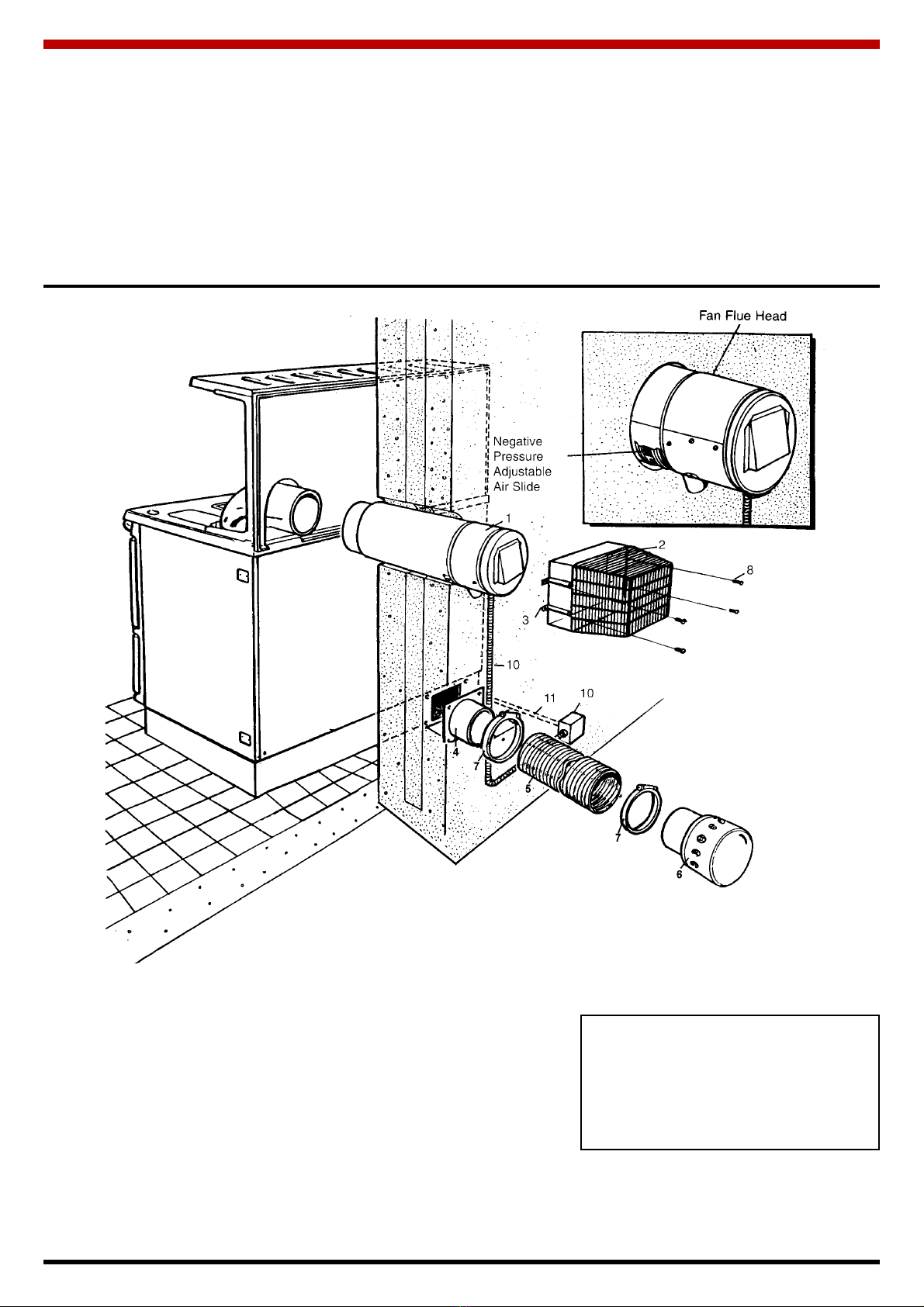

BRANDON FAN FLUE KIT ASSEMBLY AND INSTALLATION

SEE LIST OF CONTENTS WHEN ITEM NUMBERS ARE REFERRED TO:

Fig.5

A= 788mm

B = 76mm

C = 1047mm

D = 130mm

Fig.2

STEP 2.

(a) Fit the primary air spigot (item 4) to the rear of

the base over the opening with the 1/4” BSW

screws. (See Fig 5)

STEP 6.

(a) Connect the air inlet terminal (item 6.) to the

flexible duct (item 5.) and secure using

remaining jubilee clip (item 7).

(b) Screw the (item 3) terminal guard fixing

brackets to the wall and bolt terminal wire guard

(item 2.) to the brackets.

STEP 7.

IMPORTANT:

All electrical connections and wiring should only be

carried out by competent persons.

STEP 8

Fit the junction box (item 10) to the wall externally

adjacent to the appliance positioned internally and

pass electrical cable through the wall, then pass

through panel on left hand side of the cooker and

connect into side of the cooker and connect into

appliance (see wiring diagram) (item 9).

STEP 9

Fit bottom plinth/panel to cooker.

STEP 10

(a) Check that all fastenings and joints are tight,

fully secured and sound.

(b) Check the correct cooker clearances and

terminal locations are adhered to.

STEP 11

When commissioning the cooker check the negative

pressure in the flue at the elbow and adjust the slide

(See Fig.8) to obtain .75mm (0.03” w.g.) minimum.

To reduce the readings open the slide and to

increase close. A draught reading of between

.75mm 0.03” w.g. and 1.25mm 0.05” w.g. should be

achieved with both burners running. Ensure that the

pressure switch operates correctly.

Fig.6

CONNECTION OF FAN FLUE TO COOKER

(a) Isolate from mains before carrying out any

work.

(b) Remove both control boxes (boiler and oven)

by undoing the clips on each side of the

control box (Landis & Gyr)

cooker through the panel on the left hand side.

Then feed wiring through a panel in the divider

plate until sufficient wire is there to connect to

the control box and PCB. Connect wiring using

the appropriate wiring diagram.

CONNECTION: OIL

BOILER CONTROL BOX (Landis & Gyr)

(a) Remove the red wire from terminal 1 and con-

nect one of the red wires from the Fan Flue

Assembly into terminal 1.

(b) Connect the red wire removed from terminal 1

and the remaining red wire from the Fan

Flue Assembly together using the connector 32

on the control box base. (See fig.8)

OIL OVEN CONTROL BOX

(Landis & Gyr)

(a) Remove the yellow wire from terminal 1 and

connect one of the yellow wires from the Fan

Flue Assembly into terminal 1.

(b) Connect the yellow wire removed from terminal

1 and the remaining yellow wire from the Fan

Flue Assembly together using the connector 32

on the control box base. (See fig.8)

CONNECTION TO THE PCB

The green wire which is the main live to the fan flue

is connected to terminal 10 on the PCB.

The blue wire (neutral) is connected to an available

terminal marked neutral.

The green/yellow (earth) is connected to the earth

terminal block.

NOTE: The fan flue assembly is suit-

able for a 275mm (11”) wall and cannot

be reduced, or extended if it is installed

through a wall less than 275mm (11”)

the terminal will protrude accordingly

and must have fitted a suitable terminal

guard.

Fig.7

NON STANDARD WALL THICKNESS

There is an extended flue assembly available (to

order) that is suitable to be installed through wall

thickness of 368mm (14.5”) 444mm (17.5”) 495mm

(19.5”) and a maximum of 558 (22”).

To reduce the length of the assembly from the max-

imum of 550 (22”) wall thickness, undo the band

retaining the end reducer and remove the reducer

taking care that no damage occurs. Select the thick-

ness required and cut through the assembly on the

inner most of the paired groves. Care must be taken

to cut straight and to remove all sharp edges. Place

the reducer in position at the inner most end of the

flue assembly and fix into position by re-locating the

band on the remaining grove and lock into place.

Install the air duct as normal cutting the flexible liner

to the correct length in accordance with the wall

thickness.

CONTENTS OF KIT:

1. Fan flue terminal.

2. Terminal Guard.

3. Fixing Brackets.

4. Primary air inlet spigot.

5. Air inlet duct.

6. Air Inlet terminal.

7. Jubilee clips.

8. M6 Nuts and Bolts (4 No)

10. Junction box and flexible cable tubing.

11. Burner connection cable.

IMPORTANT.

Fan Flue Terminal Kit is NOT to be connected to

an appliance burning 35 Sec. class D fuel.

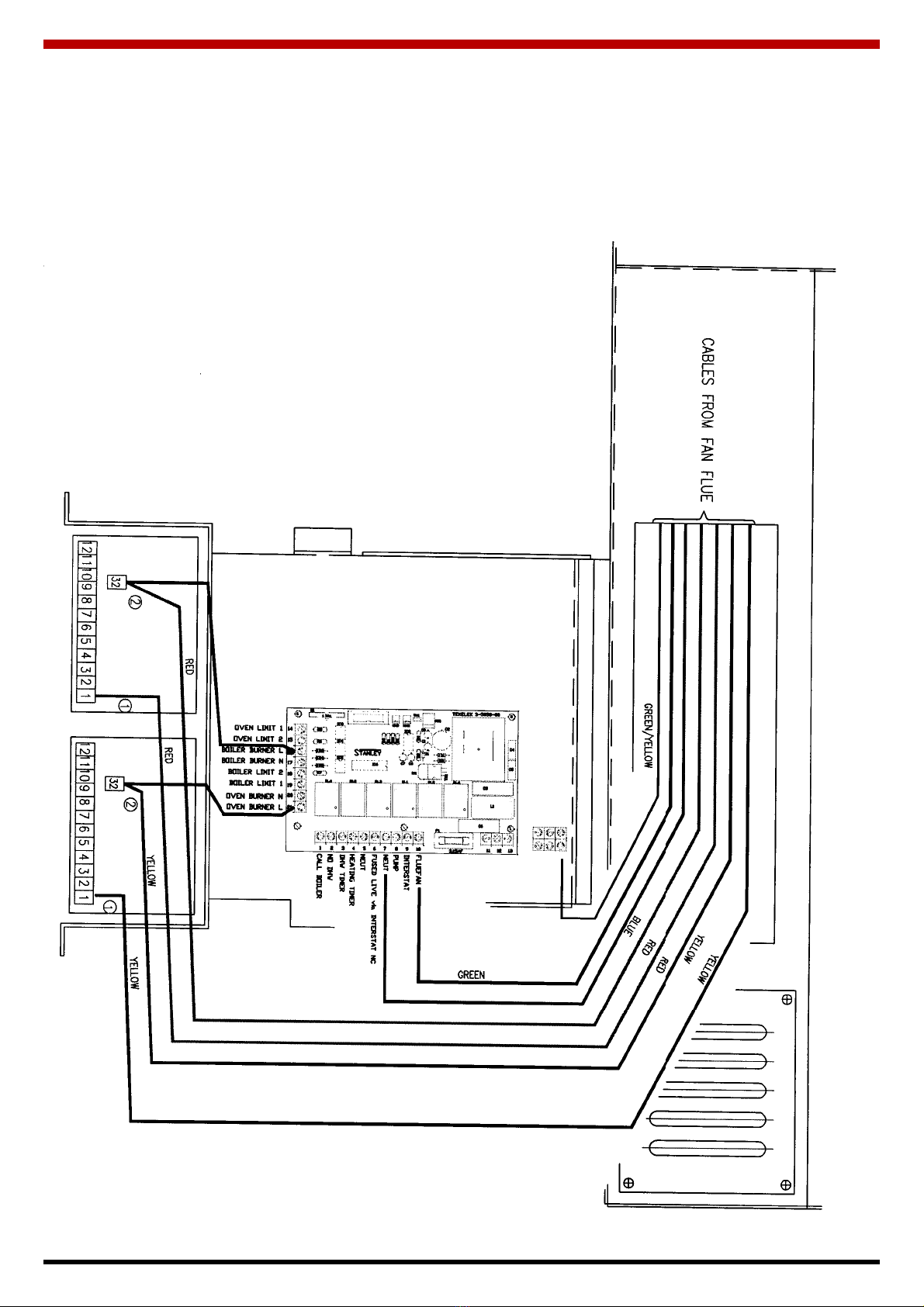

BRANDON FAN FLUE OIL WIRING DIAGRAM

Fig.8

Waterford Stanley Ltd,

Bilberry, Waterford, Ireland.

Telephone: (051) 302300

Facsimile: (051) 302375

N00370AXX
