Stack-On GCB-18C Manuel utilisateur

40112-1309

Record the key number and serial number from the back of the cabinet.

Keep keys in a secure place away from children.

Do not store this document in the cabinet

Portable Case

Instructions

GCB-18C

PARTS INCLUDED

Serial #:

Key #:

WARNING

Tip Over Hazard

A child or adult can tip the cabinet and be killed or

seriously injured.

Failure to secure the cabinet as shown in these

instructions can result in death or serious injury to

children and adults.

Children should not play with or around the

cabinet at any time.

NOTE: You can store your Key # and your Serial # information on

Stack-On’s SECURE web site – www.stack-on.com under Service.

Storing your Key # will provide instant access to this important

information, should you ever lose your keys or need the number to

order a new set.

Only you will have access to this information.

IMPORTANT:

Tools Required:

Phillips screwdriver

7/16” wrench

drill

3/16” drill bit

Scizzors

Hardware included:

(22) 8-32 x 1/2 machine screw

(22) 8-32 nut

(12) 8 x 1/2 screw

(4) 1/4 x 1-1/2 lag screw

(4) washers

PLASTIC PLUG

(QUANTITY 2)

FOAM PAD FOR BOTTOM

(QUANTITY 1)

FOAM FOR SHELF

(QUANTITY 4)

FOAM FOR TOP SHELF

(QUANTITY 1)

SHELF

(QUANTITY 4)

TOP SHELF

(QUANTITY 1)

CENTER PARTITION

(QUANTITY 1)

SCOPE REST

(QUANTITY 4)

5-POSITION BARREL REST

(QUANTITY 2)

4-POSITION BARREL REST

(QUANTITY 2)

PLANNING YOUR CABINET CONFIGURATION

Before assembling your cabinet, review the following storage options

this cabinet provides. Choose the options that best suit your storage

needs.

You will need to assemble all internal components before mounting the

cabinet to the wall and oor.

e partition and the top

shelf create the structure

for the le and right

storage compartments in

this cabinet. e space

behind the top shelf

provides clearance for

longer gun barrels.

THE BARREL RESTS MUST BE INSTALLED BEFORE

MOUNTING THE CABINET TO A WALL AND FLOOR.

INSTALLATION OF BARREL RESTS

PLANNING YOUR CABINET CONFIGURATION

On the outside and rear walls of the le and right compartments, you

can install barrel rests which will support (9) guns on each side.

e adjustable shelves can be mounted at (3) positions in the le or

right compartments. Notice that when the barrel rest is mounted to the

side of the cabinet, even when the shelving is installed, two of barrel

rest positions extend in front of the shelves which allow you to store

guns in front of the shelves.

Install the 4-position barrel rests (A) to the back of the cabinet and the

5-position barrel rests (B) to the sides of the cabinet as shown in gure 2.

read the screws into the pilot holes from the outside of the cabinet.

Align the holes of the barrel rest over the tips of the screws and lightly

press the barrel rest into place. Now tighten the screws from the

outside of the cabinet. Tighten each screw partially, alternating from

one screw to the other until they are both tight. Do not over tighten.

(See gure 1)

Installation of Barrel Rests

40112-1309

FRONT

FLANGE

FRONT

FLANGE

SHELVES MUST BE INSTALLED BEFORE MOUNTING THE

CABINET TO A WALL AND FLOOR.

INSTALLATION OF SHELVES Top Shelf Assembly

Center Partition Assembly

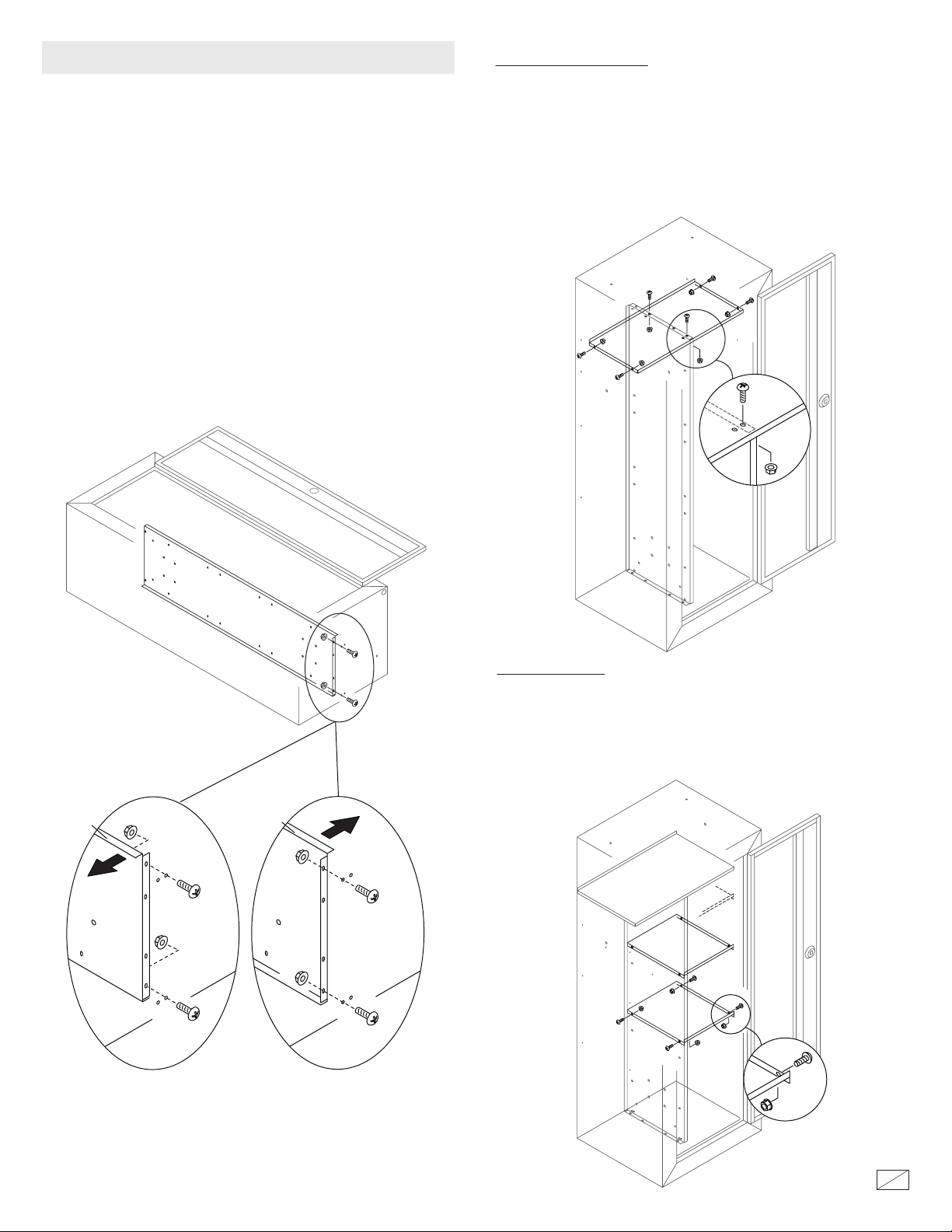

You have the choice of 3 locations for mounting the shelves. You also

have the choice of having the front ange of the shelf to point up or

down. Select a location and assemble each shelf to the center panel

and cabinet side using 4 nuts and bolts.

Shelf Assembly

Lay the cabinet on its back on a protective surface.

Install and tighten the 2 nuts and bolts as shown.

Position the Vertical Partition carefully to align the holes on the

boom. e Center Partition has two possible positions. You should

face the front ange towards the side you want to mount the shelves

(See illustration below). ere are also two sets of mounting holes.

Line up the boom ange of the Center Partition so that the vertical

wall of the Partition is centered between the mounting holes. is will

ensure that the partition is in the exact center of the cabinet, and that

there is proper spacing for the shelf installation on both sides.

40112-1309

e top shelf has 2 sets of holes for aaching the center partition. Use

the set of holes that will allow the partition to be centered between the

2 holes. is will ensure that there is proper spacing for the shelf

installation on both sides. Position the shelf so the front and side

anges point down. Assemble the top shelf to the center partition and

the sides of the cabinet using 6 nuts and bolts.

To assemble two shelves at the same height, assemble the shelves as

shown. It is important to note that you will be using the same screw to

support both shelves through the Center Partition.

Tip: It may be useful to work from the le side of the cabinet and work

towards the right side. We recommend not tightening the screws until

both your shelves are in place.

Side By Side Shelf Assembly

SELECTING A LOCATION

16"

CENTERS

CABINET

TOP VIEW

MINIMUM

e cabinet must be mounted to wall studs and the oor. For

optimal safety and security, the cabinet should be installed adjacent

to the side wall of a closet with minimal space on either side of the

cabinet, in an isolated, dry and secure area. e cabinet should be

at against the wall at the back of the unit, as well as at on the oor.

Remove the baseboard if necessary.

THE CABINET SHOULD ALWAYS BE KEPT OUT OF

THE REACH OF CHILDREN.

SECURING THE CABINET

NOTE: is cabinet must be mounted to wall studs and the

oor. Failure to do so will compromise the safety and security

of the cabinet.

Drill (2) 3/16" pilot holes into the wall studs lining up with the top

(2) mounting holes in the back of the cabinet. Secure the cabinet to

the wall using (2) lag bolts and washers.

Drill (2) pilot holes and secure the cabinet boom to the oor with

(2) lag bolts and washers.

NOTE: e cabinet must be secured to wall studs in the top holes

in the back of the cabinet so that it is anchored to the wall studs in

two locations. e cabinet must also be mounted to the oor. Use

the hardware provided or consult your hardware retailer for

fastening hardware for your particular mounting surfaces

Insert the plastic plugs in the cabinet's top mounting holes if you

are not installing the a Pistol-Ammo cabinet on the top of the

security cabinet.

Aer selecting the conguration that ts your needs, load the cabinet

with your guns and equipment. If you are satised with your cabinet

conguration, proceed with mounting the cabinet to the wall and oor

as described later in these instruction.

40112-1309

Before you install the cabinet to a wall and the oor, install the interior

components as described in the assembly instructions.

IMPORTANT

Keep keys away from children. Keep this record of your serial and

key numbers in a secure place separate from your security cabinet. If

you lose your keys you will need this information as a reference for

obtaining new keys. To order a replacement key set, follow the

instructions on the aached form.

INSTALLATION OF SCOPE STAND-OFF

FOAM INSTALLATION

NOTE: e scope stand-o will function properly for many

combinations of guns with scopes, in many dierent locations.

Screw the scope stand-o into the pilot hole of the barrel rest as needed.

0.75

10.25

Place the foam on the shelves and on the boom of the cabinet.

When the Center Partition is used, cut the boom foam as shown so

it ts around the partition.

40112-1309

STACK-ON PRODUCTS COMPANY

P.O. BOX 489

WAUCONDA, IL 60084

Key Request

“This is not a Registration Form”

Verification of ownership is required in order to receive replacement key for your security product.

In order to receive a replacement key to your security product:

1. Complete the following form and send to Stack-On Products.

2. Send a copy of your valid driver’s license along with the form.

3. Send a copy of the receipt showing the original purchase.

4. Security product owner must sign form.

5. Owner’s signature must be notarized.

6. Send $10.00 for replacement key. Personal Check, MasterCard, or Visa accepted.

7. Send completed information to:

Stack-On Products Company

1360 N. Old Rand Road

P.O. box 489

Wauconda, IL 60084

Serial Number______________________ Key Number (if applicable) _______

Unit Dimensions________________________________________

Unit Description___________________________________________________________

Owner’s Name ____________________________________ Date Purchased___/___/____

Owner’s Address ___________________________ Unit or Apt Number _________________

City ___________________________ State _______________ Zip Code________________

Telephone Number: (____)___________________ Fax Number: (____)___________________

Owner’s Email Address: ________________________________________________________

Owner’s Signature __________________________ Notary Signature________________

Notary Commission Expires: _____/_____/_____ Notary Stamp

SERVICE REQUESTED

Key Replacement: Yes No

$10.00 charge for this service

Credit Card Information (Please circle one) MasterCard Visa

Expiration Date: ___/___/___ Card Number:______________________________________

Credit Card Identification Number (Located on back of card, last 3 digits on signature strip)_________

9/07

NOTE: You can store your Key # and your Serial # information on Stack-On’s SECURE web site – www.stack-on.com under Service.

Storing your Key # will provide instant access to this important information, should you ever lose your keys or need the number to

order a new set.

Only you will have access to this information.

40112-1309

LIMITED ONE YEAR WARRANTY

STEEL CABINETS AND PISTOL CASES

Stack-On Products Co. (“Stack-On”) Steel Cabinets and Pistol Cases, are warranted to be free from

defects in material and workmanship for a period of one (1) year from the date of original purchase by a

consumer. This warranty extends to the initial consumer only.

If you believe there is a defect in material or workmanship in your Steel Cabinet or Pistol Case, during the

one-year warranty period, please contact our customer service department, by regular mail or email at the

address listed below, and include with your correspondence proof of purchase information and the model

number of the product.

Stack-On Products Company

1360 North Old Rand Road

Wauconda, IL 60084

[email protected]

If Stack-On is properly notified during the one-year warranty period and, after inspection confirms there is

a defect, Stack-On will, at its sole option, provide repair parts or exchange the product at no charge, or

refund the purchase price of the product.

THIS WARRANTY DOES NOT COVER ANY PRODUCT, OR ANY PART OF ANY PRODUCT, WHICH

HAS BEEN SUBJECT TO EXCESSIVE USE, ACCIDENT, NEGLIGENCE, ABUSE OR MISUSE,

INCORRECT MAINTENANCE, ALTERATION OR REPAIR BY ANYONE OTHER THAN STACK-ON. IN

ADDITION, THIS WARRANTY DOES NOT COVER ANY ACCESSORIES OR PARTS USED WITH OR IN

THE PRODUCT, WHICH ARE NOT INCLUDED WITH THE ORIGINAL PURCHASE.

THIS WARRANTY IS EXCLUSIVE AND EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES

EXPRESSED OR IMPLIED INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS

FOR A PARTICULAR PURPOSE, WHICH ARE HEREBY DISCLAIMED AND EXCLUDED. STACK-ON

SHALL NOT BE SUBJECT TO ANY OTHER OBLIGATIONS OR LIABILITIES. STACK-ON NEITHER

ASSUMES NOR AUTHORIZES ANY OTHER PERSON TO ASSUME FOR IT, ANY OTHER LIABILITY IN

CONNECTION WITH THE SALE OF STACK-ON’S STEEL CABINET OR PISTOL CASE.

STACK-ON WILL NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE TO THE INITIAL CONSUMER FOR

ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, EXEMPLARY, OR PUNITIVE DAMAGES ARISING

OUT OF THE PURCHASE OR USE OF ANY STACK-ON STEEL CABINET OR PISTOL CASE.

STACK-ON’S LIABILITY FOR ANY BREACH OF THIS WARRANTY SHALL BE LIMITED EXCLUSIVELY

TO REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT, AS DESCRIBED ABOVE, OR A

REFUND OF THE PURCHASE PRICE OF THE PRODUCT.

IN NO EVENT SHALL STACK-ON’S OBLIGATION UNDER THIS WARRANTY EXCEED THE PRICE OF

THE PRODUCT.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS

WHICH VARY FROM STATE TO STATE.

40112-1309

Portable Case

Instructions

GCB-18C

Outils requis :

Tournevis Phillips

Clé de 7/16 po

Perceuse

mèche de 3/16 po

Une paire de ciseaux

Matériel inclus:

(22) Vis Mécanique 8-32

(22) Écrou 8-32

(12) Vis 8 x 1/2

(4) Tire-fond 1/4 x 1-1/2

(4) Rondelle

APPUI À CANON

À 4 POSITIONS (2)

PLANIFICATION DE CABINET DE CONFIGURATION

Avant d'installer votre intérieur de l'armoire, vériez les options de

stockage suivantes ce cabinet fournit. Choisissez les options qui

conviennent le mieux à vos besoins de stockage.

Vous aurez besoin de rassembler tous les composants internes avant de

monter l'armoire au mur et au sol.

La partition et l'étagère

du haut créent la

structure des

compartiments de

rangement gauche et

droite dans ce cabinet.

L'espace derrière

l'étagère du haut ore un

dégagement pour les

canons longs.

No de clé :

No de série :

Risque de basculement

Un enfant ou un adulte peut faire basculer le cabinet,

ce qui peut causer la mort ou une blessure grave.

Le fait de ne pas fixer le cabinet tel qu’illustré dans les

présentes instructions peut causer la mort ou des

blessures graves aux enfants et aux adultes.

Les enfants ne doivent pas jouer avec le coffre ni

autour du coffre.

Notez le numéro de clé et le numéro de série à l'arrière de l'armoire.

Tenez les touches dans un endroit sûr, loin des enfants.

Ne pas stocker ce document dans l'armoire.

NOTE : Vous pouvez enregistrer les renseignements relatifs à vos nº

de clés et nº de série sur le site Web sécurisé de Stack-On –

www.stack-on.com, à la rubrique Service

Une fois que vous aurez enregistré vos nº de clés, vous pourrez

accéder instantanément à ces renseignements essentiels, au cas où

vous perdriez vos clés ou auriez besoin d’en commander un nouveau

jeu.

Vous seul pourrez accéder à ces informations.

IMPORTANT:

APPUI POUR

LUNETTE DE VISÉE

(4)

APPUI À CANON

À 5 POSITIONS (2)

BOUCHON DE

PLASTIQUE (2)

CLOISON

CENTRALE (1)

ÉTAGÈRE DU

HAUT (1)

ÉTAGÈRE (4)

REVÊTEMENT EN MOUSSE

POUR L’ÉTAGÈRE DU HAUT

(1)

REVÊTEMENT EN

MOUSSE POUR

ÉTAGÈRE (4)

REVÊTEMENT EN MOUSSE

POUR LE FOND (1)

PIÈCES INCLUSES

IL FAUT POSER LES APPUIS À CANON AVANT DE FIXER

L’ARMOIRE AU MUR ET PLANCHER.

POSE DES APPUIS À CANON

Sur les murs extérieurs et à l'arrière des compartiments gauche et à

droite, vous pouvez installer repose baril qui soutiendront 9 canons de

chaque côté.

Les étagères réglables peuvent être montées à 3 positions dans les

compartiments à gauche ou à droite. Remarquer que lorsque le support de

fusil est montée sur le côté de l'armoire, même lorsque le rayonnage est installé,

deux positions de support de fusil s'étendent en avant des étagères qui

permeent de stocker deux fusils devant les étagères.

Installation des appuis à canon

40112-1309

PLANIFICATION DE CABINET DE CONFIGURATION

Installez l'appui à canon à 4 positions (A) à l'arrière de l'armoire et

l'appui à canon à 5 positions (B) sur les côtés de l'armoire, comme

à la gure 2.

Insérez les vis dans les avant-trous à partir de l'extérieur de l'armoire.

Alignez les trous de l'appui à canon par-dessus la pointe des vis et

appuyez légèrement sur l'appui à canon pour le mere en place.

Resserrez maintenant les vis à partir de l'extérieur de l'armoire. Resserrez

chaque vis partiellement, en alternant d'une vis à l'autre jusqu'à ce

qu'elles soient toutes bien serrées. Évitez de trop les serrer. ((gure 1)

LES ÉTAGÈRES DOIVENT ÊTRE POSÉES AVANT DE FIXER

L’ARMOIRE AU MUR ET PLANCHER.

POSE DES ÉTAGÈRES Pose de l’étagère du haut

Cloison centrale

Vous avez le choix entre 3 emplacements pour monter les étagères.

Vous avez également le choix d'avoir la bride avant de la tablee pour

pointer vers le haut ou vers le bas. Choisissez un emplacement et

d'assembler chaque étagère pour le panneau central et le côté de

l'armoire au moyen de 4 vis et écrous.

Pose des étagères

Posez l’armoire sur le dos sur une surface protégée.

Installer et serrer les 2 écrous et des boulons, comme illustré.

Placez la cloison verticale avec soin an d’aligner les trous dans le fond.

On peut poser la cloison centrale de deux façons. Vous pouvez orienter

la bordure avant vers le côté où vous souhaitez xer les étagères

(comme illustré). Il y a également deux ensembles de trous de xation.

Alignez la bordure inférieure de la cloison centrale pour que la paroi

verticale soit centrée entre les trous de xation. Ainsi, la cloison sera

exactement au centre de l’armoire et il y aura susamment d’espace

pour poser les étagères des deux côtés.

40112-1309

Le plateau supérieur a 2 jeux de trous pour xer la cloison centrale.

Utilisez l'ensemble des trous qui permeront à la partition à être

centré entre les 2 trous. Cela permera d'assurer qu'il y ait un

espacement adéquat pour l'installation du plateau des deux côtés.

Positionner la tablee de sorte que le devant et le côté brides pointe

vers le bas. Assemblez l'étagère du haut de la cloison centrale et les

côtés de l'armoire à l'aide de 6 vis et écrous.

BORDURE

AVANT

BORDURE

AVANT

Table des matières

Langues :

Autres manuels Stack-On Sûr

Stack-On

Stack-On PC-650 Manuel utilisateur

Stack-On

Stack-On SHD-SU-BG-B Manuel utilisateur

Stack-On

Stack-On QAS-1514-B Manuel utilisateur

Stack-On

Stack-On TDS-42-SG-E-S Manuel utilisateur

Stack-On

Stack-On ASC-1416 Manuel utilisateur

Stack-On

Stack-On PS-1514 Manuel utilisateur

Stack-On

Stack-On PS-7-B Manuel utilisateur

Stack-On

Stack-On TDS-42-SG-E-S Manuel utilisateur

Stack-On

Stack-On A-64-MB-E-S-72 Manuel utilisateur

Stack-On

Stack-On E-69-MB-B-S Manuel utilisateur

Stack-On

Stack-On GCB-1522 Manuel utilisateur

Stack-On

Stack-On PC-95K-RTX Manuel utilisateur

Stack-On

Stack-On TD14-22-GP-C-S Manuel utilisateur

Stack-On

Stack-On SECURITY PLUS GC-908-5 Manuel utilisateur

Stack-On

Stack-On Buck Commander BC-18-MB-E-S Manuel utilisateur

Stack-On

Stack-On PC-1702-RFID Manuel utilisateur

Stack-On

Stack-On PS-15-05-B Manuel utilisateur

Stack-On

Stack-On QAS-450 Manuel utilisateur

Stack-On

Stack-On W-60-BH-E-S Manuel utilisateur

Stack-On

Stack-On SS-22-MB-C Manuel utilisateur

Stack-On

Stack-On TD14-22-GP-E-S Manuel utilisateur

Stack-On

Stack-On PFS-012-BG-E Manuel utilisateur

Stack-On

Stack-On TD5518-24-GP-E-S Manuel utilisateur

Stack-On

Stack-On PWS-1555 Manuel utilisateur

Manuels Sûr populaires d'autres marques

Squire

Squire Stronghold Keysafe Manuel utilisateur

Phoenix

Phoenix FS0352C Fiche d'information produit

Phoenix

Phoenix KS0030E Series Manuel utilisateur

Vaultek

Vaultek 10 Series Fiche technique

Arregui

Arregui CLASS Manuel utilisateur

Beaumont

Beaumont SMART KEYBOX Manuel utilisateur

Honeywell

Honeywell 2077D - 1.21 Cubic Foot Anti-Theft Safe Manuel utilisateur

Hornady

Hornady SnapSafe Trunk Safe II Manuel utilisateur

SPORTS AFIELD

SPORTS AFIELD SA-HD5-BIO Manuel utilisateur

Honeywell

Honeywell 5912 Manuel utilisateur

Phoenix

Phoenix FS1280F Manuel utilisateur

Phoenix

Phoenix SS0992K Fiche d'information produit

Technomax

Technomax Trony Series Manuel

SPORTS AFIELD

SPORTS AFIELD INSTINCT BIOMETRIC Series Manuel utilisateur

RICHTER CZECH

RICHTER CZECH LA Manuel d'utilisation

Olymp

Olymp GOsafe 110 Manuel utilisateur

Phoenix

Phoenix SS0100E Fiche d'information produit

Clarke

Clarke Strong-Arm CS1000K Mode d’emploi
