Introduction

The X-NUCLEO-S2915A1 expansion board is based on the S2-LP radio and operates in the 915 MHz ISM frequency band.

The expansion board is compatible with ST morpho and Arduino UNO R3 connectors.

The X-NUCLEO-S2915A1 interfaces with the STM32 Nucleo microcontroller via SPI connections and GPIO pins. You can

change some of the GPIOs by mounting or removing the resistors.

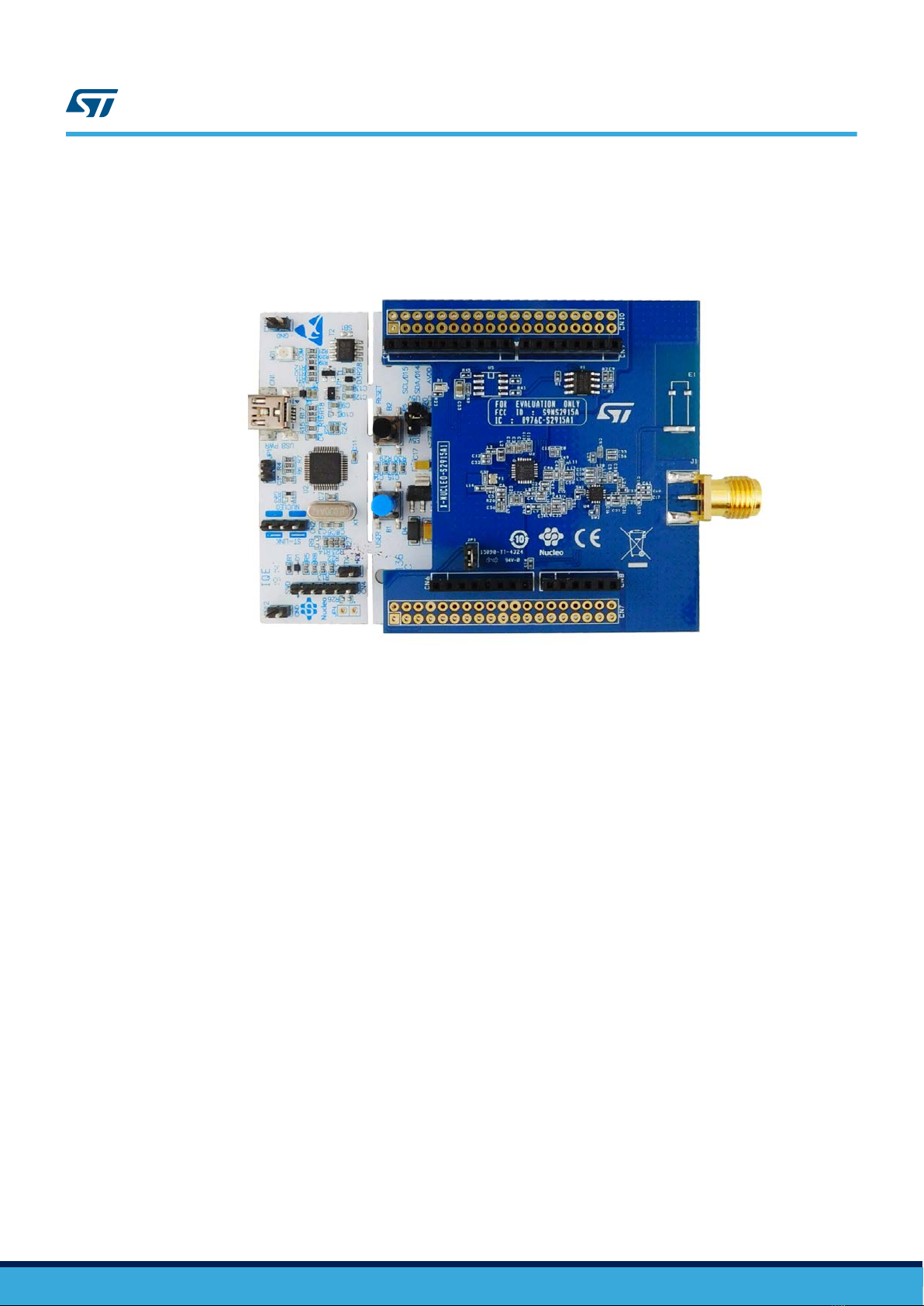

Figure 1. X-NUCLEO-S2915A1 expansion board

Getting started with the X-NUCLEO-S2915A1 Sub-1 GHz 915 MHz RF expansion

board based on S2-LP radio for STM32 Nucleo

UM2641

User manual

UM2641 - Rev 1 - November 2019

For further information contact your local STMicroelectronics sales office. www.st.com

1Acronyms and abbreviations

Table 1. List of acronyms

Acronym Description

AMR Automatic meter reading

EEPROM Electrically erasable programmable read only memory

GHz Giga Hertz

GUI Graphical user interface

LED Light emitting diode

MCU Microcontroller unit

P2P Point-to-point communication

RF Radio frequency communication

SPI Serial peripheral interface

USB Universal serial bus

wM-Bus Wireless metering bus

WSN Wireless sensors network

UM2641

Acronyms and abbreviations

UM2641 - Rev 1 page 2/20

2Getting started

2.1 Overview

The X-NUCLEO-S2915A1 main features are:

•Based on S2-LP radio

•S2-LP narrow band ultra-low power sub-1 GHz transceiver tuned for 860-940 MHz frequency band

• Programmable RF output power up to +27 dBm

• Modulation schemes: 2-FSK, 2-GFSK, 4-FSK, 4-GFSK, OOK and ASK

• Air data rate from 0.1 to 500 kbps

• Ultra-low power consumption: 7 mA RX and 10 mA TX at +10 dBm

• IEEE 802.15.4g hardware packet support with whitening, FEC, CRC and dual SYNC word detection

• RX and TX 128 byte FIFO buffers

• Support to wireless M-Bus

• Excellent performance of receiver sensitivity (up to -130 dBm)

• Automatic acknowledgement, retransmission and timeout protocol engine

• Compatible with STM32 Nucleo boards

• Compatible with Arduino UNO R3 connectors

• Sigfox compatible

• Sample firmware for P2P communication

• 6LoWPAN compatible thanks to STM32Cube

• FCC ID: S9NS2915A

• IC ID: 8976C-S2915A1

• RoHS and WEEE compliant

2.2 Typical applications

The X-NUCLEO-S2915A1 expansion board can be used for the evaluation of the S2-LP device in multiple

applications:

•wM-Bus application

• Point-to-point communication protocol

• 6LoWPAN applications

• SigFox communication

You can develop other applications for evaluating the devices, such as:

• Automatic meter reading

• Home and building automation

• WSN

• Industrial monitoring and control

• Wireless fire and security alarm systems

UM2641

Getting started

UM2641 - Rev 1 page 3/20

2.3 Hardware and software requirements

To use STM32 Nucleo development boards with the X-NUCLEO-S2915A1 expansion board, connect the boards

as shown below.

Figure 2. X-NUCLEO-S2915A1 expansion board connected to an STM32 Nucleo development board

The interconnection between the STM32 Nucleo and the X-NUCLEO-S2915A1 has been designed to allow using

any STM32 Nucleo board, although complete testing has been performed using NUCLEO-L053R8, NUCLEO-

F401RE and NUCLEO-L152RE boards hosting the ultra-low power STM32.

The following software and hardware specifications are required:

• a PC/laptop with Microsoft Windows (7 and above) to install the software package (X-CUBE-SUBG1)

• a type A USB to mini-B USB cable to connect the STM32 Nucleo board to the PC/laptop

• 128 MB of RAM

• Approximately 40 MB of hard disk space for the firmware

• Approximately 15 MB of hard disk space for the wM-Bus GUI

The use of the wM-Bus concentrator with the GUI requires additional boards to be connected to the PC. The GUI

can be used to check the wM-Bus communication protocol.

2.4 Board setup

Step 1. Check that the jumper on JP1 connector is connected to provide the required voltage to the board

devices.

Step 2. Connect the X-NUCLEO-S2915A1 to the STM32 Nucleo board.

Step 3. Power the Nucleo development board using the Mini-B USB cable.

Step 4. Program the firmware in the STM32 on the Nucleo development board using the firmware sample

provided.

Step 5. Reset the MCU board using the reset button on the Nucleo development board.

The evaluation kit is ready-to-use.

UM2641

Hardware and software requirements

UM2641 - Rev 1 page 4/20

3Hardware description and configuration

3.1 Interconnection details

The X-NUCLEO-S2915A1 expansion board and the NUCLEO-F401RE or NUCLEO-L152RE board connection

details are listed in the table below.

Table 2. X-NUCLEO-S2915A1 and NUCLEO-L152RE connection details (left connector)

Signal name

NC IOREF RESET 3V3 5VGND GND VIN A0 A1 A2 A3 A4 A5

Connector name

CN6 Power CN8 Analog

Pin number

1 2 3 4 5 6 7 8 1 2 3 4 5 6

NUCLEO-L152RE MCU port

PA0 PA1 PA4 PB0 PC1 PC0

X-NUCLEO-S2915A1 expansion board signals

3V3 GND GND GPIO0 CSN GPIO1 GPIO2 GPIO0(1) GPIO3

1. Optional connection.

Table 3. X-NUCLEO-S2915A1 and NUCLEO-L152RE connection details (right connector)

Signal name

D15 D14 AREF GND D13 D12 D11 D10 D9 D8 D7 D6 D5 D4 D3 D2 D1 D0

Connector name

CN5 Digital CN9 Digital

Pin number

10 9 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1

NUCLEO-L152RE MCU port

PB8 PB9 PA5 PA6 PA7 PB6 PC7 PA9 PA8 PB10 PB4 PB5 PB3 PA10 PA2 PA3

X-NUCLEO-S2915A1 expansion board signals

SCL SDA GND SPI_C

LK(1)

SPI_MI

SPI_M

OSI

SPI_C

SN(1) nS(1) SDN SDN(1) nS SPI_

CLK

1. Optional connection.

3.2 SPI and GPIO connection options

The SPI and GPIO connection options between the STM32 Nucleo and S2-LP can be used to enable different

configurations in case a signal conflict occurs when using other expansion boards.

Table 4. S2-LP interface with STM32 Nucleo board

S2-LP signal Default STM32 port Optional STM32 port

CSn PA1 PB6

To use the optional connection, mount R9, unmount R13

UM2641

Hardware description and configuration

UM2641 - Rev 1 page 5/20

S2-LP signal Default STM32 port Optional STM32 port

CLK PB3 PA5

To use the optional connection, mount R6, unmount R11

nS PB4 PA9

To use the optional connection, mount R7, unmount R19

SDN PA8 PB10

To use the optional connection, mount R18, unmount R10

To use the optional connections, modify the firmware on the basis of the STM32 resources used.

Table 5. SKY66420 power amplifier settings

SKY66420 SW1 SW2

LNA ON (default) 100 pF capacitor between pin1 and pin2 (pin1 and

pin3 open)

100 pF capacitor between pin1 and pin3 (pin1 and

pin2 open)

LNA OFF 100 pF capacitor between pin1 and pin3 (pin1 and

pin2 open)

100 pF capacitor between pin1 and pin2 (pin1 and

pin3 open)

Table 6. SKY66420 interface with STM32 Nucleo board

SKY66420 signal Default STM32 port Optional STM32 port

GPIO0 PA0 PC1

To use optional connection mount R25, unmount R12

GPIO1 PA4 N.A.

GPIO2 PB0 N.A.

3.3 Current measurement

To monitor the X-NUCLEO-S2915A1 expansion board power consumption, use jumper J1: connect an ammeter

probe between the connector pins 1 and 2 for measurements.

3.4 X-NUCLEO-S2915A1 component placement details

The figure below shows the component placement on the X-NUCLEO-S2915A1 expansion board.

UM2641

Current measurement

UM2641 - Rev 1 page 6/20

Figure 3. X-NUCLEO-S2915A1 on-board device placement

1. Arduino UNO R3 left connector

2. Arduino UNO R3 right connector

3. S2-LP

4. SKY66420

UM2641

X-NUCLEO-S2915A1 component placement details

UM2641 - Rev 1 page 7/20

4X-NUCLEO-S2915A1 on-board device description

4.1 S2-LP radio

The X-NUCLEO-S2915A1 expansion board is based on the S2-LP standalone RF transceiver. It operates in the

915 MHz ISM frequency band and wireless M-Bus.

S2-LP narrow band ultra-low power sub-1 GHz transceiver is tuned for 430-470 MHz and 860 - 940 MHz,

frequency bands and programmable RF output power up to +16 dBm.

Table 7. S2-LP details

Features Description

Order code S2-LPQTR

Package QFN24 4x4x1

Operating voltage 1.8 to 3.6 V

4.2 SPI EEPROM

The M95640-R is a 64 Kbit serial SPI bus EEPROM with high-speed clock interface. The device can be used to

store the configuration parameters related to S2-LP RF device application or settings.

Features Description

Order code M95640-RMC6TG

Package MLP8

Operating voltage 1.8 to 5.5 V

UM2641

X-NUCLEO-S2915A1 on-board device description

UM2641 - Rev 1 page 8/20
