ST X-NUCLEO-OUT01A1 Manuel utilisateur

June 2017

DocID030568 Rev 1

1/17

www.st.com

UM2209

User manual

Getting Started with X-NUCLEO-OUT01A1 industrial digital

output expansion board for STM32 Nucleo

Introduction

The X-NUCLEO-OUT01A1 industrial digital output expansion board for STM32 Nucleo is based on the

ISO8200BQ galvanic isolated octal high-side smart power solid state-relay.

It provides an affordable and easy-to-use development platform for implementing galvanic insulation in

industrial power switch driver applications.

The board can be plugged onto an STM32 Nucleo development board (NUCLEO-F103RB, NUCLEO-

F302R8 or NUCLEO-F401RE) via its Arduino®UNO R3 connectors.

Other boards can also be stacked to further expand functionality: industrial PLC functionality with 8

inputs and 16 outputs can be added with the X-NUCLEO-PLC01A1 expansion board, and the X-

NUCLEO-IDW01M1 expansion board adds wireless communication functionality for remote PLC

management, which is enhanced by the ST-PLC Android™ or iOS™ app.

This board is designed to comply with applicable industrial EMC standards.

Figure 1: X-NUCLEO-OUT01A1 expansion board

Contents

UM2209

2/17

DocID030568 Rev 1

Contents

1Getting started.................................................................................5

1.1 Hardware requirements.....................................................................5

1.2 System requirements........................................................................6

2X-NUCLEO-OUT01A1 expansion board overview.........................7

2.1 Digital section....................................................................................7

2.2 Power section....................................................................................8

2.3 Direct access and synchronised access ...........................................9

2.4 Powering and initializing the board..................................................10

3Schematic diagrams......................................................................11

4Bill of materials..............................................................................13

5References.....................................................................................15

6Revision history ............................................................................16

UM2209

List of tables

DocID030568 Rev 1

3/17

List of tables

Table 1: ISO8200BQ access modes ..........................................................................................................9

Table 2: Bill of materials............................................................................................................................13

Table 3: Document revision history ..........................................................................................................16

List of figures

UM2209

4/17

DocID030568 Rev 1

List of figures

Figure 1: X-NUCLEO-OUT01A1 expansion board.....................................................................................1

Figure 2: X-NUCLEO-OUT01A1 plugged on an STM32 Nucleo board......................................................5

Figure 3: STM32 Nucleo development board plus X-NUCLEO-OUT01A1 expansion board layout and

connection...................................................................................................................................................7

Figure 4: X-NUCLEO-OUT01A1 expansion board digital interface components.......................................8

Figure 5: X-NUCLEO-OUT01A1 expansion board power section components.........................................9

Figure 6: Schematic diagram (1 of 2) .......................................................................................................11

Figure 7: Schematic diagram (2 of 2) .......................................................................................................12

UM2209

Getting started

DocID030568 Rev 1

5/17

1 Getting started

1.1 Hardware requirements

The X-NUCLEO-OUT01A1 is designed to be used with the following STM32 Nucleo boards

(visit www.st.com for further information):

NUCLEO-F103RB

NUCLEO-F302R8

NUCLEO-F401RE

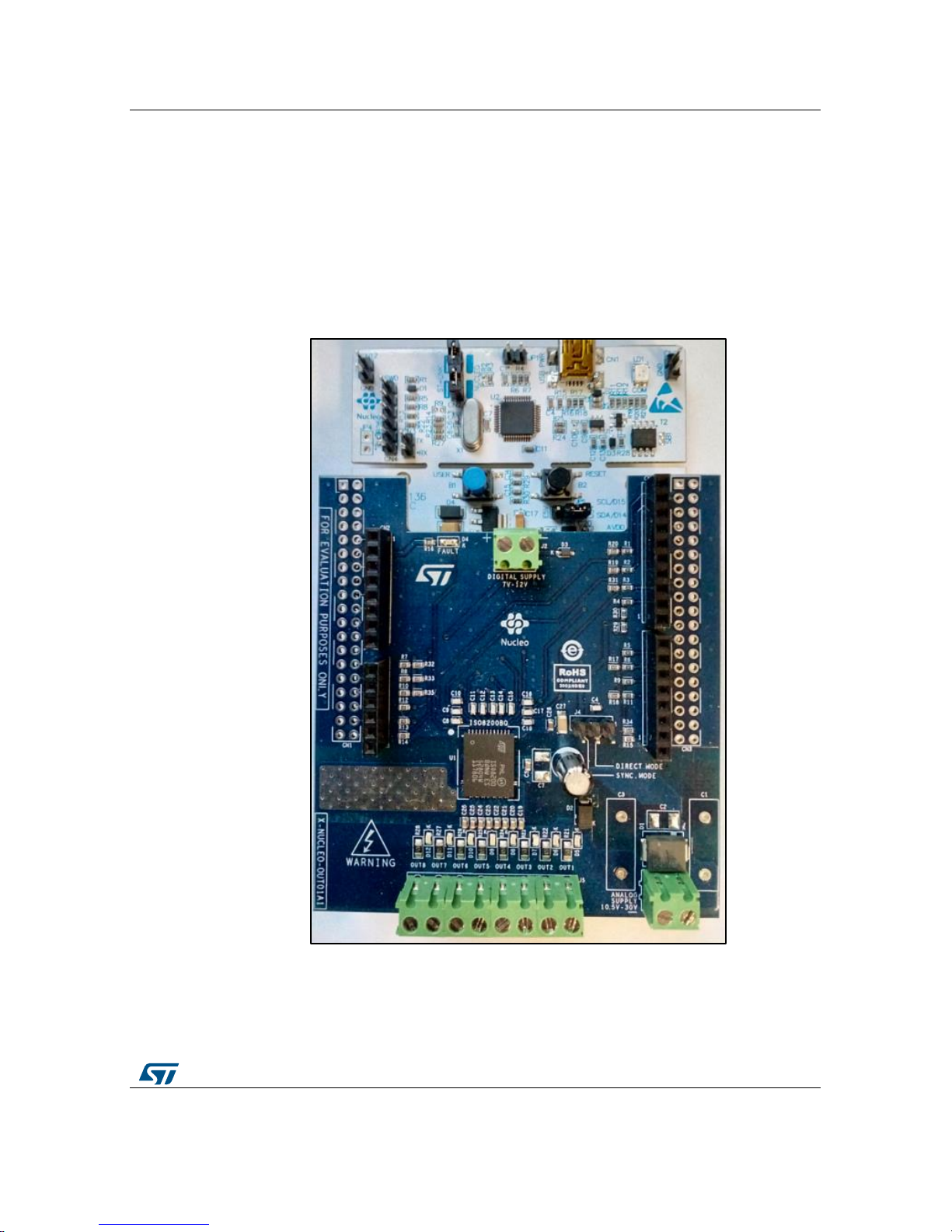

Figure 2: X-NUCLEO-OUT01A1 plugged on an STM32 Nucleo board

The X-NUCLEO-OUT01A1 is plugged onto the matching Arduino® UNO R3 connector pins

on the STM32 Nucleo board.

Getting started

UM2209

6/17

DocID030568 Rev 1

1.2 System requirements

To complete the system, you need:

a Windows®(version 7 or above) PC

a USB type A to mini-B USB cable to connect the STM32 Nucleo to the PC

the X-CUBE-OUT1 board firmware and software package installed on the user PC

UM2209

X-NUCLEO-OUT01A1 expansion board overview

DocID030568 Rev 1

7/17

2 X-NUCLEO-OUT01A1 expansion board overview

The X-NUCLEO-OUT01A1 is equipped with the ISO8200BQ intelligent power switch (IPS),

featuring galvanic insulation for safe digital microcontroller interface and overcurrent and

over temperature protection for safe output load control.

Figure 3: STM32 Nucleo development board plus X-NUCLEO-OUT01A1 expansion board

layout and connection

The X-NUCLEO-OUT01A1 expansion board features:

Industrial programmable logic controller (PLC ) functionality for STM32 Nucleo

ISO8200BQ galvanic isolated octal high-side smart power solid state-relay:

voltage range: 10.5 V to 30 V

max. output current per channel IOUT = 0.7 A

status LEDs: Fault, thermal protection

Arduino®UNO R3 connector compatibility

compliance with EMC standards:

IEC61000-4-2: 8kV Contact Discharge and 15kV Air discharge

IEC61000-4-3: 4kV Discharge on output and supply line

IEC61000-4-5: 2kV Discharge on output and supply line

specifically designed for STM32 Nucleo development boards

RoHS compliance

As this is a digital output solution, each output state is managed at the

microcontroller level; indeed, the X-NUCLEO-OUT01A1 has no input stage and

no sensors can be connected to the expansion board.

2.1 Digital section

The digital section is associated with the STM32 interface and digital supply voltage to and

from the expansion board.

X-NUCLEO-OUT01A1 expansion board overview

UM2209

8/17

DocID030568 Rev 1

Figure 4: X-NUCLEO-OUT01A1 expansion board digital interface components

The four Arduino®UNO R3 connectors:

allow expansion board ISO8200QB communication with the STM32 Nucleo board

microcontroller and access to STM32 peripheral and GPIO resources.

provide digital supply voltage between the STM32 Nucleo development board and the

X-NUCLEO-OUT01A1 expansion board, in either direction.

To provide an external digital supply:

close jumper JP5 between pins 2 and 3 on the STM32 Nucleo development board

connect a 7 V to 12 V supply at screw connector J2 on the X-NUCLEO-OUT01A1

expansion board

2.2 Power section

The power section involves the power supply voltage, load connection and Electromagnetic

compatibility (EMC) protections.

UM2209

X-NUCLEO-OUT01A1 expansion board overview

DocID030568 Rev 1

9/17

Figure 5: X-NUCLEO-OUT01A1 expansion board power section components

For EMC:

a Transil™ diode SMC30J30CA is placed on VCC track to protect the ISO8200BQ

against surge discharge

for common mode surge testing, solder two single-layer capacitors C1 and C3 (not

included) at the predisposed locations

22 nF capacitors are included on the output lines for burst disturbance filtering

To supply the load, connect the supply voltage to the J1 2-way screw connector.

The load is connected to the 8-way output.

2.3 Direct access and synchronised access

Supplementary direct access and synchronized access routines are provided to allow

further evaluation of ISO8200BQ IC functionality.

Table 1: ISO8200BQ access modes

Access mode

Configuration

Direct access

connect the center pin of J4 to GND

Synchronous access

connect the center pin of jumper J4 to 3.3 V

Once the selection is configured, push the blue user button on the STM32 Nucleo

development board to begin evaluation.

X-NUCLEO-OUT01A1 expansion board overview

UM2209

10/17

DocID030568 Rev 1

2.4 Powering and initializing the board

To start working with the X-NUCLEO-OUT01A1 board:

1. connect the micro-USB cable to your PC

2. download the firmware version onto the microcontroller

3. set the following jumper configurations on the STM32 Nucleo board:

Close jumpers SB62 and SB63

Open jumpers SB13 and SB14

4. connect the ISO8200BQ device supply voltage via J1 on the X-NUCLEO-OUT01A1

5. provide the digital supply voltage:

when connected to a PC: keep the micro-USB cable connected and close

jumper JP5 on the STM32 Nucleo board between pins 1 and 2.

in standalone mode: supply an external 7 V to 12 V via J2 on the X-NUCLEO-

OUT01A1 and close jumper JP5 on the STM32 Nucleo board between pins 2 and

6. connect the load on the output connector

7. run the STM32 and push the blue button on STM32 Nucleo board to select the

example provided in the firmware package
