ST X-NUCLEO-IDB04A1 Manuel utilisateur

May 2015

DocID026260 Rev 3

1/5

For further information contact your local STMicroelectronics sales

office

www.st.com

X-NUCLEO-IDB04A1

Bluetooth low energy expansion board based on BlueNRG for

STM32 Nucleo

Data brief

Features

BlueNRG low power, low energy Bluetooth

network coprocessor

BALF-NRG-01D3 balun & harmonic filter

Free comprehensive development firmware

library and example for BlueNRG,

compatible with STM32Cube firmware

Bluetooth low energy 4.0 master and slave

compliant

Compatible with STM32 Nucleo boards

Equipped with Arduino UNO R3 connector

Very low power consumption: 7.3 mA RX

and 8.2 mA TX at +0 dBm

Maximum transmission power: +8 dBm

Excellent receiver sensitivity (-88 dBm)

X-NUCLEO-IDB04A1 is FCC certified (FCC

ID: S9NIDB04A1)

X-NUCLEO-IDB04A1 is officially certificated

as a BTLE 5mW module for Japan Radio

Law “TYPE” Certification by Japan

government

RoHS compliant

Description

The X-NUCLEO-IDB04A1 is a Bluetooth low

energy evaluation board to allow expansion of

the STM32 Nucleo boards. It is compatible with

the Arduino UNO R3 connector layout, and is

designed around BlueNRG, a Bluetooth low

energy, low power network coprocessor

compliant with BTLE 4.0 and the BALF-NRG-

01D3, an ultra miniature balun optimized for ST

BlueNRG RF IC, which integrates matching

network and harmonics filter. The X-NUCLEO-

IDB04A1 interfaces with the STM32 MCU via SPI

pin, and the user can change the default SPI

clock, the SPI chip select and SPI IRQ by

changing one resistor on the evaluation board.

The excellent performance of BlueNRG and the

best matching between BlueNRG and BALF-

NRG-01D3, X-NUCLEO-IDB04A1 passed the RF

TEST for Japan Radio Law certification with

higher margin above the specification values as

well as it is FCC certified (FCC ID: S9NIDB04A1).

Formal Notices Required by the U.S. Federal

Notices Required by the U.S. Federal

Communications Commission (“FCC”)

X-NUCLEO-IDB04A1

2/5

DocID026260 Rev 3

1 Formal Notices Required by the U.S. Federal Notices

Required by the U.S. Federal Communications

Commission (“FCC”)

Any changes or modifications to this equipment not expressly approved by

STMicroelectronics may cause harmful interference and void the user’s authority to operate

this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) this device may not cause harmful interference, and (2)

this device must accept any interference received, including any interference that may

cause undesired operation. This device uses, generates and radiated radio frequency

energy. The radio frequency energy produced by this device is well below the maximum

exposure allows by Federal Communications Commission (FCC). The X-NUCLEO-

IDB04A1 is FCC certified (FCC ID: S9NIDB04A1).

Figure 1: Functional block diagram

GSPG1105150930SG

PCB Antenna

Antenna tuning circuit

(BALF-NRG-01D3)

STM32L

Microcontroller

JTAG Connector

BlueNRG

SPI Bus

(2Mbps)

32MHz

X-NUCLEO-IDB04A1

Schematic diagram

DocID026260 Rev 3

3/5

2 Schematic diagram

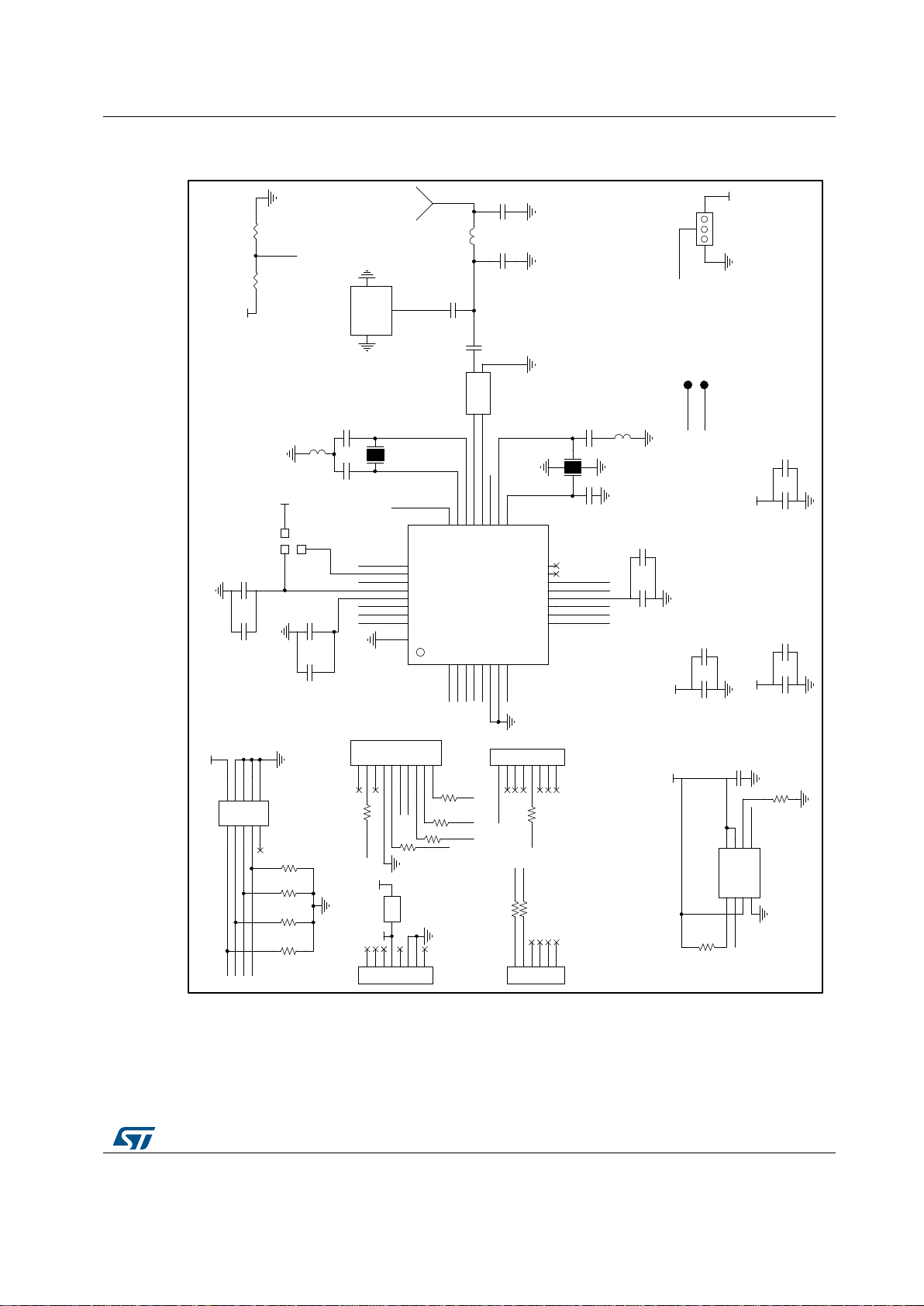

Figure 2: Circuit schematic

Solder a 10u_0805 between 1-2

or a 0R0_0805 between 1-3

Male Connector2x5

PCB Meander Antenna

Notmounted

Not mounted

Not mounte d

Notmounted

VBAT1

NO_SMPS

CLK

MOSI

MISO

RST

MOSI

CLK

IRQ

MISO

CSN

VBAT2VBAT3

TEST10

VBAT3

TEST5

TEST6

TEST7

TEST4

TEST10

TEST5

TEST4

TEST6

TEST7

VBAT2

TEST8

TEST9

MOSI

MISO

RST

CLK

IRQ

CSN

IRQ

TEST9

TEST1

VDD

VDDVDD

VDD

3V3

VDD

3V3VDD

Jumper2

122

C15

100p_0402_COG

C23

100n_0402_X7R

C14

15p_0402_COG

R13

BALF-NRG-01D3

3A2 2

A1 1C27

56p

R17 0

TBD_0402

LF-XTAL

100k_0402

22p_0402_COG

TEST9

JP1

TEST10

C22

1u_0402_X5R

J2 U.FL connector

GND

SIG 2

GND3

L1 TBD_0402

CN6

CON8

150n_0402_X5R

C21

100n_0402_X7R

C17

1u_0402_X5R

R16

BlueNRG

SPI_MOSI

SPI_CLK

SPI_IRQ

TEST1

VBAT3

TEST2

TEST3

TEST4

TEST5 9

TEST6 10

TEST7 11

VDD1V8 12

FXTAL0 18

FXTAL1 17

TEST12 16

TEST11 15

TEST9 14

TEST8 13

VBAT124

SXTAL0 23

SXTAL1 22

RF021

RF120

VBAT219

GND

RESETN

25 SMPSFILT1

26 NO_SMPS

27 SMPSFILT2

28 VDD1V2

29 TEST10

30 SPI_CS

31 SPI_MISO

L2 TBD_0402

C2456p

R14

C13

15p_0402_COG

100n_0402_X7R

1u_0402_X5R

CN5

CON10

C18

100n_0402_X7R

C19

100n_0402_X7R

R11

CN9

CON8

Test connector

C26

TBD_0402_COG

22p_0402_COG

10k_0402

R10

C20

1u_0402_X5R

C25

TBD_0402_COG

CN8

CON6

C16

100n_0402_X7R

100p_0402_COG

HF-XTAL

100k_0402

M95640

Vss

Vcc8

nHOLD 7

TEST8

R12 0

R150

GSPG1105151045SG

Revision history

X-NUCLEO-IDB04A1

4/5

DocID026260 Rev 3

3 Revision history

Table 1: Document revision history

Date

Rev

Changes

08-May-2014

First release.

01-Dec-2014

Features and Description in cover page have been updated.

20-May-2015

Added new Section 1.

X-NUCLEO-IDB04A1

DocID026260 Rev 3

5/5

IMPORTANT NOTICE –PLEASE READ CAREFULLY

STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and

improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST

products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order

acknowledgement.

Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the

design of Purchasers’ products.

No license, express or implied, to any intellectual property right is granted by ST herein.

Resale of ST products with provisions different from the information set forth herein shall void any warranty granted by ST for such product.

ST and the ST logo are trademarks of ST. All other product or service names are the property of their respective owners.

Information in this document supersedes and replaces information previously supplied in any prior versions of this document.
