ST X-NUCLEO-OUT15A1 Manuel utilisateur

Introduction

The X-NUCLEO-OUT15A1 is an industrial digital output expansion board for STM32 Nucleo. It provides a powerful and flexible

environment for the evaluation of the driving and diagnostic capabilities of the IPS1025HF single high-side, smart power,

solid-state relay in a digital output module connected to 2.5 A industrial loads.

The X-NUCLEO-OUT15A1 interfaces with the microcontroller on the STM32 Nucleo via 5 kV optocouplers driven by the GPIO

pins and Arduino® UNO R3 connectors.

The expansion board can be connected to either a NUCLEO-F401RE or a NUCLEO-G431RB development board.

You can also evaluate a system consisting of an X-NUCLEO-OUT05A1 stacked on an X-NUCLEO-OUT15A1 expansion board.

Supplying the X-NUCLEO-OUT05A1 through the main supply rail and the X-NUCLEO-OUT15A1 through the output of the

X-NUCLEO-OUT05A1, you can achieve the typical architecture of a single channel digital output for safety systems. The

process stages of the two expansion boards result cascaded. The load connected to the X-NUCLEO-OUT15A1 output can be

supplied only when both cascaded systems are properly working.

Figure 1. X-NUCLEO-OUT15A1 expansion board

Getting started with the X-NUCLEO-OUT15A1 industrial digital output expansion

board for STM32 Nucleo

UM3036

User manual

UM3036 - Rev 1 - June 2022

For further information contact your local STMicroelectronics sales office. www.st.com

1Getting started

1.1 Overview

The X-NUCLEO-OUT15A1 embeds the IPS1025HF intelligent power switch (IPS), which features overcurrent and

overtemperature protection for safe output load control. The IPS1025HF also offers the quick activation of its

output stage even at power-up. In fact, the input to the output propagation delay at startup is guaranteed ≤ 60 µs.

The board is designed to meet the application requirements for the galvanic isolation between the user and power

interfaces.

An optical isolation satisfies this requirement. The isolation is implemented through five optocouplers (ISO1,

ISO2, ISO3, ISO4, and ISO5) for the input signal forward to the device, the FLT diagnostic feedback signals of

the device, and two additional signals for safety application optimization (Nch-DRV for the fast discharge control

of the output voltage, and OUT_FB for the on/off status monitoring of the output stage).

The expansion board features:

• Based on the IPS1025HF single high-side switch, which features:

– Operating range up to 60 V

– Low-power dissipation (RON(MAX) = 25 mΩ)

– Propagation delay at startup < 60 µs

– Fast decay for inductive loads

– Smart driving of capacitive load

– Under-voltage lock-out

– Overload and over-temperature protection

– PowerSSO 24 package

• Application board operating range: 8-33 V/0-2.5 A

• Extended voltage operating range (J3 open) up to 60 V

• Green LED for output on/off status (J11 close 3-4 and SW5 close 1-2)

• Red LEDs for overload and overheating diagnostics (SW2 and SW4 close 2-3)

• Output voltage on/off status feedback (J11 close 1-2)

• Control signal for fast discharge of output voltage (J11 close 5-6, J12 close)

• External fast discharge circuitry for huge inductive loads (J11 close 7-8)

• 5 kV galvanic isolation

• Supply rail reverse polarity protection

• Compatible with STM32 Nucleo development boards

• Equipped with Arduino® UNO R3 connectors

• CE certified

• Not FCC approved for resale

• RoHS and China RoHS compliant

UM3036

Getting started

UM3036 - Rev 1 page 2/20

1.1.1 Digital section

The digital section is associated with the STM32 interface and the digital supply voltage to and from the

X-NUCLEO-OUT15A1 expansion board.

Figure 2. X-NUCLEO-OUT15A1 expansion board: digital interface section

The dotted green line indicates the whole digital interface section. The pink rectangles identify the Arduino® UNO R3

connectors.

The four Arduino® UNO R3 connectors:

• allow the expansion board to communicate with the STM32 Nucleo development board microcontroller

accessing the STM32 peripheral and GPIO resources;

• provide the digital supply voltage between the STM32 Nucleo development board and the X-NUCLEO-

OUT15A1 expansion board, in either direction.

Normally, the STM32 Nucleo development board supplies the expansion board by a 3v3 or 5v0 generated by the

USB. You can select the preferred voltage on the expansion board via SW3 (3v3 closing pins 1-2; 5v0 closing

pins 2-3).

Alternatively, it is possible to supply the STM32 Nucleo development board by the expansion board. In this case,

an external supply voltage (7-12 V) should be connected to the CN2 connector (not mounted by default) on the

expansion board and the ground loop should be closed by mounting D2 (enabling the reverse polarity protection)

or by closing J2 (without reverse polarity).

To supply the VIN voltage rail, it is necessary to:

• close the JP5 jumper between pins 2 and 3 and open the JP1 jumper on the NUCLEO-F401RE;

• open the JP5 jumper between pins 1 and 2 and close the JP5 jumper between pins 3 and 4 on the

NUCLEO-G431RB.

UM3036

Overview

UM3036 - Rev 1 page 3/20

1.1.2 Power section

The power section involves the power supply voltage (CN1, pins 4 and 5 for VCC, pin 3 for GND), load

connection (a load can be connected between pins CN1.1 and CN1.3 or CN1.2, and CN1.3; both output pins

are connected to the single output channel as shown in Section 2 Schematic diagrams) and electromagnetic

compatibility (EMC) protection.

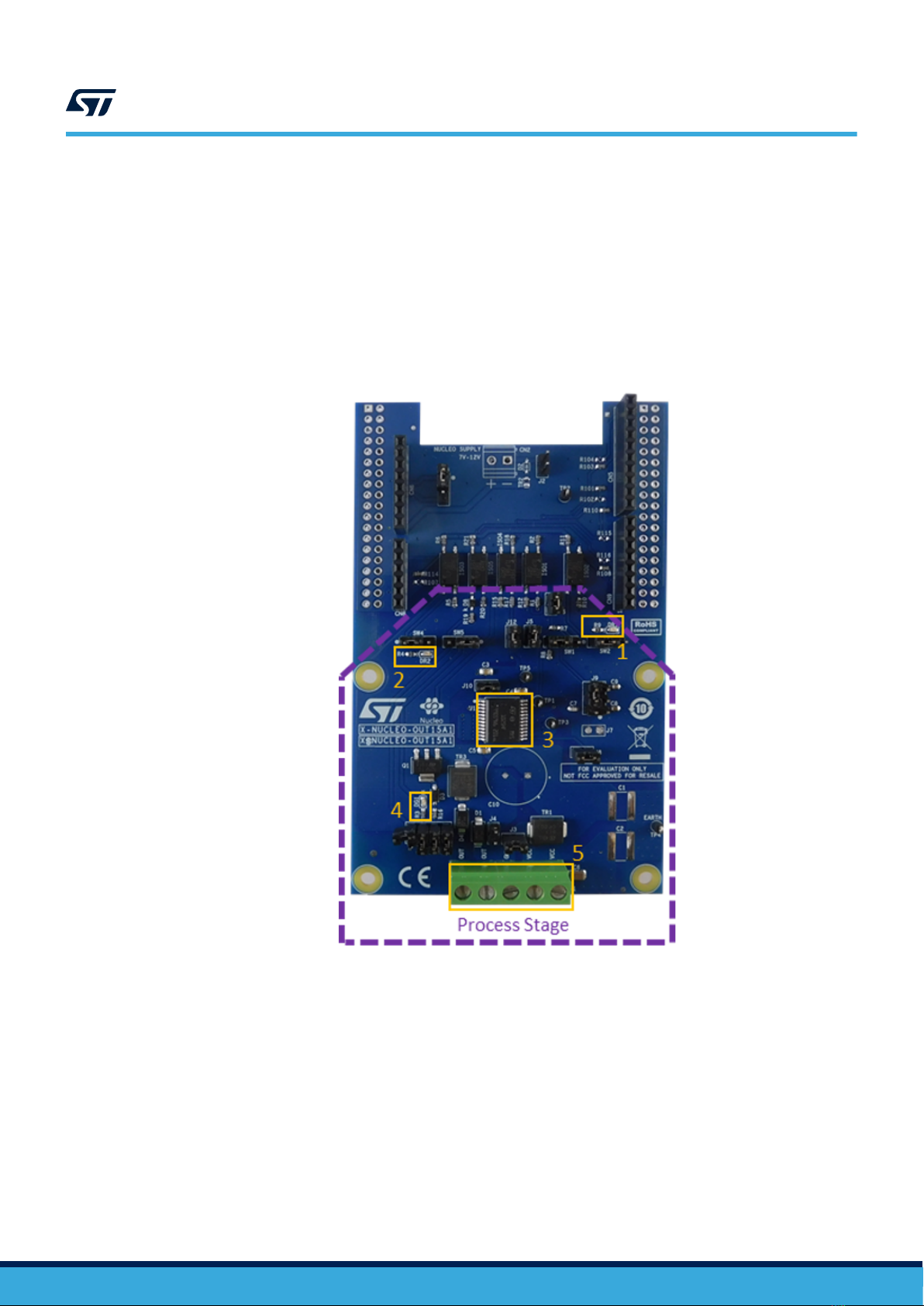

Figure 3. X-NUCLEO-OUT15A1 expansion board: power section components

1. Overtemperature red LED

2. Overload red LED

3. IPS1025HF

4. Output channel - green LED

5. Output and power supply connector

For EMC:

• the SM15T39CA transient voltage suppressor (TR1), enabled by closing J3, is placed between VCC and

GND tracks to protect the IPS1025HF against surge discharge on the supply rail path up to ±1 kV/2 Ω

coupling;

• in the common mode surge testing, two single-layer capacitors (C1 and C2 - not included) must be soldered

at the predisposed locations;

• the IPS1025HF output stages do not require additional EMC protections with respect to the IEC61000-4-2,

IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-8 standards.

UM3036

Overview

UM3036 - Rev 1 page 4/20

The EMC performances of the X-NUCLEO-OUT15A1 are detailed below:

• emission tests certified by a third party:

– EN 55016-2-3

– ANSI C63.4

• immunity tests certified by a third party:

– EN 61000-4-2

– EN 61000-4-3

– EN 61000-4-8

• immunity tests validated by ST application lab:

– EN 61000-4-4

– EN 61000-4-5

UM3036

Overview

UM3036 - Rev 1 page 5/20

1.2 Hardware requirements

The X-NUCLEO-OUT15A1 expansion board is designed to be used with the NUCLEO-F401RE or NUCLEO-

G431RB STM32 Nucleo development boards.

To function correctly, the X-NUCLEO-OUT15A1 must be plugged onto the matching Arduino® UNO R3 connector

pins on the STM32 Nucleo development board as shown below.

Figure 4. X-NUCLEO-OUT15A1 and STM32 Nucleo stack

1.3 System requirements

To use the STM32 Nucleo development boards with the X-NUCLEO-OUT15A1 expansion board, you need:

• a Windows PC/laptop (Windows 7 or above)

• a type A to mini-B USB cable to connect the STM32 Nucleo development board to the PC when using a

NUCLEO-F401RE development board

• a type A to micro-B USB cable to connect the STM32 Nucleo development board to the PC when using a

NUCLEO-G431RB development board

• the X-CUBE-IPS firmware and software package installed on your PC/laptop

UM3036

Hardware requirements

UM3036 - Rev 1 page 6/20

1.4 Board setup

Step 1. Connect the micro-USB or mini-USB cable to your PC to use the X-NUCLEO-OUT15A1 with NUCLEO-

F401RE or NUCLEO-G431RB development board.

Step 2. Download the firmware (.bin) onto the STM32 Nucleo development board microcontroller through the

STM32ST-LINK utility, STM32CubeProgrammer, and according to your IDE environment as detailed in

the table below.

Table 1. NUCLEO-F401RE development board supported IDEs - bin files

NUCLEO-F401RE

IAR Keil®STM32CubeIDE

EWARM-OUT15-

STM32F4xx_Nucleo.bin

MDK-ARM-OUT15-

STM32F4xx_Nucleo.bin

STM32CubeIDE-OUT15-

STM32F4xx_Nucleo.bin

Table 2. NUCLEO-G431RB development board supported IDEs - bin files

NUCLEO-G431RB

IAR Keil®STM32CubeIDE

EWARM-OUT15-

STM32G4xx_Nucleo.bin

MDK-ARM-OUT15-

STM32G4xx_Nucleo.bin

STM32CubeIDE-OUT15-

STM32G4xx_Nucleo.bin

Step 3. Connect the IPS1025HF device supply voltage via CN1 (see Section 1.1.2 Power section).

Step 4. Provide the digital supply voltage (see Section 1.1.1 Digital section).

Step 5. Connect the load on the output connector (see Section 1.1.2 Power section).

Step 6. Reset the example sequence using the black push button.

Step 7. Push the STM32 Nucleo blue button to select the example provided in the firmware package.

UM3036

Board setup

UM3036 - Rev 1 page 7/20

2Schematic diagrams

Figure 5. X-NUCLEO-OUT15A1 circuit schematic (1 of 2)

DEFAULT

ALTERNATE USE

OUT

Analog supply

8 - 60 V

VCC

PB8

PA10

PA4

PA2

PB9

PA0

PB10

PB0

PC0

PA5

PA1

PB4

PA3

ALTERNATE USE

PA8

PA6

PB6

DEFAULT

PA7

Morpho connectors

(N. M.)

PC1

PB3

Arduino connectors

PA9

PB5

PC7

GND

OUT

NRST

I OREF

( 7V- 12V NUCLEO suppl y vol t age)

ALTERNATE USE

DEFAULT

ALTERNATE USE

OUT1

VCC

IN1

FLT1

FLT2

OUT_FB

Nch-DRV

3v3 5v0

TR1

SM15T39CA

default closed

D1 STPS1H100A

CN1

691137710005

R115 100 N.M.

CN10

SSQ-119-04-L-D

N.M.

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

R108 100

R104 100 N.M.

CN5

SSQ-110-04-F-S

R101 100

FIDUCIAL3

Fiducial

TP4

5001

R114 100

TR2

ESDA15P60-1U1M

N.M.

R107 100 N.M.

R102 100 N.M.

MH4

M3 HOLE NOT PLATED

R103 100

J2 default open

MH2

M3 HOLE NOT PLATED

MH3

M3 HOLE NOT PLATED

R116 100 N.M.

FIDUCIAL2

Fiducial

CN2

691214110002

N.M.

CN6

SSQ-108-04-F-S

CN8

SSQ-106-04-F-S

C10

100uF

N.M.

CN9

SSQ-108-04-F-S

4700pF

N.M.

BAT48JFILM

N.M.

2.2uF

TP2

5001

MH1

M3 HOLE NOT PLATED

FIDUCIAL1

Fiducial

CN7

SSQ-119-04-L-D

N.M.

1 2

3 4

5 6

7 8

9 10

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

R110 100

FIDUCIAL4

Fiducial

4700pF

N.M.

default closed

EARTH

FLT1 D15

FLT1 D14

AVDD

VIN

3V3 D13

5V D12

D11

IN1 D10

VIN IN1 D9

IN1

FLT1

FLT2

A0 D5

A1 D4

OUT_FB

A2 D3

A3 FLT2 D2

Nch-DRV

A4 FLT2 D1

A5 D0

OUT_FB

Nch-DRV

OUT_FB

Alternate nucleo supply

7 - 12 V

UM3036 - Rev 1 page 8/20

UM3036

Schematic diagrams

Figure 6. X-NUCLEO-OUT15A1 circuit schematic (2 of 2)

def aul t :

cl osed

VCC

FLT1

OUT1

FLT2

Nch-DRV

OUT_FB

3v35v0

ISO4

TLP383

DR1

150060RS75000

DR2

150060RS75000

ISO2

TLP383

R20

6.8k

ANY

ISO3

TLP383

22k

0.1uF

10k

STPS1H100A

DG1

150060VS75000

0.1uF

R21

2.2K

J10

default closed

SW4

con3-strip-male

default: CLOSE 1-2

R7 10k

TR3

SM15T10AY

R15

12k

R16

2.2K

J11

con8-2x4-strip-male

12 34

56 78

R10

BAT41ZFILM

R11

2.2K

R18 390

default closed

SW1

con3-strip-male

default: CLOSE 1-2

2.2K

SW2

con3-strip-male

default: CLOSE 1-2

IPS1025HF

VCC

NC2

NC3

FLT2

OUT6

OUT7

OUT8

OUT9

OUT10

OUT11

OUT12

12 OUT13 13

OUT14 14

OUT15 15

OUT16 16

OUT17 17

OUT18 18

OUT19 19

OUT20 20

FLT1 21

IPD1 22

IN1 23

OUT5

VCC

GND 24

C9470nF

R17 27K

390

TP5

5001

C847nF

TP1

5001

SW3

con3-strip-male

default: CLOSE 1-2

C7470pF

J12

default closed

0.1uF

con6-2x3-strip-male

1 2

3 4

5 6

27K

SW5

con3-strip-male

default: CLOSE 1-2

TDZ6V2J,115

STN2NF10

ISO5

TLP383

R19 1k

R12

22k

ISO1

TLP383

default closed

TP3

5001

VCC

UM3036 - Rev 1 page 9/20

UM3036

Schematic diagrams

3Bill of materials

Table 3. X-NUCLEO-OUT15A1 bill of materials

Item Quantity Reference Part/value Description Manufacturer Order code

1 0 C1 C2

4700pF, 1825

(4564 Metric),

3000V (3kV),

+/-10%

CAP CER 4700PF

3KV X7R 1825

(not mounted)

Vishay

Vitramon HV1825Y472KXHATHV

2 3 C3 C4 C5

0.1uF, 0805 (2012

Metric), 100V,

+/-10%

CAP CER 0.1UF

100V X7R 0805

Würth

Elektronik 885012207128

3 1 C6

2.2uF, 1206 (3216

Metric), 100V,

+/-10%

CAP CER 2.2UF

100V X7R 1206

AVX

Corporation 12061C225KAT2A

4 1 C7

470pF, 0603 (1608

Metric), 50V,

+/-5%

CAP CER 470PF

50V C0G/NP0

0603

Wurth

Electronics Inc. 885012006061

5 1 C8

47nF, 0603 (1608

Metric), 16V,

+/10%

CAP CER

0.047UF 16V X7R

0603

Wurth

Electronics Inc. 885012206044

6 1 C9

470nF, 0603 (1608

Metric), 25V,

+/-10%

CAP CER 0.47UF

25V X7R 0603

Wurth

Electronics Inc. 885012206075

7 0 C10 100uF, Radial,

Can, 100V, +/-20%

CAP 100 UF

20% 100 V (not

mounted)

Würth

Elektronik 860130878011

8 1 CN1 691137710005

TERM BLK 5POS

SIDE ENTRY

5MM PCB

Würth

Elektronik 691137710005

9 0 CN2 691214110002,

7.4X7 pitch 3.5

TERM BLK

2POS SIDE ENT

3.5MM PCB (not

mounted)

Wurth

Electronics Inc. 691214110002

10 1 CN5 SSQ-110-04-F-S

CONN RCPT

10POS 0.1 GOLD

PCB

Samtec Inc. SSQ-110-04-F-S

11 2 CN6 CN9 SSQ-108-04-F-S

CONN RCPT

8POS 0.1 GOLD

PCB

Samtec Inc. SSQ-108-04-F-S

12 0 CN7 CN10 SSQ-119-04-L-D

CONN RCPT

38POS 0.1

GOLD PCB (not

mounted)

Samtec Inc. SSQ-119-04-L-D

13 1 CN8 SSQ-106-04-F-S

CONN RCPT

6POS 0.1 GOLD

PCB

Samtec Inc. SSQ-106-04-F-S

14 2 D1 D4 STPS1H100A,

SMA

100 V, 1 A power

Schottky rectifier ST STPS1H100A

15 0 D2 BAT48JFILM,SOD

-323

40 V, 350 mA

axial general

purpose Signal

Schottky diode

(not mounted)

ST BAT48JFILM

UM3036

Bill of materials

UM3036 - Rev 1 page 10/20

Table des matières

Autres manuels ST Matériel informatique

ST STM32F10 Series Instructions d'installation et d'utilisation

ST X-NUCLEO-IHM11M1 Manuel utilisateur

ST STM32H5 Manuel utilisateur

ST STEVAL-IOD002V1 Manuel utilisateur

ST METERS AND MORE UM2241 Manuel utilisateur

ST EVAL6470H-DISC Manuel utilisateur

ST X-NUCLEO-S2868A2 Manuel utilisateur

ST I-CUBE-LRWAN Manuel utilisateur

ST STM32Cube Manuel utilisateur

ST STEVAL-BCN002V1B Manuel utilisateur

ST X-NUCLEO-6283A1 Manuel utilisateur

ST 32F412GDISCOVERY Manuel utilisateur

ST AEK-LCD-DT028V1 Manuel utilisateur

ST X-NUCLEO-LED61A1 Manuel utilisateur

ST STM32Cube Guide de configuration rapide

ST STEVAL-ISQ008V1 Manuel utilisateur

ST X-NUCLEO-IHM14A1 Manuel utilisateur

ST X-NUCLEO-EEPRMA2 Manuel utilisateur

ST STM32L562E-DK Manuel utilisateur

ST X-NUCLEO-IDB04A1 Manuel utilisateur

ST STEVAL-DPSG474 Manuel utilisateur

ST STEVAL-IFP046V1 Manuel utilisateur

ST TDA911 Series Instructions d'installation et d'utilisation

ST AN5717 Instructions d'installation et d'utilisation

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
