This user manual describes the I-CUBE-LRWAN LoRaWAN® Expansion Package implementation on the STM32L0 Series,

STM32L1 Series, and STM32L4 Series microcontrollers. This document also explains how to interface with the LoRaWAN® to

manage the LoRa® wireless link.

LoRa® is a type of wireless telecommunication network designed to allow long-range communications at a very low bit-rate

and enabling long-life battery-operated sensors. LoRaWAN® defines the communication and security protocol that ensures

interoperability with the LoRa® network. The LoRaWAN® Expansion Package is compliant with the LoRa Alliance® specification

protocol named LoRaWAN®.

The I-CUBE-LRWAN main features are the following:

• Integration-ready application

•Easy add-on of the low-power LoRa® solution

• Extremely-low CPU load

• No latency requirements

• Small STM32 memory footprint

• Low-power timing services provided

The I-CUBE-LRWAN Expansion Package is based on the STM32Cube HAL drivers (Refer to LoRa standard overview).

This user manual provides customer examples on NUCLEO-L053R8, NUCLEO-L073RZ, NUCLEO-L152RE, and NUCLEO-

L476RG using Semtech expansion boards SX1276MB1MAS, SX1276MB1LAS, SX1272MB2DAS, SX1262DVK1DAS,

SX1262DVK1CAS, and SX1262DVK1BAS.

This document targets the following tools:

•P-NUCLEO-LRWAN1, STM32 Nucleo pack for LoRa® technology (Legacy only)

•P-NUCLEO-LRWAN2, STM32 Nucleo starter pack (USI®) for LoRa® technology

•P-NUCLEO-LRWAN3, STM32 Nucleo starter pack (RisingHF) for LoRa® technology

•B-L072Z-LRWAN1, STM32 Discovery kit embedding the CMWX1ZZABZ-091 LoRa® module from Murata

•I-NUCLEO-LRWAN1, LoRa® expansion board for STM32 Nucleo, based on the WM-SG-SM-42 LPWAN module (USI®)

available in P-NUCLEO-LRWAN2

• LRWAN-NS1, expansion board featuring the RisingHF modem RHF0M003 available in P-NUCLEO-LRWAN3

STM32 LoRaWAN® Expansion Package for STM32Cube

UM2073

User manual

UM2073 - Rev 12 - September 2021

For further information contact your local STMicroelectronics sales office.

www.st.com

1General information

The I-CUBE-LRWAN Expansion Package runs on STM32 32‑bit microcontrollers based on the Arm® Cortex®-M

processor.

Note: Arm is a registered trademark of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

1.1 Terms and definitions

Table 1 presents the definitions of the acronyms that are relevant for a better contextual understanding of this

document.

Table 1. List of acronyms

Acronym Definition

ABP Activation by personalization

App Application

API Application programming interface

BSP Board support package

FSM Finite‑state machine

FUOTA Firmware update over the air

HAL Hardware abstraction layer

IoT Internet of things

LoRa®Long-range radio technology

LoRaWAN®LoRa® wide-area network

LPWAN Low-power wide-area network

MAC Media access control

MCPS MAC common part sublayer

MIB MAC information base

MLME MAC sublayer management entity

MPDU MAC protocol data unit

OTAA Over-the-air activation

PLME Physical sublayer management entity

PPDU Physical protocol data unit

SAP Service access point

SBSFU Secure Boot and Secure Firmware Update

UM2073

General information

UM2073 - Rev 12 page 2/52

1.2 Overview of available documents and references

Table 2 lists the complementary references for using I-CUBE-LRWAN.

Table 2. References

ID Description

[1] LoRa Alliance specification protocol named LoRaWAN version V1.0.3 July 2018 final release

[2] Low-Rate Wireless Personal Area Networks (LRWPANs) IEEE Std 802.15.4TM, 2011

[3] LoRaWAN® Regional Parameters v1.0.3revA, July 2018 release

[4] LoRa Alliance Fragmented Data Block Transport over LoRaWAN Specification v1.0.0 September 2018 [TS‑004]

[5] LoRa Alliance Remote Multicast Setup over LoRaWAN Specification v1.0.0 September 2018 [TS‑005]

[6] LoRa Alliance Application layer clock synchronization over LoRaWAN Specification v1.0.0 September 2018

[TS‑003]

[7] Application note Integration guide for the X-CUBE-SBSFU STM32Cube Expansion Package (AN5056)

[8] Application note I-CUBE-LRWAN embedding FUOTA, application implementation (AN5411)

[9] Application note Examples of AT commands on I-CUBE-LRWAN (AN4967)

[10] Application note How to build a LoRa® application with STM32CubeWL (AN5406)

[11] User manual Getting started with the P-NUCLEO-LRWAN2 and P-NUCLEO-LRWAN3 starter packs (UM2587)

[12] User manual STM32 Nucleo-64 boards (MB1136) (UM1724)

[13] User manual STM32WL Nucleo-64 board (MB1389) (UM2592)

[14] WM-SG-SM-42 AT Command Reference Manual located under USI_I-NUCLEO-LRWAN1(1)

[15] RHF-PS01709 LoRaWAN Class ABC AT-Command Specification available from RiSiNGHF home page(1)

1. This URL belongs to a third party. It is active at document publication, however, STMicroelectronics shall not be liable for

any change, move, or inactivation of the URL or the referenced material.

UM2073

Overview of available documents and references

UM2073 - Rev 12 page 3/52

2LoRa® standard overview

2.1 Overview

This section provides a general overview of the LoRa® and LoRaWAN® recommendations, particularly focusing

on the LoRa® end device that is the core subject of this user manual.

LoRa® is a type of wireless telecommunication network designed to allow long-range communication at a very

low bit rate and enabling long-life battery-operated sensors. LoRaWAN® defines the communication and security

protocol ensuring interoperability with the LoRa® network.

The LoRaWAN® Expansion Package is compliant with the LoRa Alliance® specification protocol named

LoRaWAN®.

Table 3 shows the LoRaWAN® class usage definition. Refer to Section 2.2.2 for further details on these classes.

Table 3. LoRaWAN® classes intended usage

Class name Intended usage

A - All

• Battery-powered sensors or actuators with no latency constraint

• Most energy-efficient communication class

• Must be supported by all devices

B - Beacon

• Battery-powered actuators

• Energy-efficient communication class for latency controlled downlink

• Based on slotted communication synchronized with a network beacon

C - Continuous

• Main powered actuators

• Devices that can afford to listen continuously

• No latency for downlink communication

Note: While the physical layer of LoRa® is proprietary, the rest of the protocol stack (LoRaWAN®) is kept open and its

development is carried out by the LoRa Alliance®.

2.2 Network architecture

The LoRaWAN® network is structured in a star of stars topology, where the end devices are connected via a

single LoRaWAN® link to one gateway as shown in Figure 1.

Figure 1. Network diagram

LoRaWAN® end device Gateway Network server Application server

Pet tracking

Smoke

alarm

Water meter

Trash

container

Vending machine

Gas

monitoring

UM2073

LoRa® standard overview

UM2073 - Rev 12 page 4/52

2.2.1 End-device architecture

The end device is composed of an RF transceiver (also known as radio) and a host STM32 MCU. The RF

transceiver is composed of a modem and an RF up-converter. The MCU implements the radio driver, the

LoRaWAN® stack and optionally the sensor drivers.

2.2.2 End-device classes

The LoRaWAN® has several different classes of end-point devices, addressing the different needs reflected in the

wide range of applications.

Bi-directional Class-A end devices (all devices)

• Class-A operation is the lowest power end-device system.

• Each end-device uplink transmission is followed by two short downlinks receive windows.

• Downlink communication from the server shortly after the end‑device has sent an uplink transmission (Refer

to Figure 2).

• Transmission slot is based on the own communication needs of the end device (ALOHA-type protocol).

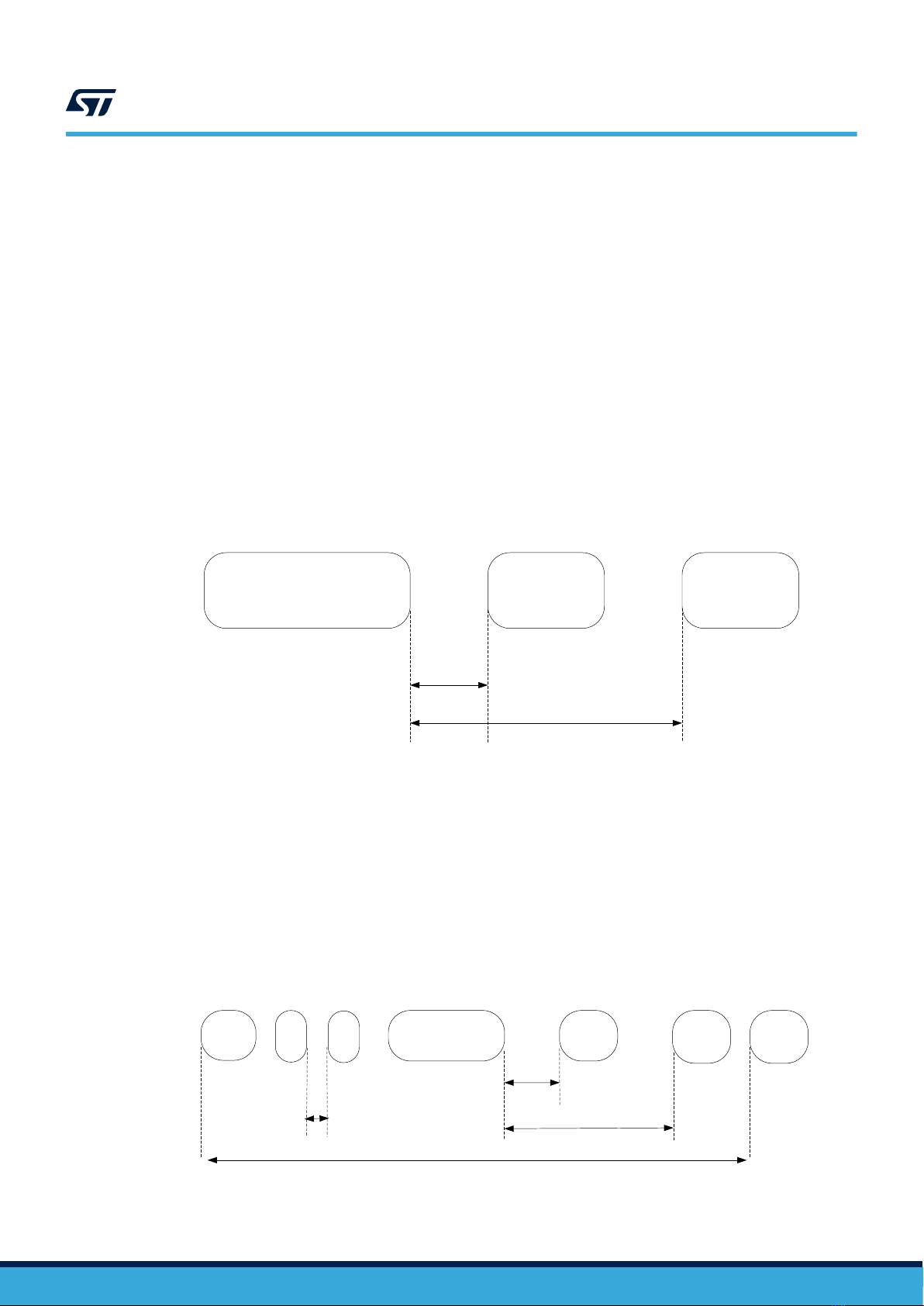

Figure 2. Tx/Rx time diagram (Class-A)

Rx1 Rx2Tx

RxDelay2

RxDelay1

Bi-directional end‑devices with scheduled receive slots - Class-B - (beacon)

• Mid power consumption

• Class-B devices open extra receive windows at scheduled times (Refer to Figure 3).

• For the end device to open the receive window at the scheduled time, the end device receives a time-

synchronized beacon from the gateway.

• As Class‑A has priority, the device replaces the periodic ping slots with an uplink (Tx) sequence followed by

Rx1 or Rx2 received windows when required by the device.

Figure 3. Tx/Rx time diagram (Class-B)

Rx1 Rx2

RxDelay2

RxDelay1

PNG

BCN BCN

Beacon Period

Period Ping

PNG

UM2073

Network architecture

UM2073 - Rev 12 page 5/52

Bi-directional Class-C end devices with maximal receive slots (continuous)

• Large power consumption

• Class-C end devices have nearly continuously open receive windows, only closed when transmitting (Refer

to Figure 4).

Figure 4. Tx/Rx time diagram (Class-C)

RxC

RxDelay2

RxDelay1

Extends RxC until next uplink

On-air transmit time

Rx1 Rx2

RxC

2.2.3 End-device activation (joining)

Over-the-air activation (OTAA)

The OTAA is a joining procedure for the LoRaWAN® end device to participate in a LoRaWAN® network. Both the

LoRaWAN® end device and the application server share the same secret key known as AppKey. During a joining

procedure, the LoRaWAN® end device and the application server exchange inputs to generate two session keys:

• A network session key (NwkSKey) for MAC commands encryption

• An application session key (AppSKey) for application data encryption

Activation by personalization (ABP)

In the case of ABP, the NwkSkey and AppSkey are already stored in the LoRaWAN® end device that sends the

data directly to the LoRaWAN® network.

UM2073

Network architecture

UM2073 - Rev 12 page 6/52

2.2.4 Regional spectrum allocation

The LoRaWAN® specification varies slightly from region to region. The European, North American, and Asian

regions have different spectrum allocations and regulatory requirements (Refer to Table 4 for more details).

Table 4. LoRaWAN® regional spectrum allocation

Region Supported Band (MHz) Duty cycle (%) Output power

(dBm)(1)

EU Y 868 < 1 +13

EU Y 433 < 1 +10

US Y 915 No +27

CN N 779 < 0.1 +10

AS Y 923 No +13

IN Y 865 No +27

KR Y 920 No +11

RU Y 864 < 1 +13

AU Y 915 No +28

CN Y 470 No +17

1. The output power values are defined with the default maximal EIRP (Refer to the region associated section in [3]) and the

default antenna gain (2.15 by default): Default_Power = floor (Default_Max_EIRP - Default_Antenna_Gain)

UM2073

Network architecture

UM2073 - Rev 12 page 7/52

2.3 Network layer

The LoRaWAN® architecture is defined in terms of blocks, also called “layers”. Each layer is responsible for one

part of the standard and offers services to higher layers.

The end device is at least made of one physical layer (PHY), that embeds the radio frequency transceiver, a MAC

sublayer providing access to the physical channel, and an application layer, as shown in Figure 5.

Figure 5. LoRaWAN® layers

Upper layer

MAC

PHY

Physical medium (air interface)

2.3.1 Physical layer

The physical layer provides two services:

• The PHY data service, that enables the Tx/Rx of physical protocol data units (PPDUs)

• The PHY management service, that enables the personal area network information base (PIB) management

2.3.2 MAC sublayer

The MAC sublayer provides two services:

• The MAC data service, that enables the transmission and reception of MAC protocol data units (MPDU)

across the physical layer

• The MAC management service, that enables the PIB management

2.4 Message flow

This section describes the information flow between the N-user and the N-layer. The service request is performed

through a service primitive.

2.4.1 End-device activation details (joining)

Before communicating on the LoRaWAN® network, the end device must be associated or activated following one

of the two activation methods described in End-device activation (joining).

UM2073

Network layer

UM2073 - Rev 12 page 8/52

The message sequence chart (MSC) in Figure 6 shows the OTAA activation method.

Figure 6. Message sequence chart for joining (MLME primitives)

End-device

App layer

MLME.Req

(join request) Join request MLME.Ind

(join request)

Join response (ask)

MLME.Resp

(join accept)

MLME.Ind

(join accept)

MLME.Conf

(join accept)

MACWaitTimer

End-device App server

End-device

MAC layer

Network

MAC layer

Network

App layer

2.4.2 End-device class-A data communication

The end device transmits data by one of the following methods: through a confirmed-data message method

(Refer to Figure 7) or through an unconfirmed-data message (Refer to Figure 8).

In the first method, the end device requires an Ack (acknowledgment) to be done by the receiver while in the

second method, the Ack is not required.

When an end device sends data with an Ackreq (acknowledgment request), the end device must wait during an

acknowledgment duration AckWaitDuration to receive the acknowledgment frame (Refer to Section 4.3.1 ).

UM2073

Message flow

UM2073 - Rev 12 page 9/52

If the acknowledgment frame is received, then the transmission is successful, else the transmission failed.

Figure 7. Message sequence chart for confirmed data (MCPS primitives)

MCPS.Req

(data request)

Data (Ackreq=1)

Acknowledgment frame

MCPS.Ind (data)

MCPS.Conf()

AckWaitDuration

End device App Server

End-device

App layer

End-device

MAC layer

Network

MAC layer

Network

App layer

Figure 8. Message sequence chart for unconfirmed data (MCPS primitives)

End-device

App layer

MCPS.Req (data request) Data

(Ackreq=0)

MCPS.Ind (data)

MCPS.Conf()

End device App server

End-device

MAC layer

Network

MAC layer

Network

App layer

UM2073

Message flow

UM2073 - Rev 12 page 10/52

Table des matières

Autres manuels ST Matériel informatique

ST EVLKST8500GH-2 Manuel utilisateur

ST STEVAL-IFP043V1 Manuel utilisateur

ST FP-ATR-BLE1 Manuel utilisateur

ST UM2082 Manuel utilisateur

ST ST7LITEUS2 Manuel utilisateur

ST X-NUCLEO-IHM07M1 Manuel utilisateur

ST X-NUCLEO-OUT10A1 Manuel utilisateur

ST ST92163 Manuel utilisateur

ST STM32WL Series Manuel utilisateur

ST X-CUBE-CELLULAR Manuel utilisateur

ST STEVAL-IHM017V1 Manuel utilisateur

ST STEVAL-SCR002V1 Manuel utilisateur

ST X-NUCLEO-IDW04A1 Manuel utilisateur

ST TIP120 Manuel utilisateur

ST STM32F10 Series Instructions d'installation et d'utilisation

ST X-NUCLEO-53L8A1 Manuel utilisateur

ST STM32Cube Manuel utilisateur

ST STM32F101 series Manuel utilisateur

ST X-NUCLEO-53L7A1 Manuel utilisateur

ST X-NUCLEO-IHM03A1 Manuel utilisateur

ST STM32U5 Nucleo-64 Manuel utilisateur

ST UM3039 Manuel utilisateur

ST UM2967 Manuel utilisateur

ST STM32F3DISCOVERY Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur

Advantech

Advantech ASMB-935 Series Manuel utilisateur
