Speco HTB11FFi Manuel utilisateur

HTB11FFi

540 Line Color Bullet Camera

Intensifier Series, Focus Free

Wall & Ceiling Mountable

Please read this manual thoroughly before operation and keep

it handy for further reference.

WARNING & CAUTION

The lighting flash with an arrowhead symbol, within an equilateral triangle is

Intended to alert the user to the presence of un-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons____________________________________

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (serving) instructions

in the literature accompanying the appliance__________________

INFORMATION -This equipment has been tested and found to company with

limits for a class a digital device Pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

Interference When the equipments operated in a commercial environment.

This equipment generates, uses, and Can Radiate radio frequency energy and

if not installed and used in accordance with the instruction manual, may Cause

Harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which

Case the user will be required to correct the interference at his own expense.

WARNING – Change or modification not expressly approved by the manufacturer could void

the user’s authority to operate the equipment__________________________________

CAUTION : To prevent electric shock and risk of fire hazards.

DO NOT use power sources other than that specified.______

DO NOT expose this appliance to rain or moisture.000

This installation should be made by a qualified service person and should conform to all local codes.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICINGTO QUALIFIED

SERVICE PERSONNEL._______________

CAUTION

Contents

Package Contents

Precautions

5~7

Camera Installation

8~9

Features

10~15

OSD Setting

16~17

Troubleshooting

Specification

Dimension

Warranty

PACKAGE CONTENTS

•Please make sure that the following items are included

in the package:

1 HTB11FFi Camera

4 Mounting Screws

1 Video Test Cable

Please leave this manual with the end-user for future

reference.

PRECAUTIONS

•THIS DOME CAMERA SHOULD BE ONLY INSTALLED BY

QUALIFIED PERSONNEL

•TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE

PROPER POWER CABLE

•DO NOT CLEAN THE COVER WITH AN ABRAISIVE CLEANING

MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO

CLEAN THE COVER

•THERE ARE NO USER-SERVIEABLE PARTS INSIDE. PLEASE

DO NOT DISASSEMBLE THIS CAMERA OTHER THAN TO

MAKE INITIAL ADJUSTMENTS

•PLEASE USE A UL APPROVED REGULATED 24 VOLT AC OR

12 VOLT DC POWER SUPPLY

•PLEASE USE APPROPRIATE LOW VOLTAGE POWER CABLE

TO PREVENT FIRE OR ELECTRICAL SHOCK

•PLEASE INSURE THAT YOUR INSTALLATION AREA CAN

SUPPORT THE WEIGHT OF THE CAMERA

•PLEASE HANDLE THIS CAMERA CAREFULLY:

-DON

’T USE A STRONG OR ABRASIVE DETERGENT WHEN

CLEANING THE CAMERA.

-DON

’T EXPOSE THE CAMERA TO DIRECT SUN

CAMERA INSTALLATION

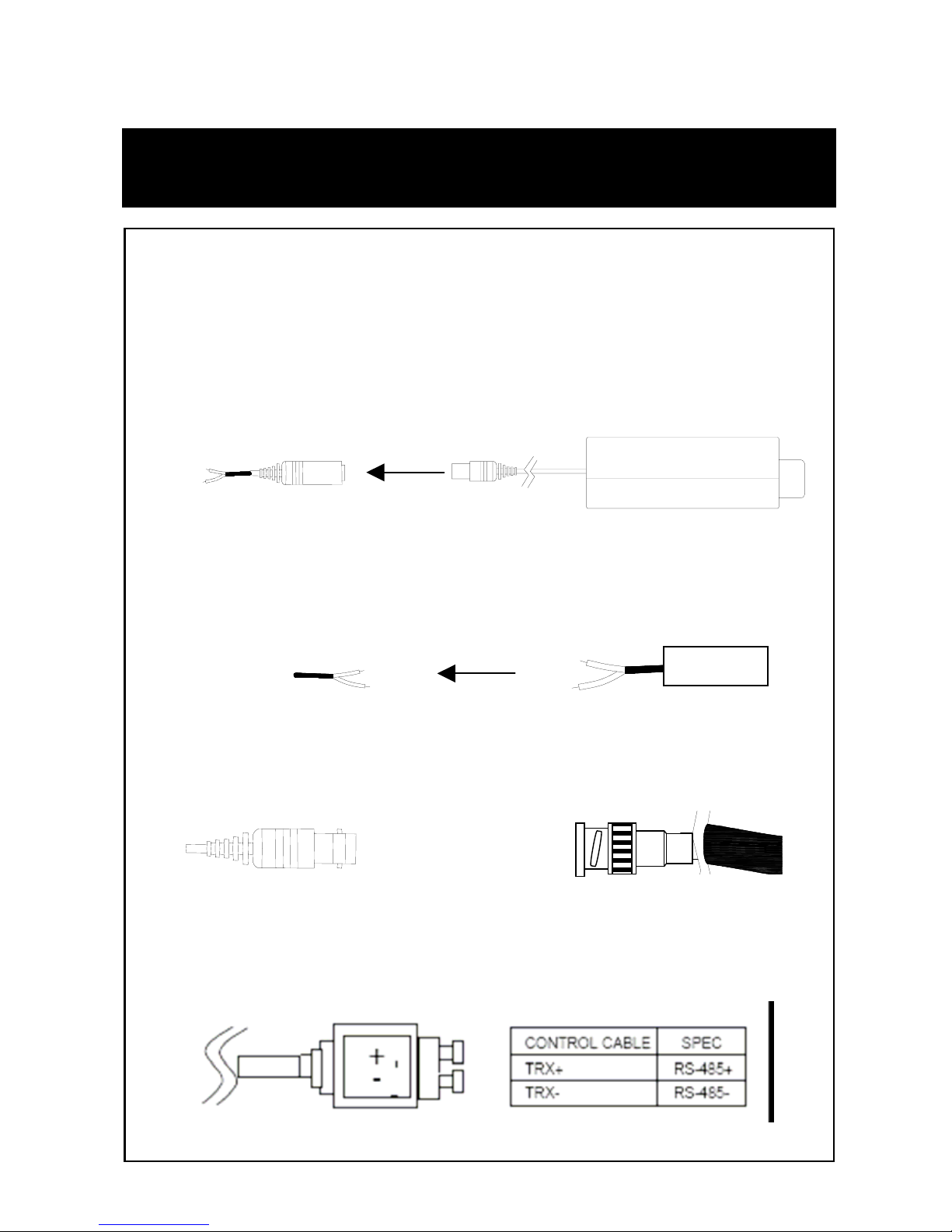

1. CONNECT POWER CABLE

1) WHEN USING 12 VOLTS DC (constant voltage 600 mA)

-CONNECT ACCESSORY CABLE TO THE CABLE LEAD

OF THE CAMERA AND CONNECT 12V DC POWER SUPPLY.

2) WHEN USING 24 VOLTS AC (40 Volt Amps)

3) CONNECT VIDEO CABLE

-CONNECT BNC CABLE TO THE BNC JACK.

4) CONNECT RS-485 CABLE (Optional)

-CONNECT 2WIRE CABLE TO THE 485PORT AS BELOW.

YELLOW:VIDEO OUT

POWER SUPPLY

CONNECT

POWER INPUT:RED

CENTER:(+)

CONNECT

BLACK:(-)

CAMERA RED(+)

POWER SUPPLY

AC 24V

CAMERA INSTALLATION

2. CONTROL BOARD

1) Video Test Terminal

: For second video output

2) OSD (On Screen Display) Joy stick

: Press the Joy stick for one second until the OSD menu tree

appears on the screen. Move the Joy Stick up, down, left &

right to control the OSD functions.

3) DIP Switch setting for RS485 (Pelco-D)

: Please see the next page for controlling this switch.

4) Lens adjustment (for Zoom) Switches

: Press Zoom or Tele button when desired, Focus is

automatically matched without any adjustment.

CAMERA INSTALLATION

3. DIP Switch Setting for RS-485 (Pelco-D)

2) Baud rate Setting

: to set Baud rate, please refer the chart below.

1 2 3 4 5 6

1) Address Setting

: to set Camera Address, place switches based on below chart.

Features

SLC

When the image is in front of strong background lighting,

your camera allows you to get a clear image.

INTENSIFIER

1/3 inch high-density CCD and digital processor permit

high quality Pictures to be captured in very low light

conditions.

High Resolution

Horizontal resolution of 540 TV lines is achieved by using a

SONY Double Speed CCD with 410,000 pixels.

Motion Detection

Built in motion detector with adjustable areas of coverage will

flash a warning on the screen when motion is detected.

OSD

All camera functions are menu driven for easy use.

Dynamic Noise Reduction

The Intensifier camera has a DSP chip that can remove image

noise efficiently showing clean images in low light conditions.

ELECTRONIC DAY/NIGHT

The Intensifier camera can show color pictures in all lighting

conditions, or you can have it automatically switch to a B/W

picture in low light conditions
