Speco O4BLP2M Manuel utilisateur

Quick Start Guide

O4BLP2M

Welcome

Thank you for purchasing this network camera!

This owner's manual is designed to be a reference tool for your system.

Please read this manual carefully before operating the unit and retain it for future reference.

Should you require any technical assistance, contact Speco Technologies Tech Support at

1-800-645-5516

1. Electrical safety

All installation and operation here should conform to local electrical safety codes.

Use a certified/listed 12VDC/24VAC Class 2 power supply or adequate PoE switch.

Please note: The product must be grounded to reduce the risk of electric shock.

Improper handling and/or installation could run the risk of fire or electrical shock.

2. Environment

Do not expose the unit to heavy stress, violent vibration or long-term exposure to water

and humidity during transportation, storage, and/or installation.

Do not install near sources of heat.

Only install the product in environments inside the specification operating temperature

and humidity range.

Do not install the camera near power lines, radar equipment or other electromagnetic

radiation.

Do not block any ventilation openings if any.

Use all the weatherproofing hardware requirement to minimize weather intrusion.

3. Operation and Daily Maintenance

Please shut down the device and then unplug the power cable before you begin any

maintenance work.

Do not touch the CMOS sensor optic component. You can use a blower to clean the dust on

the lens surface.

Always use the dry soft cloth to clean the device. If there is too much dust, use a cloth

Important Safeguards and Warning

Warning

Statement

This camera should be installed by qualified personnel only.

All the examination and repair work should be done by qualified personnel.

Any unauthorized changes or modifications could void the warranty.

This guide is for reference only.

Product, manuals and specifications may be modified without prior notice. Speco

Technologies reserves the right to modify these without notice and without incurring

any obligation.

Speco Technologies is not liable for any loss caused by improper operation.

Note:

Before installation, check the package and make sure that all components are included.

Contact your rep or Speco customer service department immediately if something is

broken or missing in the package.

dampened with a small quantity of neutral detergent. Finally use the dry cloth to clean

the device.

Please use a professional optical cleaning method to clean the enclosure. Improper enclosure

cleaning (such as using cloth) may result in poor IR functionality and/or IR reflection.

The grounding holes of the product are recommended to be grounded to further enhance

the reliability of the camera.

Package

Camera Quick start guide CD Screwdriver Drill template

Overview

8 Plastic screw

anchors

Junction box

Overview

4 Screws

4 Screws (PA 4×25mm)

1Screw (PWM3×5mm)

(6.5×38mm)

4 Screws

(PM 4×10mm)

4 Rubber o-rings

for screws

CVBS&DC

IN cables

1 Ethernet Connector*

2 Audio Input (MIC)

3 Audio Output (HP)

4 CVBS Video Output

5 Alarm Input/Output

6 Wiegand interface

7 RS 485

8 Power Connector

9 Reset

10 DC IN&CVBS Interface

11 Zoom -

12 Zoom +

13 Micro SD Card Slot

485

* It is recommended to install the water-proof connector for outdoor installations.

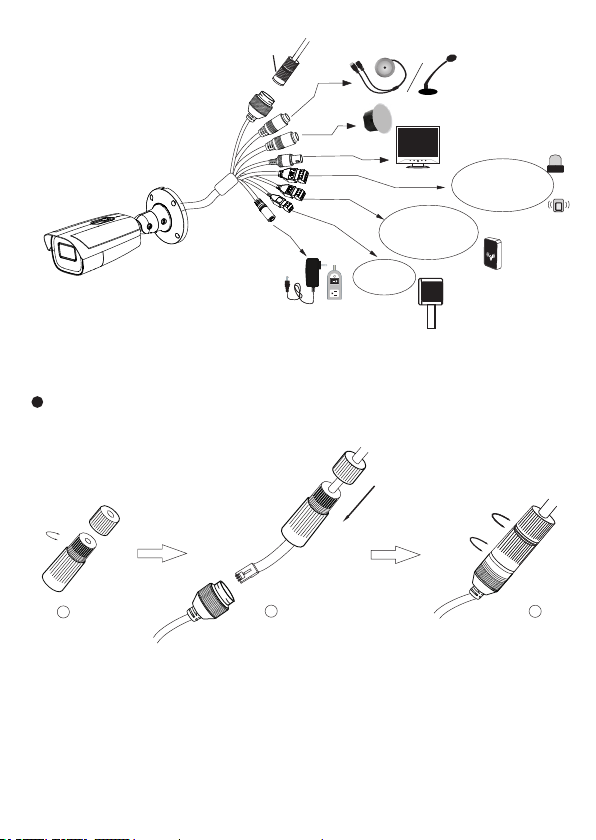

① Loosen the nut from the main element.

② Run the network cable (without RJ 45 connector) through both

elements. Then crimp the cable with RJ 45 connector.

③ Connect the cable to the water-proof connector. Then tighten the

nut and the main cover.

Water-proof connector

External microphone

External speaker

485

1--WIEGAND_D1

2--WIEGAND_D0

3--GND

1--ALARM-COM

2--ALARM_OPEN

3--ALARM_IN

4--ALARM_GND

RS485T+

RS485T-

DC12V/AC24V

Connecting Network Cable

Card reader

RS 485 screen

Installation

* Before you start, please make sure that the wall or ceiling is strong enough

to withstand three times the weight of the camera.

 Open the mounting base and the upper cover of the junction box.

 Attach the drill template of the junction box to the place where you

want to install the junction box and then rill the screw hole and calbe

hole on the wall according to the drill template.

 Install junction box onto the wall by using the screws provided.

④ Fasten the mounting base of the camera to the upper cover of the junction

box.

Mounting base

Upper cover

12mm

6.5×38mm

4×

Rubber o-ring

⑤ Route the cables through the cable hole and connect the camera. Then install

the camera onto the mounting base of the junction box.

⑥ Three-axis Adjustment-Before adjustment, preview the image of the camera

on a monitor and then loosen the set screws to adjust the camera according to

the figure below to get an optimum angle.

PM 4×10mm

6.6mm

4×

Tilt 90°

Pan 360°

Rotate

360°

Set screws

50~65 feet 50~82 feet

15~20feet

Configuration requirements of camera and surrounding area

The monitoring image shall try to cover the lane, entering/exiting vehicles

and these vehicles' plate number shall be always seen in the video.

Try to avoid the objects that will block the camera, such as pillars,

obstacles, doors, etc.

Avoid the scenes with many trees or other moving objects (like humans,

non-motor vehicles).

The monitoring road shall be straight within 165ft in front of/behind the

location of the camera installation and make sure the camera points at the

front or rear of the vehicle.

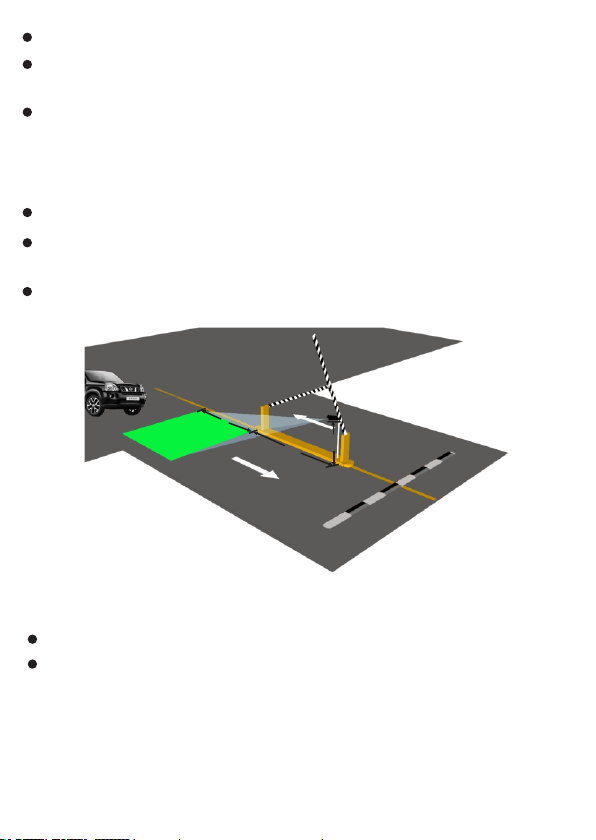

Overhead Monitoring

The installation height (H) shall range from 15 ~ 20ft.

The distance D (between the location of the camera installation and the

captured area) shall range from 50 ~ 82ft. This distance (D) depends on the

installation height, usually 3 or 4 times as far as the installation height (H).

The distance of the captured area (L) shall be from 50 ~ 65ft.

Note: The following installation requirements are based on optimum conditions,

your license capture rate may vary depending on lighting, position, license

plate designs and other factors.

<120MPH

The depression angle of the camera shall range from 0° to 5°.

The pan angle of the camera shall range from 5° to 20°.

The tilt angle of the license plate

After the camera is installed, you can log in the web client and view

whether the license plate tilts in the video. The tilt angle shall range from

-5° to 5°.

The depression angle of the camera shall range from 10° to 20°.

If the camera is installed on the side of the road, the pan angle of the camera

shall range from 0° to 20°.

If the camera is installed right above the middle of the road, the pan angle

of the camera shall range from -10° to 10°.

Entrance & Exit Monitoring

The installation height (H) shall range from 4.2ft to 5ft.

The distance D (between the location of the camera installation and the

captured area) shall range from 8.2ft to 10ft.

The distance of the captured area (L) shall be from 5ft to 6.5ft.

H4.2~5ft

8.2~10ft

5~6.5ft

③ In the device list, you can view the IP address, model number, and

MAC address of each device. Select the applicable device and double

click to open up the web viewer. You can also manually enter the IP

address in the address bar of the web browser.

Web Operation and Login

● Operation

IP Scanner can search for the device on the local network.

① Make sure that the camera and the PC are connected to the same

local network. The camera is set to DHCP by default.

② Install IP Scanner from the CD and run it after installation.Or

download from https://www.specotech.com/ip-scanner/

5C :F2:0 7: 24: 68 :B9

O4 BLP2M

If the captured license plate doesn't meet the above requirement, you can

adjust the pan angle of the camera to correct it.
