Speco INTENSIFIER HTINTB10 Manuel utilisateur

Please read this manual thoroughly before operation and keep

it handy for further reference.

HTINTB8 (2.8~12mm)

HTINTB9 (5.0~50mm)

HTINTB10 (9.0~22mm)

580 Line Color Bullet Camera

Intensifier 2 Series

Wall & Ceiling Mountable

WARNING & CAUTION

DO NOT use power sources other than that specified.______

The lighting flash with an arrowhead symbol, within an equilateral triangle is

Intended to alert the user to the presence of un-insulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to constitute

a risk of electric shock to persons____________________________________

The exclamation point within an equilateral triangle is intended to alert the user

to the presence of important operating and maintenance (serving) instructions

in the literature accompanying the appliance__________________

INFORMATION -This equipment has been tested and found to company with

limits for a class a digital device Pursuant to part 15 of the FCC rules.

These limits are designed to provide reasonable protection against harmful

Interference When the equipments operated in a commercial environment.

This equipment generates, uses, and Can Radiate radio frequency energy and

if not installed and used in accordance with the instruction manual, may Cause

Harmful interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which

Case the user will be required to correct the interference at his own expense.

WARNING – Change or modification not expressly approved by the manufacturer could void

the user’s authority to operate the equipment__________________________________

CAUTION : To prevent electric shock and risk of fire hazards.

DO NOT expose this appliance to rain or moisture.000

This installation should be made by a qualified service person and should conform to all local codes.

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL._______________

CAUTION

CONTENTS

Package Contents 4

Precautions 5

OSD Menu Tree

Camera Installation 6-9

Features 10-11

OSD Menu Details 13-16

Troubleshooting 17-18

Specifications 19

Dimensions 20

Warranty 21

PACKAGE CONTENTS

Please make sure that the following items are included

in the package:

1 HTINTB Camera Series

4 Mounting Screws

1 Video test Connector

1 Extra Mount Plate

1 Wrench

Please leave this manual with the end-user for future

reference.

PRECAUTIONS

•THIS CAMERA SHOULD BE ONLY INSTALLED BY QUALIFIED

PERSONNEL

•TO PREVENT A FIRE OR ELECTRICAL HAZARD PLEASE USE

PROPER POWER CABLE

•DO NOT CLEAN THE COVER WITH AN ABRAISIVE CLEANING

MATERIAL - PLEASE USE A SOFT CLOTH OR TISSUE TO

CLEAN THE COVER

•THERE ARE NO USER-SERVICEABLE PARTS INSIDE.

PLEASE DO NOT DISASSEMBLE THIS CAMERA OTHER THAN

TO MAKE INITIAL ADJUSTMENTS

•PLEASE USE A UL APPROVED REGULATED 24 VOLT AC OR

12 VOLT DC POWER SUPPLY

•PLEASE USE APPROPRIATE LOW VOLTAGE POWER CABLE

TO PREVENT FIRE OR ELECTRICAL SHOCK

•PLEASE INSURE THAT YOUR INSTALLATION AREA CAN

SUPPORT THE WEIGHT OF THE CAMERA

•PLEASE HANDLE THIS CAMERA CAREFULLY:

- DON’T USE A STRONG OR ABRASIVE DETERGENT WHEN

CLEANING THE CAMERA.

- DON’T EXPOSE THE CAMERA TO DIRECT SUN

CAMERA INSTALLATION

CONNECT POWER CABLE

1. WHEN USING 12 VOLTS DC (constant voltage 500 mA)

2. WHEN USING 24 VOLTS AC (40 Volt Amps)

3. CONNECT VIDEO CABLE

-CONNECT BNC CABLE TO THE BNC JACK.

4. CONNECT Alarm output (Relay output)

-Connect (+ , COM) for Positive activation and (-. COM) for

Negative activation of External Alarm Device when Motion

Detection is ‘ON’ in the camera.

DC 12V Power Supply

Power Input :RED

Center : (+)

BLACK:(-)

RED(+)

Power Supply

AC 24V

+ RED

-WHITE

COM (GREY)

Alarm Output

Positive Alarm Device (NO)

Negative Alarm Device(NC)

CAMERA INSTALLATION

Video Test Connector

OSD Joystick button

(Up, Down, Left, Right, Setup)

BUTTOM BOARD DETAILS

ZOOM & FOCUS ADJUSTMENT

- Loosen the fixed screws in each ring of Focus & Zoom

properly and adjust zoom or focus ring to take a right

picture and then fix the set screw again.

- Be careful of not putting too much strength when adjustment.

- Push the Joy stick for one second, and the OSD appears

on the screen. Move the Joy Stick up, down, left & right to

control the OSD functions.

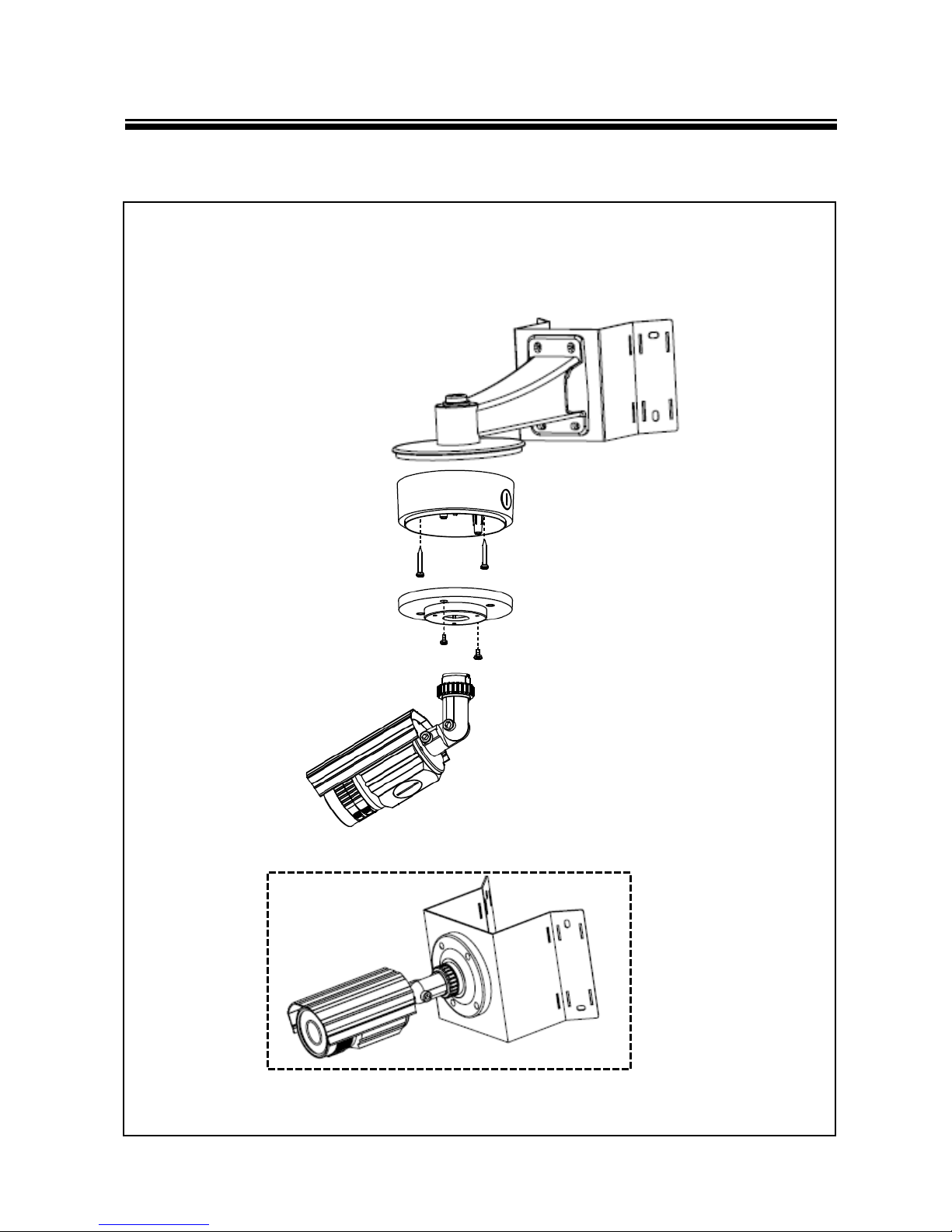

CAMERA INSTALLATION

COMPATIBILITY

CVCTPEXT“A” type Box “B” type Box

CVCTPLATE

Hole 1 : CVCTPEXT

Hole 2 : Electrical Box “B” type

Hole 3 : Electrical Box “A” type

[CVCTPLATE Hole Description]

★Original Base part

Should be taken away

to use CVCTPLATE

CAMERA INSTALLATION

COMPATIBILITY

CVCTPLATE

CVCTPEXT

BCP ( USING 7246WMT)

BCP (Direct connection )

FEATURES

High Resolution

Horizontal resolution of 580 TV lines is achieved by using a

SONY Super-HAD CCD with 410,000 pixels, and a custom DSP

yielding pictures with a high S/N ratio..

INTENSIFIER

1/3 inch High-inch density CCD and digital processor permit high

quality Pictures to be captured in very low light condition.

SPECO DNR

The Intensifier camera has a DSP chip that can remove image

noise efficiently showing clean images in low light conditions.

Motion Detection with Alarm Output

Built in motion detector with adjustable areas of coverage will

Send a signal to an external alarm device when motion is detected.

DAY/NIGHT

The Intensifier camera can show color pictures in all lighting

conditions, or you can have it automatically switch to a B/W

picture in low light conditions
