Speco LPRD922 Manuel utilisateur

LPRD922

License Plate Recognition Camera

Installation Guide

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

1. Notice of Use

 Follow all instructions. All requirements should be followed before using this camera.

 SPECO TECHNOLOGIES is not responsible for any technical or typographical errors

and reserves the right to modify this manual without notice.

 Keep this document for future reference.

 Please make sure the power source is 12V DC / 24V AC. Only connect the camera to

these required power systems.

 The camera must be installed on a solid mounting surface.

 Store the camera and other accessories in a dry place.

 SPECO TECHNOLOGIES is not responsible for any damage caused by inappropriate use.

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

2. Product Overview

The LPRD922 is a hight-performance license plate recognition camera, equipped with a 1/3”

SONY™ CCD.

Outfitted with powerful 850 nm IR LEDs, the LPRD922 works perfectly even in total darkness

to deliver clear plate images. Its varifocal IR-corrected lens keeps it in focus day and night,

optimizing performance even in very low light conditions. In short, the LPRD922 provides the

kind of reliability and round-the-clock surveillance-and-capture capabilities crucial to

maximizing the efficiency of LPR applications.

High Contrast Image

The LPRD922 features high-contrast imaging performance that delivers sharp, clear license-

plate images, even of vehicles moving at 55 MPH, in bad weather, and in low-light conditions.

Powerful IR

Its powerful IR functionality and IR-corrected lens deliver perfect image captures and

outstanding images all day long. It is also equipped with a high-power LED to help minimize

energy usage.

Wide Range Capture

Its built-in 3.7-12mm lens captures a wide 6-13 ft. field.

Rain Guard / Extendable Sunshield

The camera’s rain guard and extendable sunshield minimize the effects of rain and sunlight

on image quality.

Easy Installation

The cable-management bracket enables easy installation in any location, including walls,

surfaces, and ceilings.

Note: Because of the special nature of this camera, it will only display the license plates.

All other items in the camera's field of view will be blacked out.

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

Camera Dimensions:

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

2.1 Location and Function of Parts

1. Unit casing

The unit casing is made of die-cast aluminum and has conduit holes on the

side and bottom.

2. Safety cord

The safety cord prevents the dome casing from falling to avoid do harm to

people. Please do not remove the safety cord from the unit. If it is necessary

to remove, please remember to fasten the screws accompanied.

3. Zoom lever & Focus lever

Adjusts the camera range and focus. The lever itself is a screw and can be re

moved. Turning this screw all the way clockwise locks the position.

4. UTP-Unshield Twisted Pair(white/black wire)

Twisted Pair(TP) terminal (CAT.5E) for video signal. Usage of TP output re

quires a TP receiver at the other end of the TP line.

5. Power connector(red/black wire)

Connects to the external power source. (DC12V/AC24V)

6. BNC connector

Connects to the VIDEO IN connector of the Monitor Video Connector.

7. Mode setting DIP switch

The following DIP switches are set to defalut position(shaded) as shipped

from factory.

- BLC (backlight compensation) (lnitial setting: ON)

When switched on, the function adjusts exposure to compensate for situa- tions where

the subject is lit from behind. Set BLC to OFF if capturing strong light intensity images

(i.e. glare from car headlights).

- AGC (automatic gain control) (lnitial setting: ON)

- DC/AES Mode switch (Always setting: ON)

This function is useless in the camera.

- Flickerless (lnitial setting: OFF)

Flickerless reduces ickers when NTSC camera is used with 50Hz power

freqency and vice versa. Users can turn on the ickerless function

8. Monitor (MONITOR OUT) connector

You can connect to a monitor from this connector.You can adjust

the camera while looking at the image on the monitor. After adjusting the camera,

disconnect the cable.

9. IR Board

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

456 7

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

2.2 Specifications

Image system

Signal system NTSC

Image Sensor 1/3” SONY CCD

Effective pixels 768 (H) x 494 (V)

Electrical

Scanning system 2:1 Interlace V: 59.94Hz

Sync System Internal

Horizontal resolution 600 TV lines

Built-in lens f=3.7~12mm, F1.4 DC iris varifocal IR-corrected lens

View angle Horizontal: 76.92º (wide) ~22.3º (tile)

Vertical: 56.89º (wide) ~17.7º (tile)

Gamma correction 0.45

Minimum Illumination 0 Lux (IR LEDs ON)

S/R ratio More than 50dB (AGC off)

BLC ON / OFF

AGC ON / OFF

Video Output 1 Vpp composite output, 75 Ohm

UTP passive; 300M (985ft.)

IR LEDs 18 Super power LEDs

IR wavelength 850 mm

IR distance 40 ft.

Capture range 6~13 ft.

Capture speed 55MPH

LED life More than 10,000 hours (122 F)

Power Supply

Power requirement Dual voltage: 12V DC / 24V AC

Power consumption 7W (max.)

Environmental

Operating Temp. -14ºF ~ 122ºF

Mechanical

Dimensions 150.13mm x 129mm (5.91” x 5.1”)

Weight 1150g approx.

Vandal Proof 1000kg impact resistance

Protection class IP67

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

3. Mounting Specifications & Installation Instructions

Please follow the mounting specifications to install the LPRB922 camera.

3.1 Package Contents

3.2 Mounting Specifications

1. Use appropriate screws and select an appropriate location to install the camera.

2. Ensure the mounting surface can support the weight of the camera.

3. The width of the license plate should cover approximately 17-20% of the width of

the screen.

4. The camera height should be more than 20 inches.

5. The vertical angle should be less than 40 degrees.

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

Item Description

LPRD922 camera

guide pattern sticker mounting template

3 self-tapping screws for mounting camera

3 plastic anchors for cement ceiling mounting

Video monitor output cable

printed material installation guide, notice card

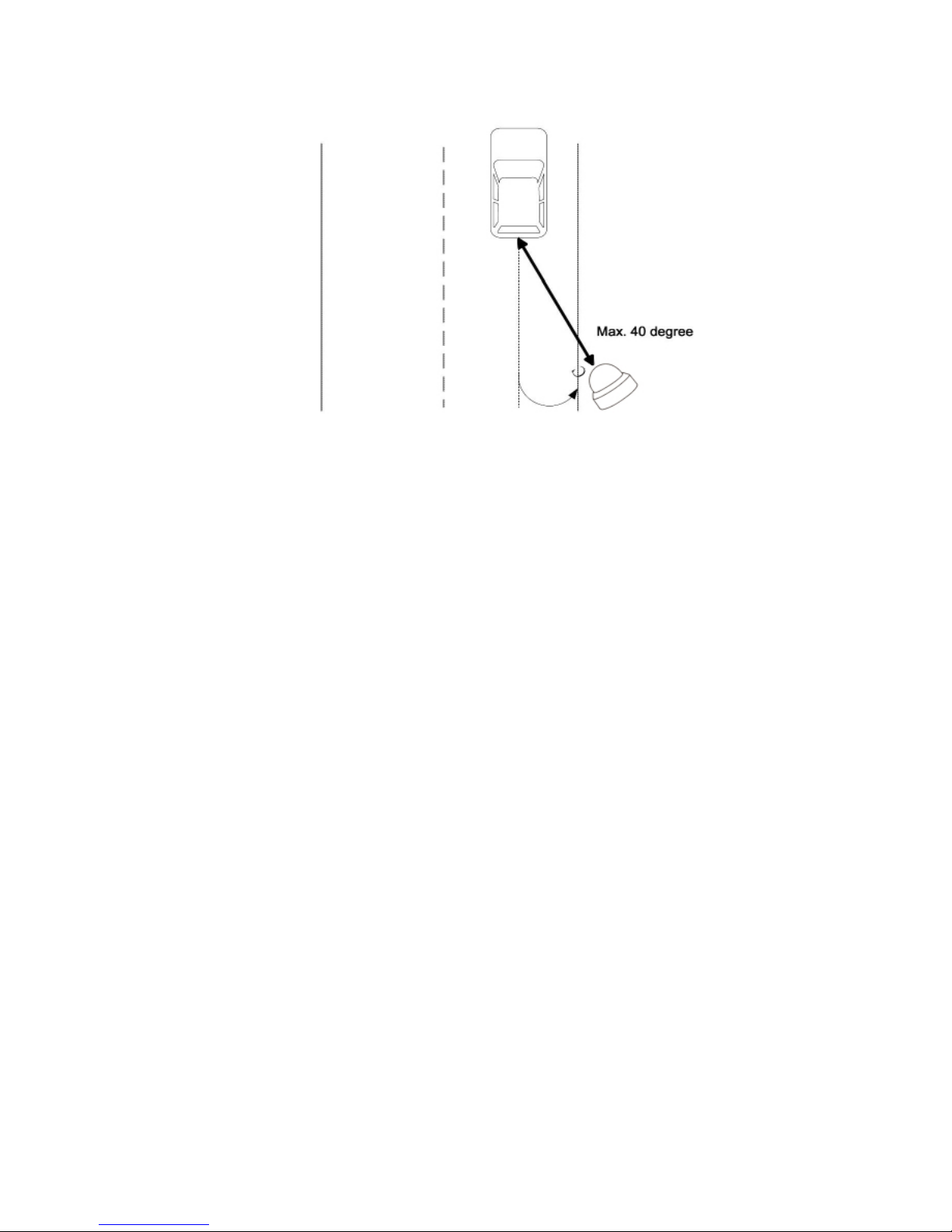

6. The horizontal angle should be less than 40 degrees. This camera is designed to

cover only one lane (less than 3 meters).

7. If using with a DVR, make sure the DVR has the de-interlace feature and the frame

rate is above 15 fps for optimal effect.

8. To ensure an optimal view, please adjust the lens under the conditions we suggest.

Speco Technologies 200 New Highway, Amityville, NY 11701 1-800-645-5516 www.specotech.com

Speco Technologies is constantly developing product improvements.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Rev. 12/09/10

2. Install the camera onto the ceiling

and lock tightly by screws.

3. Press the grip portion to remove the

mask and rotate the main bracket to

adjust the pan angle.

1. Adhere the guide pattern to the

installation surface. Drill one big and

three small holes on the soft wall.

3.3 Ceiling mount installation
