O4FB8M User’s Manual

Flexible Intensifier® Technology

Network Camera Manual

(O4FB8M)

O4FB8M User’s Manual

Rev 1.0 (Jan 2017)

Note

This equipment has been tested and found to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into and outlet on a circuit different from that to which the receiver is

connected

Consult the dealer or an experienced radio/TV technician for help.

Directions

DirectionsDirections

Directions

Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the

device out of reach from children.

Do not disassemble the camera. No after service is assumed when disassembled.

Use only the power adapter provided with the camera.

Be careful to prevent moisture or water penetration into the unit. Attention is needed when installing the

camera. The screw holes for the installation screws and pipe should be maintained water tight during the

whole life time of the product.

All of the electrical connection wires running into the unit should be prepared so that water from the outside

cannot flow into the unit through the surface of the wires. Penetration of moisture through the wire for an

extended period can cause malfunction of the unit or deteriorated image.

O4FB8M User’s Manual

Rev 1.0 (Jan 2017)

Revision History

Date Revision Details

January 6, 2017 1.0 F rst manual rev s on creat on.

Caution

Any changes or modifications in construction of this device which are not explicitly approved by the party

responsible for compliance could void the user’s authority to operate the equipment.

O4FB8M User’s Manual

Rev 1.0 (Jan 2017)

Contents

Contents ........................................................................................................................ 4

Introduct on ............................................................................................................. 5

1.1. Overv ew ............................................................................................................................... 5

1.2. Spec f cat ons ......................................................................................................................... 6

1.3. Appl cat ons of O4FB8M ........................................................................................................ 7

Product Descr pt on ................................................................................................. 8

2.1. Contents ................................................................................................................................ 8

2.2. Product Prev ew .................................................................................................................... 8

2.3. Phys cal descr pt on ............................................................................................................... 9

2.4. Funct onal Descr pt on .......................................................................................................... 11

2.5. Accessor es for nstallat on ................................................................................................... 12

On S te Installat on ................................................................................................. 13

3.1. Installat on ............................................................................................................................ 13

Gett ng Started ...................................................................................................... 14

4.1. PC System Requ rements ...................................................................................................... 14

4.2. Qu ck Installat on Gu de ........................................................................................................ 15

Troubleshoot ng ..................................................................................................... 19

5.1. No power s appl ed .............................................................................................................. 19

5.2. Cannot connect to the camera .............................................................................................. 20

5.3. Techn cal Ass stance .............................................................................................................. 21

O4FB8M User’s Manual

Rev 1.0 (Jan 2017)

1. Introduction

1.1. Overview

The O4FB8M s a 4 megap xel, tr ple-codec (H.265, H.264, MJPEG) IP camera bu lt w th embedded software

and hardware technology. It enables real t me transm ss on of synchron zed v deo of up to 2592x1520 and

aud o data. Remote cl ents can connect to the dev ce for real t me v deo/aud o data through var ous cl ent

solut ons runn ng on PCs and smartphones. Real t me 2-way commun cat on s ava lable through the

b d rect onal aud o commun cat on feature.

Flex ble Intens f er® Technology s the most opt m zed solut on to handle any l ght ng cond t on to f t the

nstallat on env ronment. Intens f er® mode can be used to d splay a color mage n low l ght. In extreme

darkness, adapt ve, super IR LEDs can be used to llum nate the scene w thout IR saturat on of the scene. Lastly,

when a monochrome mage s des red w thout the ass stance of IR LEDs, a clear mage can be captured w th

just a l ttle b t of amb ent l ght.

Des gned to be a stand-alone stream ng aud o & v deo transm ss on dev ce, th s camera can be appl ed to

var ous appl cat ons such as v deo secur ty, remote v deo mon tor ng, remote educat on, v deo conference or

nternet broadcast ng system.

Integrated PoE (Power over Ethernet, IEEE 802.3af) w ll reduce the total cost of ownersh p by reduc ng on-s te

w r ng for nstallat on.

O4FB8M User’s Manual

Rev 1.0 (Jan 2017)

1.2. Specifications

LENS

Lens Type 2.8mm~12mm Motor zed Lens

Lens Ir s Control DC Auto Ir s

C MER

Image Sensor 1/3" 4Mega CMOS Sensor

M n mum Illum nat on COLOR : 0.0785, BW : 0.0608(SLOW Shutter Off)

COLOR : 0.0021, BW : 0.0013(SLOW Shutter On)

LED ON : 0 Lux

Scann ng Mode Progress ve Scan

Dynam c Range (WDR) 108dB (True WDR)

Electron c Shutter Auto / Manual (1/30(25) ~ 1/10,000)

Ant -Fl cker, Slow Shutter(Off,1/15 sec~1/1 sec), FIT

IR LED Bu lt- n 4pcs of H Power LED

VIDEO

Compress on Algor thm H.265(MP/BP), H.264(HP/MP/BP), M-JPEG

Compress on Resolut on 352X240, 640X360, 704X480, 1280x720, 1920x1080,2304X1296, 2592X1520, P vot

B trate Control H.264 - CBR / VBR (up to 13Mbps)

H.265 - CBR / VBR (up to 7Mbps)

Max mum Frame Rate 25 ps @ 4M p xel + 15 ps @ 4CIF / Max Tr ple Stream ng

UDIO

Compress on Algor thm G.726 (16KHz), G.711 μ – Law (8KHz)

INPUTS/OUTPUTS

V deo Output 1 BNC

Aud o Input 1 l ne n

Aud o Output 1 l ne out

Alarm Input 1 TTL, NC/NO programmable, 4.3V (NC) or 0.3V (NO) threshold, 5 VDC

Alarm Output 1 relay out, NO only, 0.3A @ 125 VAC, 1A @ 30 VDC

Network Connect v ty 10/100 Mbps Ethernet

CONNECTORS

V deo Output BNC

Aud o In/Out Φ 3.5 aud o jack

Alarm In W res

Alarm Out W res

O4FB8M User’s Manual

Rev 1.0 (Jan 2017)

Ethernet Port RJ-45

GENER L

D mens ons (Ø x H)

3.94"(W)*3.94"(H)*8.27"(D)

Un t We ght

3.09Ibs

Operat ng Temperature 14°F to 122°F (-10°C to 50°C)

Operat ng Hum d ty 0% to 90%

Power Supply 12 VDC, PoE (Power over Ethernet) (IEEE 802.3af, Class 3)

Power Consumpt on Max. 9.0W

Approval FCC, CE, IP66

Specifications are subject to change without notice.

1.3. pplications of O4FB8M

 Secur ty surve llance (bu ld ngs, stores, manufactur ng fac l t es, park ng lots, banks, government fac l t es, m l tary, etc.)

 Remote mon tor ng (hosp tals, educat on, traff c, publ c areas, etc.)

 Teleconference (B -d rect onal aud o conference). Remote Learn ng, Internet broadcast ng

 Weather and env ronmental observat on

O4FB8M User’s Manual

2. Product Description

2.1. Contents

The product package conta ns

the follow ng

Contents

Main Body

Tools and Mounting

Screws

Screw

TS T1,

L Wrench 1EA

Software & User’s Gu de

Quick Reference Guide

Qu ck nstallat on gu de

GPL License

Open Source Gu de

2.2. Product Preview

O4FB8M

IR Bullet IP Camera

PC software to

network and ass gn IP addresses

the follow ng

Description Image

O4FB8M

TS T1,

4EA, Screw M5X10, 4EA

L Wrench 1EA

, Core 1EA

Software & User’s Gu de

Qu ck nstallat on gu de

Open Source Gu de

IP Scanner

SecureGuard™

PC software to

locate IP cameras on the

network and ass gn IP addresses

PC software to v ew and record

v deo from the IP camera.

Remarks

SecureGuard™

VMS

PC software to v ew and record

v deo from the IP camera.

O4FB8M User’s Manual

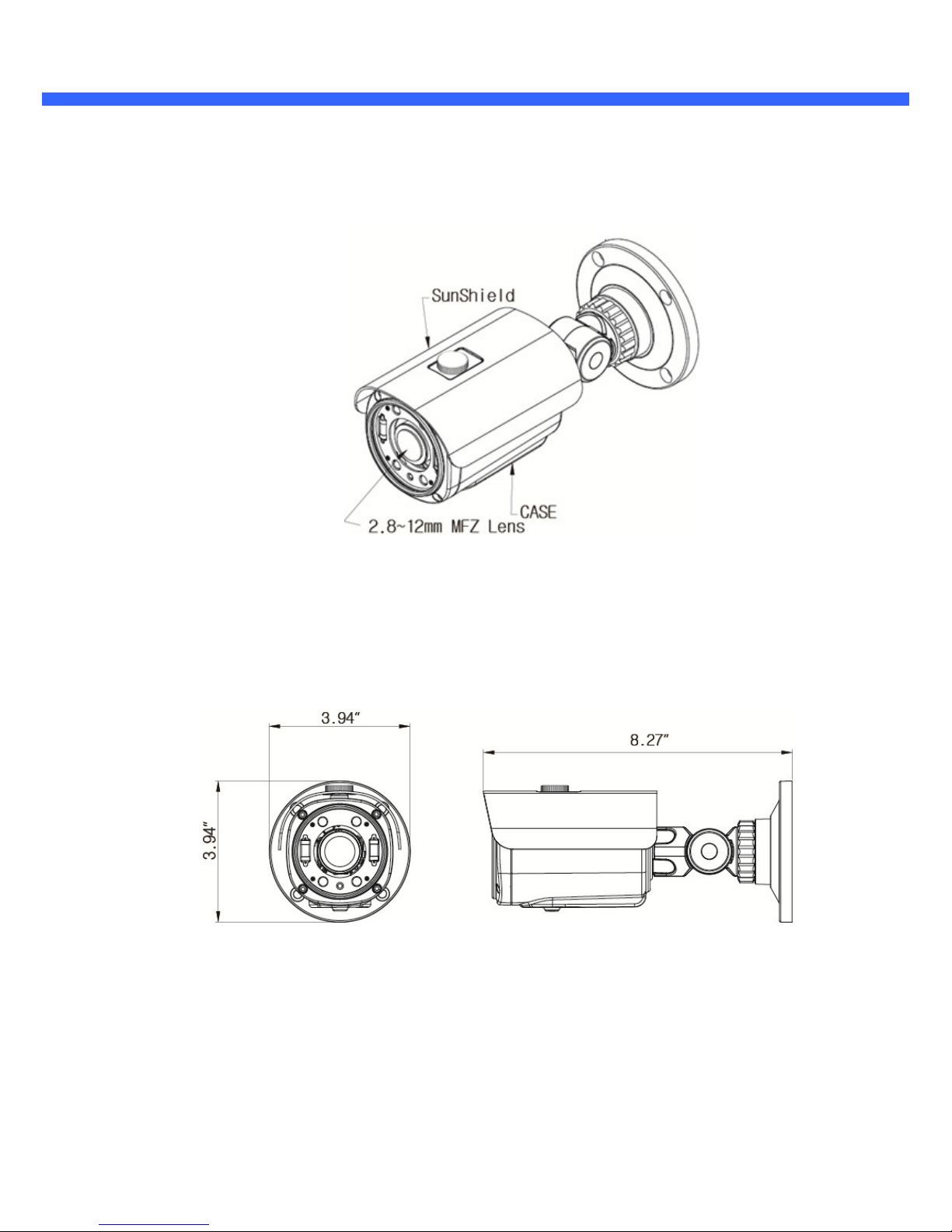

2.3. Physical description

2.3.1. External V ew

Figure 2-1. External view of O4FB8M

2.3.2. D mens ons

Figure 2-2. Dimensions

O4FB8M User’s Manual

2.3.3. Connector nformat on

1. Network Port 2. BNC Video Out 3. Power In

4. Ground 5. udio In/Out 6. larm In/Out

Figure 2-3. Connector information

①

②

④

③

⑤

⑥
