SOYO SY-7VDA Manuel utilisateur

SY-7VDA

Motherboard

****************************************************

VIA Cyrix III, Intel Pentium®

III & Celeron

Processor supported

VIA PRO266 AGP/PCI Motherboard

66/100/133 MHz Front Side Bus supported

ATX Form Factor

****************************************************

User's Manual

SOYO™SY-7VDA

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: May 2001

Version 1.2

7VDA SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-7VDA

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION .............................1

1-1 INTRODUCTION...........................................................1

1-2 KEY FEATURES............................................................1

1-3 HANDLING THE MOTHERBOARD .............................4

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS ........5

1-5 SY-7VDA MOTHERBOARD LAYOUT.........................6

1-6 SY-7VDA MOTHERBOARD COMPONENTS...............7

1-7 MICROPROCESSOR......................................................9

1-8 MEMORY.....................................................................10

1-9 CHIPSET ......................................................................11

1-10 I/O INTERFACE CONTROLLER.................................15

1-11 HARDWARE MONITOR..............................................18

1-12 WAKE ON LAN TECHNOLOGY.................................19

CHAPTER 2 HARDWARE INSTALLATION..................................20

2-1 PREPARATIONS ..........................................................20

2-2 UNPACKING THE MOTHERBOARD .........................21

2-3 INSTALLATION GUIDE..............................................22

2-3.1 CPU Installation.........................................................23

2-3.2 DDR RAM Memory Module Installation.....................26

2-3.3 Motherboard Connector..............................................28

2-3.4 CMOS Clear (JP5) .....................................................42

2-3.5 Power On...................................................................43

2-3.6 Quick BIOS Setup.......................................................44

2-3.7 Troubleshooting at First Start .....................................46

2-3.8 Power Off...................................................................49

CHAPTER 3 BIOS SETUP UTILITY ..............................................50

3-1 SOYO COMBO SETUP.................................................53

3-2 STANDARD CMOS SETUP..........................................56

Table of Contents SY-7VDA

3-3 ADVANCED BIOS FEATURES.....................................59

3-4 ADVANCED CHIPSET FEATURES..............................63

3-5 INTEGRATED PERIPHERALS.....................................71

3-6 POWER MANAGEMENT SETUP ................................79

3-7 PNP/PCI CONFIGURATIONS.......................................85

3-8 PC HEALTH STATUS....................................................88

3-9 LOAD FAIL-SAFE DEFAULTS.....................................90

3-10 LOAD OPTIMIZED DEFAULTS...................................91

3-11 SET SUPERVISOR PASSWORD...................................92

3-12 SET USER PASSWORD................................................93

3-13 IDE HDD AUTO DETECTION .....................................94

CHAPTER 4 THE SOYO CD ...........................................................96

Motherboard Description SY-7VDA

Chapter 1

MOTHERBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-7VDA AGP/PCI Motherboard is a high-performance, Socket 370

support ATX form-factor system board. The SY-7VDA uses VIA Chipset

technology and supports Socket 370 class processors. This Motherboard is

fully compatible with industry standards and adds many technical

enhancements.

1-2 KEY FEATURES

ØCPU SUPPORT

The SY-7VDA supports a wide range of INTEL CPUs:

nFSB 66MHz: Celeron(400-700MHz)

nFSB 100MHz: Pentium® III (500-850MHz)

nFSB 133MHz: Pentium® III (533MHz-1.13GHz)

Supports Via Cyrix processors

nFSB 100MHz: Cyrix III (500MHz-600MHz)

New released Intel Socket 370 CPUs will very likely be supported by the

SY-7VDA as well.

ØCPU SETTINGS

The SY-7VDA provides the user with a very complete and convenient

CPU setting environment. The CPU settings are all adjusted through the

special SOYO COMBO page in the BIOS, therefore rendering the use of

jumpers obsolete.

nCPU FSB Frequency

The SY-7VDA supports an incredibly wide range of CPU FSB frequency

settings:

66, 75, 81, 83, 90, 95, 100, 105, 110, 112, 113, 115, 117, 118, 120, 122,

124, 126, 133, 135, 137, 138, 140, 142, 144, 150 and 155 MHz.

This ensures that the SY-7VDA has an overwhelming overclocking potential.

Motherboard Description SY-7VDA

nCPU Multiplier

The SY-7VDA supports a wide range of multipliers:

2.0x, 2.5x, 3.0x, 3.5x, 4.0x, 4.5x, 5.0x, 5.5x, 6.0x, 6.5x, 7.0x, 7.5x and

8.5x

ØEXPANDABILITY

The SY-7VDA provides all the standard expansion slots, and many more

additional expansion features:

uExpansion slots

n1 x 32-bit bus master AGP slot

n5 x 32-bit bus master PCI slots

uEnhanced IO

nFloppy disk controller

n2x EIDE controllers with support for up to 4 Ultra DMA 33/66

/100 devices

nStandard/EPP/ECP parallel port

n2x 16550 compatible serial ports

nIrDA compatible infrared port

n6x USB (Universal Serial Bus) connectors

nPS/2 mouse connector

nPS/2 keyboard connector

Motherboard Description SY-7VDA

ØADVANCED FUNCTIONS

The SY-7VDA supports advanced functions such as:

nWake-On-LAN

Supports Wake-On-LAN (Some advanced network cards can

wake the system up over the network, the WOL connector is

provided by the SY-7VDA to support this function).

nMultiple boot

The SY-7VDA supports booting from devices such as CD-ROM.

nPower on by modem or alarm

If the SY-7VDA system is in suspend mode, it can be switched back

on through the modem or RTC alarm through this function. This

opens a lot of possibilities, such as remote access that switches the

system on only after the modem receives a call.

ØFAIL SAFE

The SY-7VDA comes with added functionality to make managing the

system easy and safe

uHardware Monitor

The integrated Hardware Monitor IC and Hardware doctor software

enables the user to monitor system voltages, temperatures and FAN speeds.

This makes sure that the user is full control of the system

uPower Failure Resume Function

This function can be set in the BIOS, and determines whether the system

will automatically turn on again after a power failure. This function is

indispensable for server systems that need to always be on line.

u5VSB Indicator

This green LED gives an indication of the presence of the 5V Standby

voltage. This voltage is always fed into the motherboard and is used for

functions such as WOL.

ØSOYO Bonus Pack CD-ROM

ØCOMPLIANCE

The SY-7VDA complies with all important industry standards. The

Motherboard Description SY-7VDA

following underlines the reliability of the SY-7VDA, a motherboard to

trust.

nPC99, ACPI compliant

ØUSER FRIENDLY

nSOYO Combo Setup

nJumperless design

nYou can set up the following options through the BIOS setup

CPU FSB frequency

CPU multiplier

CPU Vcore voltage

PCI clock

AGP Clock

DDR RAM Clock

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

ØBefore handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

ØRemove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

ØCheck the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

Motherboard Description SY-7VDA

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

ØDo not remove the anti-static packaging until you are ready to install.

ØGround yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

ØFrequently ground yourself while working or use a grounding strap.

ØHandle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-7VDA

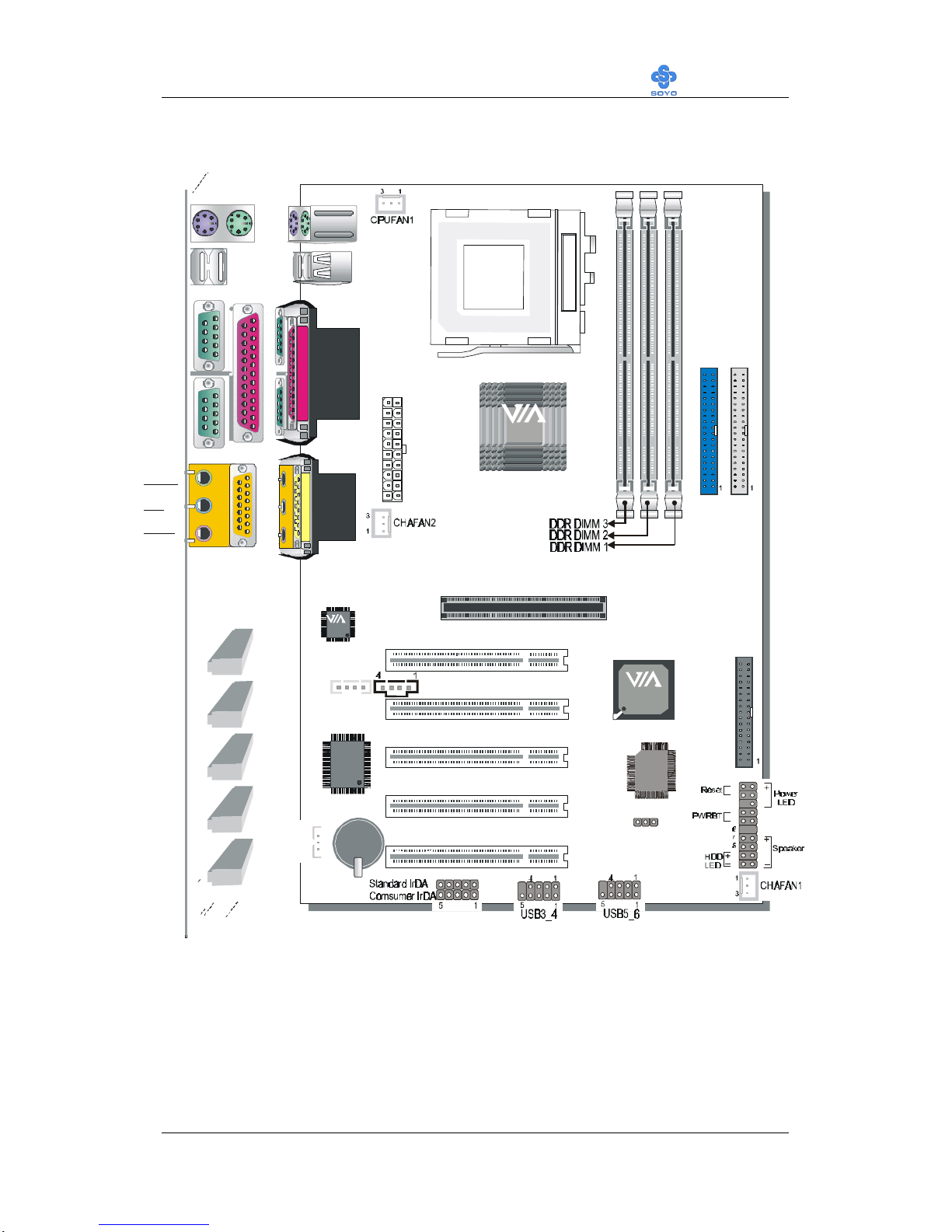

1-5 SY-7VDA MOTHERBOARD LAYOUT

Back Panel SY-7VDA Platform

PRT

PS/2 KB

Connector

PS/2 Mouse

Connector

ATX Power

AOUT

AIN

AMIC

AGAME

COM 1

COM 2

USB 1

USB 2

SDRAM

AGP Slot

Lithium

Battery

JP5

PCI Slot #5

PCI Slot #1

PCI Slot #4

PCI Slot #3

PCI Slot #2

FDC1

IDE 1

IDE 2

Winbond

W83697HF

-AW

2MB

29F002

Socket 370

JP10

WOL

Header

CDIN2

CDIN1

VT8633

VT8233

VT1611A

Autres manuels pour SY-7VDA

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO SY-P4I Fire DRAGON Manuel utilisateur

SOYO

SOYO SY-7IS2 Manuel utilisateur

SOYO

SOYO SY-6BA+100 Manuel utilisateur

SOYO

SOYO 82430 VX PCI Manuel utilisateur

SOYO

SOYO 82430 HX/P54C Manuel d'utilisation et d'entretien

SOYO

SOYO SY-P4IS2 Manuel utilisateur

SOYO

SOYO SY-7IWB Manuel utilisateur

SOYO

SOYO SY-7IWM/L V1.0 Manuel utilisateur

SOYO

SOYO SY-6VZA Manuel utilisateur

SOYO

SOYO SY-K7V DRAGON Plus Manuel utilisateur

SOYO

SOYO 5EA5 Manuel d'utilisation et d'entretien

SOYO

SOYO SC-5EA5 Guide de démarrage rapide

SOYO

SOYO SY-K7V DRAGON Plus Manuel utilisateur

SOYO

SOYO Motherboard SY-6BA+ IV Manuel utilisateur

SOYO

SOYO SY-P4X400 DRAGON Lite Manuel utilisateur

SOYO

SOYO SY-P4-645DX DRAGON Ultra Manuel utilisateur

SOYO

SOYO SY-P4I875P DRAGON 2 V1.0 Manuel utilisateur

SOYO

SOYO SY-P4VTE Manuel utilisateur

SOYO

SOYO SY-7IZB Manuel utilisateur

SOYO

SOYO SY-P4S DRAGON Ultra Manuel utilisateur

SOYO

SOYO SY-7ISA plus Manuel utilisateur

SOYO

SOYO SY-6KE Manuel utilisateur

SOYO

SOYO SY-K7VTA-B Manuel utilisateur

SOYO

SOYO SY-P4I875P DRAGON 2 V1.0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
