SOYO SY-6VZA Manuel utilisateur
SY-6VZA
Motherboard
****************************************************
Socket 370 for Intel CeleronTM Processor
ViA ApolloPro AGP/PCI Motherboard
66&100MHz Front Side Bus supported
ATX Form Factor
****************************************************
User's Guide
&
Technical Reference
SOYO™SY-6VZA
ii
About This Guide
This User's Guide is for assisting system manufacturers and end users in setting up
and installing the Motherboard. Information in this guide has been carefully checked
for reliability; however, no guarantee is given as to the correctness of the contents.
The information in this document is subject to change without notice.
Copyright Notice
Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.
Trademarks
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.
Disclaimer
Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.
Product Rights
Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".
Edition: December 1998
Version 1.0
6VZA SERIAL
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%
Table of Contents SY-6VZA
iii
Table of Contents
SY-6VZA MOTHERBOARD LAYOUT ...........................................1
CHAPTER 1 INTRODUCTION .....................................................2
1-1 KEY FEATURES......................................................2
1-2 HANDLING THE MOTHERBOARD..........................4
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS....5
CHAPTER 2 HARDWARE SETUP...............................................6
2-1 PREPARATIONS .....................................................6
2-2 UNPACKING THE MOTHERBOARD .......................7
2-3 INSTALLATION GUIDE............................................7
CHAPTER 3 BIOS SETUP UTILITY...........................................27
3-1 SOYO COMBO SETUP .........................................29
3-2 STANDARD CMOS SETUP ...................................34
3-3 BIOS FEATURES SETUP......................................37
3-4 CHIPSET FEATURES SETUP...............................41
3-5 POWER MANAGEMENT SETUP...........................44
3-6 PNP/PCI CONFIGURATION SETUP......................48
3-7 LOAD SETUP DEFAULTS .....................................51
3-8 INTEGRATED PERIPHERALS...............................52
3-9 SUPERVISOR PASSWORD ..................................57
3-10 USER PASSWORD ...............................................58
3-11 IDE HDD AUTO DETECTION................................59
CHAPTER 4 3D PNP AUDIO ONBOARD...................................60
CHAPTER 5 DRIVERS INSTALLATION.....................................62
CHAPTER 6 ONBOARD SOUND DRIVER INSTALLATION.......67
Motherboard Features SY-6VZA
1

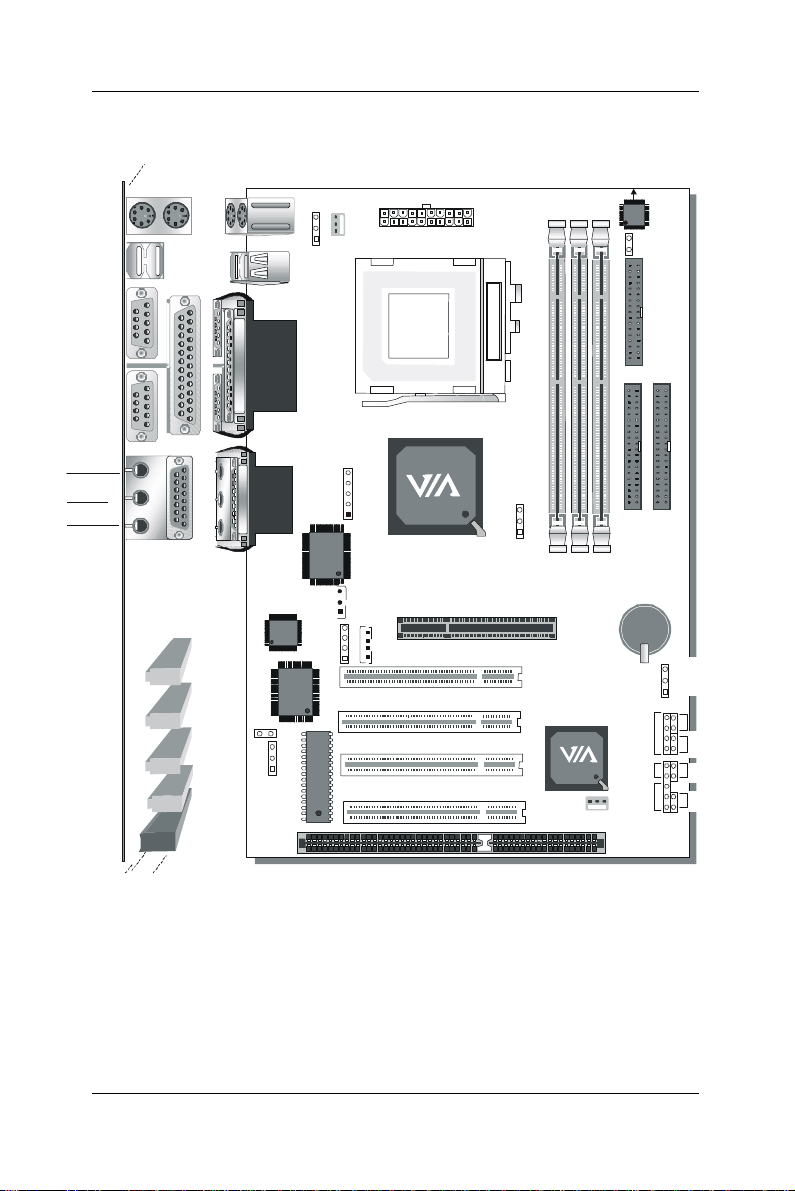

SY-6VZA MOTHERBOARD LAYOUT
Back Panel SY-6VZA Platform
COM 1
COM 2
PRT
USB 1
USB 2
PS/2 KB
Connector
PS/2 Mouse
Connector
PCI Slot #1
PCI Slot #2
PCI Slot #3
PCI Slot #4
3V
Lithium
Battery
1
CPUFAN
Winbond
83977EF
-AW
I/O Chipset
IDE 2 IDE 1
1
1
1
FDC
ISA Slot #1
AGP Slot
ATX
Power
Speaker
Keylock
Power
LED
Reset
PWRBT
Turbo
LED
HDD LED
_
+
_
+
_
+
_
+
1
CHAFAN
JP7
JP45
JP8
1
1
3
3
Flash BIOS
AUDIO PCI
ES1373
LINE-OUT
LINE-IN
MIC JACK
JOYSTICK
JP 2
1
3
JP5
Jumper
CMOS Clear
JP1
1
3
CDIN
J4J5
1
1
4
4
JP44
WOL
Header
3
1
IR1
1
5
Hardware
Monitoring
Winbond
W83782
Socket 370
CODEC
CT1297
DIMM 1
DIMM 2
DIMM 3
Introduction SY-6VZA
2
Chapter 1
INTRODUCTION
The SY-6VZA AGP/PCI Motherboard is a high-performance
Celeron®
processor supported ATX form-factor system board. SY-
6VZA uses the ViA ApolloPro Chipset technology and supports
Socket 370 CeleronTM class processors. This Motherboard is fully
compatible with industry standards and adds many technical
enhancements.
1-1 KEY FEATURES
Supports Intel Socket 370 CeleronTM processor (300A~433 MHz)
Auto-detect CPU voltage
PC98, ACPI, Ultra DMA/33
Supports system memory up to 512 MBytes
Power-on by modem or alarm
Supports power-on by keyboard
Supports onboard hardware monitoring
and includes Hardware Doctor™utility
1 x 32-bit AGP slot
4 x 32-bit bus mastering PCI slots
2 x USB ports onboard
1 x IrDA port
Supports multiple-boot function
SOYO COMBO Setup
Supports power failure resume
Supports Fan speed control
Supports Hardware suspend (APM mode only)
Introduction SY-6VZA
3
SY-6VZA PLATFORM FEATURES
Board Size 4-layer PCB, 17x30.5cm(6.7”x12”), ATX Form
Factor
Socket 370 66/100MHz FSB
ØCeleronProcessor 300A/333/366/400*/433* MHz
ØBuilt-in full speed 128KB L2 cache.
ØFeatures Auto-detection of CPU voltage
Chipset ViA ApolloPro AGP Set
ATX Power 20-pin Male Connector
CPUFAN 3-pin CPU Cooling Fan Connector
Memory DIMM Bank (DIMM1~3)
ØThree strips of 168-pin Unbuffered SDRAM DIMM
ØSupports 8/16/32/64/128/256MB DIMM modules in
each bank
ØSupports up to 512 MBytes of main memory
BIOS System BIOS built-in, Award BIOS
ØAPM, ACPI and "Plug-and-Play" function
ØSupports multiple-boot function
ØOnboard FLASH memory for easy upgrade
ØY2000 Compliant
Bus Controller Compliant with PCI specifications version 2.1
PCI Slots 4 x 32-bit Bus Mastering Slots
AGP Slot 1 x 32-bit AGP Slot
ISA Slots 1 x 16-bit ISA Slots
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports
ØIDE1: Primary IDE Device Connector
ØIDE2: Secondary IDE Device Connector
ØSupports Ultra DMA/33MHz
FDC 1 Floppy Disk Drive (FDD) Port
(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)
IR1 5-pin Serial Infrared Device Header
Keylock 5-pin KeyLock Header
Reset 2-pin Reset Switch Header
Speaker 4-pin PC Speaker Header
Introduction SY-6VZA
4
TB_LED 2-pin Turbo LED Header
HDD_LED 2-pin IDE Device LED Header
PWRBT ATX Power On/Off Switch 2-pin Header
J4, J5 2 x CD Line-in 4-pin Headers
JP1 Power-On by Keyboard Jumper
JP2 External Suspend Button Header
JP5 CMOS Clear Jumper
JP7 Onboard Sound Jumper
JP8 Power Button Enable Jumper
JP44 WOL (Wake-On-LAN) 3-pin Header
JP45 AGP operating speed Select Jumper
SY-6VZA BACK-PANEL FEATURES
PRT 1 x Onboard 26-pin Female Parallel Printer Port
ØECP/EPP/SPP multi-mode parallel printer port
COM1, COM2 2 x Onboard RS-232 Serial Ports
ØFeature 2 x high-speed UARTs (with 16550 FIFO)
PS/2 KB 1 x Onboard PS/2 Keyboard Port
PS/2 Mouse 1 x Onboard PS/2 Mouse Port
USB1, USB2 2 x Onboard USB
(Universal Serial Bus)
Ports
JOYSTICK 1 x Onboard 15-pin Joystick Port
LINE-OUT 1 x Onboard Line-out Audio Stereo Jack
LINE-IN 1 x Onboard Line-in Audio Stereo Jack
MIC JACK 1 x Onboard Microphone Stereo Jack
*These processors are not available yet for testing.
Introduction SY-6VZA
5
HANDLING THE MOTHERBOARD
To avoid damage to your Motherboard, follow these simple rules
while unpacking:
ØBefore handling the Motherboard, ground yourself by grasping
an unpainted portion of the system's metal chassis.
ØRemove the Motherboard from its anti-static packaging. Hold
the Motherboard by the edges and avoid touching its
components.
ØCheck the Motherboard for damage. If any chip appears loose,
press carefully to seat it firmly in its socket.
Warning: Do not apply power if the Motherboard appears
damaged. If there is damage to the board, contact your
dealer immediately.
1-2 ELECTROSTATIC DISCHARGE PRECAUTIONS
Make sure to ground yourself before handling the Motherboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the Motherboard in dry or air-conditioned
environment.
To protect your equipment from electrostatic discharge, take the
following precautions:
ØDo not remove the anti-static packaging until you are ready to
install.
ØGround yourself before removing any system component from its
protective anti-static packaging. (To ground yourself, grasp the
expansion slot covers or other unpainted portions of the computer
chassis.)
ØFrequently ground yourself while working or use a grounding strap.
ØHandle the Motherboard by its edges and avoid touching its
components.
Hardware Setup SY-6VZA
6
Chapter 2
HARDWARE SETUP
Congratulations on your purchase of SY-6VZA Motherboard. You
are about to install and connect your new Motherboard.
Note: Do not unpack the Motherboard from its protective
anti-static packaging until you have made the following
preparations.
2-1 PREPARATIONS
Gather and prepare all the following hardware equipment to
complete the installation successfully:
1. CeleronTM processor with built-in CPU cooling fan (boxed
type).
Note: This Motherboard supports non-boxed type CPUs. The
heavier CPU cooling fan requires the installation of a CPU
support stand included in this Motherboard package.
2. DIMM memory module
3. Computer case and chassis with adequate power supply unit
4. Monitor
5. PS/2 Keyboard
6. Pointing Device (PS/2 mouse)
7. Speaker(s) (optional)
8. Disk Drives: HDD, CD-ROM, Floppy drive…
9. External Peripherals: Printer, Plotter, and Modem (optional)
10. Internal Peripherals: Modem and LAN cards (optional)
Frequently Asked Questions:
lDo I need to install a sound card?
The answer is NO since, for your convenience, the SY-6VZA
Motherboard already features three built-in audio-stereo ports
(Line-in, Line-out, and Microphone).
lWhat kind of speaker can connect to "Line-out" port?
This motherboard requires a speaker with built-in amplifier to
generate proper output sound volume.
Hardware Setup SY-6VZA
7
2-2 UNPACKING THE MOTHERBOARD
When unpacking the Motherboard, check for the following items:
ØThe SY-6VZA ViA ApolloPro AGP/PCI Motherboard
ØThis Quick Start Guide *
ØThe Installation CD-ROM *
ØOne IDE Device Flat Cable
ØOne Floppy Disk Drive Flat Cable
* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.
Warning: Do not unpack the Motherboard from its anti-
static packaging until you are ready to install it.
Like most electronic equipment, your Motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the Motherboard carefully, holding it by the edges.
You are now ready to start the installation.
2-3 INSTALLATION GUIDE
We will now begin the installation of the Motherboard. Please follow
the step-by-step procedure designed to lead you to a complete and
correct installation.
Warning: Turn off the power to the Motherboard, system
chassis, and peripheral devices before performing any
work on the Motherboard or system.
Autres manuels pour SY-6VZA
1
Table des matières
Autres manuels SOYO Carte mère
SOYO
SOYO Super 7 SY-5EMA Manuel utilisateur
SOYO
SOYO SC-5EH5 Manuel d'utilisation et d'entretien
SOYO
SOYO SY-KT400 Dragon Ultra Manuel utilisateur
SOYO
SOYO SY-V6BE+ Manuel utilisateur
SOYO
SOYO 6KB Manuel d'utilisation et d'entretien
SOYO
SOYO SY-5SSM Manuel utilisateur
SOYO
SOYO SY-K7VIA Manuel utilisateur
SOYO
SOYO SY-K7VEM+ Manuel utilisateur
SOYO
SOYO SY-7VCA2 Manuel utilisateur
SOYO
SOYO SY-TISU Manuel utilisateur
SOYO
SOYO 82430 TX P54C Manuel d'utilisation et d'entretien
SOYO
SOYO SY-5EH5 Manuel d'utilisation et d'entretien
SOYO
SOYO Super 7 V1.0 Manuel utilisateur
SOYO
SOYO DRAGON Lite SY-KT333 Manuel utilisateur
SOYO
SOYO SY-P4VDA Manuel utilisateur
SOYO
SOYO SY-6IZA Manuel d'utilisation et d'entretien
SOYO
SOYO SY-6VCA Manuel utilisateur
SOYO
SOYO SY-7IZB+N Manuel d'utilisation et d'entretien
SOYO
SOYO 82440 FX Manuel utilisateur
SOYO
SOYO SY-6IBM Manuel d'utilisation et d'entretien
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
