SOYO SY-7IZB Manuel utilisateur
SY-7IZB
Motherboard
****************************************************
Socket 370 for Intel CeleronTM Processor
Intel 440 ZX AGP/PCI Motherboard
66 &100MHz Front Side Bus supported
Baby AT Form Factor
****************************************************
User's Guide
&
Technical Reference
SOYO™SY-7IZB
ii
About This Guide
This User's Guide is for assisting system manufacturers and end users in setting up
and installing the Motherboard. Information in this guide has been carefully checked
for reliability; however, no guarantee is given as to the correctness of the contents.
The information in this document is subject to change without notice.
Copyright Notice
Copyright 1998, Soyo Computer Inc. All rights reserved. This manual is copyrighted
by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a
retrieval system, or translate into any language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of
this publication without express written permission of Soyo Computer Inc.
Trademarks
Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property
of their owners.
Disclaimer
Soyo Computer Inc. makes no representations or warranties regarding the contents
of this manual. We reserve the right to revise the manual or make changes in the
specifications of the product described within it at any time without notice and without
obligation to notify any person of such revision or change. The information contained
in this manual is provided for general use by our customers. Our customers should be
aware that the personal computer field is the subject of many patents. Our customers
should ensure that their use of our products does not infringe upon any patents. It is
the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and
not to infringe upon or assist others to infringe upon such rights.
Restricted Rights Legend
Use, duplication, or disclosure by the Government is subject to restrictions set forth in
subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause
at 252.277-7013.
Product Rights
Products mentioned in this manual are mentioned for identification purpose only.
Product names appearing in this manual may or may not be registered trademarks or
copyrights of their respective companies.
If you need any further information, please come to our home page on the Internet.
The address is "http://www.soyo.com.tw".
Edition: February 1999
Version 1.0
7IZB SERIAL
FC
CTested To Comply
With FCC Standards
FOR HOME OR OFFICE USE
POST CONSUMER
RECYCLED PAPER
100%
Table of Contents SY-7IZB
iii
Table of Contents
SY-7IZB MOTHERBOARD LAYOUT.............................................1
CHAPTER 1 INTRODUCTION .....................................................2
1-1 KEY FEATURES......................................................2
1-2 HANDLING THE MOTHERBOARD..........................5
1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS....5
CHAPTER 2 HARDWARE SETUP...............................................6
2-1 PREPARATIONS .....................................................6
2-2 UNPACKING THE MOTHERBOARD .......................7
2-3 INSTALLATION GUIDE............................................8
CHAPTER 3 BIOS SETUP UTILITY...........................................27
3-1 SOYO COMBO SETUP .........................................29
3-2 STANDARD CMOS SETUP ...................................34
3-3 BIOS FEATURES SETUP......................................37
3-4 CHIPSET FEATURES SETUP...............................41
3-5 POWER MANAGEMENT SETUP...........................44
3-6 PNP/PCI CONFIGURATION SETUP......................48
3-7 LOAD SETUP DEFAULTS .....................................51
3-8 INTEGRATED PERIPHERALS...............................52
3-9 SUPERVISOR PASSWORD ..................................56
3-10 USER PASSWORD ...............................................58
3-11 IDE HDD AUTO DETECTION................................59
CHAPTER 4 DRIVERS INSTALLATION......................................60
Motherboard Features SY-7IZB
1

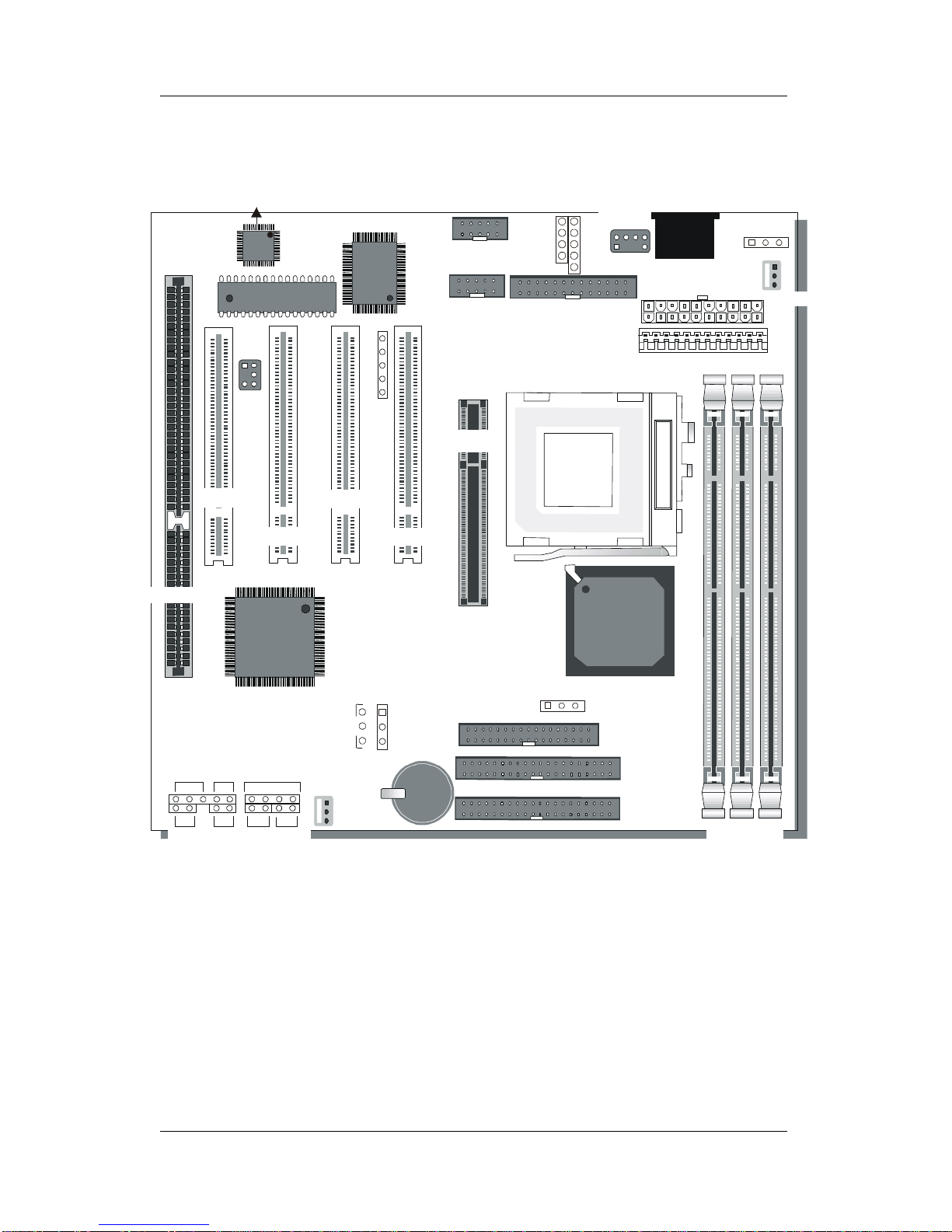

SY-7IZB MOTHERBOARD LAYOUT
SY-7IZB Platform
Flash BIOS
IR1
5
1
AGP Slot
PRT 1
KB
Connector
PS/2 Mouse
Connector
ATX Power
AT Power
1
COM 2
1
1
FDC
1
IDE 1
1
IDE 2
1
3V
Lithium
Battery
COM 1
1
Intel
82440ZX
JP44
1
3
Winbond
83977
CHAFAN
PCI Slot #2
PCI Slot #1
PCI Slot #3
PCI Slot #4
2
1
10
USB1
*
Socket 370
2
DIMM 2
DIMM 1
DIMM 3
2
Speaker
Keylock
Power
LED
_
_ _
+
+
+
RST
PWR
ACPI
LED
HDD
LED
Intel
371EB
ISA Slot #1
1
3
JP10
CPU FAN
1
JP5
1
3
(PC-PCI)
SB-LINKTM
Winbond
W83782M
Hardware
Monitoring
1
3
JP9
Introduction SY-7IZB
2
Chapter 1
INTRODUCTION
The SY-7IZB AGP/PCI Motherboard is a high-performance
Celeron®
processor supported ATX form-factor system board. SY-
7IZB uses the 440 ZX Chipset technology and supports Socket 370
CeleronTM class processors. This Motherboard is fully compatible
with industry standards and adds many technical enhancements.
1-1 KEY FEATURES
ØSupports Intel Socket 370 CeleronTM processor (300A~500
MHz)
ØAuto-detect CPU voltage
ØPC98, ACPI, Ultra DMA/33
ØSOYO COMBO Setup
ØSupports system memory up to 256 MBytes
ØPower-on by modem or alarm
ØSupports power-on/off by keyboard
ØSupports onboard hardware monitoring
and includes Hardware Doctor™utility
ØSupports Creative SB-LINK™(PC-PCI) for PCI audio
Ø1 x 32-bit AGP slot
Ø4 x 32-bit bus mastering PCI slots
Ø1 x 16-bit ISA slot
Ø2 x USB ports onboard
Ø1 x IrDA port
ØSupports multiple-boot function
ØAT & ATX power connectors
Introduction SY-7IZB
3
SY-7IZB PLATFORM FEATURES
Board Size 4-layer PCB, 21.5 x 22cm(”8.5x8.7”),
Baby-AT Form Factor
Socket 370 66/100MHz FSB
ØCeleronProcessor
300A/333/366/400/433/466/500
ØBuilt-in full speed 128KB L2 cache.
ØFeatures Auto-detection of CPU voltage
Chipset 440 ZX AGP Set
ATX Power 20-pin Male Connector
AT Power 12-pin Male connector
CPUFAN 3-pin CPU Cooling Fan Connector
CHAFAN 3-pin Case Cooling Fan Connector
Memory DIMM Bank (DIMM1~3)
ØThree strips of 168-pin Unbuffered SDRAM DIMM
ØSupports 8/16/32/64/128MB DIMM modules in each
bank
ØSupports up to 256 MBytes of main memory
BIOS System BIOS built-in, Award BIOS
ØAPM, ACPI and "Plug-and-Play" function
ØSupports multiple-boot function
ØOnboard FLASH memory for easy upgrade
ØY2000 Compliant
Bus Controller Compliant with PCI specifications version 2.1
PCI Slots 4 x 32-bit Bus Mastering Slots
AGP Slot 1 x 32-bit AGP Slot
ISA Slots 1 x 16-bit ISA Slots
IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports
ØIDE1: Primary IDE Device Connector
ØIDE2: Secondary IDE Device Connector
ØSupports Ultra DMA/33
FDC 1 Floppy Disk Drive (FDD) Port
(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)
IR1 5-pin Serial Infrared Device Header
Keylock 5-pin KeyLock Header
Introduction SY-7IZB
4
Reset 2-pin Reset Switch Header
Speaker 4-pin PC Speaker Header
TB_LED 2-pin ACPI LED Header
HDD_LED 2-pin IDE Device LED Header
PWRBT ATX Power On/Off Switch 2-pin Header
JP5 CMOS Clear Jumper
JP9 AGP operating speed Select Jumper
JP10 Power-On by Keyboard Jumper
JP44 WOL (Wake-On-LAN) 3-pin Header
PRT 25-pin Female external Parallel connector
ØECP/EPP/SPP multi-mode parallel printer port
COM1, COM2 10-pin Serial Ports
ØFeature 2 x high-speed UARTs (with 16550 FIFO)
AT Keyboard 5-pin female AT Keyboard connector
PS/2 Mouse 6-pin male PS/2 mouse connector
USB1,USB2 Dual-row 10-pin header
*These processors are not available yet for testing.
Introduction SY-7IZB
5
HANDLING THE MOTHERBOARD
To avoid damage to your Motherboard, follow these simple rules
while unpacking:
ØBefore handling the Motherboard, ground yourself by grasping
an unpainted portion of the system's metal chassis.
ØRemove the Motherboard from its anti-static packaging. Hold
the Motherboard by the edges and avoid touching its
components.
ØCheck the Motherboard for damage. If any chip appears loose,
press carefully to seat it firmly in its socket.
Warning: Do not apply power if the Motherboard appears
damaged. If there is damage to the board, contact your
dealer immediately.
1-2 ELECTROSTATIC DISCHARGE PRECAUTIONS
Make sure to ground yourself before handling the Motherboard or
other system components. Electrostatic discharge can easily
damage the components. Note that you must take special
precautions when handling the Motherboard in dry or air-conditioned
environment.
To protect your equipment from electrostatic discharge, take the
following precautions:
ØDo not remove the anti-static packaging until you are ready to
install.
ØGround yourself before removing any system component from its
protective anti-static packaging. (To ground yourself, grasp the
expansion slot covers or other unpainted portions of the computer
chassis.)
ØFrequently ground yourself while working or use a grounding strap.
ØHandle the Motherboard by its edges and avoid touching its
components.
Hardware Setup SY-7IZB
6
Chapter 2
HARDWARE SETUP
Congratulations on your purchase of SY-7IZB Motherboard. You are
about to install and connect your new Motherboard.
Note: Do not unpack the Motherboard from its protective
anti-static packaging until you have made the following
preparations.
2-1 PREPARATIONS
Gather and prepare all the following hardware equipment to
complete the installation successfully:
1. CeleronTM processor with built-in CPU cooling fan (boxed
type).
Note: This Motherboard supports non-boxed type CPUs. The
heavier CPU cooling fan requires the installation of a CPU
support stand included in this Motherboard package.
2. DIMM memory module
3. Computer case and chassis with adequate power supply unit
4. Monitor
5. Keyboard
6. Pointing Device (Serial or PS/2 mouse)
7. Speaker(s) (optional)
8. Disk Drives: HDD, CD-ROM, Floppy drive…
9. External Peripherals: Printer, Plotter, and Modem (optional)
10. Internal Peripherals: Modem and LAN cards (optional)
Hardware Setup SY-7IZB
7
2-2 UNPACKING THE MOTHERBOARD
When unpacking the Motherboard, check for the following items:
ØThe SY-7IZB 440 ZX AGP/PCI Motherboard
ØThis Quick Start Guide *
ØThe Installation CD-ROM *
ØOne IDE Device Flat Cable
ØOne Floppy Disk Drive Flat Cable
ØOne bracket with one 9-pin serial connector, attached with 9-
pin falt cable, and one 6-pin PS/2 mouse connector, attached
with 6-pin cable.
ØOne bracket with one 25-pin connector parallel connector
attached with 25-pin flat cable and one 9-pin serial connector
attached with 9-pin flat cable.
* If your board comes with a driver disc and a paper manual, the Quick Start Guide
and the CD-ROM are not included in the package.
Warning: Do not unpack the Motherboard from its anti-
static packaging until you are ready to install it.
Like most electronic equipment, your Motherboard may be damaged
by electrostatic discharge. To avoid permanent damage to
components ground yourself while working by using a grounding
strap. Otherwise, ground yourself frequently by touching the
unpainted portion of the computer chassis to drain the static
charges.
Handle the Motherboard carefully, holding it by the edges.
You are now ready to start the installation.
Table des matières
Autres manuels SOYO Carte mère
SOYO
SOYO SY-6BA+ Manuel utilisateur
SOYO
SOYO SC-6TLx Manuel utilisateur
SOYO
SOYO SY-K7VTA PRO Manuel utilisateur
SOYO
SOYO SY-D6IBA Manuel utilisateur
SOYO
SOYO SY-K7VTA-B Manuel utilisateur
SOYO
SOYO SY-P4RS300 Manuel utilisateur
SOYO
SOYO SY-7ISA plus Manuel utilisateur
SOYO
SOYO Motherboard SY-6BA+ IV Manuel utilisateur
SOYO
SOYO 82430 HX/P54C Manuel d'utilisation et d'entretien
SOYO
SOYO SY-7VBA133U Manuel utilisateur
SOYO
SOYO SY-K7V DRAGON Plus Manuel utilisateur
SOYO
SOYO SY-K8USA DRAGON Ultra Manuel utilisateur
SOYO
SOYO Super 7 SY-5EMA+ Manuel d'utilisation et d'entretien
SOYO
SOYO 82430 TX Manuel d'utilisation et d'entretien
SOYO
SOYO SY-7VCA Manuel utilisateur
SOYO
SOYO SY-P4-645DX DRAGON Ultra Manuel utilisateur
SOYO
SOYO SY-P4VGA Manuel utilisateur
SOYO
SOYO 82430 HX / P54C Manuel d'utilisation et d'entretien
SOYO
SOYO SY-7VMA-B Manuel utilisateur
SOYO
SOYO SY-6IBM Manuel d'utilisation et d'entretien
Manuels Carte mère populaires d'autres marques
Telit Wireless Solutions
Telit Wireless Solutions SL869-3DR Manuel utilisateur
Gigabyte
Gigabyte GA-9IVDT Manuel utilisateur
Texas Instruments
Texas Instruments ADS8372EVM Manuel utilisateur
Commell
Commell MS-C73 Manuel utilisateur
IBT Technologies
IBT Technologies MB860 Manuel utilisateur
Nvidia
Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur
