SOYO SY-7IWB Manuel utilisateur

SY-7IWB

Motherboard

****************************************************

Socket 370 CeleronProcessor supported

FW82810 AGP/PCI/AMR

66/100 MHz Front Side Bus supported

Baby AT Form Factor

****************************************************

User's Manual

SOYO™SY-7IWB

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: August 1999

Version 1.1

7IWB SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-7IWB

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION ...................................1

1-1 INTRODUCTION............................................................1

1-2 KEY FEATURES.............................................................1

1-3 HANDLING THE MOTHERBOARD..............................3

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS .........3

1-5 SY-7IWB MOTHERBOARD LAYOUT...........................4

1-6 SY-7IWB MOTHERBOARD COMPONENTS ................5

1-7 CHIPSET.........................................................................7

1-8 I/O INTERFACE CONTROLLER..................................13

1-9 AUDIO SUBSYSTEM...................................................15

1-10 HARDWARE MONITOR...............................................15

1-11 WAKE ON LAN TECHNOLOGY..................................15

CHAPTER 2 HARDWARE INSTALLATION.......................................17

2-1 PREPARATIONS...........................................................17

2-2 UNPACKING THE MOTHERBOARD..........................18

2-3 INSTALLATION GUIDE...............................................19

2-3.1 CPU Installation............................................................. 20

2-3.2 SDRAM Memory Module Installation.............................. 22

2-3.3 Motherboard Connector.................................................. 24

2-3.4 Jumper Setting................................................................ 40

2-3.5 CMOS Clearing (JP5)..................................................... 43

2-3.6 Power On ....................................................................... 43

2-3.7 Quick BIOS Setup........................................................... 44

2-3.8 Troubleshooting at First Start.......................................... 46

2-3.9 Power Off....................................................................... 47

CHAPTER 3 BIOS SETUP UTILITY...................................................48

3-1 SOYO COMBO SETUP.................................................51

3-2 STANDARD CMOS SETUP..........................................55

3-3 ADVANCED BIOS FEATURES.....................................58

Table of Contents SY-7IWB

3-4 ADVANCED CHIPSET FEATURES..............................62

3-5 INTEGRATED PERIPHERALS.....................................64

3-6 POWER MANAGEMENT SETUP ................................69

3-7 PNP/PCI CONFIGURATION SETUP.............................72

3-8 PC HEALTH STATUS....................................................75

3-9 LOAD OPTIMIZED DEFAULTS...................................77

3-10 LOAD FAIL-SAFE DEFAULTS.....................................78

3-11 SUPERVISOR PASSWORD...........................................79

3-12 USER PASSWORD........................................................80

3-13 IDE HDD AUTO DETECTION .....................................81

CHAPTER 4 DRIVERS INSTALLATION ............................................82

CHAPTER 5 CRYSTAL AUDIO DRIVER INSTALLATION................87

Motherboard Description SY-7IWB

Chapter 1

MOTHEBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-7IWB AGP/PCI/AMR Motherboard is a high-performance

Socket 370 processor supported Baby AT form-factor system board. SY-

7IWB uses the FW82810 Chipset technology and supports Socket 370

processors. This Motherboard is fully compatible with industry standards

and adds many technical enhancements.

1-2 KEY FEATURES

ØSupports Intel Celeron™

processors (300A-500MHz)

ØSupports 100 & 66 MHz Front Side Bus Frequency

ØAuto detect CPU bus Frequency (66/100)

ØAuto-detect CPU voltage

ØAdjustable CPU Core Voltage (Normal, 5%)

ØChipset integrated 3D AGP Accelerator

ØEasy CPU settings in BIOS with the “SOYO COMBO Setup”

ØSoftware Audio AC97 Version 2.1 Compliant

ØPC98, ACPI, Ultra DMA33

ØSupports Wake-On-LAN (WOL) when use ATX-Power supply

ØSupports ACPI Suspend Indicator

ØPower-on by modem, alarm, PS/2 Keyboard, Mouse and USB

Win98 Keyboard

Motherboard Description SY-7IWB

ØPower failure resume

ØSupports onboard hardware monitoring and includes Hardware

Doctor™utility

ØFan speed control

ØBattery Low voltage Detect

ØSupport 7 sets of voltage monitoring

ØSupports multiple-boot function

ØY2K Compliant

ØSupports Audio Modem Riser slot (AMR 1.0 compliant) *

Ø3 x 32-bit bus mastering PCI slots

Ø2 x USB ports onboard

Ø1 x IrDA port

ØAT power connector

ØATX power connector

ØHardware Random Number Generator (RNG) for enabling enhanced

platform security

ØRTC hardware to handle Y2K Century Rollover

* If the user wants to use a Modem Riser card (MR) make sure to use a

Secondary

mode

MR,

PRIMARY

mode MRs are

NOT

Supported.

Motherboard Description SY-7IWB

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

ØBefore handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

ØRemove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

ØCheck the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

ØDo not remove the anti-static packaging until you are ready to install.

ØGround yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

ØFrequently ground yourself while working or use a grounding strap.

ØHandle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-7IWB

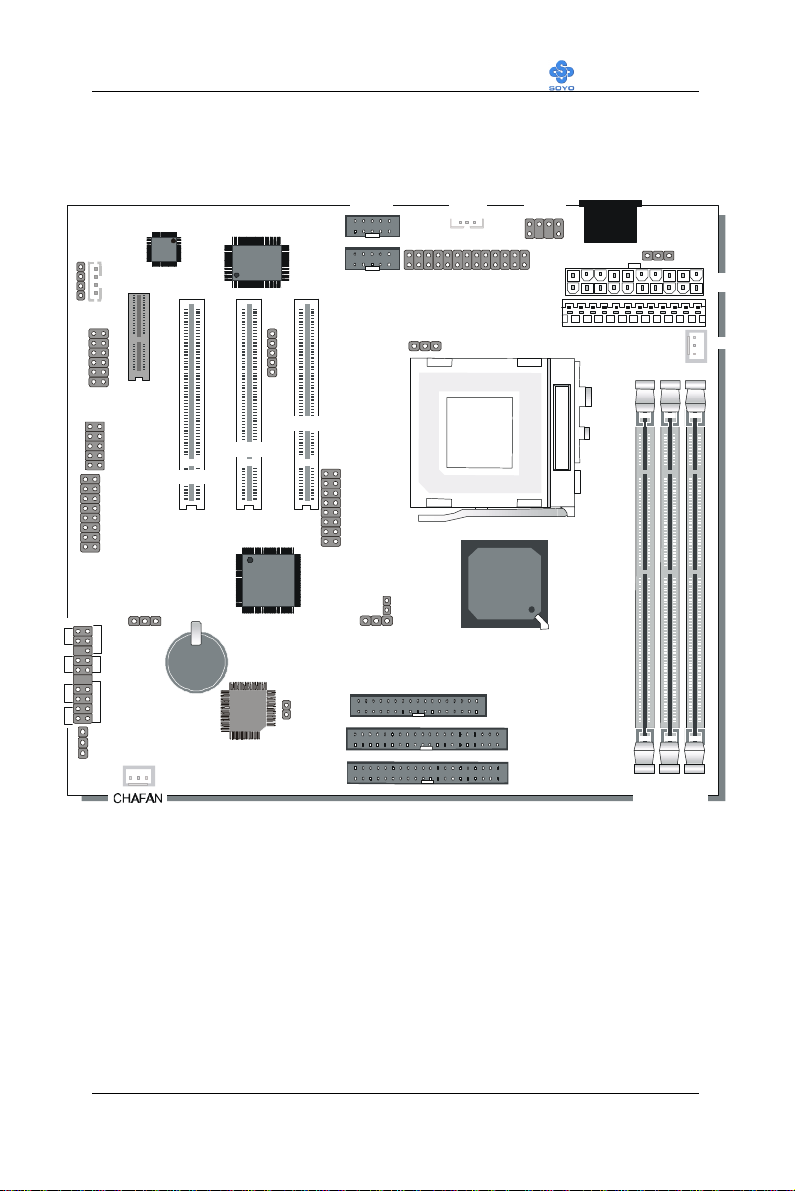

1-5 SY-7IWB MOTHERBOARD LAYOUT

SY-7IWB Platform

AT Power

Lithium

Battery

Intel

FW82810

PCI Slot #2

PCI Slot #1

PCI Slot #3

USB1

Socket 370

DIMM 2

DIMM 1

DIMM 3

Intel

FW82801AB

Ac97

Codec

Speaker

Keylock

Power

LED

ACPI

LED

HDD

LED _

Reset

PWRBT

JP5

1 3 JP2

1 3

CMOS Clear

Jumper

JP10

FDC

IDE 1

IDE 2

J10

J11

JP44

WOL

Header

PRT 1

Connector

PS/2 Mouse

Connector

ATX Power

COM 2

COM 1

CPU FAN

JP1

JP15

1 3

Intel

82802AB

4MB

AMR1

IR1

Winbond

W83627HF

-AW

Audiuo Port

GAME Port

VGA Port

JP9

AU8810

Motherboard Description SY-7IWB

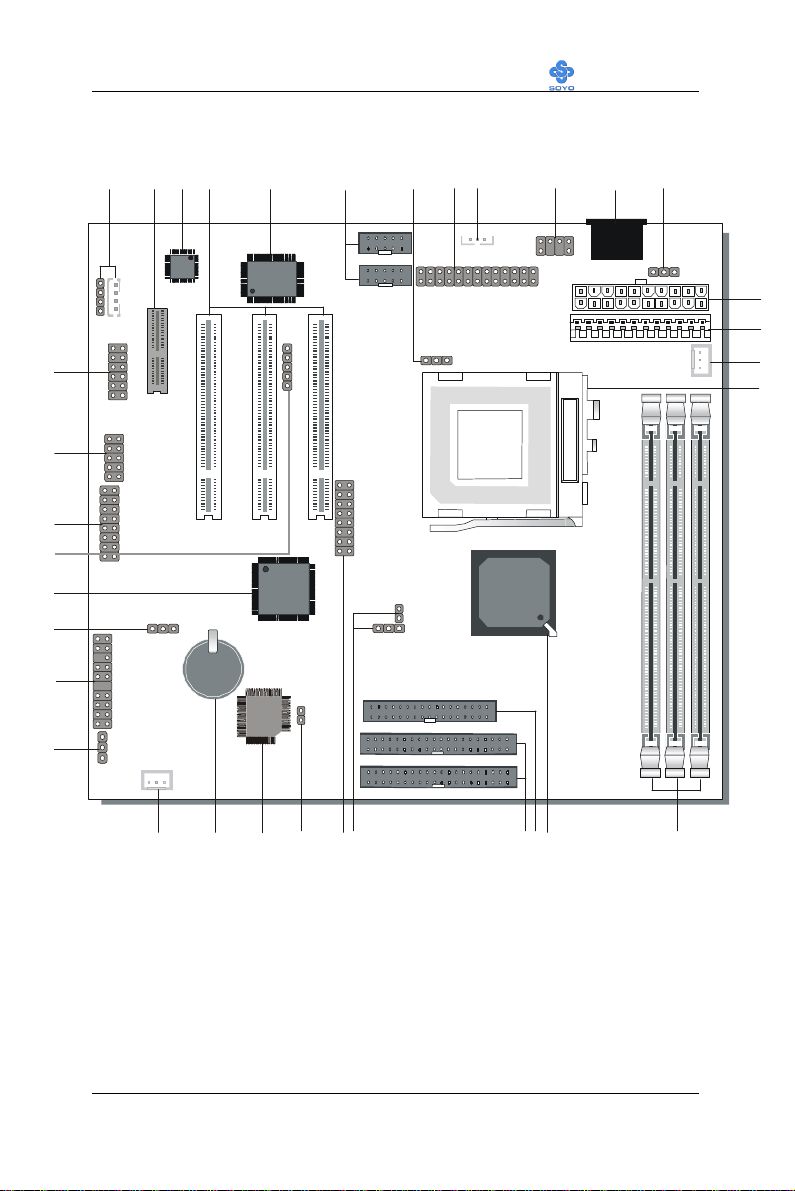

1-6 SY-7IWB MOTHERBOARD COMPONENTS

RTUS

VWXY

Motherboard Description SY-7IWB

ACD-IN Connectors

BAudio Modem Riser Slot

CAC97 Codec Chip

D32-bit PCI Mastering Slots

EWinbond W83627HF-AW LPC I/O Chip

FCOM1/COM2 Connectors

GCPU Core Voltage Adjust Jumper

HParallel Printer Port

IWake-On-LAN(WOL) Header

JPS/2 Mouse Connector

KKeyboard Connector

LPower-On by Keyboard Jumper

MATX power Supply Connector

NAT Power Supply Connector

OCPU Cooling Fan Connector

PPGA370 Socket

QDIMM Bank

RIntel FW82810 GMCH (Graphic Memory Control Hub) Chip

SFloppy Disk Drive (FDD) Port

TBus Mastering E-IDE/ATAPI Ports

UCPU FSB Configuration Jumpers

VVGA Port

WThe FWH Boot Block Write-Protect Jumper

XIntel 82802AB 4MB FWH (FirmWare Hub) Chip

Y3V Lithium Battery

ZChassis Cooling Fan Connector

AA PC speaker redirection Jumper

AB Front panel connectors

AC CMOS Clear Jumper

AD Intel FW82801 ICH (I/O Control Hub) Chip

AE Serial Infrared (IrDA) Device Header

AF Game Port

AG Universal Serial Bus Port

AH Audio Port

Autres manuels pour SY-7IWB

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO SY-6KL Manuel utilisateur

SOYO

SOYO SC-5EA5 Guide de démarrage rapide

SOYO

SOYO 6KME Manuel d'utilisation et d'entretien

SOYO

SOYO SY-KT400 Dragon Ultra Manuel utilisateur

SOYO

SOYO SY-K8USA DRAGON Ultra Manuel utilisateur

SOYO

SOYO SY-K7V DRAGON Plus Manuel utilisateur

SOYO

SOYO SY-7VBA133U Manuel utilisateur

SOYO

SOYO SY-6BE Manuel utilisateur

SOYO

SOYO Super 7 SY-5EMA+ Manuel d'utilisation et d'entretien

SOYO

SOYO 80486 Manuel utilisateur

SOYO

SOYO Motherboard SY-6BA+ IV Manuel utilisateur

SOYO

SOYO SY-P4X400 DRAGON Lite Manuel utilisateur

SOYO

SOYO 6KD Manuel d'utilisation et d'entretien

SOYO

SOYO 486 PCI/VESA Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6IEB Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7VDA Manuel utilisateur

SOYO

SOYO SY-K7AIA Manuel utilisateur

SOYO

SOYO SY-P4VGA Manuel utilisateur

SOYO

SOYO Super 7 SY-5EMA Manuel utilisateur

SOYO

SOYO ATX 12V Manuel utilisateur

SOYO

SOYO SY-K7VLM-B Manuel utilisateur

SOYO

SOYO Motherboard SY-6ZB Manuel utilisateur

SOYO

SOYO SY-7IZM Manuel utilisateur

SOYO

SOYO SY-P4I875P DRAGON 2 V1.0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
