SOYO SY-6BA+III Manuel utilisateur

SY-6BA+III

Motherboard

Quick Start Guide

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Hardware

Installation

Quick BIOS

Setup

Introduction

The SOYO CD

SOYO™

SY-6BA+III Motherboard

Pentium

III, Pentium

II & Celeron

processors

82440 BX AGP/PCI Motherboard

66&100MHz Front Side Bus supported

ATX Form Factor

Trademarks:

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property of their

owners.

Product Rights:

Product and corporate names mentioned in this publication are used for identification purposes

only and may be registered trademarks or copyrights of their respective companies.

transmit, transcribe, store in a retrieval system, or translate into any language, in any form or by

any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of

this publication without express written permission of Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents of this

manual. We reserve the right to revise the manual or make changes in the specifications of the

product described within it at any time without notice and without obligation to notify any

person of such revision or change. The information contained in this manual is provided for

general use by our customers. Our customers should be aware that the personal computer field is

the subject of many patents. Our customers should ensure that their use of our products does not

infringe upon any patents. It is the policy of Soyo Computer Inc. to respect the valid patent rights

of third parties and not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

252.277-7013.

About This Guide:

This Quick Start Guide is for assisting system manufacturers and end users in setting up and

installing the Motherboard. Information in this guide has been carefully checked for reliability;

however, no guarantee is given as to the correctness of the contents. The information in this

document is subject to change without notice.

If you need any further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

6BA+III Serial - Version 1.3 - Edition: December 1999

*Thesespecificationsaresubjecttochangewithoutnotice

SY-6BA+III

Quick Start Guide

Introduction

Congratulationsonyourpurchaseofthe

SY-6BA+III

Motherboard.ThisQuickStartGuide

describesthestepsforinstallingandsettingupyournewMotherboard.

ThisguideisdesignedforalluserstoprovidethebasicstepsofMotherboardsettingand

operation.Forfurtherinformation, pleasereferto SY-6BA+IIIMotherboardUser'sGuideand

TechnicalReferenceonlinemanualincludedontheCD-ROMpackedwithyour

Motherboard.

Unpacking

WhenunpackingtheMotherboard,checkforthefollowingitems:

TheSY-6BA+III82440BXAGP/PCIMotherboard

ThisQuickStartGuide

TheInstallation CD-ROM

SOYO3-in-1BonusPackCD-ROM(Norton AntiVirus,

GhostandVirtualDrive)

TheCPURetentionSet

OneIDEDeviceFlatCable

OneFloppyDiskDriveFlatCable

SY-6BA+III Quick Start Guide

Introduction

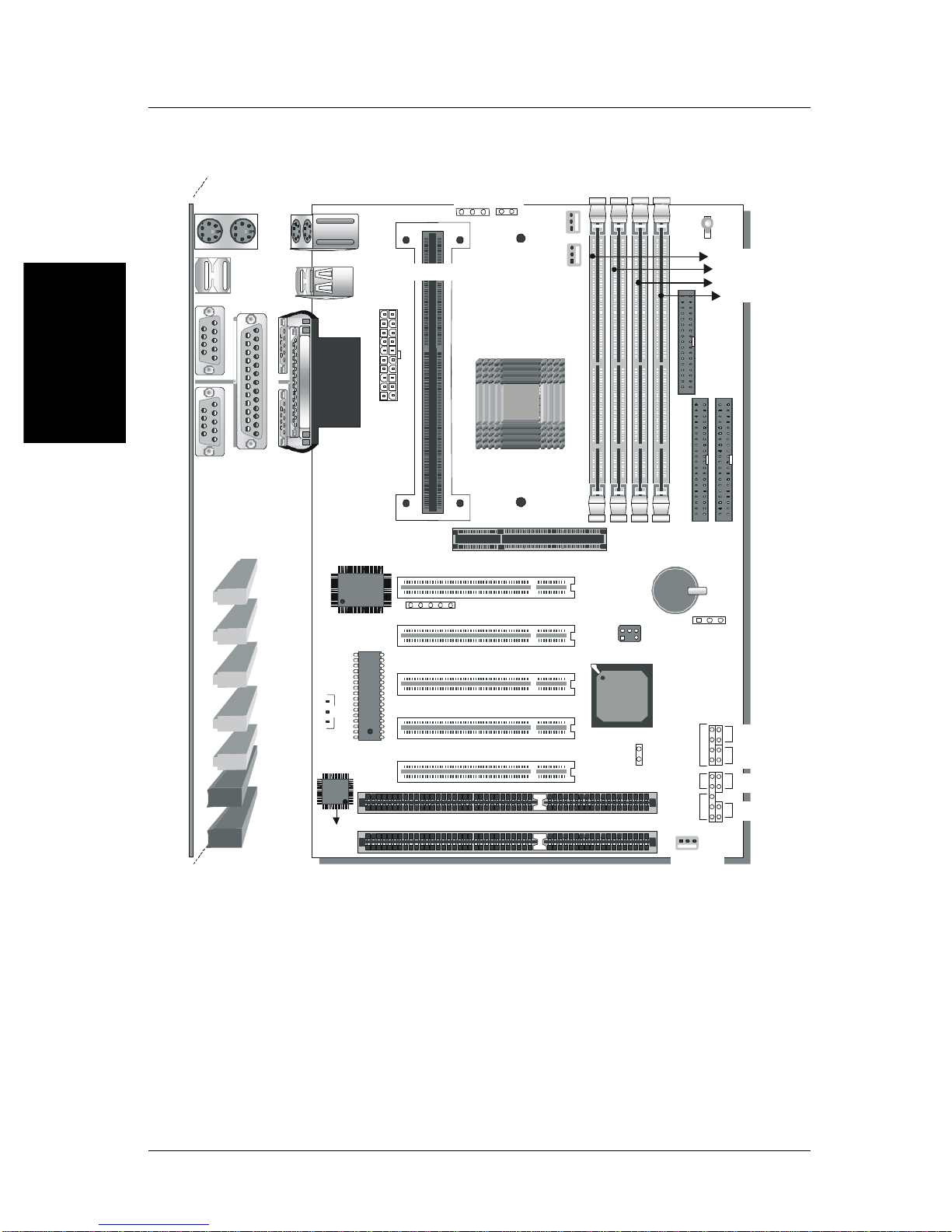

SY-6BA+III Motherboard Layout

Key Features

SupportsIntelPentium

IIIprocessor(450-

600MHz), Pentium

IIprocessor(233-450MHz)&

Celeron

processor(266-433MHz

)

JumperlessandCPUvoltageAdjustable

PC98,ACPI,UltraDMA/33

Power-onbymodemoralarm

SOYOCOMBOSetup

SupportsWake-On-LAN (WOL)

Supportsonboardhardwaremonitoringand

includesHardware Doctor™utility

SupportsCreativeSB-LINK™for PCI audio

card

1x32-bitAGPslot

5x32-bitbusmasterPCIslots

2xUSBportsonboard

1xIrDAport

Supportsmultiple-bootfunction

Y2KCompliant

SupportsPowerFailureResume

COM 1

COM 2

PRT

USB 1USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector

JP10

PCI Slot #1

PCI Slot #2

PCI Slot #3

PCI Slot #4

PCI Slot #5

ISA Slot #1

ISA Slot #2

JP5

JP1

JP8 LED1

Lithium

Battery

JP44

SB-LINK

(PC PCI)

IR1

CPUFAN

PWRFAN

ITE 8671

I/O Chipset

CHAFAN

IDE 1

IDE 2

FDC

AGP Slot

ATX

Power

Speaker

Keylock

Power

LED

Reset

PWRBT

Turbo

LED

HDD LED

Flash BIOS

Slot 1

Intel

82371 EB

DIMM 1

DIMM 2

DIMM 3

DIMM 4

8 2 8 A C

Hardware

Monitoring

Winbond

W83782M

Intel

82443 BX

SY-6BA+III

Quick Start Guide

Hardware

Installation

ToavoiddamagetoyourMotherboard,followthesesimpleruleswhilehandling

thisequipment:

BeforehandlingtheMotherboard,groundyourselfbygraspinganunpaintedportion

ofthesystem'smetalchassis.

RemovetheMotherboardfromitsanti-staticpackaging.Holditbytheedgesand

avoidtouchingitscomponents.

ChecktheMotherboardfordamage.Ifanychipappearsloose,presscarefullytoseat

itfirmlyinitssocket.

Followthedirectionsinthissectiondesignedtoguideyouthroughaquickandcorrect

installationofyournew

SY-6BA+III

Motherboard.For detailedinformation,pleasereferto

SY-6BA+IIIMotherboardUser'sguideandTechnical Reference onlinemanualincludedon

theCD-ROMpackedwithyourMotherboard.

PREPARATIONS

Gatherandprepareallthenecessaryhardwareequipmenttocompletetheinstallation

successfully:

Slot1processorwithbuilt-inCPUcoolingfan(boxedtype)

SDRAMmodule

Computercaseandchassiswithadequatepowersupplyunit

Monitor

PS/2Keyboard

PointingDevice(PS/2mouse)

VGACard

SoundCard(optional)

Speaker(s)(optional)

DiskDrives: HDD,CD-ROM, Floppydrive…

ExternalPeripherals:Printer,Plotter,andModem-(optional)

InternalPeripherals:ModemandLANcards(optional)

SY-6BA+III Quick Start Guide

Hardware

Installation

Install the Motherboard

Followthestepsbelowinordertoperformtheinstallationofyournew

SY-6BA+III

Motherboard.

Step 1. Install the CPU

Mark your CPU Frequency:

RecordtheworkingfrequencyofyourCPU

thatshouldbeclearlymarkedontheCPUcover.

FSB66MHz

266MHz(66 x4.0) 333MHz (66 x5.0) 400MHz(66 x6.0)

300MHz(66 x4.5) 366MHz (66 x5.5) 433MHz(66 x6.5)

FSB100MHz

350MHz(100 x 3.5) 450MHz (100 x4.5) 550MHz (100 x5.5)

400MHz(100 x4.0) 500MHz (100 x5.0) 600MHz(100 x6.0)

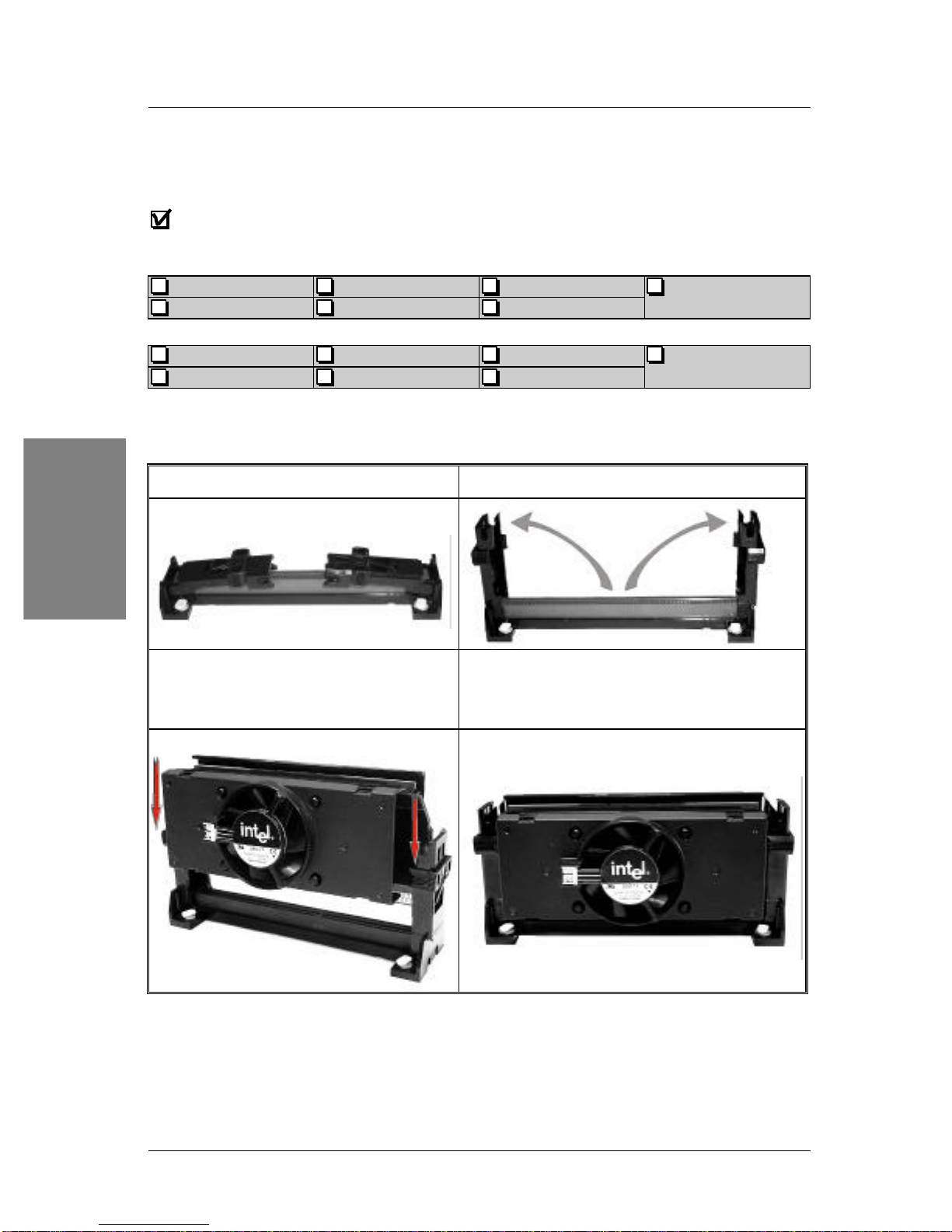

CPU Mount Procedure:

Tomounttheprocessorthatyouhavepurchased

separately,followtheseinstructions.

Retention Module Step 1. Open the two sides by folding them up.

Step 2. Insert the CPU into the retention

module. The CPU fits in the CPU

slot in only ONE way, do not try to

force it in.

Step 3. After completely inserting the CPU,

Now your CPU is ready for use.

Note:Installing a heatsink andcooling fan ontop of yourCPU isnecessary for properheat dissipation. Failingto

installthese items mayresult in overheatingand possibleburn-outof yourCPU

SY-6BA+III

Quick Start Guide

Hardware

Installation

Step 2. Make Connections to the Motherboard

ThissectiontellshowtoconnectinternalperipheralsandpowersupplytotheMotherboard.

InternalperipheralsincludeIDEdevices(HDD,CD-ROM),FloppyDiskDrive,ChassisFan,

FrontPanelDevices(TurboLED,InternalSpeaker,ResetButton,IDELED,and KeyLock

Switch.),Wake-On-LANcard,VGAcard,SoundCard,andotherdevices.

FormoredetailsonhowtoconnectinternalandexternalperipheralstoyournewSY-6BA+III

Motherboard,pleaserefertoSY-6BA+IIIMotherboardUser'sGuideandTechnical

ReferenceonlinemanualonCD-ROM.

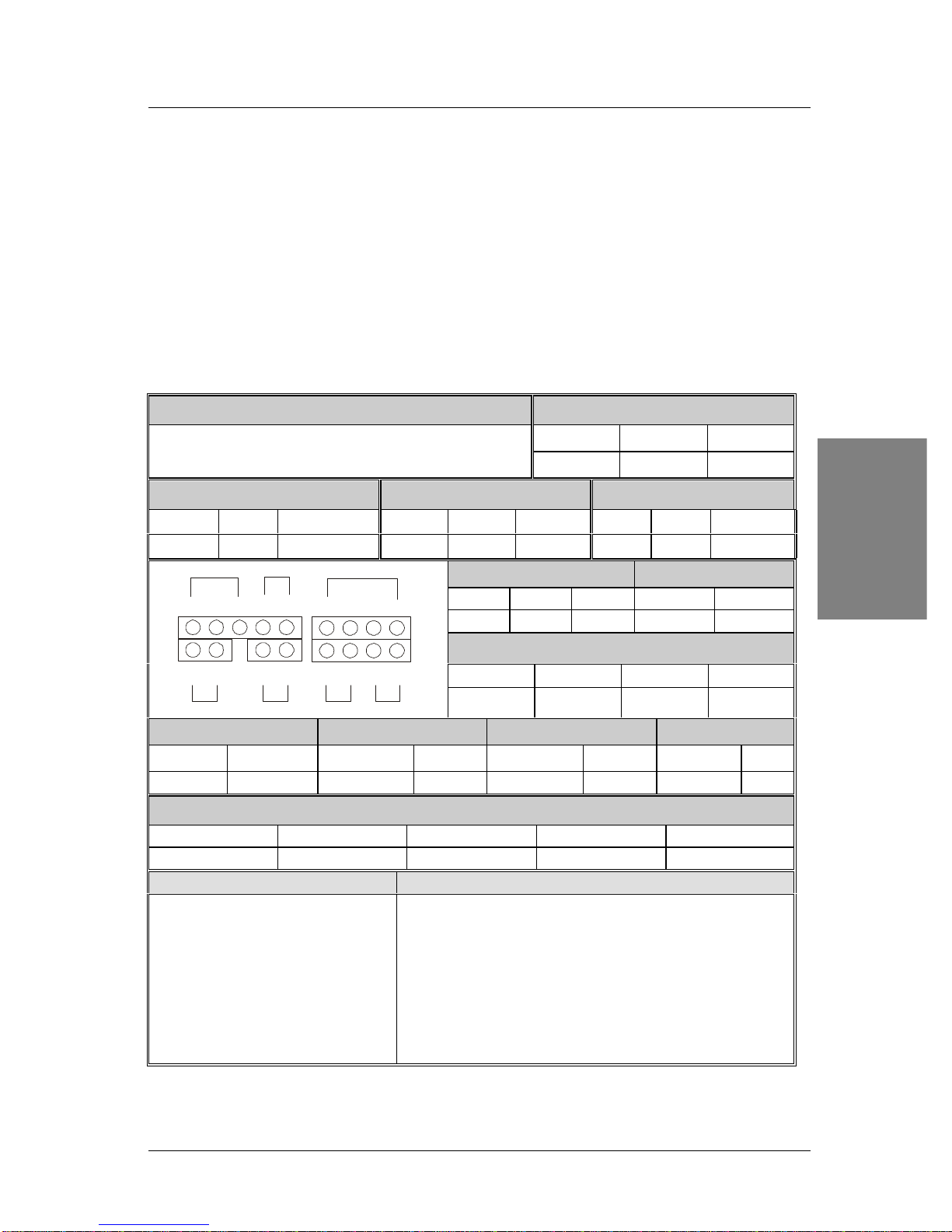

Connectors and Plug-ins

PCI Audio Card Header: SB-Link™(PC-PCI) Wake-On-LAN Header: JP44

Pin1 Pin2 Pin3Connect the SB-Link™(PC-PCI) cable from your

PCI audio card to this header. 5VSB GND MP-Wakeup

CPU Cooling Fan: CPUFAN Power Fan: PWRFAN Chassis Fan: CHAFAN

Pin1 Pin2 Pin3 Pin1 Pin2 Pin3 Pin1 Pin2 Pin3

GND 12V SENSOR GND 12V SENSOR GND 12V SENSOR

Power LED Keylock

Pin1 Pin2 Pin3

Pin1 Pin2

5V NC GND

ControlPin GND

Speaker

Pin1 Pin2 Pin3 Pin4

5V NC NC Speakerout

HDD LED Turbo LED PWRBT RESET

Pin1 Pin2 Pin1 Pin2 Pin1 Pin2 Pin1 Pin2

LEDAnode LED Cathode LED Cathode GND PowerOn/Off GND PowerGood GND

IrDA (Infrared Device Header): IR1

Pin1 Pin2 Pin3 Pin4 Pin5

VCC None IRRX GND IRTX

ATX Power On/Off: PWRBT ATX Power Supply: ATX PW

Connect your power switch to

this header (momentary switch

type).

To turn off the system,

please press this switch and

hold down for longer than

4 seconds.

Attach the ATX Power cable to this connector. (This

motherboardrequiresanATXpowersupply,anATpowersupply

canNOT beused.)

Note:Please make surethe ATX powersupply isableto

provideat least720mA ofcurrent onthe +5VSBlead ifyou

wantto enablethe advancedpower managementfunctions,

likepowerfailureresume,Power-Onbykeyboard,etc.

Power LED

Key Lock

Speaker

Reset

PWRBT

Turbo LED

HDD LED

SY-6BA+III Quick Start Guide

Hardware

Installation

Step 3. Configure Memory

YourboardcomeswithfourDIMMsockets,providingsupportforupto1GBofmainmemory

usingDIMMmodulesfrom8MBto256MB.For66MHzfrontsidebusCPUsuse12nsor

fastermemory;for100MHzfrontsidebusCPUsuse8ns(100MHz,PC100compliant)

memory.

Memory Configuration Table

Number of

Memory Modules DIMM 1 DIMM 2 DIMM 3 DIMM 4

11st

21st 2nd

31st 2nd 3rd

41st 2nd 3rd 4th

RAM Type SDRAM

Memory Module

Size (MB) 8/16/32/64/128/256 Mbytes

Note:(1) 256 MB memory modules only available on PC registered DIMM.

(2) Always install memory modules in the order prescribed in this table.

(3) Do not install unbuffered and registered memory modules together.

Important:

ItisofprimeimportancethatyouinstallDIMMmodulesasoutlinedinthetable

aboveinordertopreservesignalintegrityon100MHzfrontsidebussystems.

Step 4. CPU multiplier release Jumper: (JP8)

ClosingJP8canmakehighermultipliersettingsavailableonsomeINTELCPUs.For

technicaldetailsreadthefollowing:

YourPentiumCPUhasaninputpinB21(100/66#signal)totellitatwhatFrontSideBus

(FSB)Frequencyitisrunning;JP8isconnectedtothisinputpin.TheactualFSBFrequency

ishoweversetthroughtheBIOSanditmaythereforedifferfromtheFrequencyspecifiedto

theCPUthroughJP8.

BecausesomeINTELCPUshavetheirmultiplierslimitedataFSBFrequencyof100MHz

andhigher,tellingtheCPUthatitisrunningat66MHzthoughJP8whilesettingadifferent

(higher)FSBFrequencyintheBIOSmayallowtheusertosetahighermultipliervalue.

DoingsowillhoweverforceyourCPUtooperateoutofits specifications,andtherefore

SOYOcannotguaranteetheproperfunctioningofyoursystem.

SY-6BA+III

Quick Start Guide

Hardware

Installation

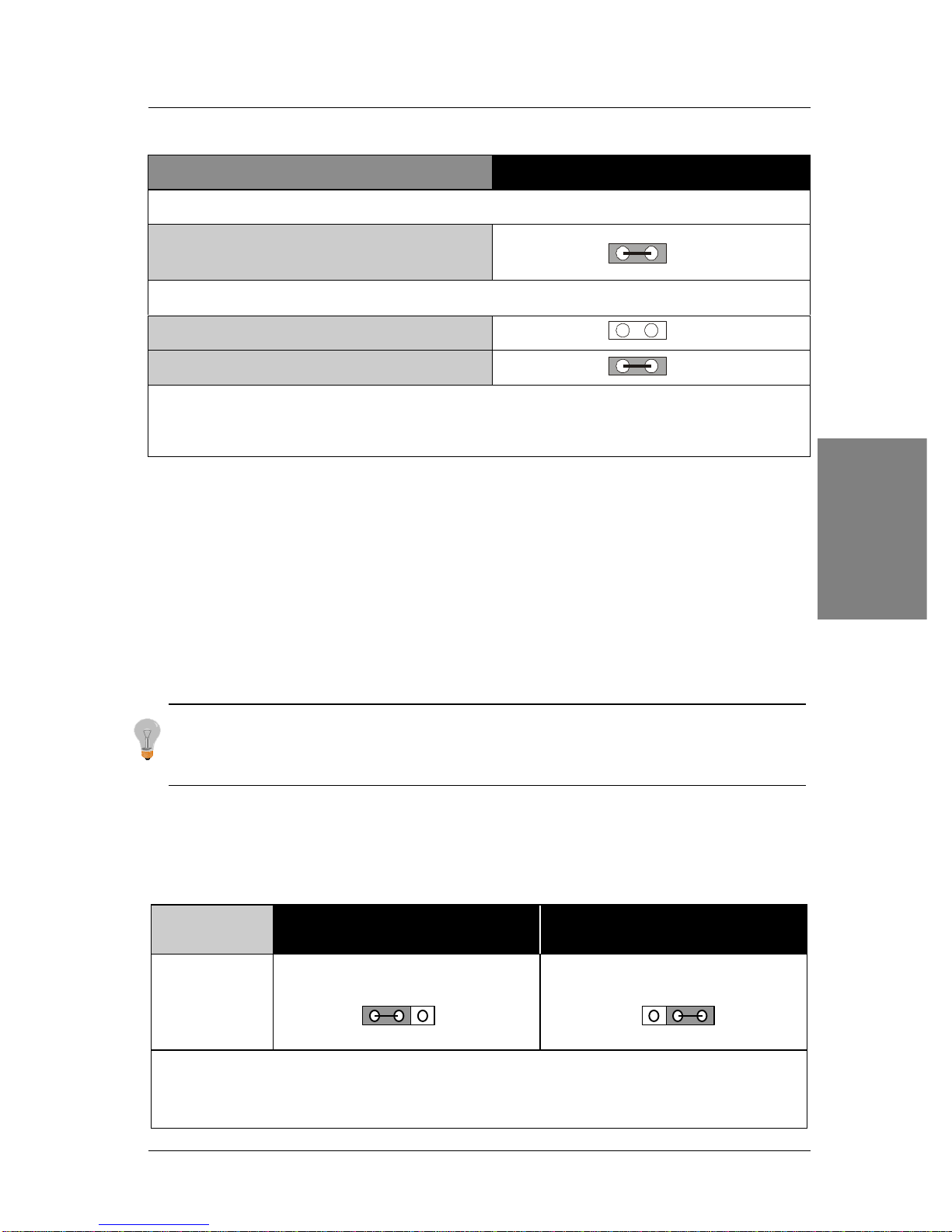

Refertothefollowingtable:

Mode JP8

66MHz FSB clock CPUs Setting

66MHz FSB clock CPUs must use this

setting

short

100MHz FSB clock CPUs Setting

Normal

open

Possible higher multiplier limit

short

Note:ShortingthejumperwilltelltheCPUthatitisrunningon66MHz,thiswillreleasemore

multipliersettingsonsomeINTELCPUs,butwillmakethesystemoperateoutofits

specificationsiftheactualfrequencyis100MHzorhigher.

Step 5. Set the CPU Frequency

YoudonotneedtosetanyjumperfortheCPUfrequency.Instead,CPUsettingsare

changedthroughtheBIOS

[SOYOCOMBO SETUP].

PleaserefertoChapter3-Quick

BIOSSetupfordetailsonhowtosettheSlot1processorfrequency.

Step 6. External Suspend Button (JP1)

Somecasescomewithasuspendbutton,inserttheplugintoJP1.Inadditiontothisbutton,

thesystemcanalsoenterthesuspendmodethroughyourOS.

Note:SuspendmodeonlyfunctionsifyourPowerManagementmodeisAPM.MakesurethattheBIOS

settingforPowerManagementisAPM.Windows98canbeinstalledwithACPIPowerManagement

(defaultisAPM),inthiscasesuspendmodewillnotfunctioneither.

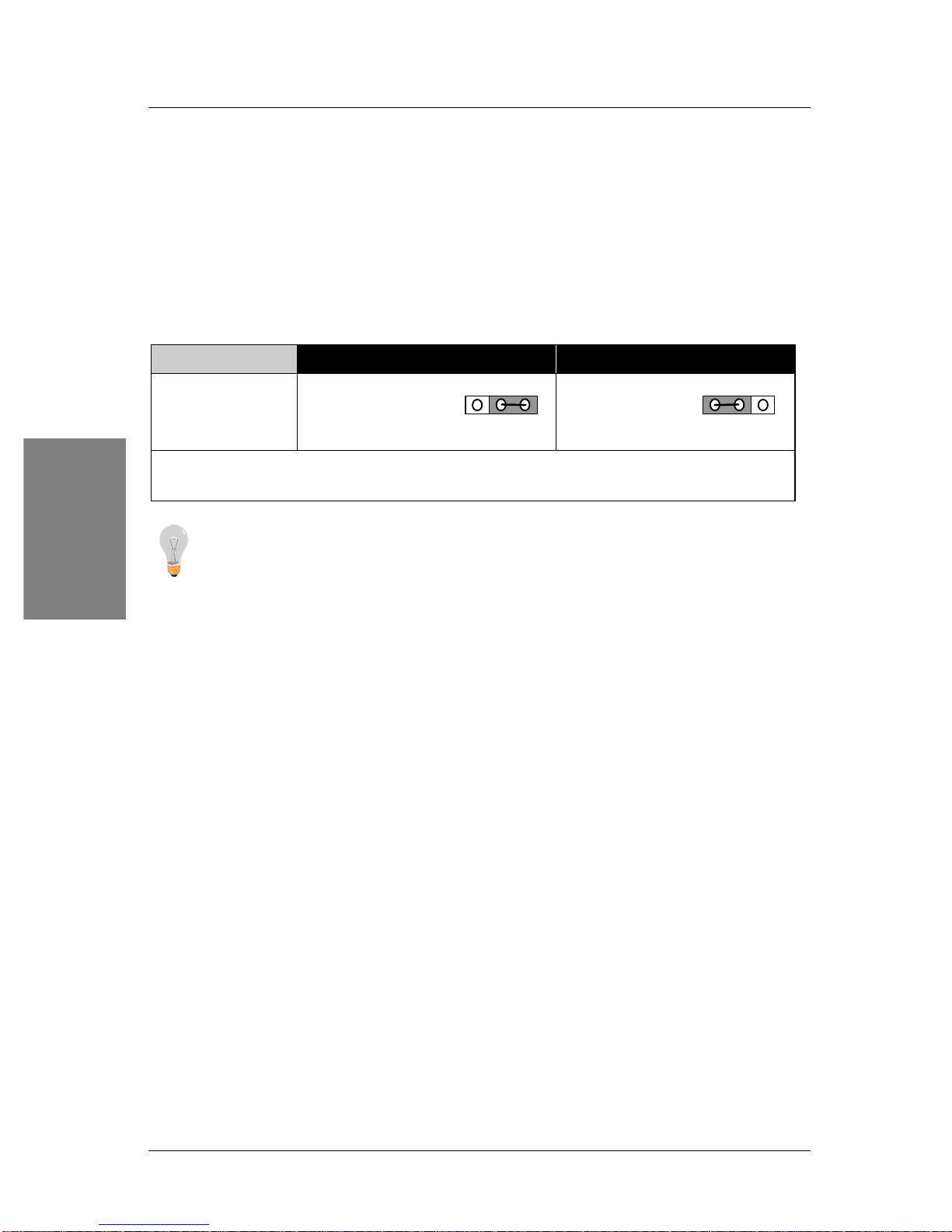

Step 7. Enable/Disable Power-On by Keyboard (JP10)

YoucanchoosetoenablethePower-OnbyKeyboardfunctionbyshortingpin1-2onjumper

JP10,otherwise,shortpin2-3todisablethisfunction.

Power-On by

Keyboard Enable Disable

JP10 Setting Short pin 1-2 to enable the

Power-On by Keyboard function. Short pin 2-3 to disable the

Power-On by Keyboard function.

Important: When using the Power-On by Keyboard function, please make sure the

ATX power supply can take at least 720mA load on the 5V Standby lead (5VSB) to

meet the standard ATX specification.

SY-6BA+III Quick Start Guide

Hardware

Installation

Step 8. 5V Stand-by indicator LED (LED 1)

ThisLEDislitwheneverthe5VStandbyvoltagecomingfromtheATX powersupplyis

available.Ifyou haveconnectedyourATX powersupplytothemains,LED1shouldbelit.

Step 9. Clear CMOS Data (JP5)

CleartheCMOSmemorybymomentarilyshortingpin2-3onjumperJP5foratleast5

seconds,andthenbyshortingpin1-2toretainnewsettings. Thisjumpercanbeeasily

identifiedbyitswhitecoloredcap.

CMOS Clearing Clear CMOS Data Retain CMOS Data

JP5 Setting Short pin 2-3 for

at least 5 seconds

to clear the CMOS.

Short pin 1-2

to retain the

new settings.

Note: You must unplug the ATX power cable from the ATX power connector when

performing the CMOS Clear operation.

Note on Over-clocking Capability

TheSY-6BA+IIIprovidesover-clockingcapability.Duetotheover-clockingsettingyour

systemmayfailtobootuporhangduringruntime.Pleaseperformthefollowingstepsto

recoveryoursystemfromtheabnormal situation:

Turnoffsystempower(IfyouuseanATXpowersupply,anddependingonyoursystem,

youmayhavetopressthepowerbuttonformorethan4secondstoshutdownthe

system.)

SettheJP8toshortifyouuseaFSB66MHzCPU

Pressandholddownthe<Insert>keywhileturningonthesystempower.Keepholding

downthe<Insert>keyuntilyouseethemessageoftheCPUtypeandfrequencyshown

onthescreen.

Pressthe<Del>keyduringthesystemdiagnosticcheckstoentertheAwardBIOSSetup

program.

Select[SOYOCOMBOSETUP]andmovethecursortothe[CPUFrequency]fieldtoset

theproperworkingfrequency.

Select[Save&ExitSETUP]andpress<Enter>tosavethenewconfigurationtothe

CMOSmemory,andcontinuethebootsequence.

Note: SOYOdoesnotguaranteesystemstabilityif the user over clocks thesystem.

Anymalfunctionsduetoover-clocking are notcoveredbythewarranty.

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO SY-5EMA Pro Super 7 Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6KL Manuel utilisateur

SOYO

SOYO SY-6ILA Manuel utilisateur

SOYO

SOYO SY-7VBA133U Manuel utilisateur

SOYO

SOYO SY-K7ADA Manuel utilisateur

SOYO

SOYO SY-P4VGM V1.0 Manuel utilisateur

SOYO

SOYO 486 PCI/VESA Manuel d'utilisation et d'entretien

SOYO

SOYO SY-P4VSA Manuel utilisateur

SOYO

SOYO SY-K8USA DRAGON Ultra Manuel utilisateur

SOYO

SOYO SY-6IWM/L Manuel utilisateur

SOYO

SOYO SY-7VCM Manuel utilisateur

SOYO

SOYO 5EAS5 Manuel d'utilisation et d'entretien

SOYO

SOYO 82430 HX/P54C Manuel d'utilisation et d'entretien

SOYO

SOYO SY-7VCM Manuel utilisateur

SOYO

SOYO 5ehm Manuel utilisateur

SOYO

SOYO SY-K7V DRAGON Plus Manuel utilisateur

SOYO

SOYO SY-7ISA plus Manuel utilisateur

SOYO

SOYO DRAGON Lite SY-KT333 Manuel utilisateur

SOYO

SOYO SY-7VMA-B Manuel utilisateur

SOYO

SOYO SY-P4I845PEISA Manuel utilisateur

SOYO

SOYO SY-5SSM Manuel d'utilisation et d'entretien

SOYO

SOYO SY-KT600 DRAGON Plus Manuel utilisateur

SOYO

SOYO SY-7VBA 133 Manuel utilisateur

SOYO

SOYO SY-6BE+ Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
