SOYO™SY-6ILA

About This Guide

This User's Guide is for assisting system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully checked

for reliability; however, no guarantee is given as to the correctness of the contents.

The information in this document is subject to change without notice.

by Soyo Computer Inc. You may not reproduce, transmit, transcribe, store in a

retrieval system, or translate into any language, in any form or by any means,

electronic, mechanical, magnetic, optical, chemical, manual or otherwise, any part of

this publication without express written permission of Soyo Computer Inc.

Trademarks

Soyo is a registered trademark of Soyo Computer Inc. All trademarks are the property

of their owners.

Disclaimer

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to revise the manual or make changes in the

specifications of the product described within it at any time without notice and without

obligation to notify any person of such revision or change. The information contained

in this manual is provided for general use by our customers. Our customers should be

aware that the personal computer field is the subject of many patents. Our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties and

not to infringe upon or assist others to infringe upon such rights.

Restricted Rights Legend

Use, duplication, or disclosure by the Government is subject to restrictions set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause

at 252.277-7013.

Product Rights

Products mentioned in this manual are mentioned for identification purpose only.

Product names appearing in this manual may or may not be registered trademarks or

copyrights of their respective companies.

If you need any further information, please come to our home page on the Internet.

The address is "http://www.soyo.com.tw".

Edition: December 1998

Version 1.0

6ILA SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-6ILA

iii

Table of Contents

SY-6ILA MOTHERBOARD LAYOUT.............................................1

CHAPTER 1 INTRODUCTION .....................................................2

1-1 KEY FEATURES......................................................2

1-2 HANDLING THE MOTHERBOARD..........................4

1-3 ELECTROSTATIC DISCHARGE PRECAUTIONS....5

CHAPTER 2 HARDWARE SETUP...............................................6

2-1 PREPARATIONS .....................................................6

2-2 UNPACKING THE MOTHERBOARD .......................7

2-3 INSTALLATION GUIDE............................................7

CHAPTER 3 BIOS SETUP UTILITY...........................................26

3-1 SOYO COMBO SETUP .........................................28

3-2 STANDARD CMOS SETUP ...................................33

3-3 BIOS FEATURES SETUP......................................36

3-4 CHIPSET FEATURES SETUP...............................40

3-5 POWER MANAGEMENT SETUP...........................43

3-6 PNP/PCI CONFIGURATION SETUP......................47

3-7 LOAD SETUP DEFAULTS .....................................50

3-8 INTEGRATED PERIPHERALS...............................51

3-9 SUPERVISOR PASSWORD ..................................55

3-10 USER PASSWORD ...............................................57

3-11 IDE HDD AUTO DETECTION................................58

CHAPTER 4 3D PnP AUDIO ONBOARD....................................59

CHAPTER 5 DRIVERS INSTALLATION......................................61

CHAPTER 6 ONBOARD SOUND DRIVER INSTALLATION........67

Motherboard Features SY-6ILA

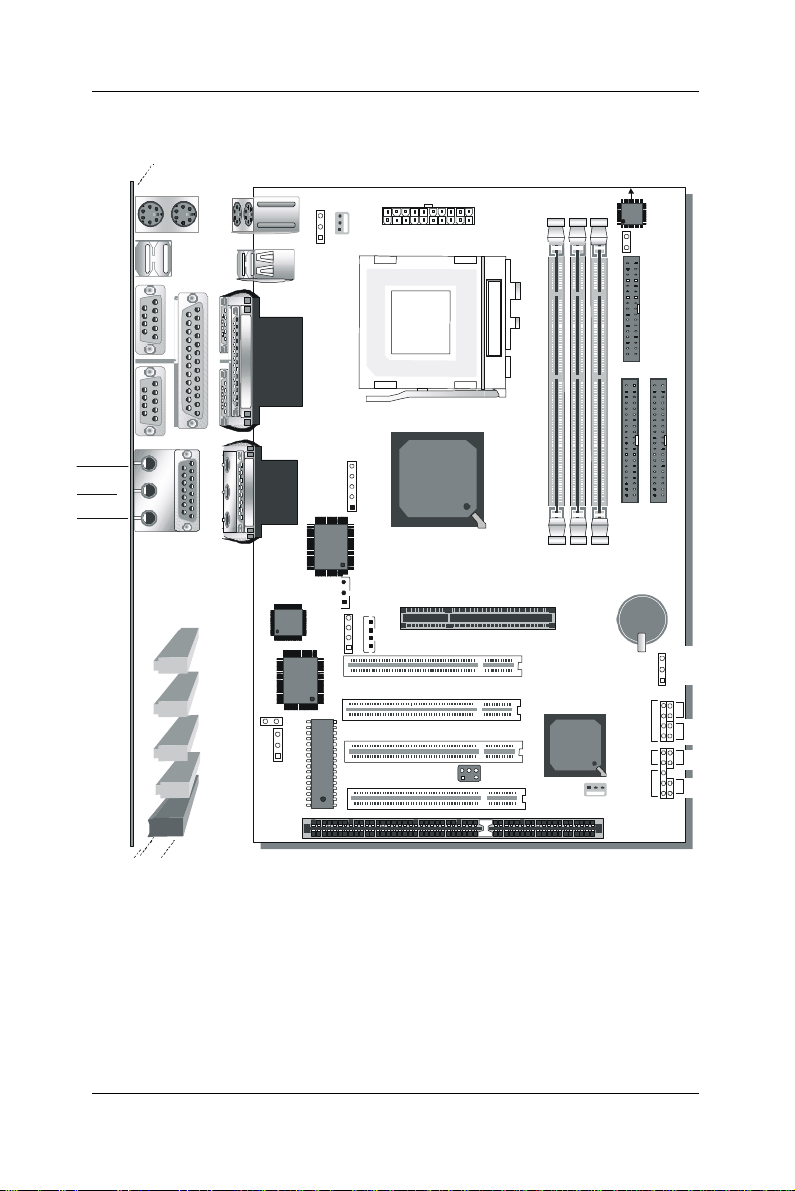

SY-6ILA MOTHERBOARD LAYOUT

Back Panel SY-6ILA Platform

COM 1

COM 2

PRT

USB 1

USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot #1

PCI Slot #2

PCI Slot #3

PCI Slot #4

Lithium

Battery

CPUFAN

Winbond

83977EF

-AW

I/O Chipset

IDE 2 IDE 1

FDC

ISA Slot #1

AGP Slot

ATX

Power

Speaker

Keylock

Power

LED

Reset

PWRBT

Turbo

LED

HDD LED

CHAFAN

JP7

JP8

Flash BIOS

(PC-PCI)

SB-LINK

AUDIO PCI

ES1373

LINE-OUT

LINE-IN

MIC JACK

JOYSTICK

JP 2

JP5

Jumper

CMOS Clear

JP1

CDIN

J4J5

JP44

WOL

Header

Intel

82371 AB

Intel

82443LX

IR1

Hardware

Monitoring

Winbond

W83782

Socket 370

CODEC

CT1297

DIMM 1

DIMM 2

DIMM 3

Introduction SY-6ILA

Chapter 1

INTRODUCTION

The SY-6ILA AGP/PCI Motherboard is a high-performance

Celeron®

processor supported ATX form-factor system board. SY-

6ILA uses the 440 LX Chipset technology and supports Socket 370

CeleronTM class processors. This Motherboard is fully compatible

with industry standards and adds many technical enhancements.

1-1 KEY FEATURES

Supports Intel Socket 370 CeleronTM processor (300A~433 MHz)

Auto-detect CPU voltage

PC98, ACPI, Ultra DMA/33

Supports system memory up to 384 MBytes

Power-on by modem or alarm

Supports power-on by keyboard

Supports onboard hardware monitoring

and includes Hardware Doctor™utility

Supports Creative SB-LINK™(PC-PCI) for PCI audio

1 x 32-bit AGP slot

4 x 32-bit bus mastering PCI slots

2 x USB ports onboard

1 x IrDA port

Supports multiple-boot function

SOYO COMBO Setup

Supports power failure resume

Supports Fan speed control

Supports Hardware suspend (APM mode only)

Introduction SY-6ILA

SY-6ILA PLATFORM FEATURES

Board Size 4-layer PCB, 17x30.5cm(6.7”x12”), ATX Form

Factor

Socket 370 66MHz FSB

ØCeleronProcessor 300A/333/366/400*/433* MHz

ØBuilt-in full speed 128KB L2 cache.

ØFeatures Auto-detection of CPU voltage

Chipset 440 LX AGP Set

ATX Power 20-pin Male Connector

CPUFAN 3-pin CPU Cooling Fan Connector

Memory DIMM Bank (DIMM1~3)

ØThree strips of 168-pin Unbuffered SDRAM DIMM

ØSupports 8/16/32/64/128MB DIMM modules in each

bank

ØSupports up to 384 MBytes of main memory

BIOS System BIOS built-in, Award BIOS

ØAPM, ACPI and "Plug-and-Play" function

ØSupports multiple-boot function

ØOnboard FLASH memory for easy upgrade

ØY2000 Compliant

Bus Controller Compliant with PCI specifications version 2.1

PCI Slots 4 x 32-bit Bus Mastering Slots

AGP Slot 1 x 32-bit AGP Slot

ISA Slots 1 x 16-bit ISA Slots

IDE1, IDE2 2 x 40-pin Bus Mastering E-IDE/ATAPI Ports

ØIDE1: Primary IDE Device Connector

ØIDE2: Secondary IDE Device Connector

ØSupports Ultra DMA/33MHz

FDC 1 Floppy Disk Drive (FDD) Port

(Supports 1.2MB/1.44MB/2.88MB and LS120/3-mode FDD)

IR1 5-pin Serial Infrared Device Header

Keylock 5-pin KeyLock Header

Reset 2-pin Reset Switch Header

Speaker 4-pin PC Speaker Header

Introduction SY-6ILA

TB_LED 2-pin Turbo LED Header

HDD_LED 2-pin IDE Device LED Header

PWRBT ATX Power On/Off Switch 2-pin Header

J4, J5 2 x CD Line-in 4-pin Headers

JP1 Power-On by Keyboard Jumper

JP2 External Suspend Button Header

JP5 CMOS Clear Jumper

JP7 Onboard Sound Jumper

JP8 Power Button Enable Jumper

JP44 WOL (Wake-On-LAN) 3-pin Header

SY-6ILA BACK-PANEL FEATURES

PRT 1 x Onboard 25-pin Female Parallel Printer Port

ØECP/EPP/SPP multi-mode parallel printer port

COM1, COM2 2x Onboard RS-232 Serial Ports

ØFeature 2 x high-speed UARTs (with 16550 FIFO)

PS/2 KB 1 x Onboard PS/2 Keyboard Port

PS/2 Mouse 1 x Onboard PS/2 Mouse Port

USB1, USB2 2 x Onboard USB

(Universal Serial Bus)

Ports

JOYSTICK 1 x Onboard 15-pin Joystick Port

LINE-OUT 1 x Onboard Line-out Audio Stereo Jack

LINE-IN 1 x Onboard Line-in Audio Stereo Jack

MIC JACK 1 x Onboard Microphone Stereo Jack

*These processors are not available yet for testing.

Introduction SY-6ILA

HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules

while unpacking:

ØBefore handling the Motherboard, ground yourself by grasping

an unpainted portion of the system's metal chassis.

ØRemove the Motherboard from its anti-static packaging. Hold

the Motherboard by the edges and avoid touching its

components.

ØCheck the Motherboard for damage. If any chip appears loose,

press carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your

dealer immediately.

1-2 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or

other system components. Electrostatic discharge can easily

damage the components. Note that you must take special

precautions when handling the Motherboard in dry or air-conditioned

environment.

To protect your equipment from electrostatic discharge, take the

following precautions:

ØDo not remove the anti-static packaging until you are ready to

install.

ØGround yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the

expansion slot covers or other unpainted portions of the computer

chassis.)

ØFrequently ground yourself while working or use a grounding strap.

ØHandle the Motherboard by its edges and avoid touching its

components.

Hardware Setup SY-6ILA

Chapter 2

HARDWARE SETUP

Congratulations on your purchase of SY-6ILA Motherboard. You are

about to install and connect your new Motherboard.

Note: Do not unpack the Motherboard from its protective

anti-static packaging until you have made the following

preparations.

2-1 PREPARATIONS

Gather and prepare all the following hardware equipment to

complete the installation successfully:

1. CeleronTM processor with built-in CPU cooling fan (boxed

type).

Note: This Motherboard supports non-boxed type CPUs. The

heavier CPU cooling fan requires the installation of a CPU

support stand included in this Motherboard package.

2. DIMM memory module

3. Computer case and chassis with adequate power supply unit

4. Monitor

5. PS/2 Keyboard

6. Pointing Device (PS/2 mouse)

7. Speaker(s) (optional)

8. Disk Drives: HDD, CD-ROM, Floppy drive…

9. External Peripherals: Printer, Plotter, and Modem (optional)

10. Internal Peripherals: Modem and LAN cards (optional)

Frequently Asked Questions:

lDo I need to install a sound card?

The answer is NO since, for your convenience, the SY-6ILA

Motherboard already features three built-in audio-stereo ports

(Line-in, Line-out, and Microphone).

lWhat kind of speaker can connect to "Line-out" port?

This Motherboard requires a speaker with built-in amplifier to

generate proper output sound volume.

Hardware Setup SY-6ILA

2-2 UNPACKING THE MOTHERBOARD

When unpacking the Motherboard, check for the following items:

ØThe SY-6ILA 440 LX AGP/PCI Motherboard

ØThis Quick Start Guide *

ØThe Installation CD-ROM *

ØOne IDE Device Flat Cable

ØOne Floppy Disk Drive Flat Cable

* If your board comes with a driver disc and a paper manual, the Quick Start Guide

and the CD-ROM are not included in the package.

Warning: Do not unpack the Motherboard from its anti-

static packaging until you are ready to install it.

Like most electronic equipment, your Motherboard may be damaged

by electrostatic discharge. To avoid permanent damage to

components ground yourself while working by using a grounding

strap. Otherwise, ground yourself frequently by touching the

unpainted portion of the computer chassis to drain the static

charges.

Handle the Motherboard carefully, holding it by the edges.

You are now ready to start the installation.

2-3 INSTALLATION GUIDE

We will now begin the installation of the Motherboard. Please follow

the step-by-step procedure designed to lead you to a complete and

correct installation.

Warning: Turn off the power to the Motherboard, system

chassis, and peripheral devices before performing any

work on the Motherboard or system.

Autres manuels pour SY-6ILA

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO SY-6BE+ Manuel utilisateur

SOYO

SOYO 6KB 82440 LX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-5EMA Pro Super 7 Manuel d'utilisation et d'entretien

SOYO

SOYO 6KM Series Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6IZA Manuel d'utilisation et d'entretien

SOYO

SOYO 6KD Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6BB Manuel utilisateur

SOYO

SOYO SY-D6IBA Manuel d'utilisation et d'entretien

SOYO

SOYO SY-P4I875P DRAGON 2 V1.0 Manuel utilisateur

SOYO

SOYO 5ehm Manuel utilisateur

SOYO

SOYO SY-5EMM Manuel d'utilisation et d'entretien

SOYO

SOYO 82430 TX P54C Manuel d'utilisation et d'entretien

SOYO

SOYO SY-P4I845GEISA Manuel utilisateur

SOYO

SOYO SY-5SSM Manuel utilisateur

SOYO

SOYO SY-7IWB Manuel utilisateur

SOYO

SOYO SY-6IWM Manuel utilisateur

SOYO

SOYO SY-7VCM Manuel utilisateur

SOYO

SOYO DRAGON Lite SY-KT333 Manuel utilisateur

SOYO

SOYO SY-6BA+III Manuel utilisateur

SOYO

SOYO SY-K7AIA Manuel utilisateur

SOYO

SOYO 5XBE5 Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6IWM Manuel utilisateur

SOYO

SOYO SY-K7VIA Manuel utilisateur

SOYO

SOYO SY-7IWB Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
