SOYO SY-6IWM/L Manuel utilisateur

SY-6IWM/L

Motherboard

****************************************************

Pentium®

III, Pentium®

II & Celeron

Processor supported

FW82810 AGP/PCI/AMR

66/100 MHz Front Side Bus supported

Micro ATX Form Factor

****************************************************

User's Manual

SOYO™SY-6IWM/L

Trademarks:

Soyo is the registered trademark of Soyo Computer Inc. All trademarks are the

properties of their owners.

Product Rights:

All names of the product and corporate mentioned in this publication are used for

identification purposes only. The registered trademarks and copyrights belong to

their respective companies.

part of this manual may be reproduced, transmitted, transcribed, translated into any

other language, or stored in a retrieval system, in any form or by any means, such

as by electronic, mechanical, magnetic, optical, chemical, manual or otherwise,

without permission in writing from Soyo Computer Inc.

Disclaimer:

Soyo Computer Inc. makes no representations or warranties regarding the contents

of this manual. We reserve the right to amend the manual or revise the

specifications of the product described in it from time to time without obligation to

notify any person of such revision or amend. The information contained in this

manual is provided to our customers for general use. Customers should be aware

that the personal computer field is subject to many patents. All of our customers

should ensure that their use of our products does not infringe upon any patents. It is

the policy of Soyo Computer Inc. to respect the valid patent rights of third parties

and not to infringe upon or to cause others to infringe upon such rights.

Restricted Rights Legend:

Use, duplication, or disclosure by the Government is subject to restrictions set

forth in subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer

Software clause at 252.277-7013.

About This Guide:

This Quick Start Guide can help system manufacturers and end users in setting up

and installing the Motherboard. Information in this guide has been carefully

checked for reliability; however, to the correctness of the contents there is no

guarantee given. The information in this document is subject to amend without

notice.

For further information, please visit our Web Site on the Internet. The address is

"http://www.soyo.com.tw".

Edition: October 1999

Version 1.0

6IWM/L SERIAL

CTested To Comply

With FCC Standards

FOR HOME OR OFFICE USE

POST CONSUMER

RECYCLED PAPER

100%

Table of Contents SY-6IWM/L

iii

Table of Contents

CHAPTER 1 MOTHERBOARD DESCRIPTION ...................................1

1-1 INTRODUCTION............................................................1

1-2 KEY FEATURES.............................................................1

1-3 HANDLING THE MOTHERBOARD..............................3

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS .........3

1-5 SY-6IWM/L MOTHERBOARD LAYOUT.......................4

1-6 SY-6IWM/L MOTHERBOARD COMPONENTS............5

1-7 CHIPSET.........................................................................7

1-8 I/O INTERFACE CONTROLLER..................................13

1-9 AUDIO SUBSYSTEM...................................................15

1-10 HARDWARE MONITOR...............................................16

1-11 WAKE ON LAN TECHNOLOGY..................................16

CHAPTER 2 HARDWARE INSTALLATION.......................................17

2-1 PREPARATIONS...........................................................17

2-2 UNPACKING THE MOTHERBOARD..........................18

2-3 INSTALLATION GUIDE...............................................19

2-3.1 CPU Installation............................................................. 20

2-3.2 SDRAM Memory Module Installation.............................. 24

2-3.3 Motherboard Connector.................................................. 26

2-3.4 Jumper Setting................................................................ 43

2-3.5 CMOS Clearing (JP5)..................................................... 44

2-3.6 Power On ....................................................................... 44

2-3.7 Quick BIOS Setup........................................................... 45

2-3.8 Troubleshooting at First Start.......................................... 47

2-3.9 Power Off....................................................................... 48

CHAPTER 3 BIOS SETUP UTILITY...................................................49

3-1 SOYO COMBO SETUP.................................................52

3-2 STANDARD CMOS SETUP..........................................56

3-3 ADVANCED BIOS FEATURES.....................................59

3-4 ADVANCED CHIPSET FEATURES..............................63

Table of Contents SY-6IWM/L

3-5 INTEGRATED PERIPHERALS.....................................65

3-6 POWER MANAGEMENT SETUP ................................69

3-7 PNP/PCI CONFIGURATION SETUP.............................72

3-8 PC HEALTH STATUS....................................................75

3-9 LOAD OPTIMIZED DEFAULTS...................................77

3-10 LOAD FAIL-SAFE DEFAULTS.....................................78

3-11 SUPERVISOR PASSWORD...........................................79

3-12 USER PASSWORD........................................................80

3-13 IDE HDD AUTO DETECTION .....................................81

CHAPTER 4 DRIVERS INSTALLATION ............................................82

CHAPTER 5 SIGMATEL AUDIO DRIVER INSTALLATION...........87

Motherboard Description SY-6IWM/L

Chapter 1

MOTHEBOARD DESCRIPTION

1-1 INTRODUCTION

The SY-6IWM/L AGP/PCI/AMR Motherboard is a high-performance

Slot 1 processor supported Micro ATX form-factor system board. SY-

6IWM/L uses the FW82810 Chipset technology and supports Slot 1

processors. This Motherboard is fully compatible with industry standards

and adds many technical enhancements.

1-2 KEY FEATURES

ØPentium® III processor (450-600MHz), Pentium® II processor (233-

450MHz) & Celeron™ processor (266-433MHz)

ØSupports 66/100 MHz Front Side Bus Frequency

ØAuto-detect CPU voltage

ØChipset integrated 3D AGP Accelerator

ØEasy CPU settings in BIOS with the “SOYO COMBO Setup”

ØPC98, ACPI

ØUltra DMA33/66 (ATA 33/66)

ØSupports Wake-On-LAN (WOL)

ØSupports ACPI Suspend Indicator

ØPower-on by modem, alarm, PS/2 Keyboard and Mouse

ØPower failure resume

ØSupports onboard hardware monitoring and includes Hardware

Doctor™ utility

ØSoftware Audio AC97 Version 2.1 compliant

Motherboard Description SY-6IWM/L

ØFan speed control

ØBattery Low voltage Detect

ØSupports multiple-boot function

ØY2K Complaint

ØSupports Audio Modem Riser slot (AMR 1.0 compliant) *

Ø3 x 32-bit bus mastering PCI slots

Ø2 x USB ports onboard (USB3 share USB1)

Ø1 x IrDA port

ØATX power connector

ØHardware Random Number Generator (RNG) for enabling enhanced

platform security

ØRTC hardware to handle Y2K Century Rollover

* If the user wants to use a Modem Riser card (MR) make sure to use a

Secondary mode MR, PRIMARY mode MRs are NOT Supported.

Motherboard Description SY-6IWM/L

1-3 HANDLING THE MOTHERBOARD

To avoid damage to your Motherboard, follow these simple rules while

unpacking:

ØBefore handling the Motherboard, ground yourself by grasping an

unpainted portion of the system's metal chassis.

ØRemove the Motherboard from its anti-static packaging. Hold the

Motherboard by the edges and avoid touching its components.

ØCheck the Motherboard for damage. If any chip appears loose, press

carefully to seat it firmly in its socket.

Warning: Do not apply power if the Motherboard appears

damaged. If there is damage to the board, contact your dealer

immediately.

1-4 ELECTROSTATIC DISCHARGE PRECAUTIONS

Make sure to ground yourself before handling the Motherboard or other

system components. Electrostatic discharge can easily damage the

components. Note that you must take special precautions when handling

the Motherboard in dry or air-conditioned environment.

To protect your equipment from electrostatic discharge, take the following

precautions:

ØDo not remove the anti-static packaging until you are ready to install.

ØGround yourself before removing any system component from its

protective anti-static packaging. (To ground yourself, grasp the expansion

slot covers or other unpainted portions of the computer chassis.)

ØFrequently ground yourself while working or use a grounding strap.

ØHandle the Motherboard by its edges and avoid touching its

components.

Motherboard Description SY-6IWM/L

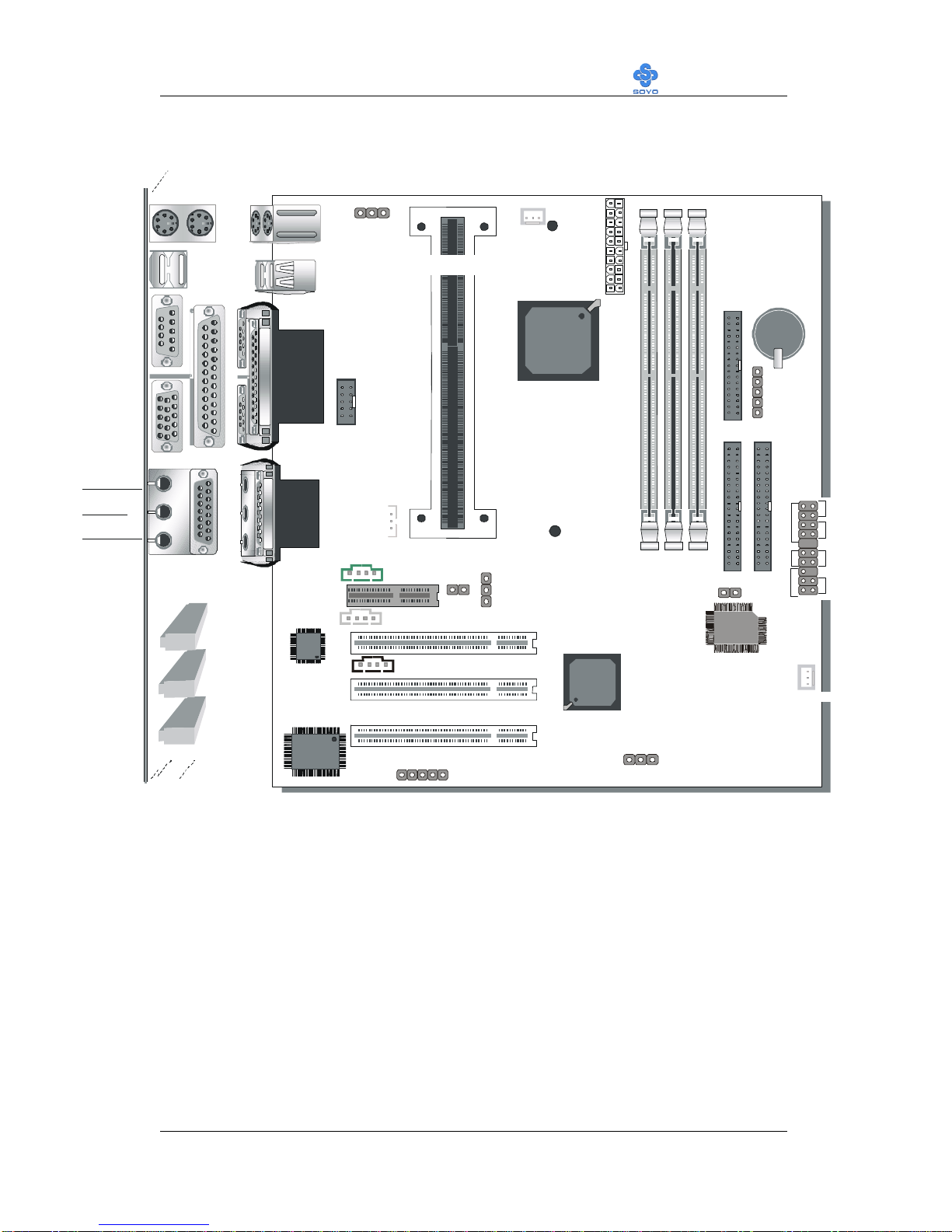

1-5 SY-6IWM/L MOTHERBOARD LAYOUT

Back Panel SY-6IWM/L Platform

PRT

USB 1

USB 2

PS/2 KB

Connector

PS/2 Mouse

Connector

PCI Slot #1

PCI Slot #3

AMR

Lithium

Battery

CPUFAN

Winbond

W83627HF

-AW

IDE 2 IDE 1

USB3

FDC

ATX Power

LINE-OUT

LINE-IN

MIC JACK

JOYSTICK

JP9

JP3

JP2

1 3

JP1

JP44

WOL

Header

Intel

FW82810

JP5

Jumper

CMOS Clear

DIMM1

DIMM2

DIMM3

CHAFAN

COM2

PCI Slot #2

CODEC

AC97

ITE

Speaker

Keylock

Power

LED

ACPI

LED

HDD

LED

Reset

PWRBT

Intel

FW82801AA

Intel

82802AB

4MB

IR1

SDRAM

COM 1

VGA

Slot 1

J10

AUX-IN

J11

PHONE-IN

J9 CD-IN

Motherboard Description SY-6IWM/L

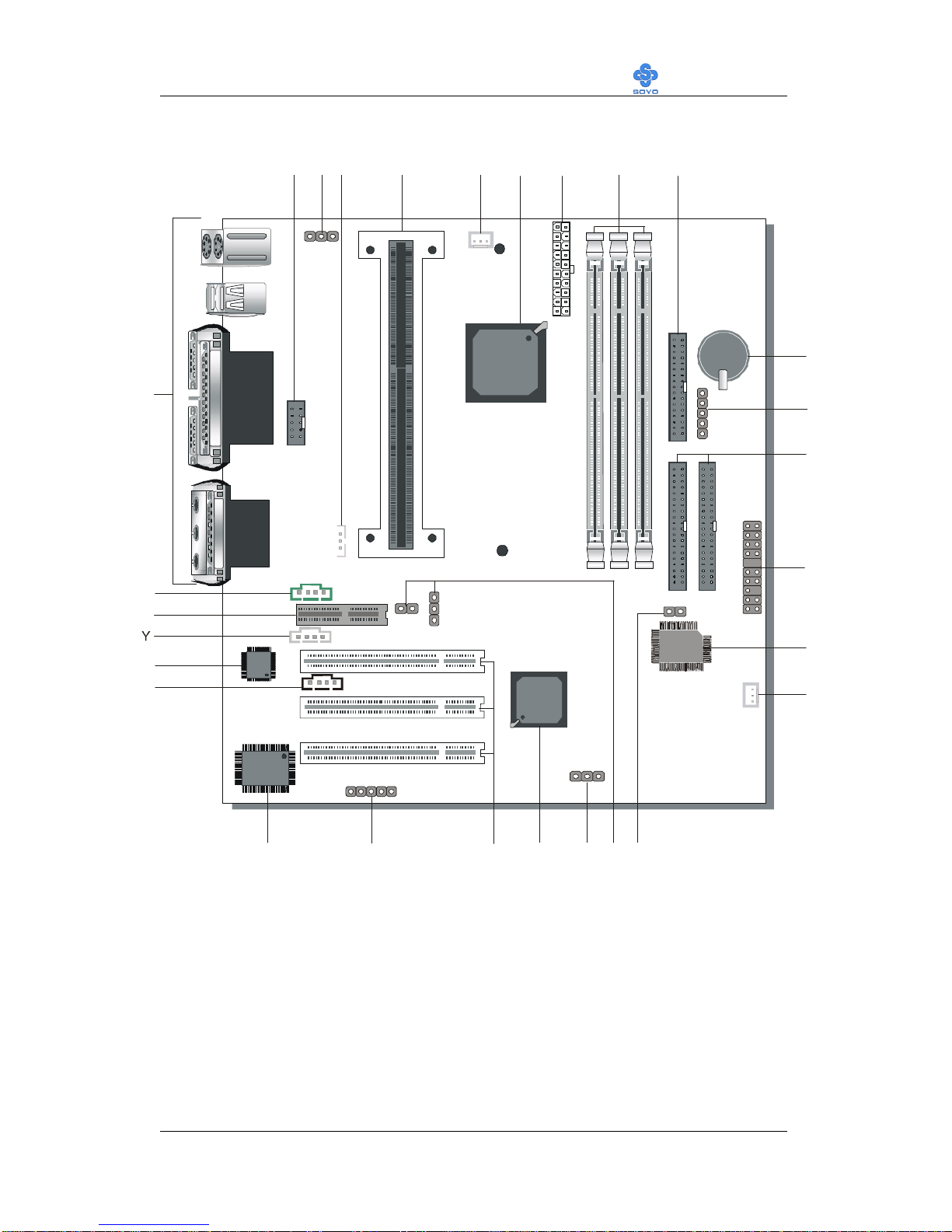

1-6 SY-6IWM/L MOTHERBOARD COMPONENTS

ITE

Motherboard Description SY-6IWM/L

ACOM 2 Connector

BPower On by Keyboard Jumper

CWake-On-LAN( WOL) Header

DSlot 1 Connector

ECPU Cooling Fan Connector

FIntel FW82810 Chip

GATX Power Supply Connector

HDIMM Bank

IFloppy Disk Drive (FDD) Port

J3V Lithium Battery

KUSB3 Connector

LBus Mastering E-IDE/ATAPI Ports

MFront panel connectors

NIntel 82802AB 4MB FWH

OChassis Cooling Fan Connector

PThe FWH Boot Block Write-Protect Jumper

QSet Configure CPU FSB Frequency Jumpers

RCMOS Clear Jumper

SIntel FW82801AA Chip

T32-bit PCI Mastering Slots

USerial Infrared (IrDA) Device Header

VWinbond W83627HF-AW LPC I/O Chip

WCD-IN Connector

XAC97 Codec Chip

YAUX-IN Connector

ZAMR (Audio Modem Riser) Slot

AA PHONE-IN Connector

AB Back panel Connectors

Table des matières

Autres manuels SOYO Carte mère

SOYO

SOYO SY-KT600 DRAGON Plus Manuel utilisateur

SOYO

SOYO SY-7VDA Manuel utilisateur

SOYO

SOYO 486 PCI/VESA Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6ILA Manuel d'utilisation et d'entretien

SOYO

SOYO 82430 TX Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6IEB Manuel d'utilisation et d'entretien

SOYO

SOYO 82440 FX Manuel utilisateur

SOYO

SOYO SY-KT880 DRAGON 2 Manuel utilisateur

SOYO

SOYO SY-6BA+ Manuel d'utilisation et d'entretien

SOYO

SOYO SY-K8USA DRAGON Ultra Manuel utilisateur

SOYO

SOYO SY-7SBB Manuel utilisateur

SOYO

SOYO SY-7VCA Manuel utilisateur

SOYO

SOYO SC-6TLx Manuel utilisateur

SOYO

SOYO SY-6ILA Manuel utilisateur

SOYO

SOYO SY-6BA+ III Manuel d'utilisation et d'entretien

SOYO

SOYO SY-6ZE+ Manuel d'utilisation et d'entretien

SOYO

SOYO 6KD Manuel d'utilisation et d'entretien

SOYO

SOYO Super 7 SY-5EMA Manuel utilisateur

SOYO

SOYO 6KF Manuel d'utilisation et d'entretien

SOYO

SOYO LI-7000 Manuel utilisateur

SOYO

SOYO SY-7VBA 133 Manuel utilisateur

SOYO

SOYO Motherboard SY-6ZB Manuel utilisateur

SOYO

SOYO SY-6IZA-NA Manuel utilisateur

SOYO

SOYO SY-K7AIA Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
