Sony StorStation AITi90 Manuel utilisateur
AIT Drive
4-671-481-12(1)
2002 Sony Corporation
AIT-3 TAPE DRIVE
AITi260
AIT-2 TAPE DRIVE
AITi130
AIT-1 TAPE DRIVE
AITi90
User’s Guide
2
This document contains proprietary
information which is protected by
copyright.
All rights reserved. No part of this
document may be photocopied,
reproduced or translated to another
language without prior written consent
of Sony.
The information contained in this
document is subject to change without
notice.
SONY MAKES NO WARRANTY
OF ANY KIND WITH REGARD TO
THIS DOCUMENT.
Sony shall not be liable for error
contained herein, indirect, special,
incidental or consequential damages in
connection with the furnishing,
performance or use of this document.
VORSICHT
Diese Ausrüstung erfüllt die
Europäischen EMC-Bestimmungen für
die Verwendung in folgender /
folgenden Umgebung(en):
• Wohngegenden
• Gewerbegebiete
• Leichtindustriegebiete
(Diese Ausrüstung erfüllt die
Bestimmungen der Norm EN55022,
Klasse B.)
Contents
Introduction .......................................4
About AIT Drives .....................4
Precautions ................................5
Installation .........................................7
SCSI Connection/Setting the
SCSI ID .................................7
Option Switches (DIP Switch) ..8
Mounting Holes.........................9
Remodeling from 5.25"
Model to 3.5" Model............11
Orientation...............................12
Operation .........................................13
Location of 3 LEDs
(AITi260).............................13
Location of 3 LEDs
(AITi130/AITi90) ................14
Drive Operation.......................16
Interface Implementation.................17
Supported SCSI Messages ......17
Supported SCSI Commands....17
Specification ....................................18
Product Specifications.............18
Third Party Support Contacts
(In the USA) ...............................20
Sony Contacts ..................................22
3
Overview
The Sony AITi260, AITi130, and AITi90 drives are high capacity data
storage devices using Advanced Intelligent tape (AIT) technology. The
AITi260, AITi130, and AITi90 drives achieve high data reliability through
Read-After-Write, an additional level of Error Correction Code, and other
features.
The Sony AITi260, AITi130, and AITi90 drives store data on tape using
standard formats called AIT (Advanced Intelligent Tape) and ALDC
formats.
4
Introduction
About AIT Drives
The AITi260 is an internal AIT drive unit that uses data cartridges conforming
to the AIT-3 format. The AITi130 is an internal AIT drive unit that uses data
cartridges conforming to the AIT-2 format. The AITi90 is an internal AIT
drive unit that uses data cartridges conforming to the AIT-1 format. The
AITi260 supports AIT-1, AIT-2, and AIT-3 formats. The AITi130 supports
AIT-1 and AIT-2 formats. The AITi90 supports only AIT-1 format.
Features
The AIT Drive Unit AITi260 has the following features:
• The Advanced Intelligent Tape format provides a huge data storage
capacity on AIT-1/AIT-2/AIT-3 data cartridges.
• Read After Write Function and third-level error code guarantee high data
reliability.
• Data compression provides 260 gigabytes of storage on 230 m tape-
length cartridge.*1
The native capacity is 100 gigabytes of storage on 230 m tape-length
cartridge.
• Stored data are automatically checked for compression.
• Ultra 160 SCSI LVD/SE interface is fully supported for host computer
access.
• Read/Write operation is available with AIT-1, AIT-2, and AIT-3 formats.
The AIT Drive Unit AITi130 has the following features:
• The Advanced Intelligent Tape format provides a huge data storage
capacity on AIT-1/AIT-2 data cartridges.
• Read After Write Function and third-level error correction code
guarantee high data reliability.
• Data compression provides 130 gigabytes of storage on 230 m tape-
length cartridge.*1
The native capacity is 50 gigabytes of storage on 230 m tape-length
cartridge.
• Stored data are automatically checked for compression.
• Wide Ultra SCSI LVD/SE interface is fully supported for host computer
access.
5
• Read/Write operation is available with AIT-1 and AIT-2 formats.
The AIT Drive Unit AITi90 has the following features:
• The Advanced Intelligent Tape format provides a huge data storage
capacity on AIT-1 data cartridges.
• Read After Write Function and third-level error correction code
guarantee high data reliability.
• Data compression provides 91 gigabytes of storage on 230 m tape-length
cartridge.*1
The native capacity is 35 gigabytes of storage on 230 m tape-length
cartridge.
• Stored data are automatically checked for compression.
• Wide Ultra SCSI LVD/SE interface is fully supported for host computer
access.
• Read/Write operation is available with AIT-1 format.
*1 This is assuming 2.6 : 1 compression ratio.
The degree of data compression attained while recording data varies according to
system environment and data type.
Precautions
Installation
Avoid placing the drive in a location subject to:
– high humidity
– high temperature
– mechanical shock and vibration
– direct sunlight
Operation
• Do not move the drive while it is operating. It may cause malfunction.
• Avoid exposing the drive to sudden changes from a low to high in
temperature. This may cause water condensation to collect inside the
drive. If the ambient temperature should suddenly rise while the drive is
turned on , wait at least one hour before turning on the drive. If you
attempt to operate the drive immediately after a sudden increase in
temperature, a malfunction may occur.
6
• Turning off the power to the drive while it is writing to tape may cause
the tape to become unreadable. All previously negotiated parameters will
be lost, whenever power to the drive is cycled.
• Upon execution of the hardware reset hole with the AITi260, the driver
will be reset and there is a risk of lost and unreadable data. Thus, please
do not use the hole other than for repair purposes. (See page 14)
Transportation
• Keep the original packing materials to facilitate transportation of the
drive.
• Always remove the tape before moving the drive. After removing the
drive from the computer, repack the drive into its original packing.
SCSI Termination
The AITi260, AITi130, and AITi90 conform to the Microsoft PC97
standard which requires the internal (naked) drive to be terminated with an
internal terminator.
Microsoft PC97 SCSI requirements
SCSI peripherals must not terminate the bus. Both internal and external cable ends are
instead terminated by plug-in connectors.
Terminato
r
68p cable
Host Computer Wide SCSI
This drive
Example of SCSI setup
The AITi260 supports Ultra 160 SCSI. When using an Ultra 160 SCSI
connection, make sure that you are using appropriate cables and
terminators.
7
Installation
SCSI Connection/Setting the SCSI ID
SCSI 68pin Connector
5 V
Power Connector
1234
GND GND 12 V
Disable
Enable
Parity
Note :
=
= CLOSED/Jumper
Don’t care
OPEN/Jumper not
installed
Parity Disable
No Connection
SCSI ID 3
SCSI ID 2
SCSI ID 1
SCSI ID 0
Jumpers
SCSI ID
SCSI ID
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2
1
0
P.D.
N.C.
3
Parity Disable Jumper
Parity check function can be disabled by Jumper. Parity check is disabled
while left end jumper is installed. Parity generate function is always
enabled.
8
Option Switches (DIP Switch)
DIP Switch Positions
ON
12345678
DIP Switch
1 Reserved (OFF)
2 Reserved (OFF)
3 Reserved (OFF)
4 Reserved (OFF)
5 Terminator Power (ON)
6 Reserved (OFF)
7 DC Control (1) (ON)
8 DC Control (2) (OFF)
Data Compression Control DIP switch
Data compression can be selected by DIP switches. Data compression is
enabled while position 7 [DC Control (1)] is ON. Control by host can be
disabled when position 8 [DC Control (2)] is ON.
9
Mounting Holes
For 3.5" Standard Height (AITi260/AITi130/AITi90)
155.0 mm
(6.10 in)
7.0 mm
(0.28 in)
94.0 mm (3.70 in)
101.6 mm (4.00 in)
70.0 mm
(2.76 in)
42.0 mm
(1.65 in)
31.0 mm
(1.22 in)
3-M3 (depth
2.5mm (0.10 in) max.)
6-M3 (depth
2.5mm (0.10 in) max.)
5.0 mm
(0.20 in)
7.4 mm
(0.29 In in)
41.2 mm
(1.62 in)
90.0 mm (3.54 in)
60.0 mm (2.36 in)
21.0 mm
(0.83 in)
7.6 mm
(0.30 in)
10

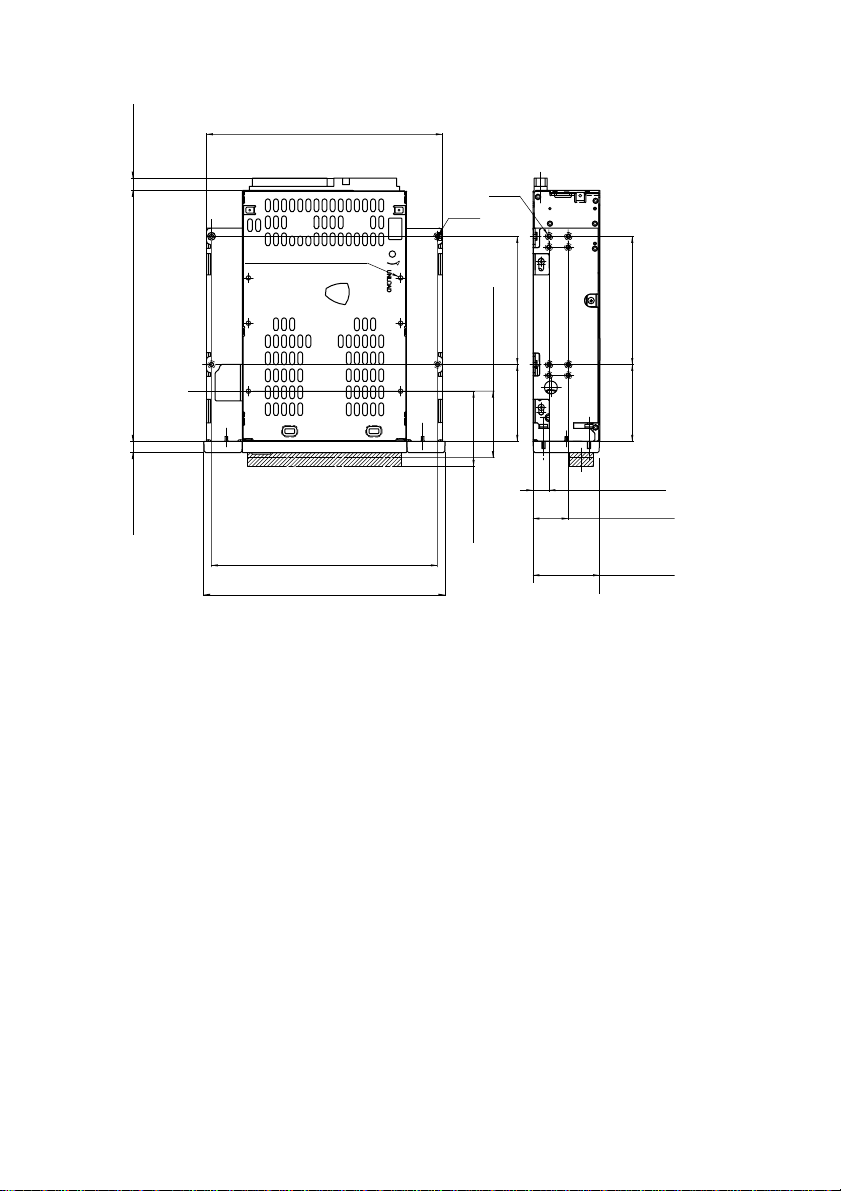

For 5.25" Half Height (AITi260/AITi130/AITi90)
(1.87 in)
47.5 mm
(1.87 in)
47.5 mm (3.12 in)
79.2 mm
(3.12 in)
79.2 mm
(1.61 in)
41.0 mm
(1.83 in)
46.5 mm
(1.62 in)
41.2 mm
(6.1 in)
155.0 mm (0.3 in)
7.6 mm
(5.75 in)
146.0 mm
(depth 0.10 in max.)
6-M3 (depth 2.5mm max.)
(0.39 in)
9.9 mm
(0.86 in)
21.8 mm
4-M3
4-M3
(5.5 in)
139.6 mm
(0.28 in)
7.0 mm
(5.87 in)
149.0 mm
