Sony SDX-500 Series Manuel utilisateur

3-866-003-03(2)

1996 Sony Corporation

AIT Drive

SDX-500 Series

SDX-510 Series

User’s Guide

Contents

Introduction .......................................4

Product Features........................4

Precautions ................................5

Installation .........................................7

SCSI Connection/Setting the

SCSI ID .................................7

Option Switches (DIP Switch) ..8

Mounting Holes........................9

Remodeling from 5.25" Model

to 3.5" Model .......................12

Orientation...............................13

Operation .........................................14

Location of 3 LEDs .................14

LED Indication for

Drive Status .........................15

Drive Operation.......................16

Emergency Tape Removal

Procedure .............................17

Interface Implementation.................20

Supported SCSI Messages ......20

Supported SCSI Commands....20

Specification ....................................21

Product Specifications.............21

Third Party Support Contacts

(In the USA) ...............................23

Sony Contacts ..................................25

This document contains proprietary

information which is protected by

document may be photocopied,

reproduced or translated to another

language without prior written consent

of Sony.

The information contained in this

document is subject to change without

notice.

SONY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO

THIS DOCUMENT.

Sony shall not be liable for error

contained herein, indirect, special,

incidental or consequential damages in

connection with the furnishing,

performance or use of this document.

VORSICHT

Diese Ausrüstung erfüllt die

Europäischen EMC-Bestimmungen für

die Verwendung in folgender /

folgenden Umgebung(en):

• Wohngegenden

• Gewerbegebiete

• Leichtindustriegebiete

(Diese Ausrüstung erfüllt die

Bestimmungen der Norm EN55022,

Klasse B.)

SDX-500 Tape Drive

The Sony SDX-500 series drive is a high capacity data storage device using

Advanced Intelligent tape (AIT) technology. The SDX-500 series drive

achieves high data reliability through Read-After-Write, an additional level

of Error Correction Code, and other features.

The Sony SDX-500 series drive stores data on tape using a standard format

called AIT (Advanced Intelligent Tape) and ALDC formats.

Introduction

Product Features

* Assuming a 2.6 : 1 compression ratio.

(The compression ratio varies according to the type of data.)

• Supported Format : AIT-1, AIT-2

• Burst Transfer Rate

– 12 MB/s Asynchronous

– 40 MB/s Synchronous

• Large 10 MB Buffer Memory

• 3.5” Standard Height, 5.25” Half Height

• Embedded SCSI Interface

(ULTRA/WIDE and LVD/SE model (SDX-500C) or HVD model (SDX-

510C) are available)

• Supports Variable or Fixed Record Length

• Supports SCSI Disconnection/Arbitration

• Frame Rewrite Function

• Three levels of Error Correction Code (ECC)

• High Speed search (120 times normal Read/Write speed)

• Random Read, Append Write

Data Capacity

Transfer Rate (sustained)

SDX-500 series

50 GB uncompressed (with AIT-2 230 m tape)

130 GB compressed*(with AIT-2 230 m tape)

6 MB/s uncompressed

Precautions

Installation

Avoid placing the drive in a location subject to:

– high humidity

– high temperature

– mechanical shock and vibration

– direct sunlight

Operation

• Do not move the drive while it is operating. It may cause malfunction.

• Avoid exposing the drive to sudden changes from a low to high in

temperature. This may cause water condensation to collect inside the

drive. If the ambient temperature should suddenly rise while the drive is

turned on , wait at least one hour before turning on the drive. If you

attempt to operate the drive immediately after a sudden increase in

temperature, a malfunction may occur.

• Turning off the power to the drive while it is writing to tape may cause

the tape to become unreadable. All previously negotiated parameters will

be lost, whenever power to the drive is cycled.

Transportation

• Keep the original packing materials to facilitate transportation of the

drive.

• Always remove the tape before moving the drive. After removing the

drive from the computer, repack the drive into its original packing.

Notice of SCSI Termination

The SDX-500C conforms to the Microsoft PC97 standard which requires

the internal (naked) drive to be terminated with an external terminator.

Microsoft PC97 SCSI requirements

SCSI peripherals must not terminate the bus. Both internal and external

cable ends are instead terminated by plug-in connectors.

Terminato

68p cable

Host Computer Wide SCSI

This drive

Example of SCSI set-up

Installation

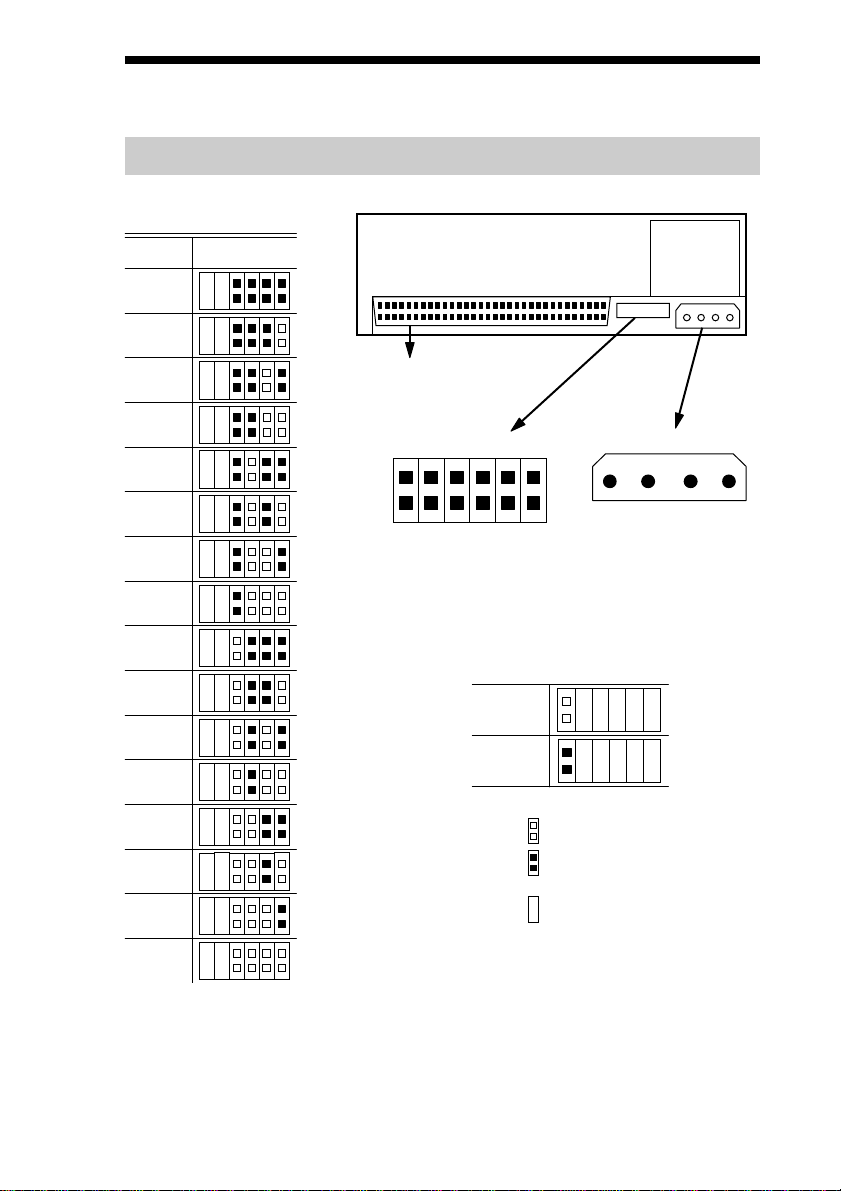

SCSI Connection/Setting the SCSI ID

SCSI 68pin Connector

5 V

Power Connector

1234

GND GND 12 V

Disable

Enable

Parity

Note :

= CLOSED/Jumper

Don’t care

OPEN/Jumper not

installed

Parity Disable

No Connection

SCSI ID 3

SCSI ID 2

SCSI ID 1

SCSI ID 0

Jumpers

SCSI ID

P.D.

N.C.

Parity Disable Jumper

Parity check function can be disabled by Jumper. Parity check is disabled

while left end jumper is installed. Parity generate function is always

enabled.

Option Switches (DIP Switch)

DIP Switch Positions

12345678

DIP Switch

1 Reserved (OFF)

2 Reserved (OFF)

3 Reserved (OFF)

4 Reserved (OFF)

5 Terminator Power (ON)

6 Reserved (OFF)

7 DC Control (1) (ON)

8 DC Control (2) (OFF)

Data Compression Control DIP switch

Data compression can be selected by DIP switches. Data compression is

enabled while position 7 [DC Control (1)] is ON. Control by host can be

disabled when position 8 [DC Control (2)] is ON.

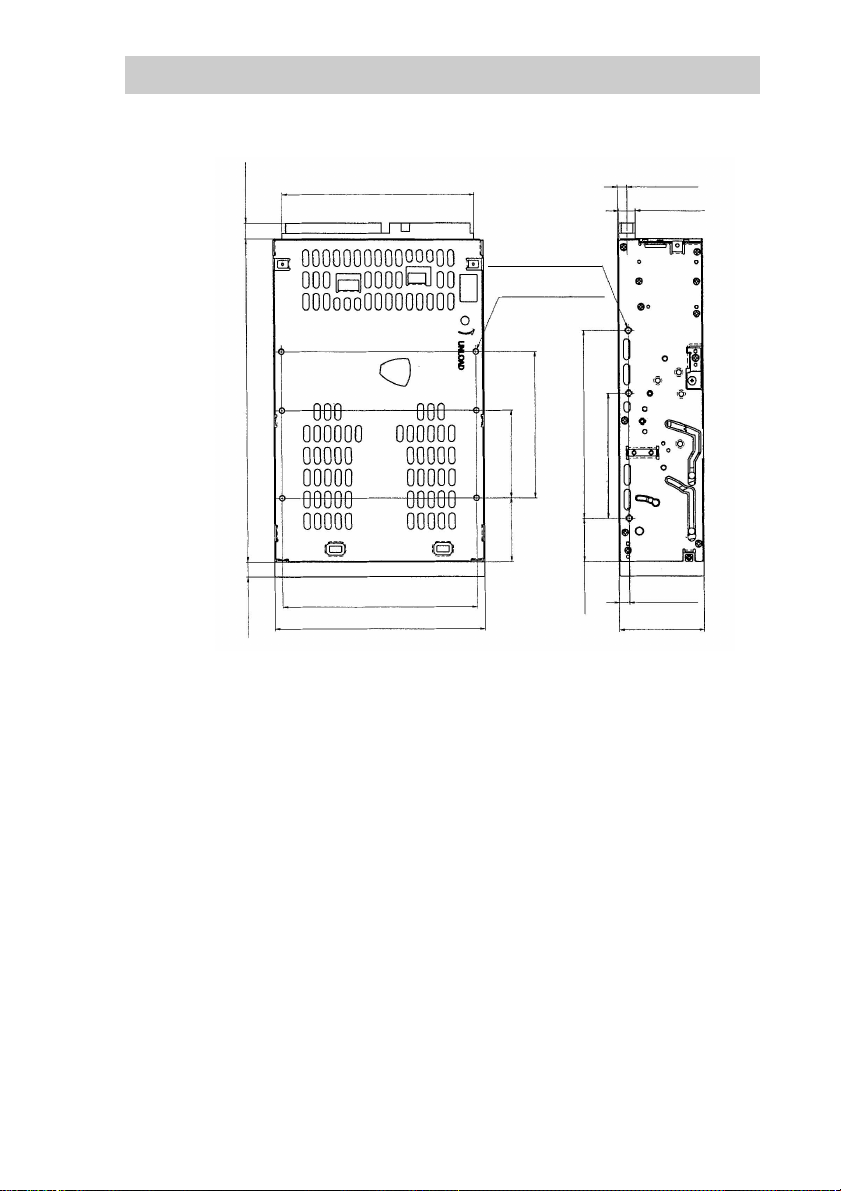

Mounting Holes

For 3.5" Standard Height (SDX-500C)

92.71 mm (3.65 in)

6-M3 (depth 2.5 mm)

(depth 0.10 in)

4.7±0.5 mm

(0.185 in)

8 mm

(0.315 in)

94±0.3 mm

(3.70 in)

101.6±0.5 mm

(4.00 in)

5±0.3 mm

(0.20 in)

41.2±0.5 mm

(1.62 in)

90±0.3 mm

(3.54 in)

60±0.3 mm

(2.36 in)

21±0.3 mm

(0.83 in)

70±0.3 mm

(2.76 in)

42±0.3 mm

(1.65 in)

31±0.3 mm

(1.22 in)

155±0.5 mm

(6.10 in) 7.6±0.5 mm

(0.30 in)

7.4±0.5 mm

(0.29 in)

3-M3 (depth 2.5mm max.)

(depth 0.10 in max.)

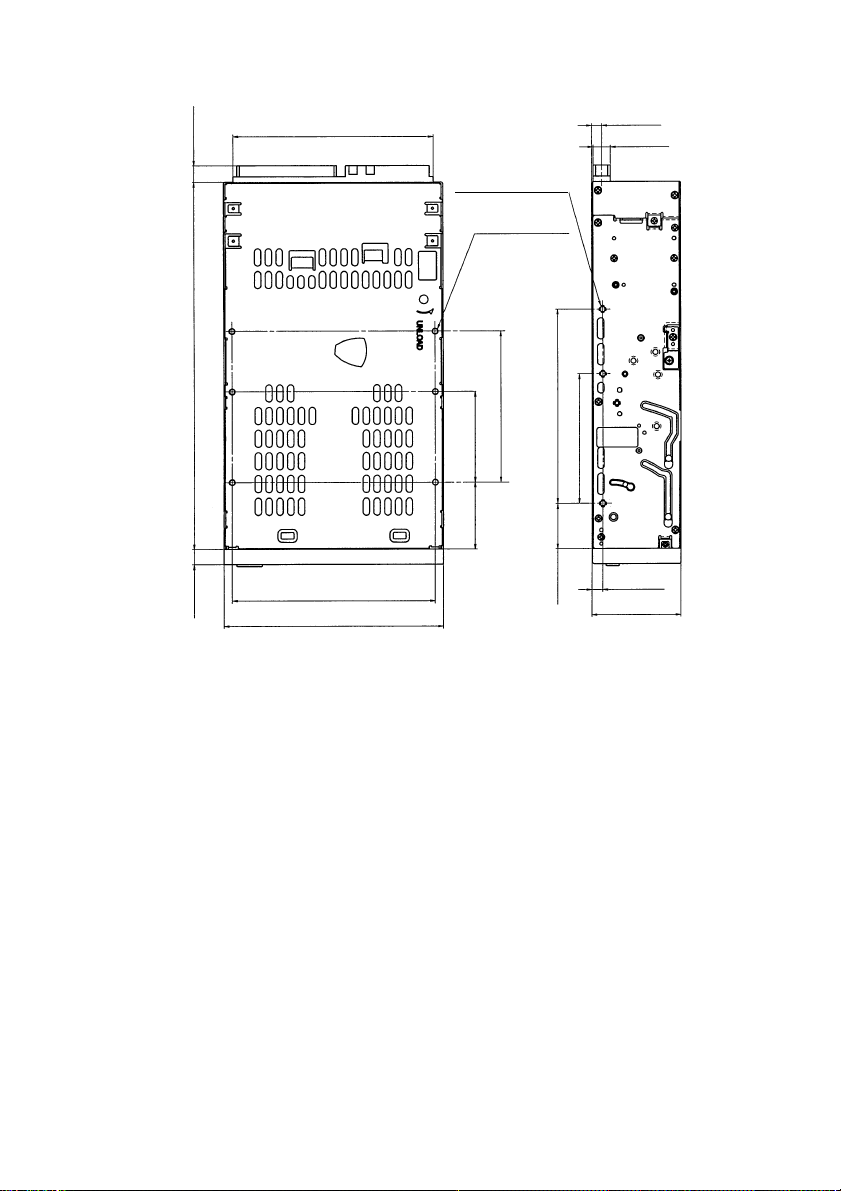

For 3.5" Standard Height (SDX-510C)

92.71mm (3.65 in)

(depth 0.10 in max.)

6-M3 (depth 2.5 mm)

(depth 0.10 in)

4.7±0.5 mm

(0.185 in)

8 mm

(0.315 in)

94±0.3 mm

(3.70 in)

101.6±0.5 mm

(4.00 in)

5±0.3 mm

(0.20 in)

41.2±0.5 mm

(1.62 in)

90±0.3 mm

(3.54 in)

60±0.3 mm

(2.36 in)

21±0.3 mm

(0.83 in)

70±0.3 mm

(2.76 in)

42±0.3 mm

(1.65 in)

31±0.3 mm

(1.22 in)

170±0.5 mm

(6.69 in) 7.6±0.5 mm

(0.30 in)

7.4±0.5 mm

(0.29 in)

3-M3 (depth 2.5 mm max.)
