Sony StorStation AITi100 Manuel utilisateur

AIT Drive

2-546-890-13(1)

2004 Sony Corporation

User’s Guide

AIT-2 Turbo TAPE DRIVE

AITi200/AITi200T

AIT-1 Turbo TAPE DRIVE

AITi100/AITi100T

AIT-E Turbo TAPE DRIVE

AITi50/AITi50T

This document contains proprietary

information which is protected by

document may be photocopied,

reproduced or translated to another

language without prior written consent

of Sony.

The information contained in this

document is subject to change without

notice.

SONY MAKES NO WARRANTY

OF ANY KIND WITH REGARD TO

THIS DOCUMENT.

Sony shall not be liable for errors

contained herein, indirect, special,

incidental or consequential damages in

connection with the furnishing,

performance or use of this document.

Your AITi200 is assigned a Model No.

ATDNA3 for regulatory compliance

certifications.

Your AITi50, AITi100 is assigned a

Model No. ATDNA2 for regulatory

compliance certifications.

The number is indicated on the model

number label on your drive along with

the rated voltage and current.

VORSICHT

Für Kunden in Deutschland

Diese Ausrüstung erfüllt die

Europäischen EMC-Bestimmungen für

die Verwendung in folgender /

folgenden Umgebung(en):

•Wohngegenden

•Gewerbegebiete

•Leichtindustriegebiete

(Diese Ausrüstung erfüllt die

Bestimmungen der Norm EN55022,

Klasse B.)

IMPORTANT SAFEGUARDS

For your protection, please read these

safety instructions completely before

operating the appliance, and keep this

manual for future reference.

Carefully observe all warnings,

precautions and instructions on the

appliance, or the one described in the

operating instructions and adhere to

them.

USE

Power Sources – This unit should be

operated only from the type of power

source indicated on the marking label.

If you are not sure of the type of

electrical power, consult your dealer or

local power company.

For the unit with a three-wire

grounding type ac plug:

If you are unable to insert the plug into

the outlet, contact your electrician to

have a suitable plug installed. Do not

defeat the safety purpose of the

grounding plug.

AC Power cord: (for AC mains

operating unit only)

The AC power cord should have

appropriate safety approvals or

marking for the country in which the

equipment will be used. Consult your

dealer or local power company.

Cleaning – Unplug the unit from the

wall outlet before cleaning or

polishing it. Do not use liquid

cleaners or aerosol cleaners.

Use a cloth lightly dampened with

water for cleaning the exterior of the

unit.

Object and Liquid Entry – Never

push objects of any kind into the unit

through openings as they may touch

dangerous voltage points or short out

parts that could result in a fire or

electric shock. Never spill liquid of

any kind on the unit.

INSTALLATION

Water and Moisture – Do not use

power-line operated units near water -

for example, near a bathtub,

washbowl, kitchen sink, or laundry

tub, in a wet basement, or near a

swimming pool, etc.

Power-Cord Protection – Route the

power cord so that it is not likely to be

walked on or pinched by items placed

upon or against them, paying

particular attention to the plugs,

receptacles, and the point where the

cord exits from the appliance.

Accessories – Do not place the unit on

an unstable cart, stand, tripod, bracket,

or table. The unit may fall, causing

serious injury to a child or an adult,

and serious damage to the unit. Use

only a cart stand tripod, bracket, or

table recommended by the

manufacturer.

Ventilation – The slots and openings

in the cabinet are provided for

necessary ventilation. To ensure

reliable operation of the unit, and to

protect it from overheating, these slots

and openings must never be blocked or

covered.

•Never cover the slots and openings

with a cloth or other materials.

•Never block the slots and openings

by placing the unit on a bed, sofa,

rug or other similar surface.

•Never place the unit in a confined

space, such as a bookcase, or built-

in cabinet, unless proper ventilation

is provided.

SERVICE

Damage Requiring Service – Unplug

the unit from the wall outlet and refer

servicing to qualified service

personnel under the following

conditions:

•When the power cord or plug is

damaged or frayed.

•If liquid has been spilled or objects

have fallen into the unit.

•If the unit has been exposed to rain

or water.

• If the unit has been subject to

excessive shock by being dropped,

or the cabinet has been damaged.

•If the unit does not operate normally

when following the operating

instructions. Adjust only those

controls that are specified in the

operating instructions. Improper

adjustment of other controls may

result in damage and will often

require extensive work by a

qualified technician to restore the

unit to normal operation.

•When the unit exhibits a distinct

change in performance - this

indicates a need for service.

Servicing – Do not attempt to service

the unit yourself as opening or

removing covers may expose you to

dangerous voltage or other hazards.

Refer to all servicing to qualified

service personnel.

Contents

Overview .................................................................................................................. 6

Introduction ..............................................................................................................7

About AIT Drives ............................................................................................ 7

Precautions ....................................................................................................... 8

Installation ..............................................................................................................10

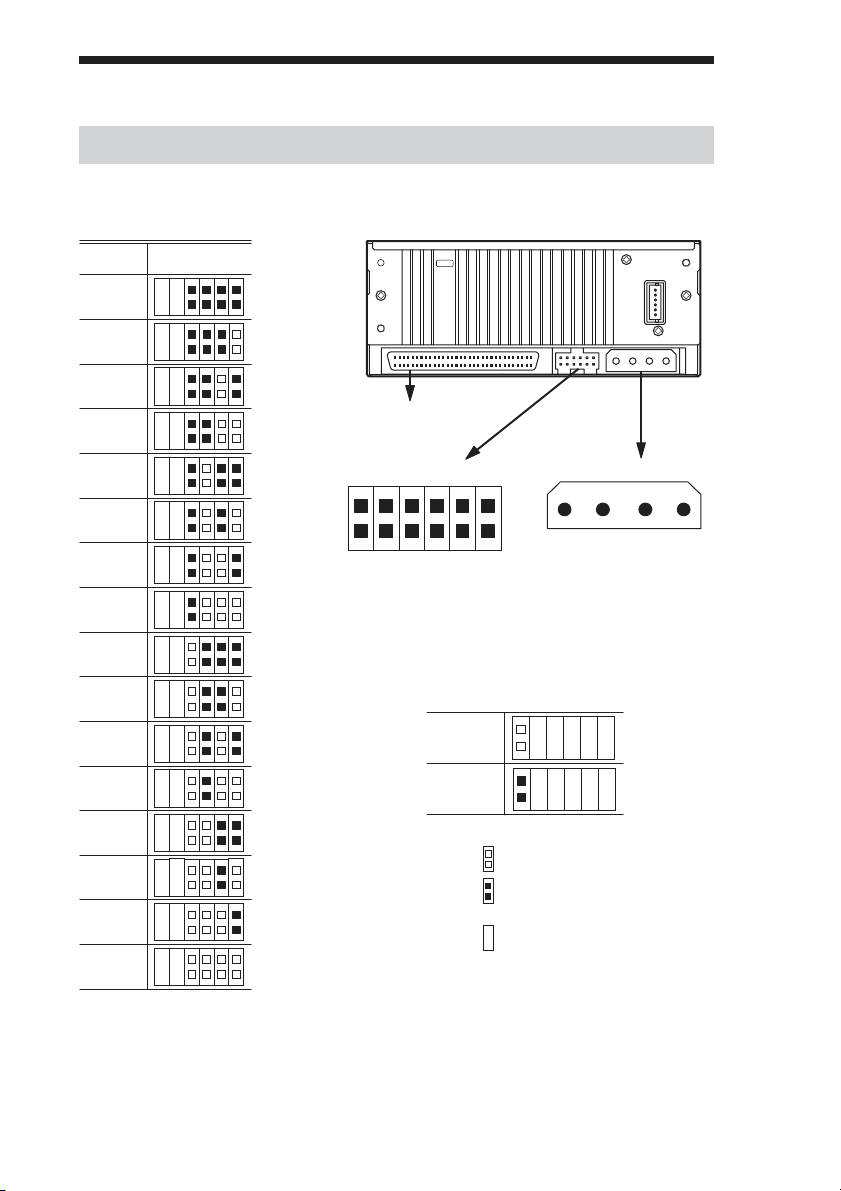

SCSI Connection/Setting the SCSI ID ...........................................................10

Option Switches (DIP Switch) .......................................................................11

Mounting Holes..............................................................................................14

Reconfiguring from 5.25" Model to 3.5" Model............................................16

Orientation......................................................................................................17

Attaching and Removing the Dust Cover ...............................................................18

Attaching the Dust Cover ............................................................................... 18

Removing the Dust Cover .............................................................................. 20

Operation ................................................................................................................21

Location of 3 LEDs ........................................................................................ 21

Drive Operation..............................................................................................22

Emergency Tape Removal Procedure ............................................................ 25

WORM Function .................................................................................................... 27

Interface Implementation........................................................................................ 29

Supported SCSI Messages .............................................................................29

Supported SCSI Commands........................................................................... 29

Specifications .........................................................................................................30

Product Specifications....................................................................................30

Sony Contacts ......................................................................................................... 32

• Sony cannot accept liability for data written to cartridges lost as a result of using this product.

• Sony bears no responsibility for any financial damages, lost profits, or claims made by third

parties arising from the use of this product.

Overview

The Sony AITi200, AITi100, and AITi50 drives are high capacity data

storage devices using Advanced Intelligent tape (AIT) technology. The

AITi200, AITi100, and AITi50 drives achieve high data reliability through

Read-After-Write, an additional level of Error Correction Code, and other

features.

The Sony AITi200, AITi100, and AITi50 drives store data on tape using

standard formats called AIT (Advanced Intelligent Tape) and ALDC

formats.

Introduction

About AIT Drives

The AITi200 is an internal AIT drive unit that uses data cartridges

conforming to the AIT-2 Turbo format. The AITi100 is an internal AIT

drive unit that uses data cartridges conforming to the AIT-1 Turbo format.

The AITi50 is an internal AIT drive unit that uses data cartridges

conforming to the AIT-E Turbo format. The AITi200 supports AIT-E

Turbo, AIT-1, AIT-1 Turbo, AIT-2, and AIT-2 Turbo formats. The

AITi100 supports AIT-E Turbo, AIT-1, and AIT-1 Turbo formats. The

AITi50 supports only AIT-E Turbo format.

Features

The AIT Drive Unit AITi200 has the following features:

•Supports reading and writing to data cartridges conforming to the AIT-E

Turbo, AIT-1, AIT-1 Turbo, AIT-2, and AIT-2 Turbo formats.

• The third-level error correction code guarantee high data reliability.

•Data compression provides 208 gigabytes of storage on 186 m tape-

length AIT-2 Turbo data cartridge.*1

The native capacity is 80 gigabytes of storage on 186 m tape-length

AIT-2 Turbo data cartridge.

•Stored data are automatically checked for compression.

• Ultra 160 Wide SCSI LVD/SE interface is fully supported for host

computer access.

The AIT Drive Unit AITi100 has the following features:

•Supports reading and writing to data cartridges conforming to the AIT-E

Turbo, AIT-1, and AIT-1 Turbo formats.

• The third-level error correction code guarantee high data reliability.

•Data compression provides 104 gigabytes of storage on 186 m tape-

length AIT-1 Turbo data cartridge.*1

The native capacity is 40 gigabytes of storage on 186 m tape-length

AIT-1 Turbo data cartridge.

•Stored data are automatically checked for compression.

•Wide Ultra SCSI LVD/SE interface is fully supported for host computer

access.

*1 This is assuming 2.6 : 1 compression ratio.

The degree of data compression attained while recording data varies according to

system environment and data type.

The AIT Drive Unit AITi50 has the following features:

•Supports reading and writing to data cartridges conforming to the AIT-E

Turbo format.

• The third-level error correction code guarantee high data reliability.

•Data compression provides 52 gigabytes of storage on 98 m tape-length

AIT-E Turbo data cartridge.*1

The native capacity is 20 gigabytes of storage on 98 m tape-length AIT-E

Turbo data cartridge.

•Stored data are automatically checked for compression.

•Wide Ultra SCSI LVD/SE interface is fully supported for host computer

access.

*1 This is assuming 2.6 : 1 compression ratio.

The degree of data compression attained while recording data varies according to

system environment and data type.

Precautions

Installation

Avoid placing the drive in a location subject to:

–high humidity

–high temperature

– mechanical shock and vibration

–direct sunlight

*For details, see “Specifications” on page 30.

Operation

•Do not move the drive while it is operating. It may cause malfunction.

• Avoid exposing the drive to sudden changes from a low to high

temperatures. This may cause water condensation to collect inside the

drive. If the ambient temperature should suddenly rise while the drive is

turned on, wait at least one hour before turning on the drive. If you

attempt to operate the drive immediately after a sudden increase in

temperature, a malfunction may occur.

•Turning off the power to the drive while they are writing to tape may

cause the tape to become unreadable. All previously negotiated

parameters will be lost, whenever power to the drive is cycled.

Transportation

•Keep the original packing materials to facilitate safe transportation of the

drive.

•Always remove the tape/media cartridge before moving the drive. After

removing the drive from the computer, repack the drive into its original

packing.

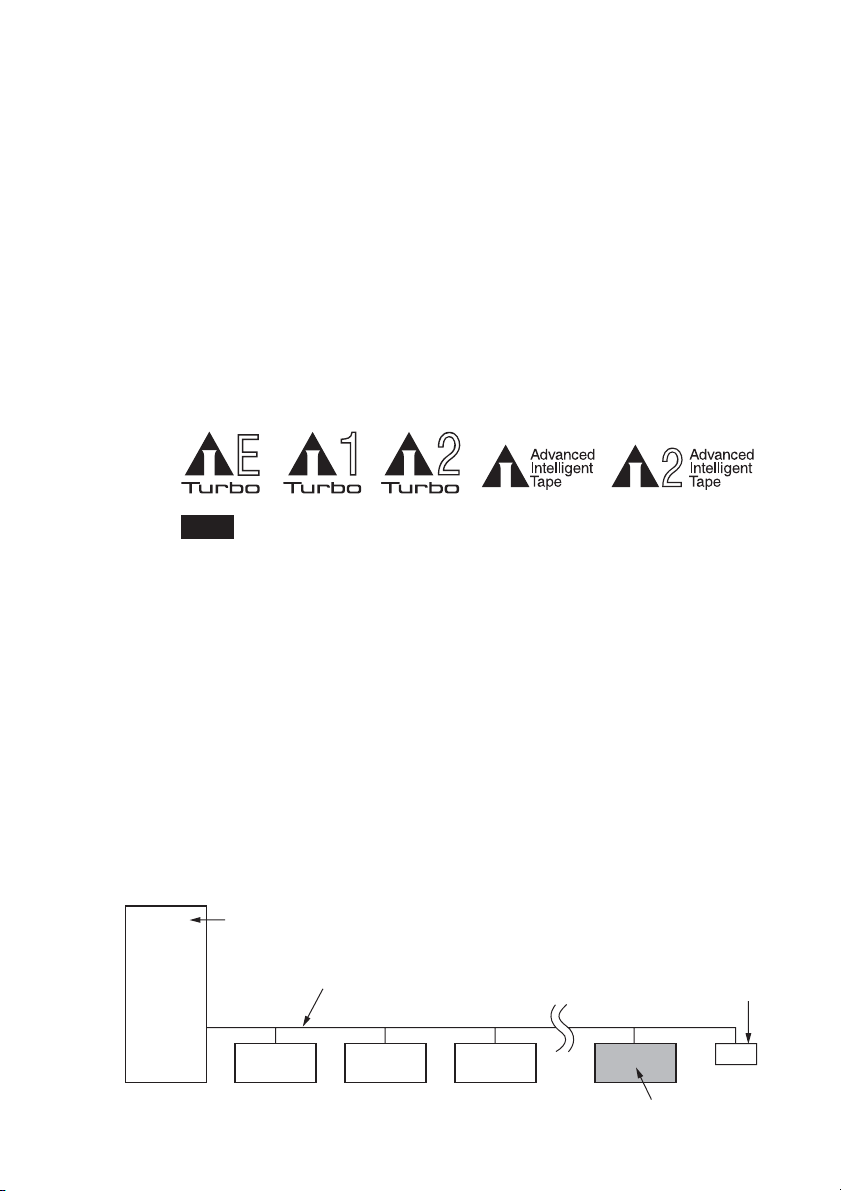

Useable Cartridges

The AITi200 can be used with data cartridges marked with the AIT-E

Turbo, AIT-1 Turbo, AIT-2 Turbo, AIT-1, or AIT-2 logo.

The AITi100 can be used with data cartridges marked with the AIT-E

Turbo, AIT-1 Turbo, or AIT-1 logo.

The AITi50 can be used with data cartridges marked with the AIT-E Turbo

logo.

Note

•Be sure to use only the cartridges designed specifically for AIT.

•Do not use anything but AIT cartridges with this system, as doing so can

damage the AIT drive. Although commercially available 8mm videotapes

resemble AIT cartridges in appearance, they have entirely different

specifications and cannot be used.

SCSI Termination

The AITi200, AITi100, and AITi50 conform to the Microsoft PC97

standard, which requires the internal- (naked) drive to be terminated with

an external terminator.

Microsoft PC97 SCSI requirements

SCSI peripherals must not terminate the bus. Both internal and external

cable ends are instead terminated by plug-in connectors.

Terminato

68p cable

Host Computer Wide SCSI

This drive

Example of SCSI setup

Installation

SCSI Connection/Setting the SCSI ID

The following figures apply to the AITi100 and AITi50.

SCSI 68pin Connector

5 V

Power Connector

1234

GND GND 12 V

Disable

Enable

Parity

Note :

= CLOSED/Jumper

Don’t care

OPEN/Jumper not

installed

Parity Disable

No Connection

SCSI ID 3

SCSI ID 2

SCSI ID 1

SCSI ID 0

Jumpers

SCSI ID

P.D.

N.C.

Parity Disable Jumper

Parity check function can be disabled by Jumper. Parity check is disabled

while left end jumper is installed. Parity generate function is always

enabled.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Sony Stockage

Sony

Sony CompactFlash NCFB1G Manuel utilisateur

Sony

Sony VAIO PCGA-CDRWX1 Manuel utilisateur

Sony

Sony Microvault USM1GH Manuel utilisateur

Sony

Sony USM1GE Manuel utilisateur

Sony

Sony USD5G Manuel utilisateur

Sony

Sony PCV-LX810 - Vaio Slimtop Computer Manuel utilisateur

Sony

Sony MSX-M1GST Manuel utilisateur

Sony

Sony SDX-S300C Manuel

Sony

Sony PWSK-4501 Manuel utilisateur

Sony

Sony SDT-S9000 - DDS Tape Drive Manuel

Sony

Sony AIT-SDX550 Instructions d'installation

Sony

Sony MSH-128S2 Operating Instructions (primary... Manuel utilisateur

Sony

Sony PCV-RZ49 VAIO Mode d’emploi

Sony

Sony StorStation AITi200-ST Manuel utilisateur

Sony

Sony SDX-500 Series Manuel utilisateur

Sony

Sony MSAC-US40 - MemoryStick Flash Memory Card USB 2.0... Manuel utilisateur

Sony

Sony USM128C Manuel utilisateur

Sony

Sony HDPS-M1 Manuel

Sony

Sony csm-20s Manuel utilisateur

Sony

Sony SRMASTER SR-R4 Manuel utilisateur

Sony

Sony MSA-16A Manuel utilisateur

Sony

Sony SDX-500V Manuel utilisateur

Sony

Sony DSR-DU1 Manuel utilisateur

Sony

Sony USM128DS Manuel utilisateur

Manuels Stockage populaires d'autres marques

QNAP

QNAP TS 32PXU Series Manuel utilisateur

LaCie

LaCie RUGGED RAID Manuel utilisateur

Freecom

Freecom CLS DOCK Manuel utilisateur

PNY

PNY Attache P-FD64MBATT3 Manuel utilisateur

HP StorageWorks MSL2024 Manuel utilisateur

OLT

OLT 6x6 Maximizer Manuel utilisateur

Transcend

Transcend JetFlash 160 Manuel utilisateur

LaCie

LaCie RUGGED MINI Manuel utilisateur

Thunderbolt

Thunderbolt 600 Manuel utilisateur

Panasonic

Panasonic LB-DH8 series Manuel

Intel

Intel RAID High Availability Manuel utilisateur

LaCie

LaCie 12big Thunderbolt 3 Manuel utilisateur

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuel utilisateur

Panasonic

Panasonic LKM-F931-1 Manuel utilisateur

Tabernus

Tabernus Enterprise Erase E2400 Manuel utilisateur

Rocstor

Rocstor COMMANDER 3F series Manuel utilisateur

HP P9000 Manuel utilisateur

Western Digital

Western Digital Ultrastar Data60 Manuel utilisateur
