Chapter 1 Specification

DVO Card Insert a DVO/TV Out card

to AGP slot for DVO /TV

Out Display.

(AGP card will not boot

system)

DVI

Connector

RTL8101L

PCI 1

PCI 2

ALC

101

Battery

BIOS

IT8712F

DVO

LPT1

COM1

VGA

USB1 (underside)

DIMM1

Main Power

IDE2

IDE1

FD1

+12V Power

USB2

FAN1

FAN2

JKB1

JBAT1

JCLK2

JCLK1

CD1

PS/2 K/B (underside)

PS/2 Mouse

(on top)

DDR 400/333/266/200MHz

RT1

mPGA478B

i845GL

Intel

ICH4

Intel

WOL1

DIMM2

JAUD1

RJ45

(ontop)

Linein

(ontop)

USB3 (underside)

USB2 (middle)

(ontop)

USB0

HDD IR PWR

SPK RST +

PWLED

NJ1

LED

Jp1

LPC I/O

AC' 97

Codec

System Fan

Connector

Thermal

Connector

CPU Fan

Connector

1-1 Mainboard Layout and Components Setup

Chapter 1 Specification

Front Audio

Connector

CD-ROM Audio

Connector

Line Out (middle)

Mic (underside)

LAN Controller

(only for LIR3-L)

J1 for LAN

Controller Select

(only for LIR3-L)

First USB Port Pin-Assignment for Front USB

Second USB Port Pin-Assignment for Front USB

+5V

Red White

black

+5V

Red

Green

GreenWhite

black

GND

D1- D1+

D2- D2+

Wake-On-LAN Connector

Connect the Wake On LAN

signal from LAN card to WOL1

WOL1:

Ring

GND

+5V

Standby

VGA

Connector

Analog

Monitor

RJ45 connector

LAN Controller

J1 For

85LIR3-L

only

}

85LIR3 / 85LIR3-L

CPU

North Bridge

South Bridge

BIOS

Memory

I/O Chip

AGP interface

Audio

IDE Interface

Networking

PCI Slots

I/O Connectors

VGA Display

Other Features

Socket 478B for Intel P4 CPU

Intel 845GL, supporting *800/533/400MHz FSB

Intel ICH4

AMI BIOS

Supporting DDR *400/333/266/200 DRAM, up to

2GB in two DDR DIMM slots

IT8712F

AGP4X mode only

AC’97 Audio V2.2 compliant, 2-channel audio

2 UATA 33/66/100 IDE ports

Fast Ethernet Controller, 1 RJ45 (for 85LIR3-L)

2 PCI Master slots on board

6 USB ports (V2.0), 1 FDD port, 1 COM port,

1 LPT, 1 IrDA, 1 PS/2 K/B, 1 PS/2 Mouse,

1 VGA connector on board for CRT VGA display

Keyboard/ Mouse Power On/Wake Up

ATX 2.03 Power Supply;

Micro-ATX form factor

SL-85LIR3 / 85LIR3-L Specifications and Features

1-2 Mainboard Specification Table

85LIR3

LAN Controller

on board

Optional

Features

Models 85LIR3-L

Yes

* Note: FSB 800/533MHz and DDR400/333 are supported by chipset

overclocking.

Chapter 1 Specification

mPGA478B

Pin 1

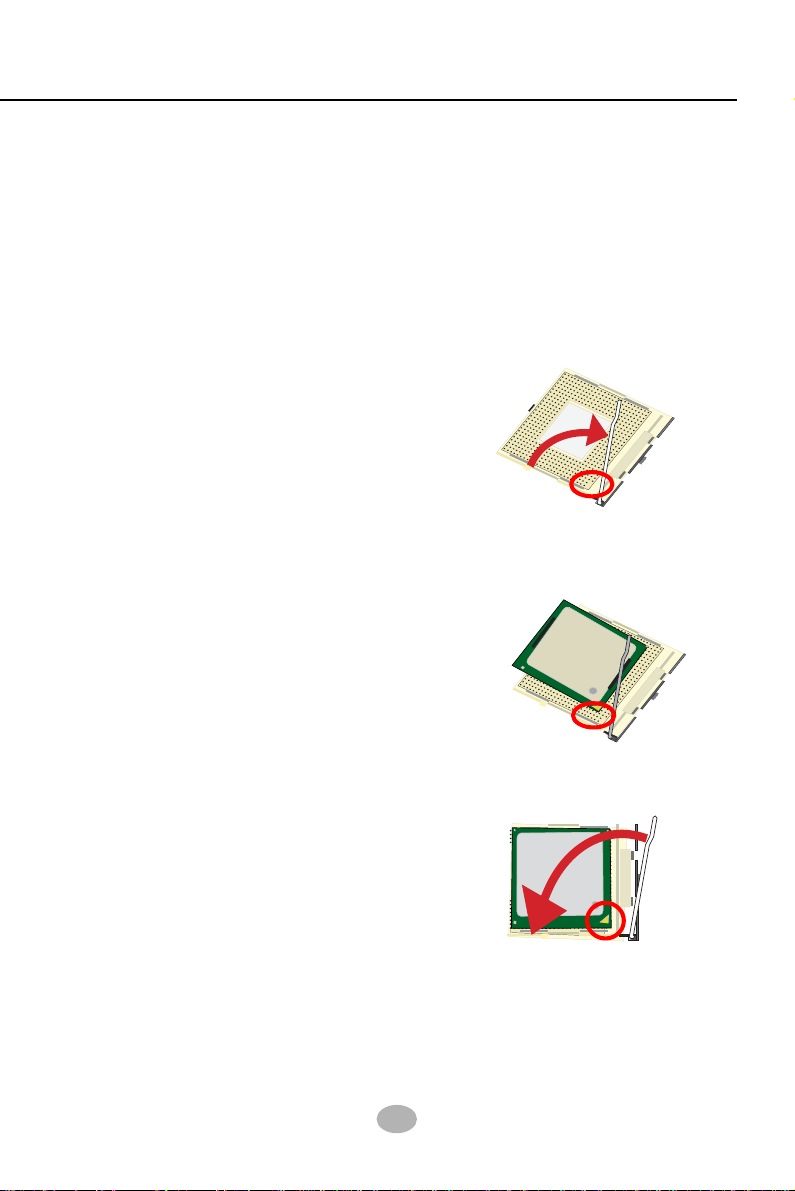

1. First pull sideways the lever of

Socket 478, and then turn it up

900so as to raise the upper layer

of the socket from the lower

platform.

3. Make sure that all CPU pins have

completely entered the socket

and then lower down the lever

to lock up CPU to socket.

2. Configure Pin 1 of CPU to Pin 1

of the Socket, just as the way

shown in the diagram on the

right. Adjust the position of CPU

until you can feel all CPU pins

get into the socket with ease.

mPGA478B

Intel Pentium4

mPGA478B

Intel Pentium 4

Pin 1

1-3 Pentium 4 CPU Installation

This mainboard is built with CPU Socket 478 (with 478 pins) supporting

the Intel Pentium 4 CPU:

• Follow the steps described in this section to install the 478-pin Pentium

4 CPU into the on board Socket 478.

• After installation of Pentium 4 CPU, you must also install the specific

Pentium 4 CPU fan designed in tandom with this CPU. This CPU Fan

installation is described in the next section.

85LIR3 / 85LIR3-L

1-4 Pentium 4 CPU Fan Installation

Connect Fan Connector to CPU FAN connector

Press down 4 corners to lock fan to fanbase

1-5 ATX V 2.03 Power Supply Installation

RTL8101L

PCI 1

PCI 2

ALC

101

Battery

BIOS

IT8712F

DVO

LPT1

COM1

VGA

USB1 (underside)

DIMM1

Main Power

IDE2

IDE1

FD1

+12V Power

USB2

FAN1

FAN2

JKB1

JBAT1

JCLK2

JCLK1

CD1

PS/2 K/B (underside)

PS/2 Mouse

(on top)

DDR 400/333/266/200MHz

RT1

mPGA478B

i845GL

Intel

ICH4

Intel

WOL1

DIMM2

JAUD1

RJ45

(on top)

Linein

(on top)

USB3 (underside)

USB2 (middle)

(ontop)

USB0

HDD IR PWR

SPK RST

PWLED

NJ1

LED

Jp1

LPC I/O

AC' 97

Codec

System Fan

Connector

Thermal

Connector

CPU Fan

Connector

Main Power

Connector

+12V

5SB

PWR OK

GND

+5V

-5V

+5V

+3.3V

+3.3V +3.3V

PS ON#

Pin1 Pin11

-12V

GND

+12V Power Connector

+12V

GND

Warning: Both the Main Power

Connector and the +12V Power

Connector should be connected

to Power Supply; otherwise, the

system may either not start or be

damaged.

Chapter 1 Specification

1-6 Jumper Settings

The following diagrams show the locations and settings of jumper blocks

on the mainboard.

RTL8101L

PCI 1

PCI 2

ALC

101

Battery

BIOS

IT8712F

DVO

LPT1

COM1

VGA

USB1 (underside)

DIMM1

Main Power

IDE2

IDE1

FD1

+12V Power

USB2

FAN1

FAN2

JKB1

JBAT1

JCLK2

JCLK1

CD1

PS/2 K/B (underside)

PS/2 Mouse

(on top)

DDR 400/333/266/200MHz

RT1

mPGA478B

i845GL

Intel

ICH4

Intel

WOL1

DIMM2

JAUD1

RJ45

(on top)

Linein

(ontop)

USB3 (underside)

USB2 (middle)

(ontop)

USB0

HDD IR PWR

SPK RST

PWLED

NJ1

LED

Jp1

LPC I/O

AC' 97

Codec

System Fan

Connector

Thermal

Connector

CPU Fan

Connector

JBAT1

Clear CMOS

1-2 closed

(default)

To hold data

2-3 closed

To clear CMOS

(85LIR3-L only)

1-2 closed

2-3 closed

LAN Controller Select

(default)

Enabled

Disabled

(default)

JCLK1&JCLK2: CPU Frequency Select

CPU

Auto-

Detection

100MHz 133MHz 200MHz

(FSB533)

1 1

JCLK2

1 1

JCLK1

JCLK2

JCLK1

JCLK2

JCLK1

JCLK2

JCLK1

Keyboard/Mouse

Power On / Wake Up

JKB1:

1-2 closed (default)

2-3 closed

Enabled

Disabled

85LIR3 / 85LIR3-L

RTL8101L

PCI 1

PCI 2

ALC

101

Battery

BIOS

IT8712F

DVO

LPT1

COM1

VGA

USB1 (underside)

DIMM1

Main Power

IDE2

IDE1

FD1

+12V Power

USB2

FAN1

FAN2

JKB1

JBAT1

JCLK2

JCLK1

CD1

PS/2 K/B (underside)

PS/2 Mouse

(on top)

DDR 400/333/266/200MHz

RT1

mPGA478B

i845GL

Intel

ICH4

Intel

WOL1

DIMM2

JAUD1

RJ45

(ontop)

Linein

(ontop)

USB3 (underside)

USB2 (middle)

(ontop)

USB0

HDD IR PWR

SPK RST

PWLED

NJ1

LED

Jp1

LPC I/O

AC' 97

Codec

System Fan

Connector

Thermal

Connector

CPU Fan

Connector

1-7.1 Front Audio Connector

This Mainboard is designed with a Front

Panel Audio connector “JAUD1” which

provides connection to your chassis.

1. When JAUD1 is set to 5-6 closed and

9-10 closed, this default setting

disables this connector and leaves the

Back Panel Audio enabled.

2. To use this Front Panel Audio

Connector, please open all pins of

JAUD1 and connect it to your chassis.

1-7 Other Connectors Setup

2. Connector Jp1: A thermal cable is needed

to connect Jp1 to on-board devices such

as HDD, Graphics card etc., so as to

detect the temperature generated therein.

Please connect the end (a) of the thermal

cable to Jp1, and tape another end (b) of

thermal cable on to the device which you

want to monitor. After you have finished

the thermal cable installation, you will see

the detected temperature in BIOS setup

or Hardware Monitor utility.

RT1 is mounted with Ther-

mal Resistor by default for

detecting the external CPU

temperature.

To Devices

To Jp1

Thermal Cable

RT1

Jp1

1. Resistor RT1: A thermal resistor is

mounted by default to connector RT1 so

as to detect the external CPU temperature

. What RT1 does is to transmit the thermal

signal to Hardware Monitor.

1-7.2 Thermal Resistor and Connector

(Optional)

JAUD1: Front Panel Audio Connector

Pin 1 Mic In

Pin 3 Mic VREF

Pin 5 FPOUT R

Pin 7 (Key)

Pin 9 FPOUT L

Pin 2 Aud GND

Pin 4 Aud Vcc

Pin 6 RET R

Pin 10 RET L

Chapter 1 Specification

(1) Power Switch Connector:

Connection:Connected to a momentary button or switch.

(2) IR Connector (Infrared Connector):

Connection: Connected to Connector IR on board.

(3) HDD LED Connector:

Connection: Connected to HDD LED.

(4) Power LED Connector:

Connection: Connected to System Power LED.

(5) Reset Switch Connector:

Connection: Connected to case-mounted “Reset Switch”.

(6) Speaker Connector:

Connection: Connected to the case-mounted Speaker.

RTL8101L

PCI 1

PCI 2

ALC

101

Battery

BIOS

IT8712F

DVO

LPT1

COM1

VGA

USB1 (underside)

DIMM1

Main Power

IDE2

IDE1

FD1

+12V Power

USB2

FAN1

FAN2

JKB1

JBAT1

JCLK2

JCLK1

CD1

PS/2 K/B (underside)

PS/2 Mouse

(on top)

DDR 400/333/266/200MHz

RT1

mPGA478B

i845GL

Intel

ICH4

Intel

WOL1

DIMM2

JAUD1

RJ45

(ontop)

Linein

(ontop)

USB3 (underside)

USB2 (middle)

(ontop)

USB0

HDD IR PWR

SPK RST

PWLED

NJ1

LED

Jp1

LPC I/O

AC' 97

Codec

System Fan

Connector

Thermal

Connector

CPU Fan

Connector

(1)Power Switch PLED-

PLED+

RSTGND

RST1

SP1

SP3

SPVCC

PWRBT#

PWRBT

IR_VCC

IRRX

IRGND

IRTX

HDLED-

HDLED+

(2)Infrared(IR)

(3)HDD LED

Power LED (4)

Reset Switch (5)

Speaker (6)

1-7.3 Complex Header (Front Panel Connectors)

85LIR3 / 85LIR3-L

2-1 To Open up the Support CD

1. Please put the Support CD enclosed in your mainboard package into

the CD-ROM drive. In a few seconds, the Main Menu will automatic-

ally appear, displaying the contents to be installed for this series:

Chapter 2 Software Setup

The LAN driver contained in the Support CD is not included in the

Autorun Menu. To install RTL8101L LAN driver on Windows 9X, please

follow the steps shown below:

1. On the “Start” screen of your system, please click to the following

path:

\My Computer\properties\Device manager

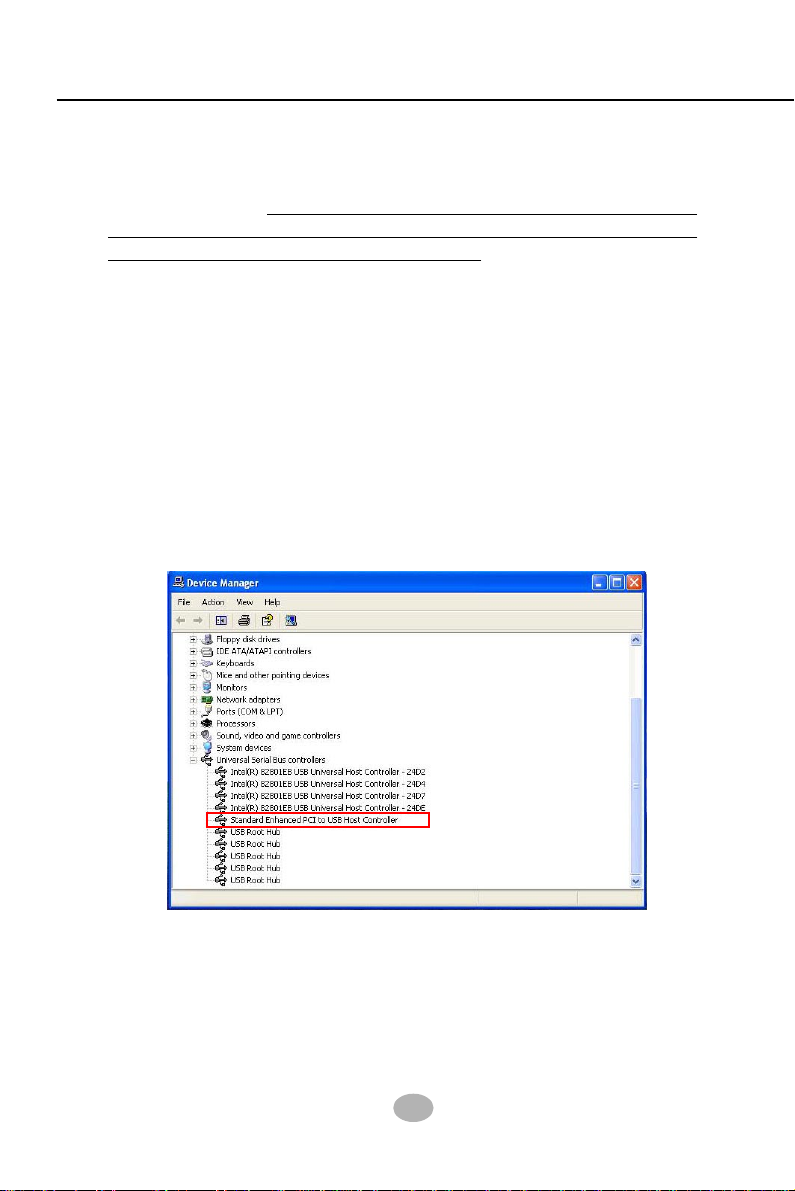

2. In the “Device manager” screen, you can see the item “ PCI Ethernet

Controller” with a yellow question mark on its left side, which indicates

that the LAN controller is already detected by system but the driver

for this on-board RTL8101L Ethernet Controller is not installed yet.

Please point to this item with your mouse and double click on it (or

click the “Properties” button).

2-2.1 RTL8101L LAN driver on Windows 9X

`äáÅâ=eÉêÉ

3. Instantly, the “PCI Ethernet

Controller Properties“ screen

shows up. Please click the

“General” bar to continue.

4. In the “General” screen, click

“reinstall Driver” button to

continue. Please note that the

status of “Device Usage” should

stay at “Exists in all hardware

profiles”.

2-2 To Install LAN Drivers (for 85LIR3-L only)

Chapter 2 Software Setup

2-2.2 RTL8101L LAN driver on Windows ME / 2000 / XP

1. When you newly install Windows ME, Windows 2000 or Windows

XP, the system will detect the LAN Controller on board and configure

it automatically into system. Therefore, users need not bother to install

the LAN controller into these operating systems.

2. To verify the existence of RTL8101L Controller and Driver, please

enter the “Control Panel” of your system and click “Network” to open

the “Configuration” screen. You can then see the “Realtek8139 (A/

B/C) PCI Fast Ethernet Adapter” is already installed in your system.

5. In the “Update device Driver Wizard” screen, click “Next” to continue

until you see a dialog box asking you to “Specify a location” for the

driver. You should now insert the Support CD into your CD-ROM.

6. As illustrated in the picture below, check the item “Specify a location”

and click the “Browse” button to find out the correct path for the

driver. Supposing your CD-ROM drive is Drive E, please type:

E:\Driver\Network\RTL8139\Win98 into the blank bar. (Please note

that both RTL8101L and RTL8139C controllers are supported by

Driver RTL8139. ) Then click the “Next” button to continue.

Enter the correct path for the

location of LAN driver

7. The Update Device Driver Wizard will then go on installing the driver,

until the “Insert Disk” dialog box shows up. Please withdraw your

Support CD and insert the Windows 98SE CD-ROM into the CD-

ROM drive for updating system and click “OK” to continue.

8. The Update Device Driver Wizard will then proceed to update the

system with the LAN driver. When the “Finish” screen shows up,

click “Finish” to continue.

9. Final Dialog box will appear to remind you that you must restart your

computer to finish updating the new hardware. Please click “Yes” to

restart system and finish the LAN driver installation.

85LIR3 / 85LIR3-L

2-3 To Install USB 2.0 Driver for Windows 2000/XP

USB V2.0 with its 480Mb/s transfer rate supports operating system

Windows 2000 and Windows XP via the Windows 2000 and Windows

XP Service Pack. For archieving Intel USB 2.0 support, users should

install the latest Service Pack for Windows 2000 or Windows XP. (intel

USB 2.0 does not support Windows 9X/ME.)

1. After installation of Intel Chipset software installation Utility in Windows

2000 or Windows XP, start to install the latest Service Pack version

into the operating system. The installation of the latest Service Pack

will support USB2.0 in Windows 2000 or Windows XP now.(The latest

Service Pack can be found in Microsoft Web Site.)

2. To verify USB2.0 installation, please enter “Device Manager” of “My

Computer”. On the “Device Manager” screen, you should be able to

see the item “Standard Enhanced PCI to USB Host Controller”,

verifying USB2.0 Driver is installed successfully.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SOLTEK Carte mère

SOLTEK

SOLTEK SL-75KAV Manuel utilisateur

SOLTEK

SOLTEK SL-85SD-C Manuel utilisateur

SOLTEK

SOLTEK SL-54A2 Manuel utilisateur

SOLTEK

SOLTEK B7A-F Manuel utilisateur

SOLTEK

SOLTEK SL-53D5-S Manuel d'utilisation et d'entretien

SOLTEK

SOLTEK SL-67EZ Manuel d'utilisation et d'entretien

SOLTEK

SOLTEK SL-52D2 Manuel utilisateur

SOLTEK

SOLTEK SL-65EB Manuel utilisateur

SOLTEK

SOLTEK 82440FX Manuel utilisateur

SOLTEK

SOLTEK 86SP3 Manuel utilisateur

SOLTEK

SOLTEK SL-75KIV Manuel utilisateur

SOLTEK

SOLTEK 85ERV Manuel utilisateur

SOLTEK

SOLTEK SL-65KV2-T Manuel utilisateur

SOLTEK

SOLTEK SL-55D5 Manuel d'utilisation et d'entretien

SOLTEK

SOLTEK SL-75ERV Manuel utilisateur

SOLTEK

SOLTEK 65kv Manuel utilisateur

SOLTEK

SOLTEK SL-61A Manuel d'utilisation et d'entretien

SOLTEK

SOLTEK NF4-754RL Manuel utilisateur

SOLTEK

SOLTEK SL-85DIV Manuel utilisateur

SOLTEK

SOLTEK SL-67B-W Manuel utilisateur

SOLTEK

SOLTEK SL-56D1 Manuel utilisateur

SOLTEK

SOLTEK SL-65MV Manuel d'utilisation et d'entretien

SOLTEK

SOLTEK SL-67EV1 Manuel d'utilisation et d'entretien

SOLTEK

SOLTEK SL-75MIV Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
