SnowEx Bulk-Pro 1875 Manuel utilisateur

Spreaders for Snow & Ice Control

FOR MODELS

Bulk-Pro 1875

5701orP-toviP

Mini-Pro 575

Junior 325

Rev. 05

7 — 2

Table of Contents

INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

GENERAL INFORMATION ANDREGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-6

•PREPARATION

•OPERATIONS

•SERVICE

SPREADER PARTS/DIAGRAMS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7-13

•BULK PRO 1875

•PIVOT PRO 1075

•MINI PRO 575

•DRIVE MOTOR ENCLOSURE ASSEMBLY

•JUNIOR 325

WIRING INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14-20

OPERATING THE SPREADER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-23

ADJUSTABLE DEFLECTOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25

GATE ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26-27

VIBRATOR KIT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

SPREADER MOUNT PARTS/DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-42

•RECEIVER HITCH MOUNT

•PIVOT PAL HITCH MOUNT

•PIVOT MOUNT

•3-POINT MOUNT

•TRAILER MOUNT

•DROP UTILITY MOUNT

•UTILITY MOUNT

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43-48

SPREADER MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50-51

BLANK PAGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Have a question or need assistance?

SnowEx Customer Service

(800) 725-8377

or (586) 756-6555

Monday through Friday 8:00 AM to 4:30 PM EST

Fax: (586) 427-0552

E-Mail: [email protected]

Website: www.snowexproducts.com

Rev. 05

Introduction

This manual has been designed for your help. It will assist you and instruct you on the proper set-up, installation and use of

this spreader.

Refer to the table of contents for an outline of this manual.

We require that you read and understand the contents of this manual completely (especially all safety information) before

attempting any procedure contained herein.

THIS SIGN SHOULD ALERT YOU:

The Society of Automotive Engineers has adopted this SAFETY ALERT SYMBOL to pinpoint characteristics

that, if NOT carefully followed, can create a safety hazard. When you see this symbol in this manual or on the

machine itself, BE ALERT! Your personal safety and the safety of others is involved

below are the SAFETY ALERT messages and how they will appear in this manual:

(RED)

Information that, if not carefully followed,

can cause death!

(ORANGE)

Information that, if not carefully followed,

can cause serious personal injury or death!

(YELLOW)

Information that, if not carefully followed,

can cause minor injury or damage to equipment.

Rev. 05

7 — 4

General Information

CONGRATULATIONS!

The spreader you have purchased is an example of snow and ice control technology at its Your spreader’s

self-contained

design is a trademark of all Snowex products. Here’s why...

SIMPLICITY: Fewer moving parts manufactured of higher quality means minimal maintenance for your SnowEx spreader.

RELIABILITY:

High impact linear low density polyethelyne hopper, state-of-the-art electronic dual variable speed control, custom

engineered

powder coated frame, maximum torque 12 volt motor coupled to a custom engineered transmission found only

on SnowEx products.

VERSATILITY:

Multi-use capabilities allows spreading of a variety of materials for snow and ice control.

The you are about to recognize are that of time, money and .

We welcome you to the world of Snowex Performance.

Registration

Record the following information in this manual for quick reference.

Spreader Model Number _____________________________________________________________________________________

Spreader Serial Number________________________________ Controller Serial Number _______________________________

Date of Purchase___________________________________________________________________________________________

Dealer Where Purchased _____________________________________________________________________________________

When ordering parts, the above information is necessary. This will help to insure

that you receive the correct parts.

At the right is a diagram of the ID tag. This tag on the spreader is located

on the frame.

Please out the warranty card with all the necessary information to validate it. This will also give us a record so that

any safety or service information can be communicated to you.

WARRANTY:

Best in the industry, hands down! 2 years standard and now 5 year extended (optional).

Rev. 05

Safety

Before attempting any procedure in this book, these safety instructions must be read and understood by all workers who

have any part in the preparation or use of this equipment.

For your safety, warning and information decals have been placed on this product to remind the operator of safety precautions.

If anything happens to mark or destroy the decals, please request new ones from Snowex.

Unit must be pinned and locked into position before operating vehicle.

Never exceed the Gross Vehicle Weight Rating of vehicle. Failure to do so may limit a vehicle’s handling

characteristics.

Never attempt to take a unit a truck with material in it.

Never exceed 45 m.p.h. when loaded spreader is attached to vehicle. Braking distances may be increased

and handling characteristics may be impaired at speeds above 45 m.p.h.

Never allow children to operate or climb on equipment.

Always check areas to be spread to be sure no hazardous conditions or substances are in the area.

Always inspect unit for defects: broken, worn or bent parts, weakened areas on spreader or mount.

Always shut vehicle and power source before attempting to attach or detach or service spreader

unit. Be sure vehicle/power source is properly braked or chocked.

Always keep hands, feet, and clothing away from power-driven parts. Remember it is the owner’s

responsibility to communicate information on safe usage and proper maintenance of all equipment.

Always make sure personnel are clear of areas of danger when using equipment. Maintain 60'

distance from all bystanders when operating the spreader.

Inspect the unit periodically for defects. Parts that are broken, missing, or worn out must be replaced

immediately. The unit, or any part of it can not be altered without prior written permission from the

manufacturer.

Never use with foreign debris in the spreader. These units are designed to handle clean,

owing material.

Rev. 05

7 — 6

Safety

Always inspect pins and latches whenever attaching or detaching spreader, and before traveling.

Never leave material in hopper for long periods of time. Be aware that all ice melters are hygroscopic

and will attract atmospheric moisture and harden up.

Remember, most accidents are preventable and caused by human error. Exercising of care and

precautions must be observed to prevent the possibility of injury to operator or others!

Never operate equipment when under the of alcohol, drugs, or medication that might alter your

judgment and/or reaction time.

Before working with the spreader, secure all loose clothing and unrestrained hair.

Always wear safety glasses with side shields when servicing spreader. Failure to do this could result in

serious injury to the eyes.

D 6546

D 6548

D 6335

D 6544

D 6545

D 6547

Examples of warning decals to indicate operational awareness.

Rev. 05

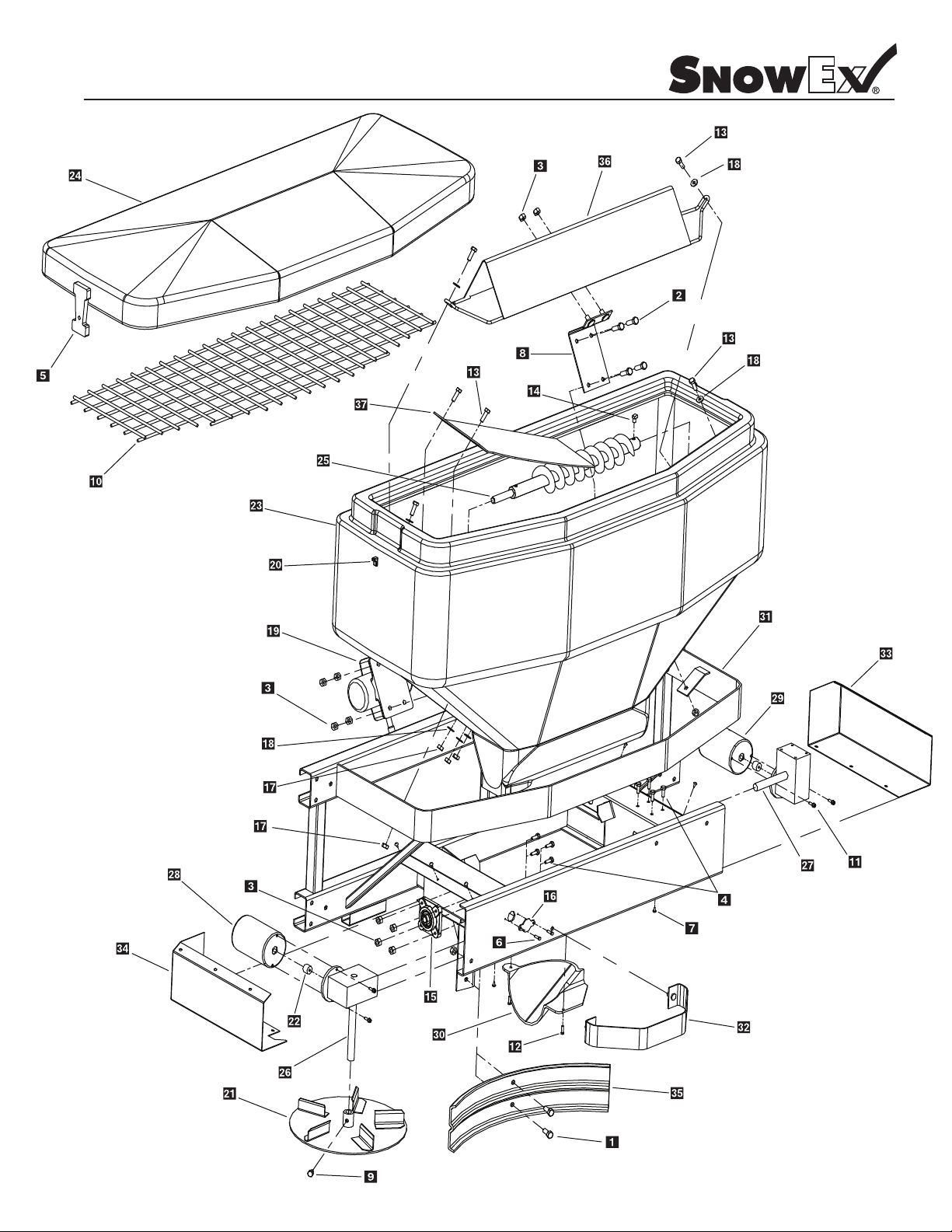

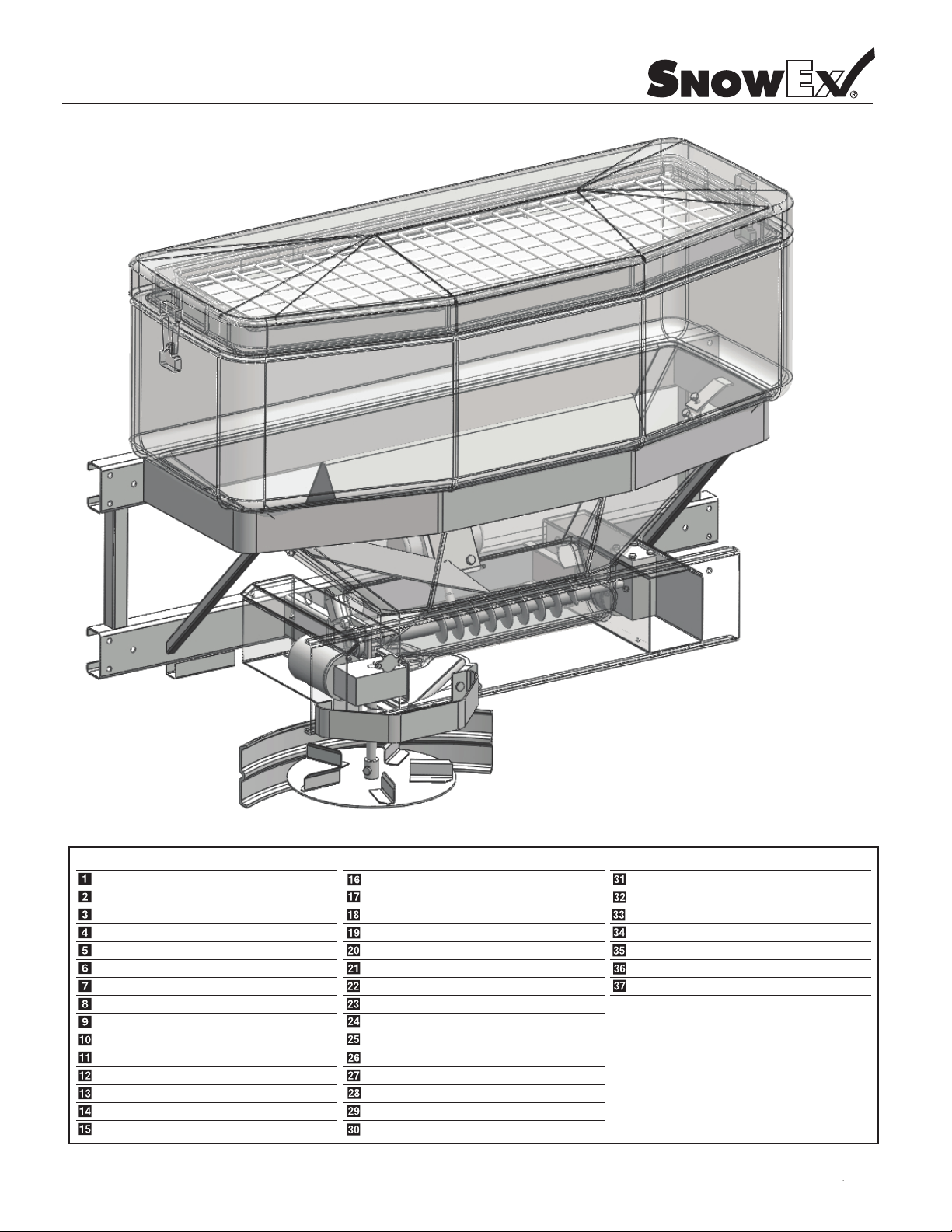

Parts Breakdown

Model #SP-1875

Rev. 05

7 — 8

Key Part No. Description Qty.

D 6452 3/8-16x1” Ser Flg Bolt 2

D 4122 3/8-16x1-1/2” Hex Bolt 4

D 4124 3/8-16 Lock Nut 8

D 6132 1/4-20 x 3/4 Ser Flg SS 8

D 6105 Flexible Draw Latch 2

D 6877 #8 x 3/4 Driller 2

D 6130 3/16'' Aluminum Rivit 12

D 6133 5/16-18 x 1/2’’ Hex Bolt 1

D 6334 Top Screen 1

D 6135 10/32 x 5/8’’ Cap Screw 4

D 6137 5/16-18 x 1’’ PH SS Bolt 6

D 6140 5/16-18 x 3/8’’ Set Screw 1

Key Part No. Description Qty.

D 6356 Bearing Access Cover 1

D 6394 5/16-18 KEPS Nut 8

D 6169 3/8’’ SS Flat Washer 10

D 6174 DC-80 Vibrator 1

D 6198 Latch Keeper 2

D 6225 12’’ Steel Spinner 1

D 6232 Motor Trans Coupler 2

D 6313 1875 Hopper 1

D 6314 1875 Lid 1

D 6315 Auger 1

D 6317 Spinner Transmission 1

D 6501 Auger Transmission 1

D 6106 Spinner Motor 1

D 6320 Auger Motor 1

Key Part No. Description Qty.

D 6323 1875 Frame 1

D 6324 Trim Ring 1

D 6325 Auger Mtr Motor Cover 1

D 6326 Spinner Mtr Cover 1

D 6327 Plastic Deector 1

D 6328 Inverted V-Support 1

D 6330 Material Bae 1

D 6331 Chute 1

D 6332 Auger Shaft Bearing 1

D 6333 3/16’’ Rivet, Long 2

D 6337 Inverted V-Mtg Brkt 1

Parts Breakdown

Model #SP-1875

Rev. 05

Parts Breakdown

Model #SP-1075

Drive Motor Assy.

Key

D 4115

Large Plastic Push Pin

1/2-13 x 1” Hex Bolt (ref. only)

3/8-16 Serrated Flg Nut

3/8-16 Lock Nut

3/8” Flat Washer

1075 Hopper

1075 Lid w/Latches

Flexible Draw Latch

Stainless Throat Liner

Deector 20”

1075 Main Frame

Spinner Guard

Throat Clamp

D 6463

D 6584

D 4124

D 4125

D 6262

D 6263

D 6105

D 6108

D 6110

D 6260

D 6128

D 6129

D 6137

5/16” Keps Nut

See Page 7-11

5/16-18 x 1-1/4 SS Panhead

3/8” SS Washer

Latch Keeper

1075 Top Screen

3/8-16 x 1” Ind Hwh Tcs

D 6394

D 6169

D 6198

D 6261

D 6452

Part No. Description Qty.

5/16-18 x 1/2 HHCS

5/16-18 Serrated Flange Nut

D 6133

D 5706

Rev. 05

7 — 10

Parts Breakdown

Model #SP-575

Motor Drive Assembly

Key

D 4116

1/2-13 Lock Nut

1/2-13 x 1-1/2” Hexbolt

Deector Push Fastener

3/8-16 Serrated Flg Nut

3/8” Flat Washer

2-5/16 Hair Pin Clip

5/8” x 5-1/2” Hitch Pin

Flexible Draw Latch

Stainless Throat Liner

Deector 20”

Throat Clamp

5/16-18 x 1-1/4” SS Panhead

2” Receiver Hitch

D 4120

D 6463

D 6584

D 4125

D 4135

D 4136

D 6105

D 6108

D 6110

D 6129

D 6137

D 6149

D 6239

575 Lid W/Latches

575 Hopper

575 Main Frame

5/16” Hex Nut

3/8” SS Washer

Latch Keeper

575 Top Screen

3/8-16 x 1” Ind Hwh Tcs

D 6240

D 6245

D 6168

D 6169

D 6198

D 6257

D 6452

Part No. Description Qty.

See Page 7-11

Rev. 05
