SnowEx 7500 Manuel utilisateur
4 — 1
Owner / Operator’s Manual
Spreaders for Snow & Ice Control
FOR MODEL
7500
This Manual Must Be Read Before Operating The Equipment
CUSTOMER COPY
Warren, Michigan 48089
800-800-800-725-8377725-8377725-8377
© Trynex International 2008 L1184
Protected by the following patents, #6,089,478, #6,088,865, #Des.425,915
and other pending U.S. and foreign patent applications.
See Back Page for Details!
Warm Up to
with a
Winter Hat!
FREE
FREE
Rev. 07
© Trynex International 2008 L1184
4 — 2
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
General Information and Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5-7
Spreader Assembly and Exploded Views. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8-17
Wiring Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18
Electrical System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19-22
Spreader Mounting System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23-26
Spreader Operating Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27-30
Troubleshooting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31-33
Spreader Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
34
Determine Vehicle Payload Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
35
Blank Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
36-37
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38-39
Rev. 07
© Trynex International 2008 L1184 4 — 3
Introduction
This manual has been designed for your help. It will assist you and instruct you on the proper set-up, installation and use of
this spreader.
Refer to the table of contents for an outline of this manual.
We require that you read and understand the contents of this manual completely (especially all safety information) before
attempting any procedure contained herein.
THIS SIGN SHOULD ALERT YOU:
The Society of Automotive Engineers has adopted this SAFETY ALERT SYMBOL to pinpoint characteristics
that, if NOT carefully followed, can create a safety hazard. When you see this symbol in this manual or on the
machine itself, BE ALERT! Your personal safety and the safety of others is involved
.
Dened below are the SAFETY ALERT messages and how they will appear in this manual:
(RED)
Information that, if not carefully followed,
can cause death!
(ORANGE)
Information that, if not carefully followed,
can cause serious personal injury or death!
(YELLOW)
Information that, if not carefully followed,
can cause minor injury or damage to equipment.
Rev. 07
L1184 © Trynex International 2008
4 — 4
General Information
CONGRATULATIONS!
The spreader you have purchased is an example of snow and ice control technology at its nest! Your spreader’s, sel
f-contained
design is a trademark of all Snowex products. Here’s why...
SIMPLICITY: Fewer moving parts manufactured of higher quality means minimal maintenance for your SnowEx spreader.
RELIABILITY:
High impact linear low density polyethelyne hopper, state-of-the-art electronic dual variable speed control, custom engineered
powder coated frame, maximum torque 12 volt motor coupled to a custom engineered transmission found only on SnowEx products.
VERSATILITY:
Multi-use capabilities allows spreading of a variety of materials for snow and ice control.
WARRANTY:
Two years from date of installation.
The benets you are about to recognize are that of time, money and eort.
We welcome you to the world of Snowex Performance.
Registration
Record the following information in this manual for quick reference.
Spreader Model Number _____________________________________________________________________________________
Spreader Serial Number________________________________ Controller Serial Number _______________________________
Date of Purchase___________________________________________________________________________________________
Dealer Where Purchased _____________________________________________________________________________________
When ordering parts, the above information is necessary. This will help to insure
that you receive the correct parts.
At the right is a diagram of the ID tag. This tag on the spreader is located
on the frame.
Please ll out the warranty card with all the necessary information to validate it. This will also give us a record so that
any safety or service information can be communicated to you.
SER. NO.______________________
TRYNEX INTERNATIONAL
Warren, MI 48089 (800) 725-8377
Rev. 07
© Trynex International 2008 L1184 4 — 5
Safety
Before attempting any procedure in this book, these safety instructions must be read and understood by all workers who
have any part in the preparation or use of this equipment.
For your safety warning and information decals have been placed on this product to remind the operator of safety precautions.
If anything happens to mark or destroy the decals, please request new ones from Snowex.
Unit must be strapped down and locked into position before operating vehicle.
Never exceed the Gross Vehicle Weight Rating of vehicle. Failure to do so may limit a vehicles handling
characteristics.
Never attempt to take a unit o a truck with material in it.
Never exceed 45 m.p.h. when loaded spreader is attached to vehicle. Braking distances may be increased
and handling characteristics may be impaired at speeds above 45 m.p.h.
Never allow children to operate or climb on equipment.
Always check areas to be spread to be sure no hazardous conditions or substances are in the area.
Always inspect unit for defects: broken, worn or bent parts, weakened areas on spreader or mount.
Always shut o vehicle and power source before attempting to attach or detach or service spreader
unit. Be sure vehicle/power source is properly braked or chocked.
Always keep hands, feet, and clothing away from power-driven parts. Remember it is the owner’s
responsibility to communicate information on safe usage and proper maintenance of all equipment.
Always make sure personnel are clear of areas of danger when using equipment. Maintain 60'
distance from all bystanders when operating the spreader.
Inspect the unit periodically for defects. Parts that are broken, missing, or worn out must be replaced
immediately. The unit, or any part of it should be altered without prior written permission from the
manufacturer.
Never use 7500 with foreign debris in the spreader. These units are designed to handle clean,
free-owing material. Note: Can not spread water softner salt.
Rev. 07
L1184 © Trynex International 2008
4 — 6
Safety
(continued)
Always inspect pins and latches whenever attaching or detaching spreader, and before traveling.
Never leave material in hopper for long periods of time. Be aware that all ice melters are hygroscopic
and will attract atmospheric moisture and harden up.
Remember, most accidents are preventable and caused by human error. Exercising of care and
precautions must be observed to prevent the possibility of injury to operator or others!
Never operate equipment when under the inuence of alcohol, drugs, or medication that might alter your
judgment and/or reaction time.
Before working with the spreader, secure all loose tting clothing and unrestrained hair.
Always wear safety glasses with side shields when servicing spreader. Failure to do this could result in
serious injury to the eyes.
Rev. 07
© Trynex International 2008 L1184 4 — 7
Safety and Warning Labels
D 6546
D 6548
D 6335
D 6544
D 6545
D 6859
UNDER COVER
SERIAL NUMBER
ON REVERSE SIDE
Rev. 07
L184 © Trynex International 2008
4 — 8
7550
Component Assembly Views
Spinner Drive
Assembly
Auger Drive
Assembly
Electrical System
Assembly
Hopper
Assembly
Frame
Assembly
Rev. 07
© Trynex International 2008 L1184 4 — 9
7500
Side and Bottom Views
Rev. 07
L1184 © Trynex International 2008
4 — 10

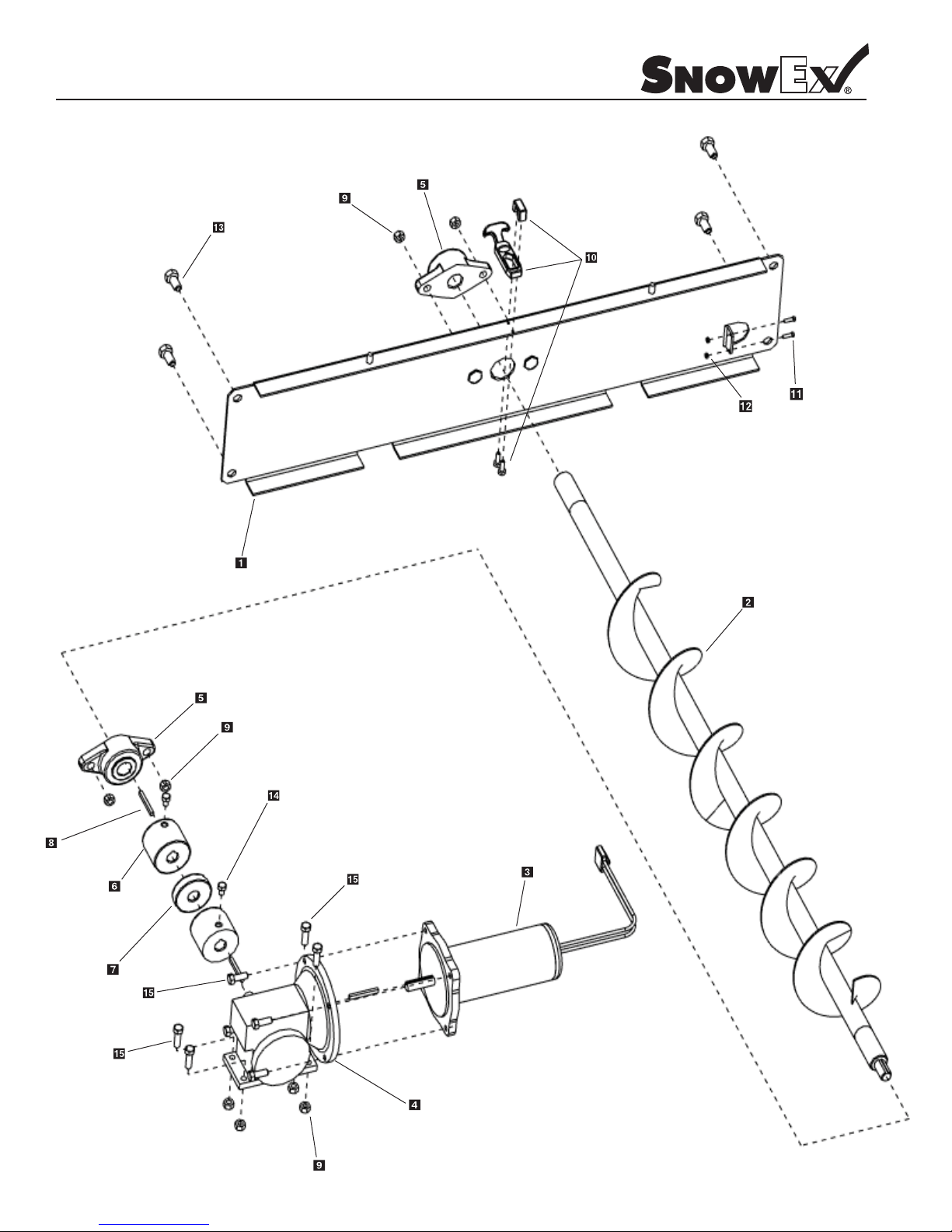

7500 Auger Drive Assembly
Parts Breakdown
Rev. 07
