SnowEx HELIXX Manuel utilisateur

June 1, 2022

Lit. No. 31025, Rev. 00

HELIXX™ Stainless Steel

Hopper Spreader

0.7 yd³ for Half-Ton Trucks

Installation Instructions

A DIVISION OF DOUGLAS DYNAMICS, LLC

CAUTION

Read this document before installing

or operating the spreader.

These Installation Instructions are for HELIXX Stainless Steel Hopper Spreaders

with serial numbers beginning with 200706 and higher.

Lit. No. 31025, Rev. 00 2 June 1, 2022

SAFETY DEFINITIONS

NOTE: Indicates a situation or action that can lead

to damage to your spreader and vehicle or other

property. Other useful information can also be

described.

SAFETY

WARNING/CAUTION LABELS

Become familiar with and inform users about the

warning and caution labels on the spreader.

NOTE: If labels are missing or cannot be read, see

your sales outlet.

CAUTION

Indicates a potentially hazardous situation

that, if not avoided, may result in minor or

moderate injury. It may also be used to alert

against unsafe practices.

WARNING

Indicates a potentially hazardous situation

that, if not avoided, could result in death or

serious personal injury.

30917EN.00

WARNING

No Step

Slippery surface when wet.

Falls may cause severe

injury.

Lit. No. 31025, Rev. 00 3 June 1, 2022

SAFETY

WARNING/CAUTION LABELS continued

Lit. No. 31025, Rev. 00 4 June 1, 2022

SAFETY

SAFETY PRECAUTIONS

Improper installation and operation could cause

personal injury and/or equipment and property

damage. Read and understand labels and the

Owner's Manual before installing, operating, or

making adjustments.

WARNING

• Driver to keep bystanders minimum of 25 feet

(7.62 m) away from operating spreader.

• Before working with the spreader, secure all

loose-tting clothing and unrestrained hair.

• Before operating the spreader, verify that all

safety guards are in place.

• Before servicing the spreader, wait for

conveyor, auger, and spinner to stop.

• Do not climb into or ride on spreader.

WARNING

Do not install the control for this product in

the deployment path of an air bag. Refer to

vehicle manufacturer's manual for air bag

deployment area(s).

CAUTION

If rear directional, CHMSL light, or brake

stoplights are obstructed by the spreader, the

lights shall be relocated, or auxiliary directional

or brake stoplights shall be installed.

CAUTION

During the hopper installation we recommend

the addition of an OSHA compliant Backup

Alarm. This alarm is required for OSHA

governed employers.

CAUTION

Disconnect electric and/or hydraulic power

and tag out if required before servicing or

performing maintenance.

NOTE: Lubricate grease ttings after each use.

Use a good quality multipurpose grease.

CAUTION

• Do not operate a spreader in need of

maintenance.

• Before operating the spreader, reassemble

any parts or hardware removed for cleaning

or adjusting.

• Before operating the spreader, remove

materials such as cleaning rags, brushes,

and hand tools from the spreader.

• Before operating the spreader, read the

engine owner's manual, if so equipped.

• While operating the spreader, use auxiliary

warning lights, except when prohibited by law.

• Tighten all fasteners according to the

torque chart. Refer to torque chart for the

recommended torque values.

WARNING

Vehicles <10,000 lb GVWR: Obstructing the

visibility from the vehicle's rear camera could

result in serious injury or damage. An auxiliary

camera system shall be installed if the

vehicle's rear camera is removed or blocked.

CAUTION

DO NOT leave unused material in hopper.

Material can freeze or solidify, causing unit to not

work properly. Empty and clean after each use.

WARNING

Do not exceed GVWR, GAWR, or maximum

vehicle load capacity, including the spreader

and ballast. See Loading section to determine

maximum volumes of spreading material.

Lit. No. 31025, Rev. 00 5 June 1, 2022

SAFETY

FUSES

The electrical system contains several automotive‑style

fuses. If a problem should occur and fuse replacement

is necessary, the replacement fuse must be of the

same type and amperage rating as the original.

Installing a fuse with a higher rating can damage the

system and could start a re. Fuse Replacement,

including fuse ratings and locations, is located in the

Maintenance section of the Owner's Manual.

PERSONAL SAFETY

• Remove ignition key and put the vehicle in PARK

or in gear to prevent others from starting the

vehicle during installation or service.

• Wear only snug-tting clothing while working on

your vehicle or spreader.

• Do not wear jewelry or a necktie, and secure long

hair.

• Wear safety goggles to protect your eyes from

battery acid, gasoline, dirt, and dust.

• Avoid touching hot surfaces such as the engine,

radiator, hoses, and exhaust pipes.

• Always have a re extinguisher rated BC handy,

for ammable liquids and electrical res.

FIRE AND EXPLOSION

Be careful when using gasoline. Do not use gasoline

to clean parts. Store only in approved containers away

from sources of heat or ame.

WARNING

Gasoline is highly ammable and gasoline

vapor is explosive. Never smoke while

working on vehicle. Keep all open ames

away from gasoline tank and lines. Wipe up

any spilled gasoline immediately.

CELL PHONES

A driver's rst responsibility is the safe operation of

the vehicle. The most important thing you can do

to prevent a crash is to avoid distractions and pay

attention to the road. Wait until it is safe to operate

mobile communication equipment such as cell phones,

text messaging devices, pagers, or two‑way radios.

VENTILATION

BATTERY SAFETY

NOISE

Airborne noise emission during use is below 70 dB(A)

for the spreader operator.

VIBRATION

Operating spreader vibration does not exceed 2.5 m/s2

to the hand‑arm or 0.5 m/s2to the whole body.

CAUTION

Batteries normally produce explosive gases

which can cause personal injury. Therefore,

do not allow ames, sparks, or lit tobacco

to come near the battery. When charging or

working near a battery, always cover your

face and protect your eyes, and also provide

ventilation.

• Batteries contain sulfuric acid, which burns

skin, eyes, and clothing.

• Disconnect the battery before removing or

replacing any electrical components.

WARNING

Vehicle exhaust contains lethal fumes. Breathing

these fumes, even in low concentrations,

can cause death. Never operate a vehicle in

an enclosed area without venting exhaust to

the outside.

Lit. No. 31025, Rev. 00 6 June 1, 2022

SAFETY

TORQUE CHART

1/4-20 10

1/4-28 12

5/16-1

50 212

5/16-2

70 240

3/8-16 269 376

3/8-24 29

7/16-1442

7/16-20

9/16-12

9/16-18

5/8-11

5/8-18

3/4-10

3/4-16

7/8-9

7/8-14 47

091-8

1-12 70

1/2-13

1/2-20

11.9

13.7

24.6

27.3

43.6

26.9

53.3

148

49.4

69.8

77.9

106.4

120.0

8.4

9.7

17.4

19.2

30.8

35.0

49.4

55.2

75.3

85.0

M6 x 1.00

M12 x 1.75

M8 x 1.25

M14 x 2.00

M10 x 1.50

M27 x 3.00

M22 x 2.50

M30 x 3.50

M24 x 3.00

M20 x 2.5011.1

19.5

38.5

107

7.7

613

778

1139

1545

450

428

562

796

1117

M33 x 3.50

M36 x 4.00

2101

2701

1468

1952

325

M16 x 2.00 231167

M18 x 2.50 318222

Recommended Fastener Torque Chart

Size Size

Torque (ft-lb)

Grade

Metric Fasteners Class 8.8 and 10.9

These torque values apply to fasteners

except those noted in the instructions.

Torque (ft-lb)

Grade

Size Size

Torque (ft-lb)

Class

8.8

Class

10.9

Torque (ft-lb)

Class

8.8

Class

10.9

Inch Fasteners Grade 5 and Grade 8

CAUTION

Read instructions before assembling.

Fasteners should be nger tight until instructed

to tighten according to the torque chart.

Use standard methods and practices when

attaching spreader, including proper personal

protective safety equipment.

Lit. No. 31025, Rev. 00 7 June 1, 2022

These Installation Instructions cover vehicles that

have been recommended for carrying the hopper

spreader. Please see your local dealer for proper

vehicle applications.

WARNING

New untitled vehicle installation of a spreader

requires National Highway Tra󰀩c Safety

Administration altered vehicle certication

labeling. Installer to verify that struck load of

snow or ice control material does not exceed

GVWR or GAWR rating label and complies

with FMVSS.

MATERIAL WEIGHTS

Density

Material (lb/ft3)(lb/yd3)(kg/m3)

Salt 80 2160 1282

Sand 100 2700 1602

Material densities are approximate and are based on dry,

loose material. It is the responsibility of the operator to

know the weight of the material to be spread and the vehicle

carrying capacity.

CERTIFICATION

CAUTION

Never use wet materials or materials with

foreign debris with any of these spreaders.

These units are designed to handle dry, clean,

free-owing material.

CAUTION

Read and adhere to manufacturer's

ice-control material package labeling,

including Safety Data Sheet requirements.

WARNING

Do not exceed GVWR, GAWR, or maximum

vehicle load capacity, including the spreader

and ballast.

SPREADER SPECIFICATIONS

Hopper

Model

Overall

Length

Bed

Length

Empty

Weight

Overall

Width

Bed

Height

Capacity

Struck

0.7 yd³ 82 in (208 cm) 54 in (137 cm) 337 lb (153 kg) 43 in (109 cm) 27.5 in (70 cm) 0.7 yd³(0.54 m³)

Lit. No. 31025, Rev. 00 8 June 1, 2022

DETERMINING VEHICLE PAYLOAD

1. Install the hopper spreader and optional

equipment according to the Installation

Instructions.

2. Install or attach any other equipment that will be

on the vehicle while the hopper spreader will be in

use (step bumper, trailer hitch, snowplows, etc.).

Fill fuel tanks.

3. Obtain the Gross Vehicle Weight Rating (GVWR),

Front Gross Axle Weight Rating (FGAWR), and

Rear Gross Axle Weight Rating (RGAWR) from

the certication label located inside the driver-side

door jamb or door.

4. With the occupants in the vehicle for normal

hopper spreader operation, weigh the vehicle to

obtain gross vehicle weight (GVW).

5. Subtract the GVW from the GVWR to determine

the available material payload.

6. Obtain the weight per cubic yard (lb/yd3) or cubic

meter (kg/m3) of the desired material. Divide the

weight into the payload to determine the maximum

volume of material that can be carried.

7. Refer to the Load Volume table and diagrams to

determine the maximum ll level for the material.

8. Fill the hopper with material to the calculated level.

Reweigh the vehicle with occupants and verify that

the Loaded Gross Vehicle Weight, Front Gross

Axle Weight, and Rear Gross Axle Weight are less

than the vehicle's ratings.

9. Repeat Steps 6–8 for each type of material.

The worksheet for Determining Vehicle Payload (next

page) includes an example.

WARNING

Overloading could result in an accident or

damage. Do not exceed GVWR or GAWR

ratings as found on the driver-side door

cornerpost of the vehicle. See Loading

section to determine maximum volumes of

spreading material.

Hopper

Model

Load Volume (yd3)

ABCD

0.7 yd³

0.85 0.7 0.4 0.06

Load Volume (m3)

ABCD

0.65 0.54 0.31 0.05

LOAD VOLUME

A: Rounded Load

B: Struck Load

C: Third Bump

D: Second Bump

Lit. No. 31025, Rev. 00 9 June 1, 2022

Determining Vehicle Payload Worksheet

Material Type Example:

Dry Salt

AEquipment installed when

vehicle was weighed 0.7 yd3Hopper Spreader

BFront Gross Axle Weight

Rating [FGAWR] 6000 lb (2722 kg)

CRear Gross Axle Weight

Rating [RGAWR] 7000 lb (3175 kg)

DGross Vehicle Weight

Rating [GVWR] 11,000 lb (4990 kg)

EGross Vehicle Weight [GVW],

empty – 7402 (3358 kg)

FPayload Available = 3598 lb (1632 kg)

GMaterial Density ÷ 2160 lb/yd3(1282 kg/m3)

HMaximum Volume = 1.67 yd3(1.27 m3)

Maximum Material Fill Level,

approx. Refer to Load Volume

table and diagrams.

Loaded Front Gross Axle

Weight (lb/kg) Must be less than

weight in Row B.

Loaded Rear Gross Axle

Weight (lb/kg) Must be less than

weight in Row C.

Loaded Gross Vehicle Weight

[GVW] (lb/kg) Must be less than

weight in Row D.

Lit. No. 31025, Rev. 00 10 June 1, 2022

UNPACKING THE SPREADER

REMOVE SHIPPING BRACKETS AND

LOCATE COMPONENTS

The spreader is shipped from the factory with its

components secured inside the hopper and the top

screen in place. Before installing the spreader, remove the

shipping brackets and top screen, and locate components.

1. Take o󰀨 the top screen by removing the 3/8" anged

cap screws and the top screen brackets. Set the

screen and all fasteners aside for reinstallation.

2. Inside the hopper, remove the 3/8" steel cap screws

from the four shipping brackets (two on each side) that

secure the chute enclosure and the spinner deector

assembly to the hopper for shipment. Set the chute

enclosure and spinner deector assembly aside, and

discard the brackets and hardware.

3. Immediately install the six supplied 3/8" stainless steel

anged cap screws from the parts bag to fasten the

hopper body to the drivetrain.

CHUTE ASSEMBLY

1. Install four of the provided 3/8" stainless steel

anged cap screws through the spinner guard

holes into the rivnuts on the chute enclosure.

2. Remove and retain the cable boot bracket, dust

cover, and fasteners. Install the left and right side

chute pin ears to the chute enclosure with six

provided 3/8" anged stainless steel cap screws.

Reinstall the cable boot bracket and dust cover.

3. Set chute aside for installation after the spreader has

been installed on the vehicle.

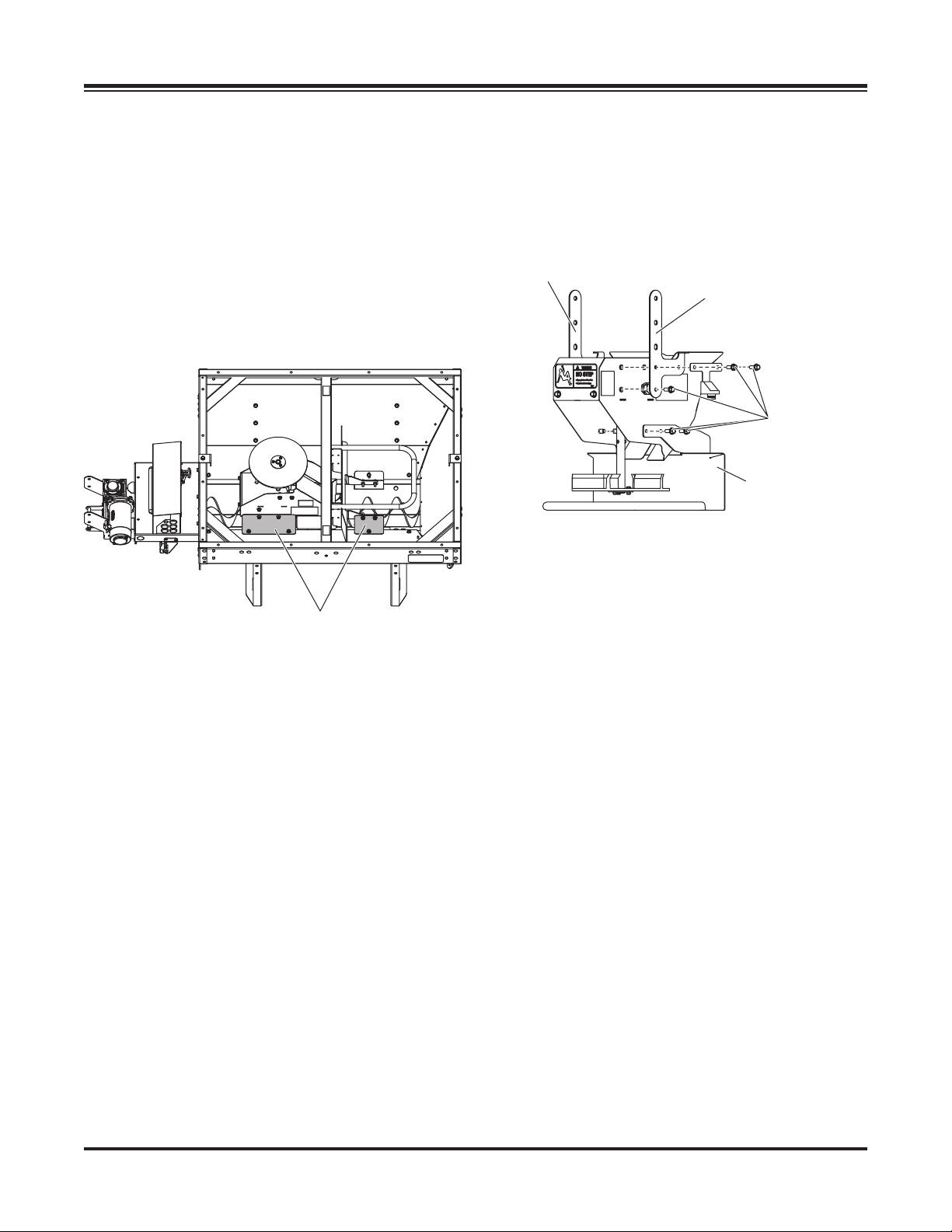

Left-Side

Chute Pin Ear

Spinner Guard

Right-Side

Chute Pin Ear

3/8" Flanged

Cap Screws

Remove brackets.

Autres manuels pour HELIXX

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SnowEx Épandeur

SnowEx

SnowEx SP-225-1 Mode d'emploi

SnowEx

SnowEx SP-1675 Manuel utilisateur

SnowEx

SnowEx SP-100-1 Manuel utilisateur

SnowEx

SnowEx SP-9300 Manuel utilisateur

SnowEx

SnowEx V-Pro 32200 Manuel utilisateur

SnowEx

SnowEx Bulk Pro 1575 Manuel utilisateur

SnowEx

SnowEx Bulk Pro SP-1575 Mode d'emploi

SnowEx

SnowEx VX-6010 Manuel utilisateur

SnowEx

SnowEx Vee Pro 3000 Manuel utilisateur

SnowEx

SnowEx VX-1500 Manuel utilisateur

SnowEx

SnowEx SP-7000 Manuel utilisateur

SnowEx

SnowEx Sidewalk-Pro SD-95 Manuel utilisateur

SnowEx

SnowEx HELIXX Manuel utilisateur

SnowEx

SnowEx SP-2200 Manuel utilisateur

SnowEx

SnowEx SP-85 Mode d'emploi

SnowEx

SnowEx V-Pro 32300 Manuel utilisateur

SnowEx

SnowEx SP-3000 Manuel utilisateur

SnowEx

SnowEx SP-100 Manuel du propriétaire

SnowEx

SnowEx SR-210 Mode d'emploi

SnowEx

SnowEx V-Pro SP-2000 Manuel utilisateur

SnowEx

SnowEx Renegade S150A Manuel utilisateur

SnowEx

SnowEx VX-3200 Manuel utilisateur

SnowEx

SnowEx V-Pro 32300 Manuel utilisateur

SnowEx

SnowEx Super Maxx SP-9300XH Mode d'emploi

Manuels Épandeur populaires d'autres marques

PEQUEA

PEQUEA GT-100 Manuel utilisateur

Herculano

Herculano H2RS9 Manuel utilisateur

Epoke

Epoke SKE8 Manuel utilisateur

GEA

GEA EL44 Fiche technique

Boss Snowplow

Boss Snowplow TGS 800 Manuel utilisateur

Fisher

Fisher EMERSON 168 Series Manuel utilisateur

Fisher

Fisher POLY-CASTER 78601 Manuel utilisateur

TurfEx

TurfEx RS7200 Manuel du propriétaire

Ferris

Ferris Pathfinder Series Manuel utilisateur

Fayat Group

Fayat Group DYNAPAC S100 Guide de dépannage

Art's-Way Manufacturing

Art's-Way Manufacturing X700 Manuel d'installation et d'exploitation

EASTMAN

EASTMAN CR 500 Manuel utilisateur

Nogueira

Nogueira RoyalFlow-600 Manuel utilisateur

Buyers

Buyers TGS05B Manuel utilisateur

Magnum

Magnum V-BOX PV Series Supplément

Meyer's

Meyer's VB280 Manuel utilisateur

Kramer

Kramer VM-400HDCP Manuel utilisateur

H&S

H&S 5134 Manuel utilisateur
