SMC Networks Barricade Cable/DSL Router Manuel utilisateur
Cable/DSL Router
User Guide
The information furnished by SMC Networks, Inc. (SMC) is believed to be accurate and
reliable. However, no responsibility is assumed by SMC for its use, nor for any
infringements of patents or other rights of third parties which may result from its use. No
license is granted by implication or otherwise under any patent or patent rights of SMC.
SMC reserves the right to change specifications at any time without notice.
Copyright © 2000 by
SMC Networks, Inc.
6 Hughes, Irvine, CA 92618
All rights reserved.
-1-
Trademarks:
SMC is a registered trademark; and Barricade is a registered trademark of SMC Networks,
Inc. Other products and company names are trademarks or registered trademarks of their
respective holders.
FCC Interference Statement:
This equipment has been tested and found to comply with the limits for a Class B digital
devicepursuanttoPart15oftheFCCrules.These limits are designed to provide reasonable
protection against radio interference in a commercial environment. This equipment can
generate, use and radiate radio frequency energy and, if not installed and used in accordance
with the instructions in this manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause
interference, in which case the user, at his own expense, will be required to take whatever
measures are necessary to correct the interference.
CE Declaration of Conformity:
This equipment complies with the requirements relating to electromagnetic compatibility,
EN55022/A1ClassB,andEN50082-1. This meets the essential protection requirements of
the European Council Directive 89/336/EEC on the approximation of the laws of the
member states in relation to electromagnetic compatibility.
-2-
Table of Contents
Chapter 1 Introduction.................................................................................4
1.1 Functions and Features...................................................................4
1.2 Packing List....................................................................................5
Chapter 2 Hardware Installation..................................................................6
2.1 Panel Layout...................................................................................6
2.2 Installation Requirements...............................................................7
2.3 Procedure for Hardware Installation ..............................................8
Chapter 3 Network Settings and Software Installation.............................10
3.1 Setting your computer network settings properly........................10
3.2 Install the Software into Your Computers ....................................11
Chapter 4 Configuring the Barricade........................................................14
4.1 Startup and Log in........................................................................14
4.2 Status ............................................................................................15
4.3 Toolbox.........................................................................................16
4.4 Primary Setup ...............................................................................17
4.5 DHCP Server................................................................................19
4.6 Virtual Server................................................................................20
4.7 Special AP....................................................................................21
4.8 Access Control..............................................................................22
4.9 Miscellaneous Items .....................................................................23
Chapter 5 Print Server................................................................................24
5.1 Configuring on Windows 95/98 Platforms...................................24
5.2 Configuring on Windows NT Platforms.......................................26
5.3 Configuring on Windows 2000 Platforms ....................................27
-3-
5.4 Configuring on Unix based Platforms ..........................................27
Appendix A: Console Mode......................................................................28
Appendix B: TCP/IP Configuration for Windows 95/98 ..........................29
B.1 Installing TCP/IP protocol into your PC......................................29
B.2 Setting TCP/IP protocol to work with the Barricade...................30
Appendix C: Installation Guide For Specific ISP .....................................38
C.1 @Home........................................................................................38
C.2 MediaOne ....................................................................................39
-4-
Chapter 1 Introduction
Congratulations on your purchase of the Barricade. The Barricade is specifically designed
for small office and home office needs. It provides a complete SOHO solution for Internet
surfing and for sharing office resources. Step-by-step instructions make installation easy.
Before installing and using the Barricade, please take the time to read this manual for
complete operating information.
1.1 Functions and Features
lBroadband modem and IP sharing
-connects multiple computers to a broadband (cable or DSL) modem or an
Ethernet router to surf the Internet.
lAuto-sensingEthernetSwitch
-equipped with a 7-port 10/100Mbps auto-sensing Ethernet switch.
lVPN supported
-supports multiple PPTP sessions and allows you to set up VPN server and VPN
clients.
lPrinter sharing
-embeds a print server to allow all of the networked computers to share one
printer.
lFirewall
-allunwantedpacketsfromoutsideintrudersareblockedtoprotectyourIntranet.
lDHCP server supported
-all of the networked computers can retrieve TCP/IP settings automatically from
the Barricade.
-5-
lWeb-based configuring
-configurablethroughanynetworkedcomputer’s web browser using Netscape or
Internet Explorer.
lAccess Control supported
-allows you to assign different access rights for different users.
lVirtual Server supported
-enables you to expose WWW, FTP and other services on your LAN to be
accessible to Internet users.
lUser-DefinableApplication Sensing Tunnel
-users can define the attributes to support the special applications requiring
multiple connections such as Internet gaming, video conferencing, Internet
telephony, et al. Then the Barricade can sense the application type and open a
multi-port tunnel for it.
lDMZ Host supported
-allows a networked computer to be fully exposed to the Internet; this function is
used whenthe specialapplicationsensingtunnelfeatureisinsufficient to allow an
application to function correctly.
1.2 Packing List
lBarricade Broadband Router
lInstallation CD
lPower adapter
lTwo CAT-5 UTP Ethernet cables
-6-
Chapter 2 Hardware Installation
2.1 PanelLayout

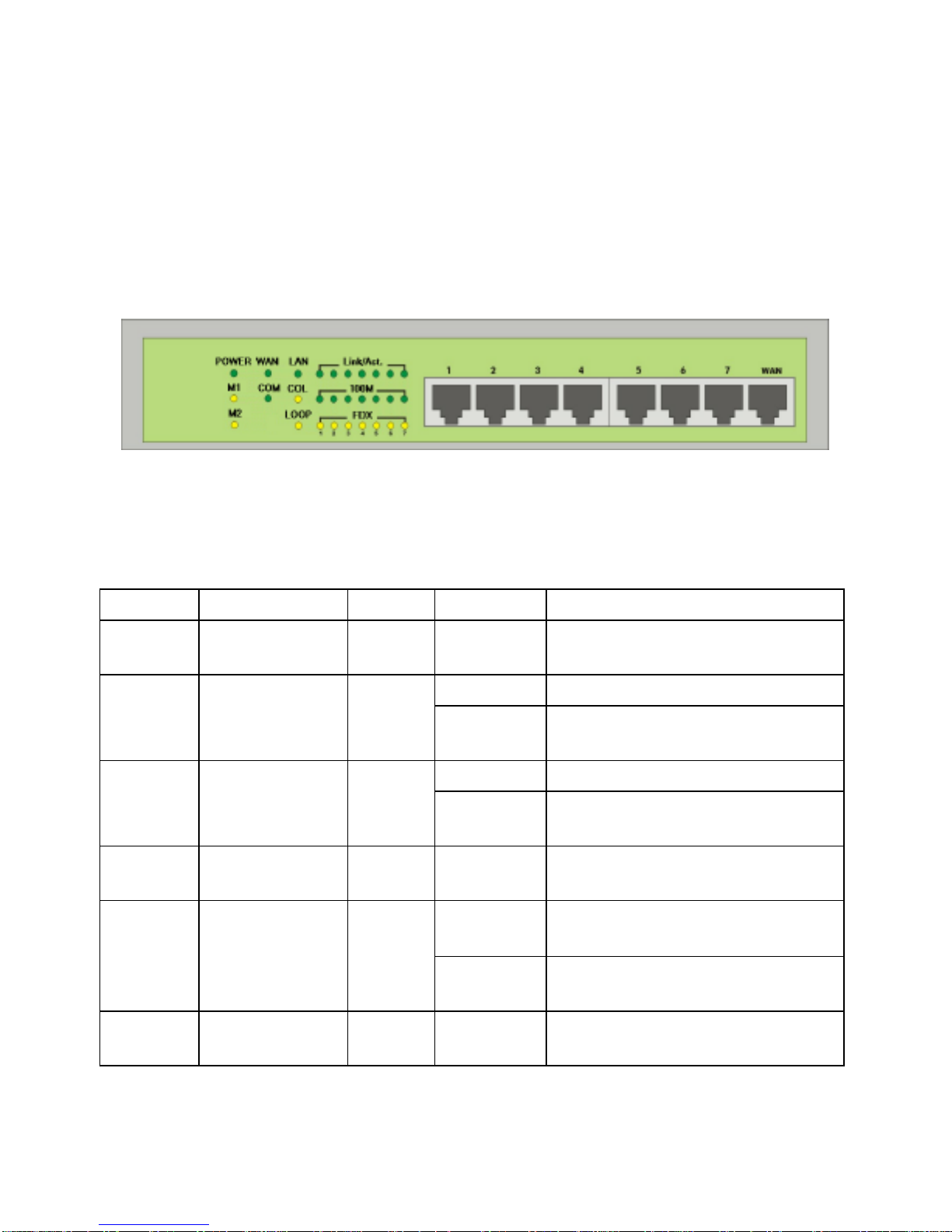

2.1.1. Front Panel
All LED indicators and RJ-45 connectors are allocated to the front panel.
WAN: the port where you will connect your cable (or DSL) modem or Ethernet router.
Port 1-7: the ports where you will connect networked computers and other devices.
LED indicators:
LEDs Function Color
Status Description
POWER
Powerindication
Green
On Power is being applied to the
Barricade.
On The WAN port is linked
WAN WAN port
activity Green
Blinking The WAN port is sending or
receiving data
On The LAN port is linked
LAN LAN port
activity Green
Blinking The LAN port is sending or
receiving data
M1 System status 1
Orange
Blinking The Barricade is functioning
properly
On The Barricade is working for a
specific service
M2 System status 2
Orange
Blinking
The Barricade is being configured
or upgraded. Don’t turn it off !
COM Serial port
activity Green
Blinking Data transfer is in progress
through COM port
-7-
COL Collision
indication Orange
On Transmission collisions have
occurred on the LAN
LOOP Loop indication
Orange
On Loop connection has been
detected
On The corresponding port is linked
Link/Act.
Link status Green
Blinking
The corresponding port is sending
or receiving data
100M 10/100M
indication Green
On The corresponding port is
transmitting or receiving data in
100Mbps.
FDX Full Duplex
indication Orange
On The corresponding port is
transmitting or receiving data in
full duplex mode.

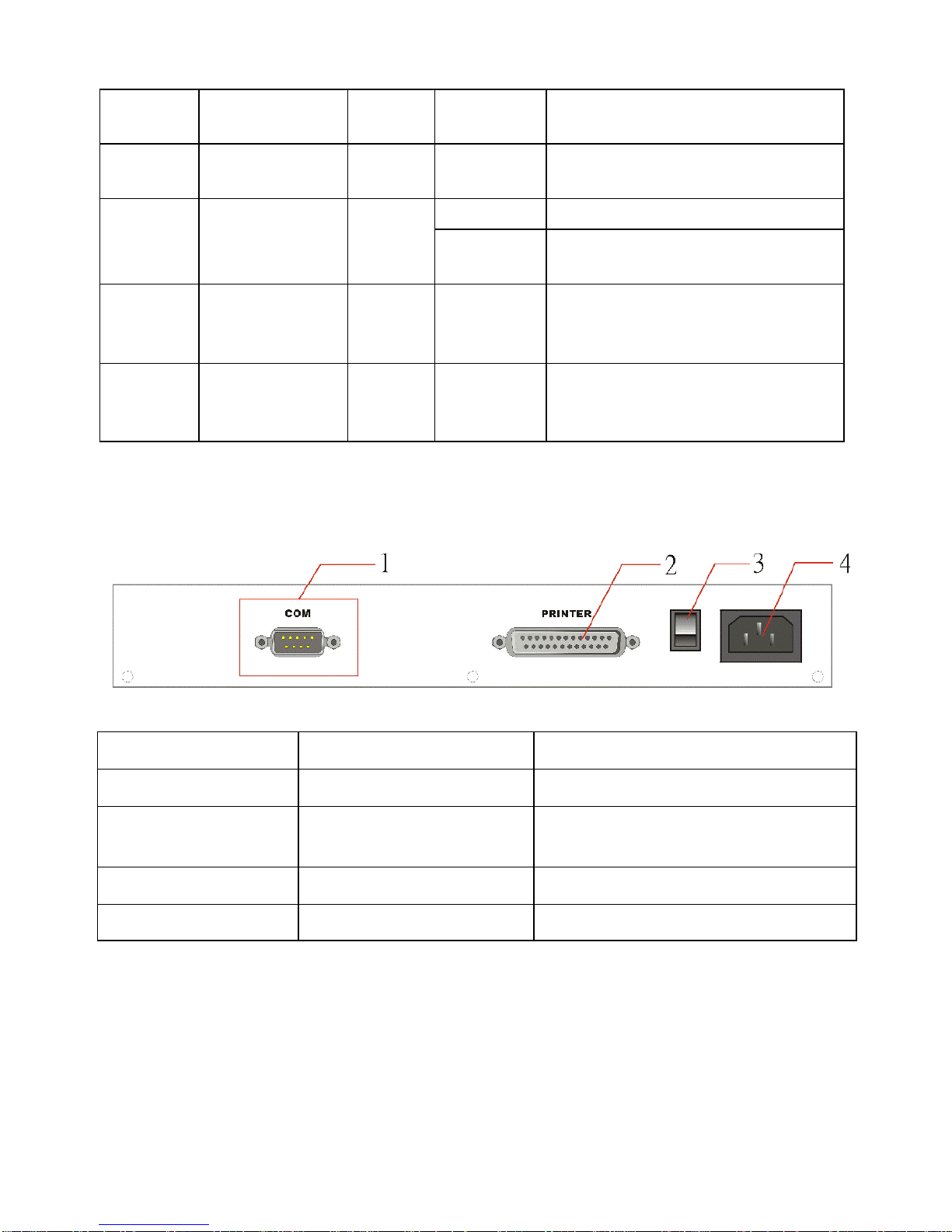

2.1.2. Rear Panel
Ports Function Specification
POWER Inlet Power inlet AC 90V-230V/50-60Hz
COM
Serial port (connect analog
modem or console cable)
9-pins D-type male connector
PRINTER Printer port 25-pins D-type female connector
Power Switch Power on/off On/Off
2.2 Installation Requirements
The Barricade can be positioned at any convenient place in your office or home. No special
wiringorcooling requirements are needed. You should, however comply with the following
-8-
guidelines:
lPlace product on a flat horizontal plane.
lKeep product away from any heating devices.
lDo not place product in a dusty or wet environment.
The recommended operational specifications of the Barricade are:
Temperature 0 oC ~ 55 oC
Humidity 5 % ~ 90 %
You should also remember to turn off the power, remove the power cord from the outlet, and
keep your hands dry when you install the hardware.
2.3 Procedure for Hardware Installation

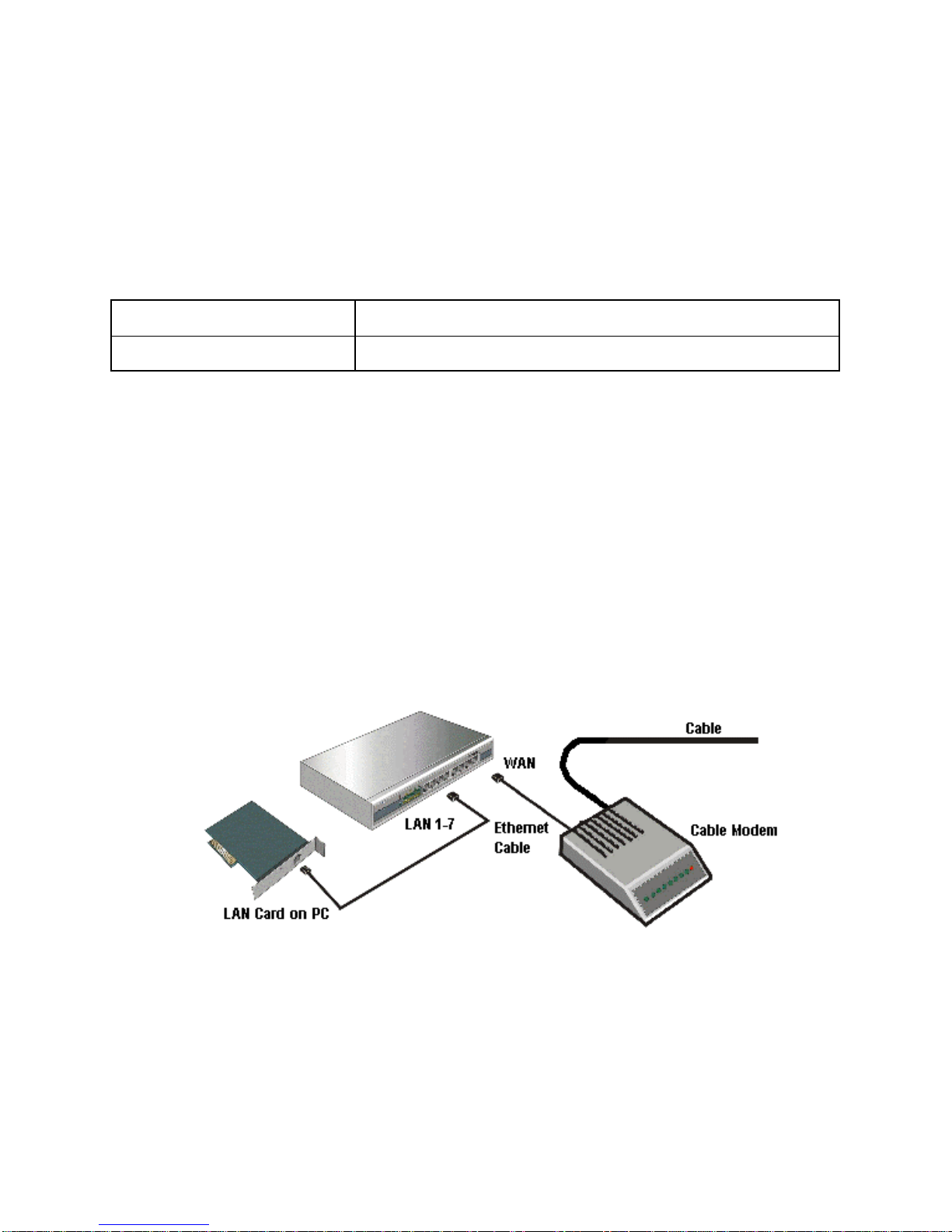

1. Set-up LAN connection: connect an Ethernet cable from your computer’s Ethernet
port to one of the LAN ports of the Barricade.
2. Set-up WAN connection: connect the networkcable from your cable or DSL modem
to the WAN port of the Barricade.
-9-

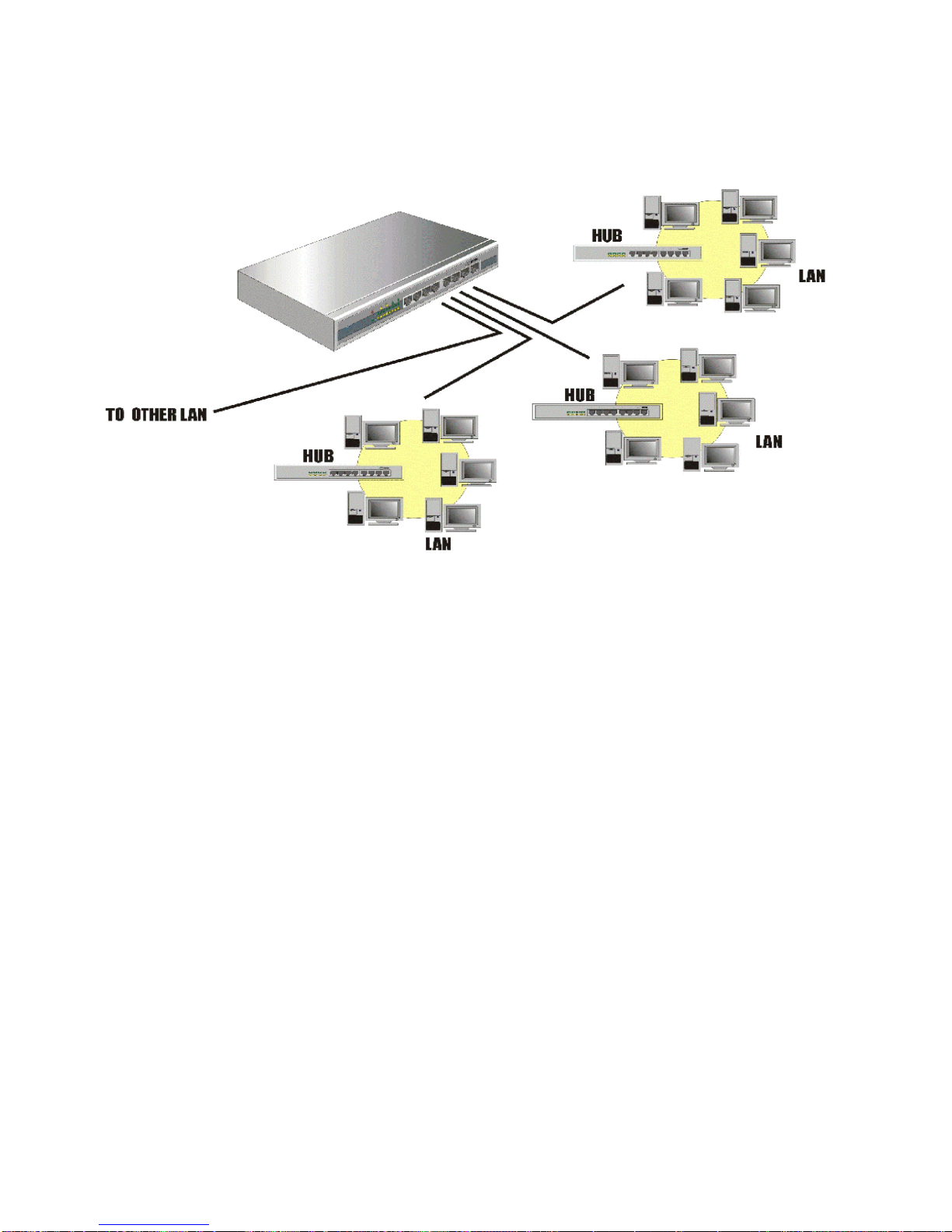

3. Connecting the Barricade with other hubs:
In case you do not need to connect with another hub, skip this step.
If you want to connect the Barricade with another hub, connect one of the ports 1-7 to
that hub by crossover Ethernet cable. If the hub you connected has an UPLINK port,
you can also connect the Barricade with straight-through Ethernet cable to that
UPLINK port.
4. Connecting the Barricade with your printer: use the printer cable to connect your
printer to the printer port of the Barricade.
5. Power on:
Byconnecting the power cord to power inlet and turning the power switch on, the
Barricade will automatically enter the self-test phase. When it is in the self-test phase,
the indicatorsM1 and M2 will be lit ON for about 5 seconds, and then M1 and M2 will
be flashed 3 times to indicate that the self-test operation has finished. Finally, the M1
will be continuously flashed once per second toindicate that the Barricade is in normal
operation.
