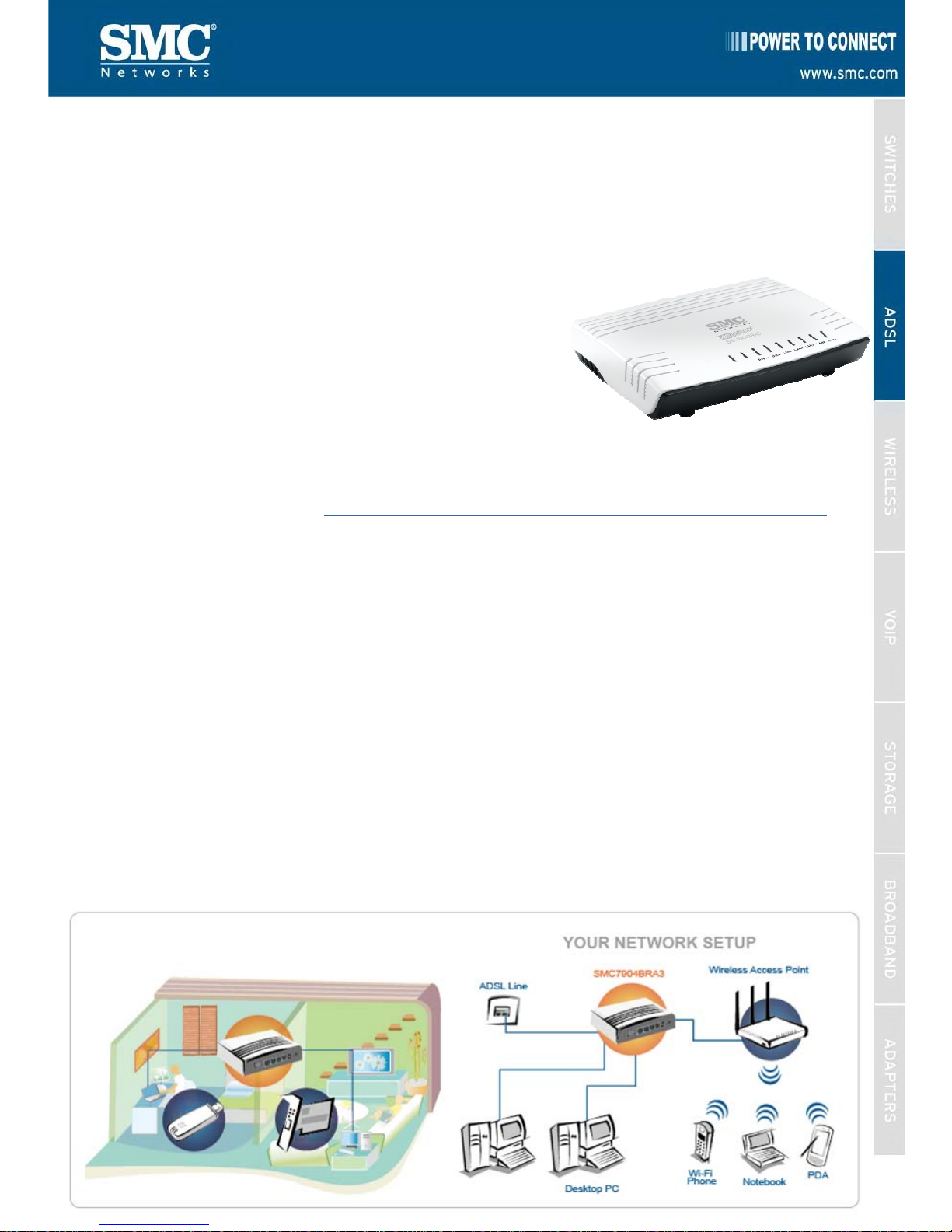

SMC Networks 7904BRB3 FICHE Instructions d'utilisation et de sécurité

SMC7904BRB3

4-Port Annex B ADSL2/2+ Modem Router

Product Overview

SMC7904BRB3, is a highly integrated residential broadband access

device, which provides one RJ-11 ADSL2+ port and four built-in

Ethernet ports. The SMC7904BRB3 is fully compliant with ADSL2/2+

and Ethernet standards like IEEE802.3/802.3u. It provides high

performance access to the Internet, downstream up to 24Mbps and

upstream up to 2Mbps, making it ideal for individual users, SOHOs,

and small enterprises. With SMC7904BRB3, computers on the LAN

side can communicate and share the Internet access and files with

each other.

Key Features and Benefits

Enhanced ADSL2+ Technology

Instant always on Internet connectivity for wired computers. The built-in ADSL2/2+ modem gives unrivaled

asymmetric high-speed data transfer rates with up to 24Mbps downstream.

SPI Firewall Protection from Hackers

The NAT firewall with Stateful Packet Inspection (SPI), Intrusion Detection System & Denial-of-Service

provides robust security from hackers while VPN pass-through allows secure connectivity to your office or

corporate network. Access Control Lists with URL blocking allow you to control access to Internet services &

filter inappropriate web sites.

Quality of Service (QoS)

The SMC7904BRB3 includes a build in QoS engine, which allow network administrators to allocate network

resource and to prioritize real-time applications like voice & video, to enable smooth Internet phone (VoIP)

and lag-free online gaming.

Application Diagram

Hardware

Physical Interface

• 1 RJ-11 Jack for ADSL Interface

• 4 RJ-45 Jacks for 10/100 Base-Tx Ethernet Ports

• 1 Reset Button

• 1 Power DC jack

• 1 Power On / Off Switch

LED Indicators

• Power/ Data/ Link/ LAN

SOFTWARE

ADSL Compliance

• ANSI T1.413 Issue 2

• G.992.1 (G.dmt) Annex B

• G.992.2 (G.lite) Annex B

• G.992.3 ADSL2 (G.dmt.bis) Annex B/J/K/L/M

• G.992.4 ADSL2 (G.lite.bis)

• G.992.5 ADSL2+ Annex B/M

ATM Features

• Support up to 8 ATM PVCs

• Supports ATM Forum UNI 3.1/4.0 PVC

• Supports UBR, CBR, and rt-VBR and nrt-VBR service classes

• Provides ATM layer functionality

• Support up to 8 PVCs – traffic shaping (CBR, UBR, rt/nrt-VBR)

• Supports PPPoA (RFC2364)

• Supports MPoA functionality (RFC2684)

• Supports IP over ATM (IPoA)

• Support ATM cell format ITU -T I.361

• Supports OAM F4/F5 loopback

PPP Functions

• Point-to-Point Protocol (RFC1661)

• PPP over ATM (RFC2364)

• PPP over Ethernet (RFC2516)

• User Authentication

- CHAP (RFC1994)

- PAP (RFC1334)

Bridge Features

• Ethernet bridging

• Support Transparent Bridging

- MAC address learning

- MAC address filtering and protocol filtering for up-link

Routing Features

• RIP v1 / v2

• Static routing

• PPP / PPPoE (RFC 2516)

• NAT with ALGs

•NAPT

•IGMPv1/v2

• IGMP Proxy / snooping

•IPv4

• IP pass through

• Virtual Server port forwarding

VLAN Support

• PVC/VLAN Ethernet Port Mapping

• 8 VLANs supported

• VLAN pass-through

Security

• Stateful Packet Inspection (SPI)

• Management Access Control for WAN

• User authentication for PPP (PAP / CHAP)

• DDoS (Dynamic DoS) Protection

Management

• Acess Administration

• Web based Configuration - HTTP server

• System configuration backup and restore

• SNMP Support (V.1 and V.2C) – MIB I, MIB II (RFC1213)

• Firmware Upgrade Available by Web / TFTP

• Remote Firmware Upgradeable

•UPnP

• Easy Setup Wizard

• TR069 Remote Management Diagnostic and ATM loop back

QoS

• IP ToS function (RFC 1349)

• 802.1p bit remarking

• Traffic classification by port, 802.1p , ToS and DSCP

Firewall

•NAT

•DMZ

• Filtering – IP Filtering, MAC Filtering, URL Filtering

• ACL (Access Control List)

• VPN (IPSec,PPTP,L2TP) pass-through

Dimension

•(L)132*(W)90*(H)33.5mm

Operating Environment

•0°C ~ 40°C/ 32°F ~ 104°F

• 10% ~ 80% Non-condensing

Certifications

• FCC Class B

•CEMark

• RoHS compliant

Warranty

• Please check www.smc.com for the warranty

terms in your country/region.

Features

Contact

North America

20 Mason, Irvine,

CA 92618, U.S.A

1-800-SMC-4YOU

24/7 Technical Support

Europe/Africa

Fructuos Gelabert 6-8

08970 Sant Joan Despi

Barcelona, Spain

Check www.smc.com for your local country contact

information

trademark of SMC Networks. Other trademarks or

registered trademarks are the property of their

respective owners. Information is subject to change
