SMC Networks FS1601 Manuel utilisateur

EZ Connect N

Draft 11n Wireless USB2.0 Adapter

EZ Switch™

16/24-Port Fast Ethernet Switch

SMCFS1601/SMCFS2401

Specifications are subject to change without notice. is a registered

trademark of SMC TECHNOLOGIES CO, LTD. Other brands and product names

are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or

used to make any derivative such as translation, transformation, or adaptation

http://www.smc.com

FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class A

digital device, pursuant to part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is

operated in a commercial environment. This equipment generates, uses, and can

radiate radio frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

This device complies with part 15 of the FCC Rules. Operation is subject to the

following two conditions:

1) This device may not cause harmful interference.

2) This device must accept any interference received, including interference that

may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

CE Mark Warning

This is a class A product. In a domestic environment, this product may cause radio

interference, in which case the user may be required to take adequate measures.

SMCFS1601_2401_UG_20101102_v1 1.pdf 2 2010-11-30 17:52:35

CONTENTS

Package Contents.................................................................................................1

Chapter 1 Product Introduction .......................................................................2

1.1 Product Overview .............................................................................................2

1.2 Features ...........................................................................................................2

Chapter 2 Identifying External Components...................................................2

2.1 Front Panel .......................................................................................................3

2.2 Rear Panel........................................................................................................3

Chapter 3 Installation ........................................................................................4

3.1 Precautions.......................................................................................................4

3.2 Installation.........................................................................................................5

3.2.1 Desktop Installation.................................................................................5

3.2.2 Rack Installation......................................................................................6

3.3 Connect to Ground ...........................................................................................7

3.4 Power on ..........................................................................................................8

Appendix A: Specifications..................................................................................9

Appendix B: Troubleshooting............................................................................10

SMCFS1601_2401_UG_20101102_v1 1.pdf 3 2010-11-30 17:52:35

Package Contents

The following contents should be found in your package:

¾One SMCFS1601 /SMCFS2401 Switch

¾One power cord

¾This User Guide

¾Mounting screws and two “L” planks

¾Quick Installation Guide

¾SMC Warranty Card

¾Four rubber foot pads

Note:

Make sure that the package contains the above items. If any of the listed items are

damaged or missing, please contact with your distributor.

SMCFS1601_2401_UG_20101102_v1 1.pdf 4 2010-11-30 17:52:35

Chapter 1 Product Introduction

This chapter describes the features of the model of SMCFS1601/SMCFS2401

16/24-Port 10/100Mbps Fast Ethernet Switch.

1.1 Product Overview

SMCFS1601/SMCFS2401 Switch provides 16/24-Port 10/100Mbps Auto-

Negotiation RJ45 ports. Each port of the SMCFS1601/SMCFS2401 supports auto

MDI/MDI-X function, eliminating the need for crossover cables or Uplink ports. The

Switch is Plug- and-Play and any port can be simply plugged into a server, a hub

or a switch, using straight cable or crossover cable.

The SMCFS1601/SMCFS2401 16/24-port 10/100Mbps Fast Ethernet Switch

provides you with a low-cost, easy-to-use, high-performance, seamless and

standard upgrade to improve your old network to a 100Mbps network. It will boost

your network performance up to full duplex data transfer.

1.2 Features

¾Complies with IEEE802.3, IEEE802.3u standards

¾16/24 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto- MDI/MDIX

¾Supports IEEE802.3X flow control for full-duplex mode and backpressure for

half-duplex mode

¾LED indicators for monitoring power, link, activity, speed

¾Rack-mountable steel case

¾Internal power supply

Chapter 2 Identifying External Components

This Chapter describes the front panel, rear panel and LED indicators of the

Switch. SMCFS1601/SMCFS2401 just differ in the number of LED indicators and

ports, and all figures in this guide are of SMCFS2401.

SMCFS1601_2401_UG_20101102_v1 1.pdf 5 2010-11-30 17:52:35

2.1 Front Panel

The front panel of SMCFS2401 consists of switch model, switch LED indicators,

and 24 10/100Mbps RJ-45 ports.

Figure 2-1 SMCFS2401 Switch Front Panel sketch

The LED indicators include Power, Link/Act LED indicators, which are used for

monitoring and pre-troubleshooting of the Switch. The following section shows the

LED indicators of the Switch along with an explanation of each indicator.

¾Power LED: This indicator will light solid green when the Switch powers up.

If the LED is not lit, please check the power supply and connection.

¾Link/Act LED: The LED indicates Link/Active status. The corresponding LED

indicator will light solid green when connected to a network device. It flashes

green when data is being transmitted or received on the working connection.

2.2 Rear Panel

The rear panel of SMCFS2401 features a power socket and a Grounding Terminal

(marked with ).

Figure 2-2 SMCFS2401 Switch Rear Panel sketch

¾Grounding Terminal: SMCFS1601/SMCFS2401 already comes with Lightning

Protection Mechanism. You can also ground the Switch through the PE

(Protecting Earth) cable of AC cord or with Ground Cable. For detail

information, please refer to section 3.3 Connect to Ground.

¾AC Power Socket: Connect the female connector of the power cord here, and

the male connector to the AC power outlet. Please make sure the voltage of

the power supply meets the requirement of the input voltage.

SMCFS1601_2401_UG_20101102_v1 1.pdf 6 2010-11-30 17:52:35

Chapter 3 Installation

3.1 Precautions

To ensure a long-term and stable performance of the Switch, please pay attention

to the following before the installation.

1) Safety Requirements

•Before cleaning the Switch, cut off the power supply. Do not clean it by the

waterish cloth, and never use any other liquid cleaning method.

•Take waterproof measures during storage, transportation and operation of

the equipment.

•Use only the power cord provided with the Switch.

•Make sure the voltage of the power supply meets the requirement of the

input voltage of the Switch.

•Do not push any objects into the openings of the Switch.

•Ensure the vent hole is well ventilated and unblocked.

•Do not open or remove the cover of the Switch.

2) Location Requirements

When you choose a location for the Switch, please follow these guidelines:

•Install the Switch on a flat and stable surface that can support the entire

weight of the Switch with all fittings.

•Locate the Switch far from strong electromagnetic field generators (such as

motors), vibration, dust, and direct exposure to sunlight.

•To ensure adequate air flow around the Switch. At least 10 cm (4 inches) of

space at the front and rear of the Switch is needed for ventilation.

•Make sure that the Switch will be accessible and that the cables can be

easily connected.

•Position the Switch away from water and moisture sources, be sure to

provide an acceptable temperature and humidity operating environment.

SMCFS1601_2401_UG_20101102_v1 1.pdf 7 2010-11-30 17:52:36

3.2 Installation

This Switch can be either installed on the standard 19-inch mountable rack or

located on the desktop.

Caution:

Please unplug the power cord before installing or removing the Switch.

3.2.1 Desktop Installation

To install the Switch on the desktop, please follow the steps:

1) Set the Switch on a flat surface strong enough to support the entire weight of

the Switch with all fittings.

2) Remove the adhesive backing papers from the rubber feet.

3) Turnover the Switch and attach the supplied rubber feet to the recessed areas

on the bottom at each corner of the Switch.

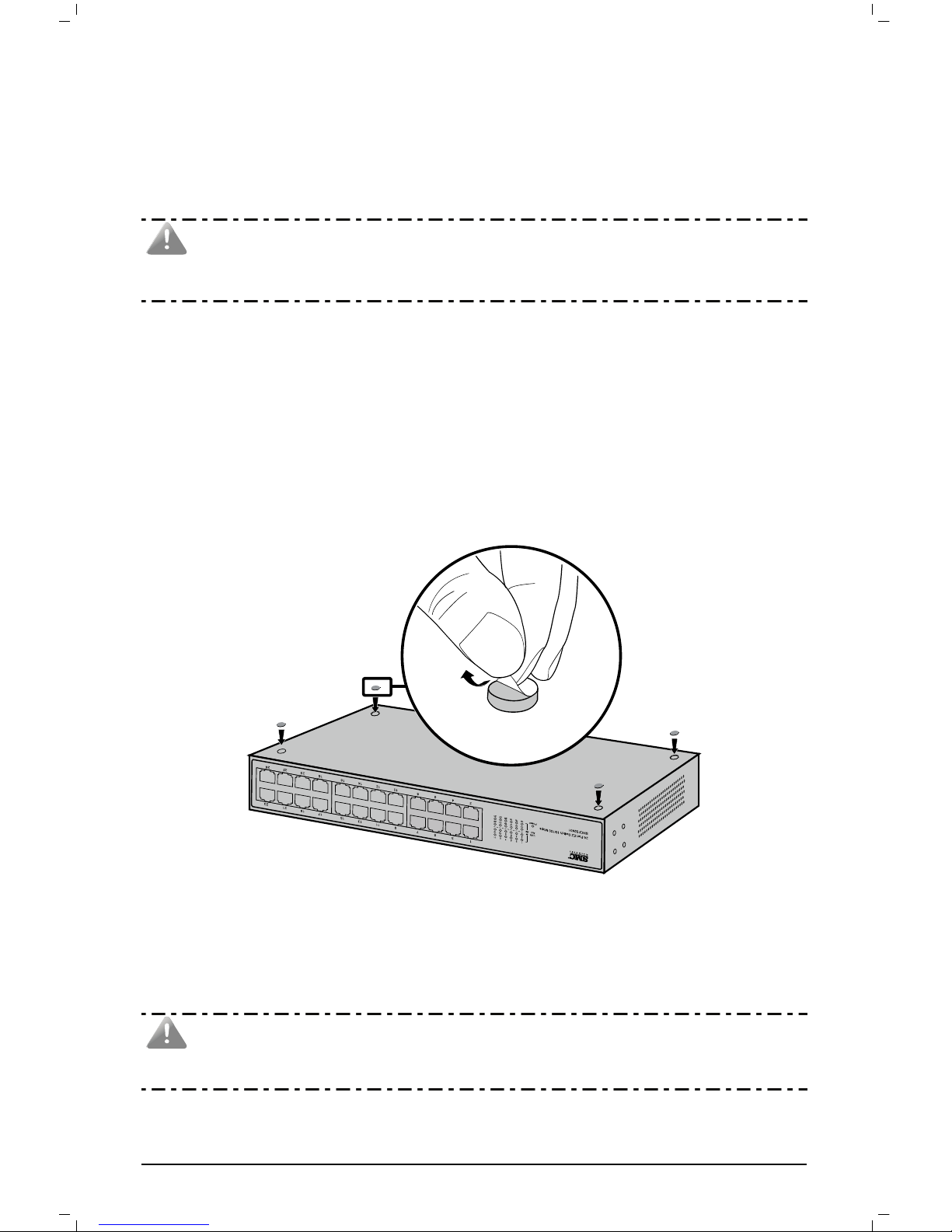

Figure 3-1 Attaching Rubber Feet

4) Upturn the Switch and connect it to the network devices while keep enough

ventilation space around.

5) Connect the Switch to power source with the provided power cord.

Caution:

Please avoid any heavy thing placed on the Switch.

SMCFS1601_2401_UG_20101102_v1 1.pdf 8 2010-11-30 17:52:36

3.2.2 Rack Installation

To install the Switch in an EIA standard-sized, 19-inch rack, follow the instructions

described below:

1) Secure the supplied rack-mounting brackets to each side of the Switch with

supplied screws, as illustrated in the following figure.

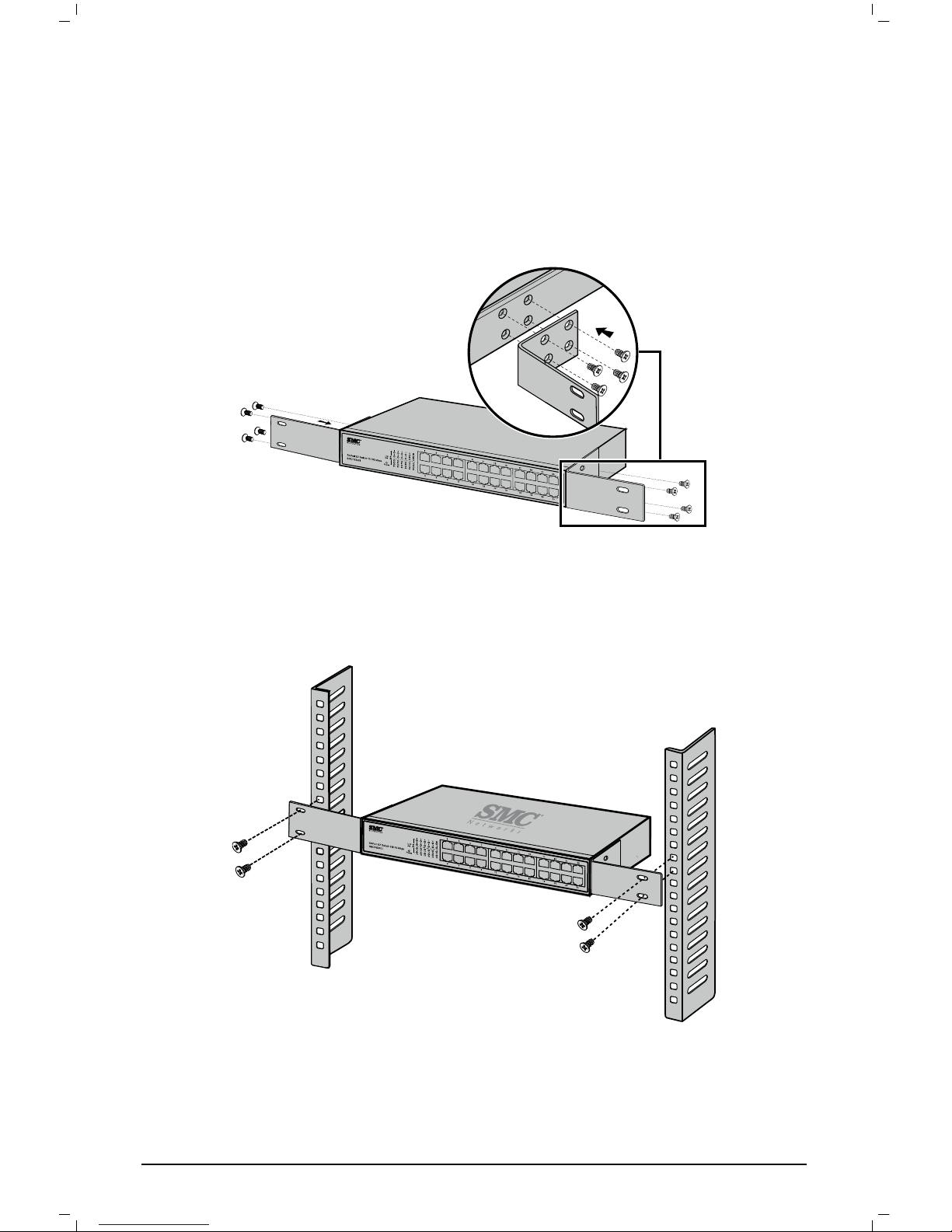

Figure 3-2 Attaching Brackets

2) After the brackets are attached to the Switch, use suitable screws (not

provided) to secure the brackets to the rack, as illustrated in the following

figure.

Figure 3-3 Mounting Switch

3) Connect the Switch to network devices.

4) Supply power to the Switch with the provided power cord.

SMCFS1601_2401_UG_20101102_v1 1.pdf 9 2010-11-30 17:52:36

3.3 Connect to Ground

Connecting the Switch to ground is to quickly release the lightning over-voltage and

over-current of the Switch, which is also a necessary measure to protect the body

from electric shock.

In different environments, the Switch may be grounded differently. The following will

instruct you to connect the Switch to the ground in two ways, connecting to the

Grounding Bar or connecting to the Ground via the power cord. Please connect the

Switch to ground in the optimum way according to your specific operation

environment.

•Connecting to the Grounding Bar

If the Switch is installed in the Equipment Room, where a Grounding Bar is available,

you are recommended to connect the Switch to the Grounding Bar as shown in the

following figure.

Figure 3-4

Note:

The Grounding Bar and Ground Cable are not provided with our product.

•Connecting to the Ground via the power supply

If the Switch is installed in the normal environment, the Switch can be grounded via

the PE（Protecting Earth）cable of the AC power supply as shown in the following

figure.

SMCFS1601_2401_UG_20101102_v1 1.pdf 10 2010-11-30 17:52:36

Autres manuels pour FS1601

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SMC Networks Routeur réseau

SMC Networks

SMC Networks Barricade SMC7901BRA4 Instructions d'utilisation et de sécurité

SMC Networks

SMC Networks EZ Switch SMCGS5 Manuel utilisateur

SMC Networks

SMC Networks Barricade Plus SMC7004FW Manuel utilisateur

SMC Networks

SMC Networks Barricade SMC7404BRA EU Manuel utilisateur

SMC Networks

SMC Networks Barricade SMC7908VoWBRA Manuel utilisateur

SMC Networks

SMC Networks EZ Switch SMCGS1610 Manuel utilisateur

SMC Networks

SMC Networks FS1601 Manuel utilisateur

SMC Networks

SMC Networks 7824M/VSW Manuel utilisateur

SMC Networks

SMC Networks EZ6516TX - annexe 1 Manuel utilisateur

SMC Networks

SMC Networks Barricade SMC7904BRA Manuel utilisateur

SMC Networks

SMC Networks 7004FW - annexe 2 Manuel utilisateur

SMC Networks

SMC Networks Barricade SMC7904BRA2 Manuel utilisateur

SMC Networks

SMC Networks TigerSwitch SMC6709FL2 Manuel utilisateur

SMC Networks

SMC Networks KER25U Manuel utilisateur

SMC Networks

SMC Networks EZ1026DT Manuel utilisateur

SMC Networks

SMC Networks Barricade Plus SMC7004FW Manuel utilisateur

SMC Networks

SMC Networks FS5 - annexe 1 Manuel utilisateur

SMC Networks

SMC Networks EZ Connect SMC7003ADSL Manuel utilisateur

SMC Networks

SMC Networks SMC Barricade Plus SMCBR14VPN Manuel utilisateur

SMC Networks

SMC Networks EZ Connect SMC2870W Manuel utilisateur

SMC Networks

SMC Networks Barricade SMCWGBR14-N Manuel utilisateur

SMC Networks

SMC Networks Barricade g SMC2804WBRP-G Manuel utilisateur

SMC Networks

SMC Networks Wireless Broadband Router Manuel utilisateur

SMC Networks

SMC Networks SMCFS501 Manuel utilisateur

Manuels Routeur réseau populaires d'autres marques

Allnet

Allnet ALL0333AU Manuel utilisateur

HomeSeer

HomeSeer HT-SEL Manuel utilisateur

Sercomm

Sercomm Genesis OC3505D Manuel utilisateur

Billion

Billion BIPAC 5102 Series Manuel utilisateur

TP-Link

TP-Link TD-8817 Manuel utilisateur

Motorola

Motorola MR1900 Manuel utilisateur

Digi

Digi IX14 Manuel utilisateur

Cisco

Cisco NCS 540 Manuel

XAVi

XAVi X8821e Manuel utilisateur

BEC

BEC 6200WZL Manuel utilisateur

MikroTik

MikroTik hAP ac3 Series Manuel utilisateur

Korenix

Korenix JetNet 5428G Series Manuel utilisateur

NETGEAR

NETGEAR FS526T - Switch Manuel utilisateur

Korenix

Korenix JetNet 5710G Series Manuel utilisateur

Automated Logic

Automated Logic ZN551 Manuel du propriétaire

Cisco

Cisco ASR 1000 Series Manuel de l'opérateur

EnGenius

EnGenius ESR-9710 Manuel utilisateur

Cisco

Cisco 805 Series Instructions d'utilisation et de sécurité
