SMART M600i6 Manuel utilisateur

SMARTBoard® M600i6

interactive whiteboard systems

CONFIGURATION AND USER’S GUIDE

FOR MODELS M680i6 AND M685i6

smarttech.com/kb/170549

FCC warning

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instructions, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the

interference at his own expense.

Trademark notice

SMARTBoard, SMARTNotebook, SMARTMeetingPro, DViT, smarttech, the SMART logo and all SMART taglines are trademarks or registered trademarks of

SMARTTechnologiesULC in the U.S. and/or other countries. Microsoft, Windows and InternetExplorer are either registered trademarks or trademarks of

Microsoft Corporation in the U.S. and/or other countries. All other third-party product and company names may be trademarks of their respective owners.

or translated into any language in any form by any means without the prior written consent of SMARTTechnologiesULC. Information in this manual is subject to

change without notice and does not represent a commitment on the part of SMART.

This product and/or use thereof covered by one or more of the following U.S. patents: smarttech.com/patents.

01/2015

i smarttech.com/kb/170549

Important information

Before you install and use your SMARTBoard interactive whiteboard system, read and understand

the safety warnings and precautions in this user’s guide and the included important information

document. These safety warnings and precautions describe the safe and correct operation of your

interactive whiteboard system and its accessories, helping you to prevent injuries and equipment

damage. Ensure that your interactive whiteboard system is always being used correctly.

In this document, “interactive whiteboard system” refers to the following:

lSMARTBoard M685 series interactive whiteboard

lSMARTUF70 or SMARTUF70w projector

lAccessories and optional equipment

The projector included with your system is designed to work only with certain SMARTBoard

interactive whiteboard models. Contact your authorized SMART reseller (smarttech.com/where) for

more information.

Safety warnings, cautions and important

information

Installation

WARNING

lFailure to follow the installation instructions shipped with your SMART product could result in

personal injury and damage to the product.

lTo reduce the risk of fire or electric shock, do not expose the SMART product to rain or

moisture.

lTwo people are required to mount your SMART product because it may be too heavy for

one person to safely maneuver.

When you lift your interactive whiteboard, you and your assistant should stand on either side

of the screen, supporting its weight at the bottom while balancing the top with your other

hands.

IMPORTANT INFORMATION

ii smarttech.com/kb/170549

lWhen mounting the projector boom on a framed or hollow wall, attach the mounting bracket

to a stud to safely support the projector’s weight. If you use only drywall anchors, the drywall

can fail, resulting in possible personal injury, and damage to the product which may not be

covered by your warranty.

lDo not leave cables on the floor where they can be a tripping hazard. If you must run a cable

over the floor, lay it in a flat, straight line and secure it to the floor with tape or a cable

management strip of a contrasting color. Handle cables carefully and avoid excessive

bending.

CAUTION

lDo not operate this unit immediately after moving it from a cold location to a warm location.

When the unit is exposed to such a change in temperature, moisture can condense on the

lens and crucial internal parts. Allow the system to stabilize to room temperature before

operation to prevent possible damage to the unit.

lDo not place the unit in hot locations, such as near heating equipment. Doing so could cause

a malfunction and shorten the life of the projector.

lAvoid setting up and using the SMART product in an area with excessive levels of dust,

humidity and smoke.

lDo not place your SMART product in direct sunlight or near any appliance that generates a

strong magnetic field.

lYou must connect the USB cable that came with your SMARTBoard interactive whiteboard

to a computer that has a USB compliant interface and that bears the USB logo. In addition,

the USB source computer must be compliant with CSA/UL/EN 60950 and bear the CE mark

and CSA and/or UL Mark(s) for CSA/UL 60950. This is for operating safety and to avoid

damage to the SMARTBoard interactive whiteboard.

IMPORTANT

lMake sure an electrical socket is near your SMART product and remains easily accessible

during use.

lUsing your SMART product near a TV or radio could cause interference to the images or

sound. If this happens, move the TV or radio away from the projector.

IMPORTANT INFORMATION

iii smarttech.com/kb/170549

Operation

WARNING

lIf you are using an external audio system, use only the power supply included with that

product. Using the wrong power supply might create a safety hazard or damage the

equipment. If in doubt, refer to the specification sheet for your product to verify the power

supply type.

lDo not climb (or allow children to climb) on a wall- or stand-mounted SMARTBoard

interactive whiteboard.

Do not climb on, hang from or suspend objects from the projector boom.

Climbing on the interactive whiteboard or projector boom could result in

personal injury or product damage.

CAUTION

lDo not block the projector’s ventilation slots and openings.

IMPORTANT

lKeep your remote control in a safe place because there is no other way to access menu

options.

lDisconnect the product from its power source when it’s not used for a long period.

Other precautions

If you own a SMARTproduct other than a SMARTBoard interactive whiteboard system, refer to the

installation manual for your product for relevant warnings and maintenance instructions.

Environmental requirements

Before you install your SMARTBoard interactive whiteboard system, review the following

environmental requirements.

Environmental

requirement

Parameter

Operating temperature l41°F to 95°F (5°C to 35°C) from 0' to 6000' (0 m to 1800 m)

l41°F to 86°F (5°C to 30°C) from 6000' to 9800' (1800 m to 3000 m)

Storage temperature l-4°F to 122°F (-20°C to 50°C)

IMPORTANT INFORMATION

iv smarttech.com/kb/170549

Environmental

requirement

Parameter

Humidity l5% to 95% storage relative humidity, non-condensing

5% to 85% operating relative humidity, non-condensing

Water and fluid

resistance

lIntended for indoor use only. Doesn’t meet any salt-spray or water

ingress requirements.

lDon’t pour or spray liquids directly onto your interactive whiteboard,

the projector or any of its sub-components.

Dust lIntended for use in office and classroom environments. Not for

industrial use where heavy dust and pollutants can cause

malfunctions or impaired operation. Periodic cleaning is required in

areas with heavier dust. See

Cleaning the projector

on page24 for

information on cleaning the projector.

Electrostatic discharge

(ESD)

lEN61000-4-2 severity level 4 for direct and indirect ESD

lNo malfunction or damage up to 8kV (both polarities) with a

330ohm, 150 pF probe (air discharge)

lUnmated connectors meet no malfunction or damage up to 4kV

(both polarities) for direct (contact) discharge

Cables lAll SMARTBoard interactive whiteboard system cables should be

shielded to prevent potential accidents and degraded video and

audio quality.

Conducted and

radiated emissions

lEN55022/CISPR 22, Class A

v smarttech.com/kb/170549

Contents

Important information i

Safety warnings, cautions and important information i

Environmental requirements iii

Chapter 1: About your interactive whiteboard system 1

SMARTBoard interactive whiteboard system features 2

Included accessories 4

Chapter 2: Installing your interactive whiteboard system 5

Choosing a location 5

Choosing a height 6

Securing the projector to the boom 6

Routing the cables 6

Installing SMART software 7

Chapter 3: Using your interactive whiteboard system 9

Using your projector 9

Using your interactive whiteboard 21

Chapter 4: Maintaining your interactive whiteboard system 23

Maintaining your interactive whiteboard 23

Cleaning the projector 24

Focusing and adjusting the projector image 25

Replacing the projector lamp 26

Chapter 5: Troubleshooting your interactive whiteboard system 31

Before you start 32

Determining you interactive whiteboard system’s status 33

Resolving interactive whiteboard issues 34

Resolving projector issues 35

Accessing the service menu 42

Transporting your interactive whiteboard system 43

Appendix A: Remotely managing your system through a network interface 45

Web page management 45

Simple Network Management Protocol (SNMP) 52

Appendix B: Remotely managing your system through an RS-232 serial interface 53

Serial interface settings 54

Projector programming commands 55

CONTENTS

vi smarttech.com/kb/170549

Appendix C: Integrating other devices 77

Video format 77

Connecting peripheral sources and outputs 83

Appendix D: Remote control code definitions 85

Appendix E: Hardware environmental compliance 87

Waste Electrical and Electronic Equipment and Battery regulations (WEEE and

BatteryDirectives) 87

Batteries 87

Mercury 87

More information 87

Index 89

Chapter 1

1 smarttech.com/kb/170549

Chapter 1: About your interactive whiteboard

system

SMARTBoard interactive whiteboard system features 2

SMARTBoard M600 series interactive whiteboard 2

SMARTUF70 or SMARTUF70w projector 3

Included accessories 4

Remote control 4

Pens 4

Optional accessories 4

Your SMARTBoard interactive whiteboard system combines the following components:

lSMARTBoard M600 series interactive whiteboard

lWall-mounted, short-throw SMARTUF70 or SMARTUF70w projector

lAccessories and optional equipment

This chapter describes the features of your interactive whiteboard and provides information about

product parts and accessories.

CHAPTER 1

ABOUT YOUR INTERACTIVE WHITEBOARD SYSTEM

2 smarttech.com/kb/170549

SMARTBoard interactive whiteboard system

features

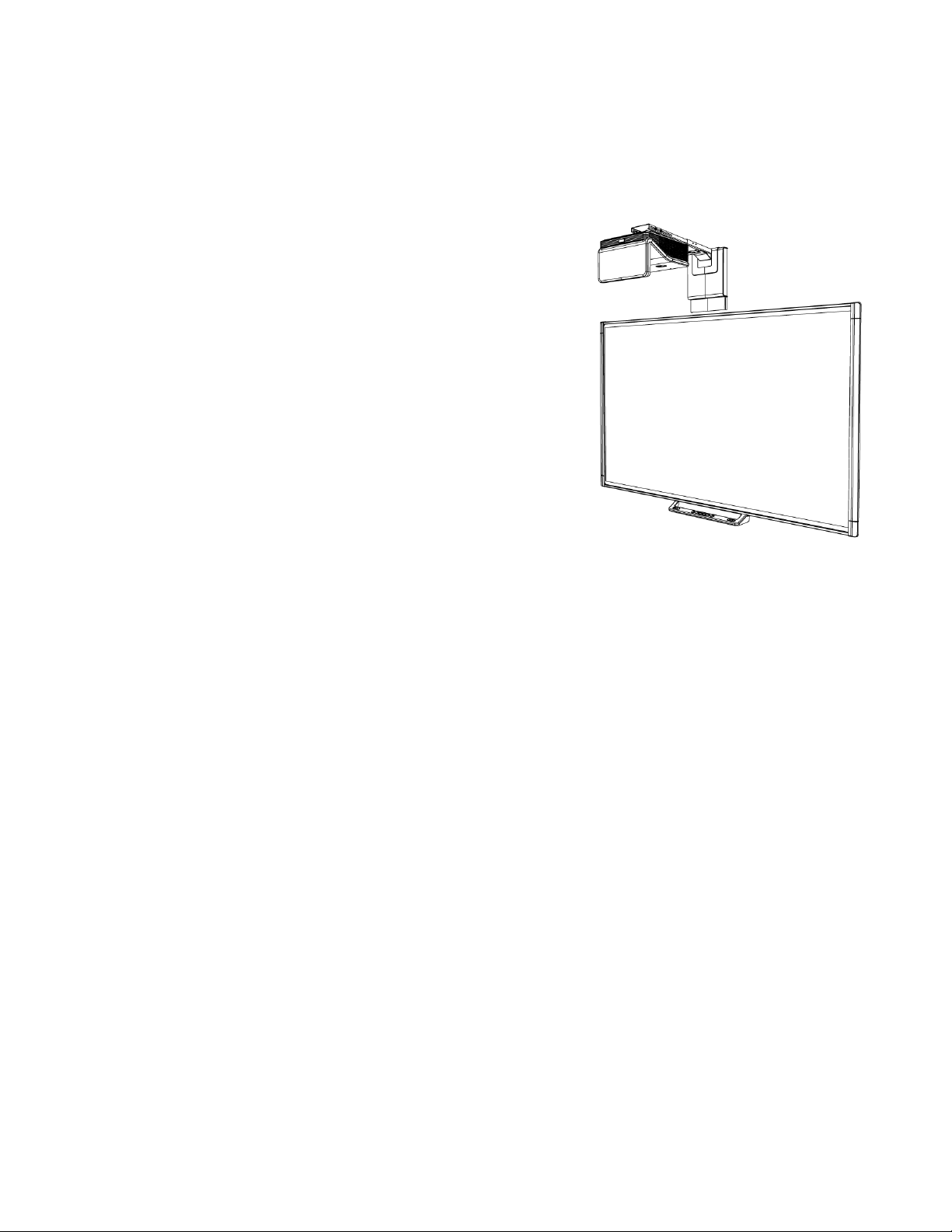

Your SMARTBoard interactive whiteboard system

uses the short-throw, high-offset SMARTUF70 or

SMARTUF70w projector. The throw distance of the

SMARTUF70 and SMARTUF70w projectors is half

that of the SMARTUF65 projector, resulting in a

shorter boom and reduced shadows on the

projected image.

When the projector displays an image from your

computer on the touch-sensitive interactive

whiteboard, you can do everything that you can do at

your computer—open and close applications, scroll

through files, conference with others, create new

documents or edit existing ones, visit websites, play

video clips and more—by touching the screen. You

can use an array of gestures within applications.

This projector also supports video and audio connections from a variety of devices, including

DVD/Blu-ray™ players, VCRs, document cameras and digital cameras, and can project media from

these sources onto the interactive screen.

When you use SMART software with your SMARTBoard interactive whiteboard system, you can

write or draw over the projected computer image in digital ink using a pen tray pen or your finger,

and then save these notes to a .notebook file or directly into any Ink Aware application.

SMARTBoard M600 series interactive whiteboard

Your SMARTBoard M600 series interactive whiteboard, featuring SMART’s proprietary DViT®

(DigitalVisionTouch) technology, is the most intuitive touch-sensitive front projection interactive

whiteboard in the world.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels SMART Tableau blanc interactif

SMART

SMART SB880i5-MP Manuel utilisateur

SMART

SMART SBID 8000 series Manuel utilisateur

SMART

SMART SBID 8084i-G4 Manuel utilisateur

SMART

SMART SMART Board Manuel utilisateur

SMART

SMART SBID8055i-G5-SMP Manuel de service

SMART

SMART Podium 500 Series Manuel utilisateur

SMART

SMART SMART Board Manuel utilisateur

SMART

SMART 600i Manuel utilisateur

SMART

SMART SBX885 Manuel utilisateur

SMART

SMART M680 Manuel utilisateur

SMART

SMART SmartBoard 600 Series Manuel utilisateur

SMART

SMART Board 600i3 Manuel utilisateur

SMART

SMART Board 800 Series Manuel utilisateur

SMART

SMART 2000i-DVS Manuel utilisateur

SMART

SMART SmartBoard 600i2 Manuel utilisateur

SMART

SMART SMART Board 885-SMP Manuel utilisateur

SMART

SMART Room System SRS-LYNC-XS Manuel de service

SMART

SMART Board 600 Series Mode d'emploi

SMART

SMART FS640 Manuel utilisateur

SMART

SMART UF45-680 Manuel utilisateur

SMART

SMART Board 600 Series Manuel utilisateur

SMART

SMART KAPP IQ Guide d'installation

SMART

SMART board 8000i-G4 series Manuel d'utilisation

SMART

SMART Board 600i4 Manuel utilisateur

Manuels Tableau blanc interactif populaires d'autres marques

HitachiSoft

HitachiSoft StarBoard FX-TRIO-88W Manuel utilisateur

Buhl

Buhl LyteBoard Manuel utilisateur

SMART Board

SMART Board 680 Manuel utilisateur

Legamaster

Legamaster e-SCREEN ETX Manuel utilisateur

SMART Board

SMART Board SBM685ix2 Manuel utilisateur

Seneca

Seneca eno Manuel utilisateur

BenQ

BenQ RP840G Manuel utilisateur

Olivetti

Olivetti OLIBOARD Manuel utilisateur

Turning Technologies

Turning Technologies MOBIVIEW Manuel utilisateur

Panasonic

Panasonic UB-5335 Manuel utilisateur

Dukane

Dukane ITP84 Manuel utilisateur

Bretford

Bretford EDUIMS Guide de configuration

Panasonic

Panasonic Panaboard UB-5315 Manuel utilisateur

Plus

Plus M-11S Manuel utilisateur

TRIUMPH BOARD

TRIUMPH BOARD ULTRA SLIM Manuel utilisateur

Returnstar Interactive Tech

Returnstar Interactive Tech IQBoard DVT V7.0 Manuel utilisateur

AVer

AVer CP series Manuel utilisateur

Genee

Genee 56" Manuel utilisateur
