Siemens REV34 Manuel utilisateur

CE1N2208en

2017-11-15 Building Technologies

208

7-day

room temperature controller REV34..

Heating applications

∂Mains-independent, battery-operated room temperature controller featuring

user-friendly operation, easy-to-read display and large numbers.

∂3-position controller with PI mode and optimum start control.

∂Possibility to adapt volume and control gain.

∂Operating mode selection:

- 7-day automatic mode with max. 3 heating phases.

- Continuous comfort mode.

- Continuous energy saving mode.

- Frost protection.

- Exception day (24 hour operation) with max. 3 heating phases.

∂A separate temperature setpoint can be entered in automatic mode and for

the exception day for each heating phase.

∂Heating zone control.

Use

Room temperature control in:

∂Single-family and vacation homes.

∂Apartments and offices.

∂Individual rooms and professional office facilities.

∂Commercially used spaces.

To control electric 3-position actuators with a running time of 120….150 seconds,

for use with stroke and rotary actuators.

2 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

Function

∂PI control.

∂3-point control.

∂7-day time switch.

∂Remote control.

∂Preselected 24-hour operating modes.

∂Override button.

∂Holiday mode.

∂Party mode.

∂Frost protection.

∂Holiday mode.

∂Information level to check settings.

∂Reset function.

∂Sensor calibration.

∂Optimum start control in the morning (P.1).

∂Adaption of integral action time (volume adaption).

∂Adaption of control gain (heat output adaption).

∂Synchronization to radio time signal from Frankfurt, Germany (REV34DC).

Type summary

Room temperature controller with 7-day time switch REV34

Room temperature controller with 7-day time switch and

receiver for time signal from Frankfurt, Germany (DCF77) REV34DC

Ordering

Please indicate the type number as per the "Type summary" when ordering.

Delivery

The controller is supplied with batteries.

Mechanical design

Plastic casing with an easy-to-read display and large numbers, easily accessible

operating elements, and removable base.

The housing contains the controller's electronics, DIP switches, and the relay with

potential-free changeover contact. The easily accessible battery compartment allows

for easy exchange of two 1.5 V alkaline batteries, type AA.

The base with terminal block provides lots of space to connect the wires.

Display and operating

elements

3 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

1Display

Change battery Room temperature (measured)

Alarm Clear text display line

(max. 18 spaces)

Heating mode

0 4 8 12 16 20 24

24 hour timeframe

Switching pattern with flashing

time cursor

Weekday (max. 3 spaces)

Info Info Weekday block

Weekend block

Weekday

Without language selection

Setpoint for remote control

Setpoint for absence hTime unit

Room temperature

bsence/holiday mode set

Setpoint for frost protection

mode

Absence/holiday mode active

Energy saving mode

setpoint

Party mode active

Time signal from Frankfurt °C / °F Temperature unit °C or °F

Date (day - month - year) Close actuator/valve

Time of day Open actuator/valve

Remote control active

2Operating mode selector

Automatic weekly mode with max. three heating phases per day.

Exception day with max. three heating phases.

Continuous comfort mode (= continuous comfort temperature).

Continuous energy saving mode (= continuous energy saving

temperature).

Frost protection.

3INFO

Pressing the Info button once illuminates the display. Illumination

automatically turns off after a short period of time.

Pressing the Info button again activates the information display: is lit.

The unit first displays queued error messages followed by important

information (e.g. time switch programs, etc.).

4Plus button

Increase values, set time, or make a selection.

4 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

5Override button / party mode

In the time switch program, this button allows you to quickly change from the

active temperature level to the next and back.

Thus, you can quickly change to energy saving temperature when you leave

the apartment for a short period of time, thus saving energy.

The display indicates the change. It is valid only until the next switching time.

Activate party mode: Press the button for 3 seconds.

Party mode is available only in operating modes and . In party mode,

the controller controls to a freely selectable temperature for a freely

selectable period of time.

In party mode, symbol is displayed along with the end of party mode.

6Minus button

Decrease values, set time, or make a selection

7Program selection slider

Time.

Day – Month – Year (2 spaces for day, month, and year)

Weekday, weekend, or individual day blocks

1, 2, or 3 heating phases

Start

Heating phase 1

Start

Heating phase 2

Start

Heating phase 3

Setpoint

Heating phase 1

Setpoint

Heating phase 2

Setpoint

Heating phase 3

End

Heating phase 1

End

Heating phase 2

End

Heating phase 3

Energy saving temperature in the automatic mode and exception day time

switch programs

Start of absence / holiday

Temperature setpoint during absence / holiday

End of absence / holiday

Temperature setpoint at active remote control

RUN Slider position RUN allows for closing the cover

5 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

Operating modes

The controller offers the two time switch programs and .

Enter a start time and end time for each heating phase. Also comfort temperature

setpoint can be freely entered for each heating phases. Between the heating

phases the controller always switches to the same, freely selectable energy saving

temperature setpoint.

The controller also offers the three 3 continuous modes comfort mode,

energy saving mode and frost protection mode.

You can freely adjust the setpoints for the weekly and 24-hour operating modes.

Setting range for all setpoints without setpoint limitation 3…35 °C.

Setting range for all setpoints with setpoint limitation 16…35 °C.

Factory settings: Heating

, , , 20 °C

,16 °C

8 °C

,12 °C

Factory settings: Switching times

Heating phases P1 P2 P3 P4 P5 P6

1. 07:00 23:00 PASS PASS PASS PASS

2. 06:00 08:00 17:00 22:00 PASS PASS

3. 06:00 08:00 11:00 13:00 17:00 22:00

Three different switching patterns are available to simplify entry of switching times.

These can be assigned as blocks to the corresponding weekdays 1…5 and weekend

days 6…7. As a result, you need to adapt the switching times and room temperatures

only once for each block.

Switching pattern Blocks

You can also enter individual days … .

Operation with

time switch program

Example with

3 heating phases

Continuous operating

modes

Setpoints

Factory setting

7-day time switch

6 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

You can enter the beginning, temperature and end of your holidays. At the beginning of

the holidays, the controller switches to the desired holiday temperature and returns to

the previously set operating mode at the end of the holidays.

In holiday mode, symbol is displayed along with the end of holiday mode.

Proceed as follows to enter your settings:

Set slider to position 15 (start of absence): Press or to set the start date

for your holidays.

Set slider to position 16 (temperature during absence): Press or to set

the desired temperature while on holidays.

Set slider to position 17 (end of absence): Press or to set the end date

for your holidays.

RUN

Return the slider to position RUN. Symbol is displayed to the left of the

symbol.

Press , , , or move the slider to end holiday mode prematurely.

Remote control

Use a suitable remote control unit to activate the "Remote control" temperature

setpoint in the controller. Changeover takes place by making a potential-free contact

connected to terminals T1 and T2.

A flashing symbol indicates active remote control mode.

After the contact opens, the previously set operating mode is reactivated.

Operation according to controller setting Temperature setpoint “remote control“

active

2252Z05

, , ,, , T2

2252Z06

Suitable remote control units are:

Telephone modem, manual switch, window contact, presence detector, central unit,

etc.

You can freely select the temperature for active remote control. Activating remote

control immediately enables control to the remote control temperature regardless of the

currently active operating mode. When you deactivate remote control, the controller

returns to the set operating mode.

A flashing symbol indicates active remote control mode.

Proceed as follows to enter your settings:

Set slider to temperature position for active remote control: Press or to

set the desired temperature for active remote control.

RUN Return the slider to position RUN.

Enter holidays or

absences

Enter temperature for

active remote control

7 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

Technical features

DIP switches

ON / OFF 1 2 3 4 5 6 7 8 9 10 See

See ASensor calibration On Medium-sized room

Sensor calibration Off Small room

BSetpoint limitation 16…35 °C Large room

Setpoint limitation 3…35 °C Medium-sized room

CTemperature display °F Normally sized heat output

Temperature display °C Undersized heat output

Start optimization: 1 h/°C Oversized heat output

Start optimization: ¼ h/°C Normally sized heat output

Start optimization: ½ h/°C Quartz G

Start optimization: Off Radio clock

HDIP switch reset

1342

2211Z32

56 7 89

After you change one or several DIP switch positions, you must press the DIP switch reset button to reset the DIP switch (see

also Fig. ). Otherwise, the previous setting remains active!

Factory setting: All DIP switches to OFF

If the displayed room temperature does not match the measured room temperature, the

temperature sensor can be recalibrated.

Set DIP switch to ON and press the DIP switch reset button:

CAL symbol is displayed. The currently measured temperature flashes.

Press or to recalibrate by max. ± 5 °C.

Set DIP switch to OFF and press the DIP switch reset button to save the settings.

The minimum setpoint limitation of 16 °C prevents undesired heat transfer to

neighboring spaces in buildings featuring several heating zones.

DIP switch ON: Setpoint limitation 16…35 °C.

DIP switch OFF: Setpoint limitation 3…35 °C (factory setting).

Press the DIP switch reset button to save the settings.

DIP switch ON: Temperature display in °F.

DIP switch OFF: Temperature display in °C (factory setting).

Press the DIP switch reset button to save the settings.

Optimization advances the switch-on point P.1 to ensure that the selected setpoint is

reached at the desired time. The setting depends on the controlled system, i.e., on heat

transmission (piping system, radiators), building dynamics (building mass, insulation),

and heat output (boiler capacity, flow temperature).

DIP switches 4 ON and 5 ON: 1 h/°C For slow controlled systems.

DIP switches 4 ON and 5 OFF: ¼ h/°C For fast controlled systems.

DIP switches 4 OFF and 5 ON: ½ h/°C For medium controlled systems.

DIP switches 4 OFF and 5 OFF: OFF Off, no effect (factory setting).

Press the DIP switch reset button to save the settings.

ASensor calibration:

DIP switch 1

BSetpoint limitation:

DIP switch 2

Temperature display in

°C or °F:

DIP switch 3

DStart optimization:

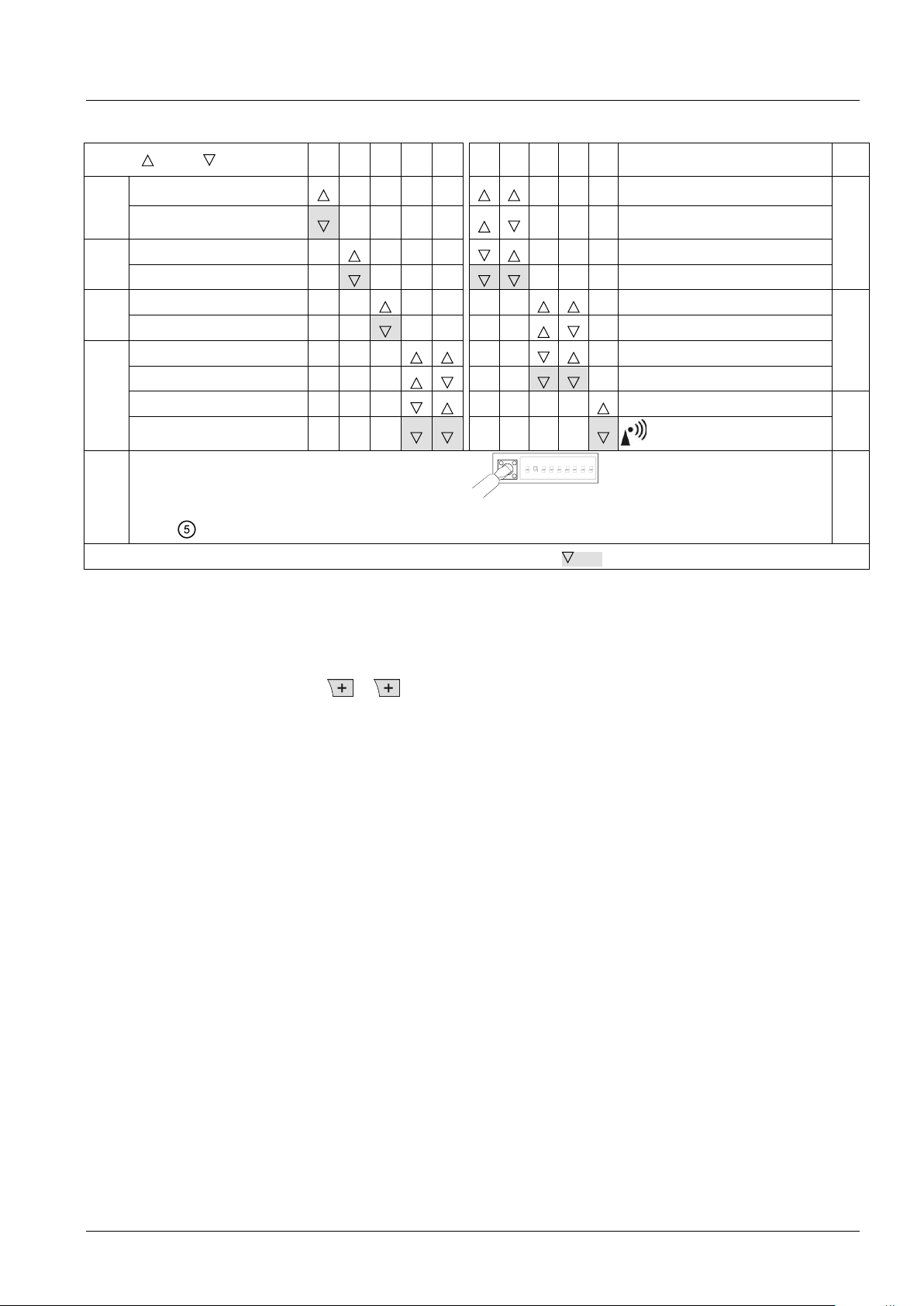

DIP switches 4 and 5

8 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

Key for diagram:

TTemperature (°C)

tForward shift of switch-on point (h)

TRx Room temperature actual value

Pon Starting point for optimized heat-up time.

DIP switches 6 ON and 7 ON:

Normally sized controlled system, see factory setting.

DIP switches 6 ON and 7 OFF:

Fast controlled system: For small rooms, light radiators (plate heat

exchangers), well insulated building or fan coils.

DIP switches 6 OFF and 7 ON:

Slow controlled system: For large rooms, heavy radiators (cast iron radiators),

poorly insulated building, and large masses.

DIP switches 6 OFF and 7 OFF (factory setting):

Normally sized controlled system: For normal-size rooms, normally sized

radiators (steel pipe radiator) and average insulated

building.

Press the DIP switch reset button to save the settings.

DIP switches 8 ON and 9 ON:

Normally sized heat output, see factory setting.

DIP switches 8 ON and 9 OFF:

Undersized heat output:

For low boiler/flow temperatures, undersized radiators (area) and undersized

volumetric flow (valve nominal width).

DIP switches 8 OFF and 9 ON:

Oversized heat output:

For high boiler/flow temperatures, oversized radiators (area) and oversized

volumetric flow (valve nominal width).

DIP switch 8 OFF and 9 OFF (factory setting):

Normally sized heat output.

Press the DIP switch reset button to save the settings.

Only applicable to REV..DC (with integrated DCF77 receiver to receive time signal from

Frankfurt, Germany)!

DIP switch ON: Clock run by controller-internal quartz.

DIP switch OFF: Time signal DCF77 from Frankfurt, Germany.

Press the DIP switch reset button to save the settings.

During startup, REV..DC synchronizes automatically to the time signal (DCF77) from

Frankfurt, Germany. Synchronization takes max. 10 minutes. Synchronization restarts

each time you press the button or move the program selection slider from the RUN

position during these 10 minutes. Siemens recommends to set the desired settings

EIntegral action time

(Volume adaption):

DIP switches 6 and 7

FControl gain

(Heat output

adaptation):

DIP switches 8 and 9

GRadio clock:

DIP switch 10

Note

on synchronization

9 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

upon startup, install the REV..DC in the desired location, and not carry out any actions

on the REV..DC for the next 10 minutes.

In normal operation, the REV..DC synchronizes to the radio clock every day at 3:10

a.m.

The time signal from Frankfurt is modulated to a radio signal. The reception of this radio

signal depends on the distance to Frankfurt, atmospheric conditions as well as the

location where the REV..DC is installed. Siemens cannot guarantee that the REV..DC

can receive the time signal from Frankfurt at any time and any place.

The radio clock symbol is deactivated and an error message is displayed if the clock was not

able to synchronize the time for 7 consecutive days. The controller then runs on the internal

quartz.

After you change one or several DIP switch positions, you must press the DIP switch

reset button to reset the DIP switch.

Otherwise, the previous setting remains active!

Access to the expert level

Set the program selection slider to RUN. Press and simultaneously for 3 seconds, release the buttons, and

within 3 seconds press and hold down and simultaneously for 3 seconds, release , and press for another

3 seconds. This releases the engineering settings. is displayed.

The display first shows language selection with Code 00. Press the buttons or to navigate the settings.

Confirm settings by pressing .

Press the operating mode selector to exit the engineering settings.

Code list

This entry has no effect if the radio clock either is inactive or not available.

The time signal received from Frankfurt is shifted by the value set in Code 30 (time

zone) if the radio clock is active.

The time is always changed over at 2 a.m. on the Sunday preceding the set date if

there is no radio clock or if it is inactive. The time change is shifted by the value set in

Code 30 (time zone) when the radio clock is active.

The time is always changed over at 3 a.m. on the Sunday preceding the set date if

there is no radio clock or if it is inactive.

Note

on reception

No reception

HDIP switch reset

1342

2211Z32

56 7 89

Function block Code Name Factory setting Your setting

Basic settings

00 Language English

01 Sensor calibration off

02 Switching differential 2-point 0.5 °C

LCD

optimization

10 Illumination time 10 seconds

11 Background brightness 0

12 Contrast 0

Clock settings

Time zone

Deviation from time signal in Frankfurt

(Central European Time CET) (see Note 1)

0 hours

31 Start of daylight saving time (see Note 2) March 31 (03-31)

32 End of daylight saving time (see Note 3) October 31 (10-31)

Note 1:

Note 2:

Note 3:

10 / 15

Siemens Room temperature controller REV34.. CE1N2208en

Building Technologies 2017-11-15

Functional check

a) Check the display. If there is no display, check insertion and function of the batteries.

b) Operating mode “Continuous comfort mode“ , read displayed temperature.

c) Set temperature setpoint to maximum (see operating instructions).

d) After 1…5 minutes, the relay to open the actuator must switch on. Symbol is

displayed. The actuator OPENS. If not:

∂Check actuating device and wiring.

∂It is possible that the room temperature is higher than the set temperature setpoint.

e) Set temperature setpoint to minimum (see operating instructions).

f) After 1…5 minutes, the relay to open the actuator must switch off and the relay to close

the actuator must switch on. Symbol is displayed. The actuator CLOSES. If not:

∂Check actuating device and wiring.

∂It is possible that the room temperature is lower than the set temperature setpoint.

g) Set the temperature setpoint for operating mode “Continuous comfort mode“ to the

desired value.

h) Select the desired operating mode.

Reset

User-defined settings:

,and simultaneously for 3 seconds:

This resets all temperature and time settings of the program selection slider to default

values (see also "Factory settings" in the operating instructions). The expert settings

remain unchanged.

The clock starts at 12 p.m., the date on 01-01-08 (01 January 2008).

During the reset, all display fields are lit and can be checked accordingly.

All user-defined settings plus expert settings:

Press the DIP switch reset button

1342

2211Z32

56 7 89

,and simultaneously for 5

seconds:

After the reset, all factor settings are reloaded. This applies to the program selection

slider as well as to the expert settings.

The controller starts with an initialization phase of 180 seconds after each reset. In

this phase, the actuator is driven to the basic position CLOSED.

Important: Driving the actuator to the fully CLOSED position takes max. 150

seconds. After a reset, reinsert the controller in the base within

30 seconds.

Autres manuels pour REV34

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siemens Régulateurs de température

Siemens

Siemens SIMATIC Manuel utilisateur

Siemens

Siemens SITRANS T Series Guide de l'administrateur

Siemens

Siemens RVL470 Manuel de l'opérateur

Siemens

Siemens Landis & Staefa RAV12 Series Manuel utilisateur

Siemens

Siemens RLE162 Manuel utilisateur

Siemens

Siemens RDD10 Series Manuel utilisateur

Siemens

Siemens REV23 Manuel utilisateur

Siemens

Siemens UP 237K Manuel utilisateur

Siemens

Siemens TALON Manuel utilisateur

Siemens

Siemens 1000 series Manuel utilisateur

Siemens

Siemens RDH10RF Manuel utilisateur

Siemens

Siemens SITRANS TS100 Guide de l'administrateur

Siemens

Siemens RDX42.22U Manuel du propriétaire

Siemens

Siemens 2000 Series Manuel utilisateur

Siemens

Siemens RLE132 Manuel utilisateur

Siemens

Siemens RDH10RF/SET Manuel utilisateur

Siemens

Siemens RDX Series Manuel utilisateur

Siemens

Siemens QAA910 Manuel utilisateur

Siemens

Siemens REV24RF Manuel utilisateur

Siemens

Siemens RLA162 Manuel utilisateur

Siemens

Siemens AVS13.399 Manuel utilisateur

Siemens

Siemens SITRANS TS100 Guide de l'administrateur

Siemens

Siemens RDE series Manuel utilisateur

Siemens

Siemens DT-11 Instructions d'installation et d'utilisation

Manuels Régulateurs de température populaires d'autres marques

Swegon

Swegon LUNAd MB Manuel utilisateur

Lucky Reptile

Lucky Reptile Thermo Control II Manuel utilisateur

SENSORMETRIX

SENSORMETRIX Argon 100 Manuel utilisateur

Fuji Electric

Fuji Electric PXE4 Manuel utilisateur

Yuyao gongyi

Yuyao gongyi XMT-808 series Manuel utilisateur

Selec

Selec TC544C Manuel utilisateur

P.W. KEY

P.W. KEY rt-208gt Manuel utilisateur

Future Design

Future Design FDC-9200 Manuel utilisateur

BH Thermal

BH Thermal BriskONE Manuel utilisateur

Omron

Omron E5EX-H Manuel utilisateur

West Control Solutions

West Control Solutions KS 45 Guide de démarrage rapide

MCS

MCS RITC-15B Manuel utilisateur

SMC Networks

SMC Networks Thermo-con INR-244-639 Manuel utilisateur

eltherm

eltherm Ex-TC It Series Manuel utilisateur

Omron

Omron C200H-TV Series Manuel utilisateur

industrie technik

industrie technik CA1 Manuel utilisateur

KRAL

KRAL EET 32 Manuel utilisateur

dixell

dixell XR420C Schéma de câblage
