Siemens Landis & Staefa REV11 Series Manuel utilisateur

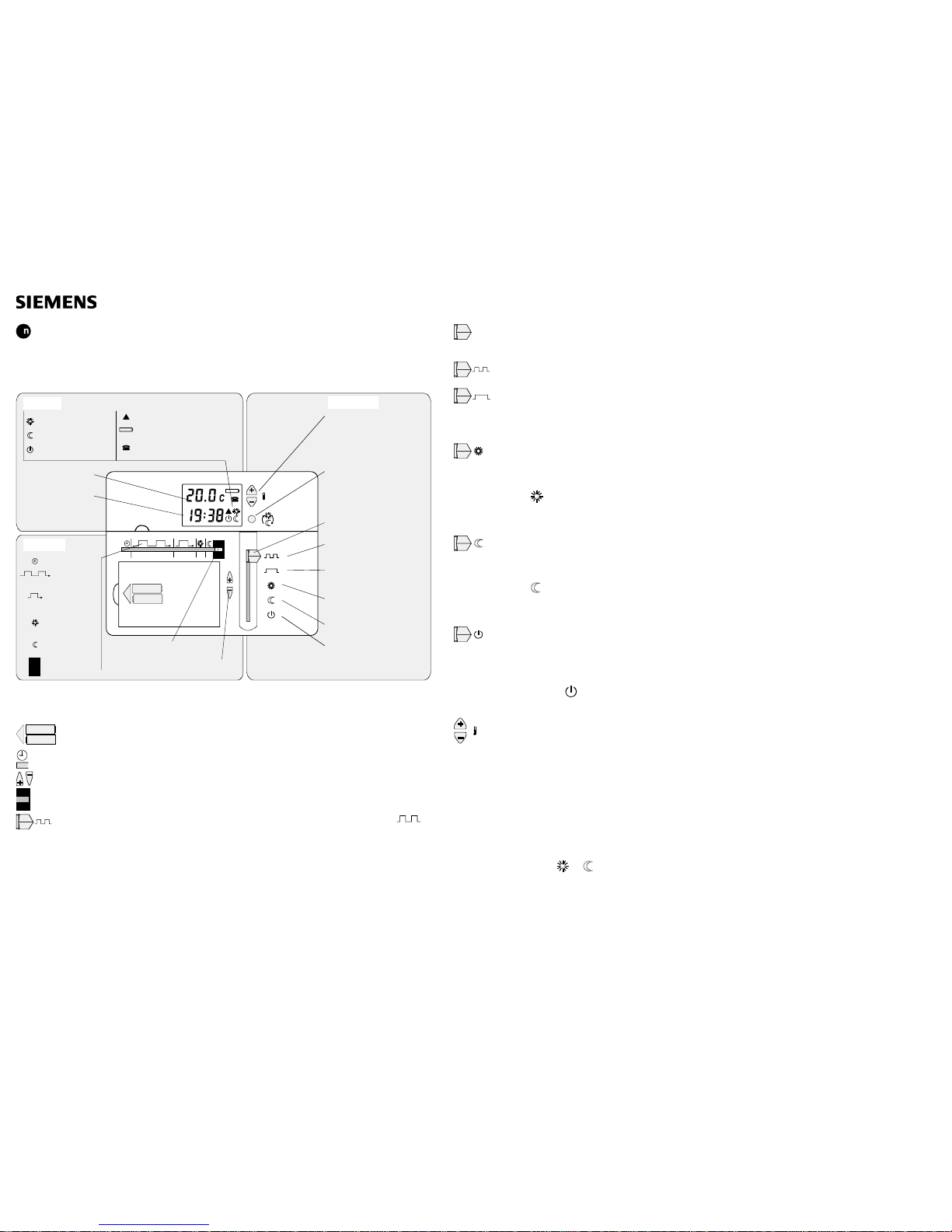

Operating instructions Landis & Staefa REV11…

REV11… - the temperature controller that allows you to set the ideal room temperature at the

time you want. There are two switching patterns available that can be set to suit your specific

needs. You can either rely on the factory settings or make settings tailored to your personal

needs.

Setting slider

Changing the setting values

Display

Settin

Time of day

Room temperature

(measured)

Time of day

Remote operation active

(if connected)

Standby

Normal temperature Heating on

Economy temperature Replace batteries

°C

1.5V 'AA'

Operation

Continuous

normal temperature

Continuous

economy temperature

Standby

with frost protection

Operating mode

selector

Change

between normal and

economy mode up to the

next switching point

Warmer/colder setting

valid up to the next

switching point

(increments of 0.2 ºC,

± 4 ºC max.)

24-hour mode A

with 2 heating periods

Auto

Run

A1 A2 A3 A4 B1 B2

Operating

position

Auto

Run

Economy

temperature

Normal

temperature

Switching times

B1...B2

B1 B2

Switching times

A1...A4

A1 A2 A3 A4

2222Z11E

24-hour mode B

with 1 heating period

Commissioning with quick startup

The controller is supplied with factory-set switching patterns, switching times and

temperatures. To commission it, proceed as follows:

1.5V 'AA'

1.5V 'AA' Remove the black transit tabs from the two batteries. Check to see if the battery

holder is in its correct position. The controller switches itself on.

Move the setting slider to the time position.

Press buttons to set the correct time of day.

Auto

Run Move the setting slider back to position on the right, because only that position

allows you to close the cover.

ASelect the required operating mode with the operating mode selector (e.g. A).

Fold up the operating instructions again, place them back into the cover and close the cover

again.

Do you want to use automatic

operation?

If that is the case, set the operating

mode selector to one of the

following positions:

AYou use the 24-hour setting Awith

two heating periods.

BYou use the 24-hour setting Bwith

one heating period.

Do you require continuous normal

temperature?

Move the operating mode selector

to «Normal temperature». This

ensures continuous heating to the

normal temperature. The display

shows .

Do you require continuous economy

temperature?

Move the operating mode selector

to «Economy temperature». This

ensures continuous heating to the

economy temperature. The display

shows .

Do you require continuous standby

with frost protection?

Move the operating mode selector

to «Standby». In that case, heating

is provided only when the room

temperature falls below the preset

frost protection limit (5 °C). The

display shows .

Do you feel too warm or too cold?

°C By pressing these buttons, you

increase or decrease the actual

room temperature in increments of

0.2 °C by a maximum of ±4°C. The

display first shows the newly

selected temperature and then the

actual value again. These

changes are valid only up to the

next switching point.

If, as a

result of the factory settings, you

always feel either too warm or too

cold, you should readjust the

temperature or to suit your

needs

CE1B2222E / 27.01.1999 Subject to alteration Siemens Building Technologies / Landis & Staefa Division

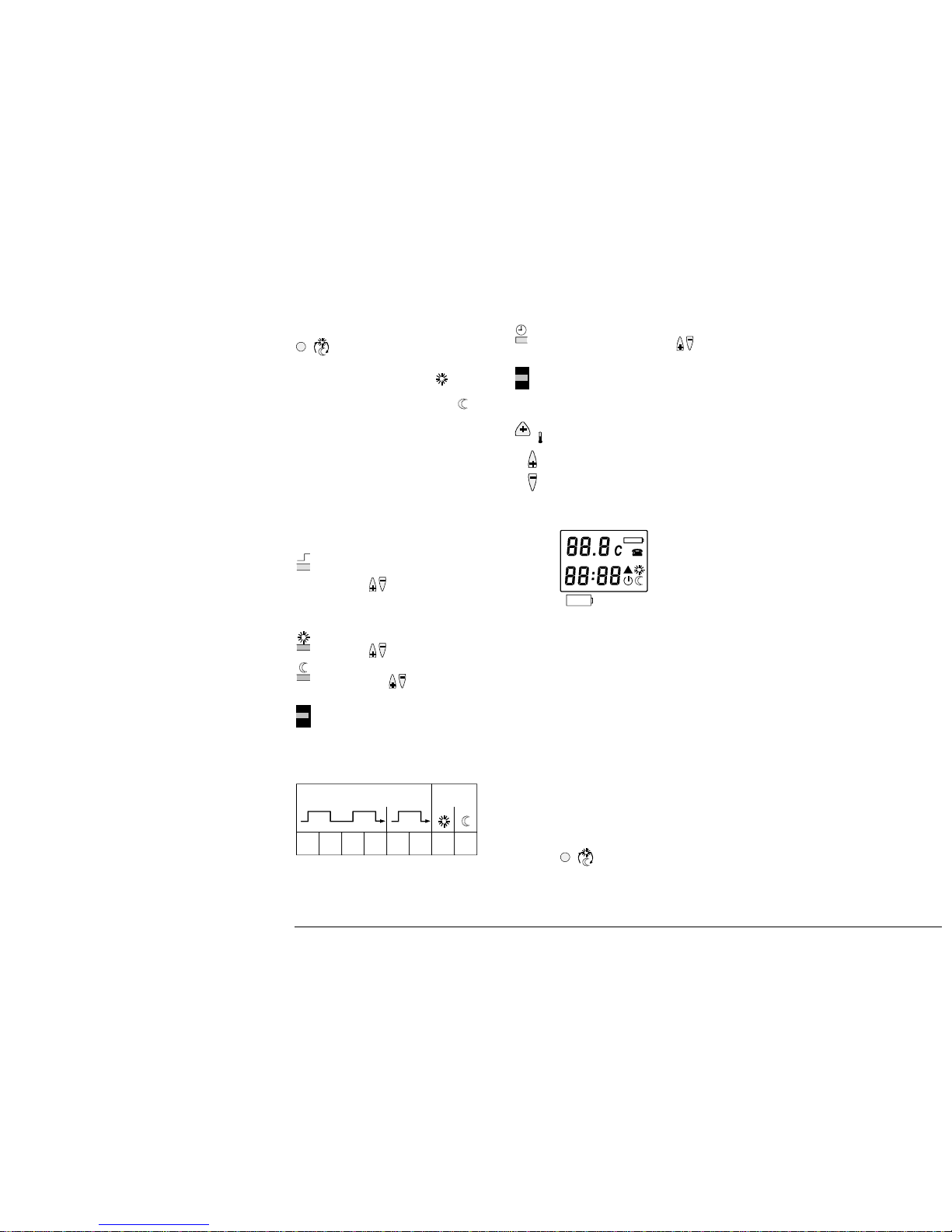

Do you want to change the

temperature level or will you be

absent for a short period of time?

When pressing this button, you

change from the current

temperature level to the other. The

display shows either , when the

change was made from the

economy temperature, or , when

it was made from the normal

temperature. This means you can

select the economy temperature

during the time you are absent.

These changes are valid only up

to the next switching point.

Do you want to enter your own

temperatures and heating periods?

The controller has two different switching

patterns (A/B).

Proceed as follows:

Move the setting slider to the

switching position (e.g. A1) and

press to enter the required

switching time.

All the other

switching positions (A2…A4 and

B1…B2) are set the same way.

Select «Normal temperature» and

press to set the required value.

Select «Economy temperature»

and press to set the required

value.

Auto

Run Move the setting slider back to this

position and close the cover.

Table for entering selected values

Enter the values set by you in the following

table. The numbers already contained in the

table represent factory settings.Temp.Switchin

times

A1 A2 A3 A4 B1 B2

6.00 9.00 17.00 22.00 7.00 23.00 20° C 16° C

2222Z12E

Do you need to change the time of

day? Move the setting slider to the time

of day position and press to

set the correct time of day.

Auto

Run Move the setting slider back to this

position and close the cover.

Do you wish to return to the factory

settings?

°C By pressing these three buttons

simultaneously, a complete reset is

made, which means that the

switching times and temperatures

will be reset to their default values.

Caution: all individual settings

will be lost! At the same time, a

display check is made, which looks

as follows:

2222Z13

Does the symbol appear in the

display?

If this symbol appears, you need to replace

the batteries within the next three months.

Do you want to change the batteries?

• Get two new alcaline batteries type AA,

1.5 V.

• Remove the battery holder, then the

batteries, insert the new batteries and

replace the battery holder. Caution: The

setting data are maintained fora

maximum of one minute only!

• Make certain the old batteries are

disposed of properly, in compliance with

environmental requirements.

Energy saving tips without sacrificing

comfort

• Never allow room temperatures to exceed

21 °C.

• Press to change to economy

temperature, even if you are absent for

short periods of time only.

• Air out the rooms for short periods of time

only, but properly, with the windows wide

open.

Auxiliary functions

Your room temperature controller provides a

number of auxiliary functions, but these

should only be set by your heating engineer.
