RCU50U and RCU50.2U

Technical Instruction

Document No. 155-327P2

Rev. 1, March, 200

Room Temperature Controllers for

CAV Systems

RCU50U

RCU50.2U

Siemens Building Technologies, Inc.

Description The RCU microprocessor controlled CAV room controller is designed for air only, or air

and water heating and/or cooling systems. Controllers have proportional response.

Features • Modulating P-control

• 0 to 10 Vdc output for heating or cooling

• Automatic heating/cooling changeover (RCU50U)

• Manual heating/cooling changeover (RCU50.2U)

• Operating modes: Normal, Energy Saving, Frost Protection and Standby (RCU50U)

• Operating modes: Normal and OFF (RCU50.2U)

• Active 0 to 10 Vdc input for set point shifting (RCU50U)

• Operating mode changeover input for remote control (RCU50U)

• Adjustable minimum limitation for cooling output (RCU50U)

• Operating voltage 24 Vac

Application Controlling individual room temperature in HVAC installations that are heated or cooled

Controlling these types of equipment:

• Valve actuators

• Air damper actuators

Product Numbers Table 1.

Product Numbers Features

RCU50U Without operating mode selector

RCU50.2U With manual heating/cooling changeover switch

NOTE: To order without logo, change suffix to "/U/NL". Example: RCU50/U/NL.

Technical Instructions RCU50U and RCU50.2U Room Temperature Controllers

Document Number 155-327P25 for CAV Systems

Rev. 1, March, 2002

Page 2 Siemens Building Technologies, Inc.

Ordering The temperature sensor, changeover mounting kit, and valve and damper actuators

must be ordered separately.

Table 2. Equipment Combinations.

Product Numbe

Description Technical Instructions

QAH11.1 Temperature sensor 155-329P25

GDE16… 44 lb-in NSR Air damper actuator

GLB16… 88 lb-in NSR Air damper actuator

155-187P25

SSB61U Valve actuator 155-192P25

SSC61U

SSC61.5U Valve actuator 155-313P25

SQS65U

SQS65.5U Valve actuator 155-190P25

Function The controller measures the room temperature with its integrated sensor and maintains

the set point by delivering 0 to10 Vdc control commands. The RCU50U and RCU50.2U

provide P-control. With the RCU50U, the proportional band can be 2°F or 7°F (1°C or

4°C) in heating mode and 1°F or 3.5°F (0.5°C or 2°C) in cooling mode (selectable with

DIP Switch No. 4). With the RCU50.2U, the proportional band is fixed, 7°F (4°C) in

heating mode and 3.5°F (2°C) in cooling mode.

• RCU50U – When in the heating mode, on increase in temperature, the output signa

goes down (Reverse Acting - R.A.) from 10 to 0 volts. When in cooling mode, on

increase in temperature, the output signal goes up (Direct Acting - D.A.) from 0 to 1

volts.

• RCU50.2U – The output signal can be reversed 0 to 10 or 10 to 0 volts via the DIP

switch.

Heating-Cooling with

Minimum Limitation

Cooling

TH0577R1

T [˚F]

XpKXpH W

Y10 [%] Y10 [%]

100

c/o

T Room temperature

Y10 Output percentage

W Room temperature set point

XpH Proportional band heating

XpK Proportional band cooling

VR 0 to 100% minimum limitation of

cooling output

c/o Changeover

Figure 1. RCU50U Function Diagram.

Heating-Cooling

TH0578R1

T [˚F]

XpK

XpH W

Y10 [%] Y10 [%]

100

c/o

T Room temperature

Y10 Output percentage

W Room temperature set point

XpH Proportional band heating

XpK Proportional band cooling

c/o Changeover

Figure 2. RCU50.2U Function Diagram.

Minimum Limitation of

Cooling Signal

RCU50U

Using the potentiometer located on the circuit board, the cooling signal output can be

limited to a minimum value of between 0 and 100%. This can be used to ensure a

minimum supply air volume. When used in connection with a VAV controller, this

setting must be taken into account. To set minimum limitation, use a screwdriver to

adjust the potentiometer (see Figure 3). Values on the scale are percentage of full

operation.

RCU50U and RCU50.2U Room Temperature Controllers Technical Instructions

For VAV Systems Document Number 155-327P25

Rev. 1, March, 2002

Siemens Building Technologies, Inc. Page 3

Minimum Limitation of

Cooling Signal,

Continued

Figure 3. Potentiometer Location (RCU50U).

Inversion of Output

Signal

RCU50.2U

With the RCU50.2U, the output signal can be inverted with the help of DIP Switch

No. 1. If set to ON, 0V corresponds to 0% travel and 10V to 100% travel. In position

OFF, 0V corresponds to 100% travel and 10V to 0% travel.

Set Point Shifting

RCU50U Signal Input 1 and 2 is used for outside temperature compensation. Using a 0 to 10 Vd

signal, the set point can be shifted by ±22.5°F at 72°F set point. The neutral position is

at 5 Vdc and means no set point shift.

TH0621R1

(72ºF) 10

22.5ºF

22.5ºF 22.5ºF

W2 W1

72ºF

WT [ºF]

100

heating cooling

Set Point Shift (K)

InputVoltage (V)

Q(%)

W Original set point

W1 Highest set point at 10V input

W2 Lowest set point at 0V input

set point shift

(V) Input voltage

Figure 4. Set Point Shifting (RCU50U).

Automatic Changeover

RCU50U The water temperature measured by the changeover sensor (QAH11.1) is used by the

controller to switch from heating to cooling mode, or vice versa. When the water

temperature is above 82°F (28°C), the controller switches to heating mode; below

61°F (16°C) it switches to cooling mode.

TH0579R1

(

(16) 82

(28)

CM Cooling mode

HM Heating mode

M Operating mode

TWWater temperature

Figure 5. Automatic Changeover Mode.

Technical Instructions RCU50U and RCU50.2U Room Temperature Controllers

Document Number 155-327P25 for CAV Systems

Rev. 1, March, 2002

Page 4 Siemens Building Technologies, Inc.

Set Point Limit Stops The room temperature set point can be limited in increments of 2°F (1°C) by using the

minimum and maximum set point limit stops. This prevents arbitrary set point

readjustments.

To set limit stops, remove the set point knob by pulling it straight off the shaft.

Reposition gray tabs for high and low stops in the holes around the perimeter of knob

as required. See Figure 6.

Cº

85ºF

TH0625R1

Figure 6. Set Point Limit Stops.

Operating Modes

Normal Mode

When dry contact (D1 and Ground) is open, the set point knob setting takes over

control and normal mode is initiated.

Frost Protection Mode

(RCU50U)

Frost protection mode can be initiated by activating the external operating mode

changeover switch, if DIP Switch No. 1 is set to OFF.

If the room temperature falls below 46°F (8°C), the controller will automatically switch t

frost protection mode. In that case, the heating valve opens and the room temperature

is maintained at a set point of 46°F (8°C). The set point adjusted by the user will be

ignored.

Energy Saving Mode Energy saving mode can be initiated by activating the external operating mode

changeover switch, if DIP Switch No. 1 is set to ON.

In energy saving mode, the heating set point is 61°F (16°C) and the cooling set point is

82°F (28°C), independent of the position of the set point knob.

Operating Mode

Changeover Switch

(RCU50U)

A changeover switch can be connected to status input D1–GND. When the switch

closes its contact (caused by an open window, for instance), the operating mode

changes from normal operation or standby to energy saving mode (if DIP Switch No. 1

is set to ON), or from normal operation or energy saving mode to standby (if DIP Switch

No. 1 is set to OFF).

The operating action of the switch (N.C. or N.O.) can be selected.

Mechanical Design The unit consists of two parts:

• Plastic housing which accommodates the electronics, the operating elements and

the built-in room temperature sensor.

• Controller base.

The housing snaps into the top and bottom of the mounting base.

RCU50U and RCU50.2U Room Temperature Controllers Technical Instructions

For VAV Systems Document Number 155-327P25

Rev. 1, March, 2002

Siemens Building Technologies, Inc. Page 5

Mechanical Design,

Continued The screw terminals are mounted on the base. The DIP switches and the potentiomete

are located at the rear of the unit. To access the DIP switches, remove the controller

from the controller base. See Figure 7.

Figure 7. Dip Switch Setting.

Table 3. RCU50U DIP Switches.

DIP Switch No

Meaning Position ON Position OFF

1 Operating mode changeove

via external switch Changeover between

normal operation and energy

saving mode

Changeover between normal

operation, energy saving and

standby1

2 Operating action of switch

for external operating mode

changeover

Changeover activated when

contact of switch is closed

(N.O.) 1

Changeover activated when

contact of switch is open

(N.C.)

3 Standby OFF Frost protection mode (heating

output ON at a set point of 46°F

(8°C)1

4 P-band 2°F (1°C) in heating mode

1°F (0.5 C) in cooling mode

7°F (4°C) in heating mode1

3.5°F (2°C) in cooling mode1

5 Cooling signal output in

energy saving mode Active Inactive1

Table 4. RCU50.2U DIP Switches.

DIP Switch

No. Meaning Position ON Position OFF

1 Signal inversion 0 to 10 Vdc Output signal 0 to 10 Vdc1Output signal 10 to 0 Vdc

1. Factory setting

Accessories ARG70 Adapter Plate for 2 × 4-inch or 4 × 4-inch conduit boxes

QAH11.1 Changeover/remote sensor

Notes • In systems without automatic changeover, the temperature sensor can be replaced

by an external switch for manual changeover.

• In systems with cooling only operation, the controller changeover input (terminals 2

and 3) must be bridged.

• In systems with heating only operation, do not connect sensor to, or bridge

controller changeover input (terminals 2 and 3).

Technical Instructions RCU50U and RCU50.2U Room Temperature Controllers

Document Number 155-327P25 for CAV Systems

Rev. 1, March, 2002

Page 6 Siemens Building Technologies, Inc.

Notes, Continued • Check the settings of DIP Switches No. 1 through No. 5 and of the potentiometer of

the RCU50U, and of DIP Switch No. 1 of the RCU50.2U and change them, if

required

• After applying power, the controller makes a reset, which takes about three

seconds; it is then ready to operate.

• The unit can be located on a wall of the room to be conditioned. Do not mount in

direct sunlight or near other heat or refrigeration sources.

• Mounting height is approximately 60 inches (150 cm) above the floor. (See

Figure 8.)

• The connecting wires can be run to the controller from a recessed conduit box.

• The controller should be opened by authorized personnel only.

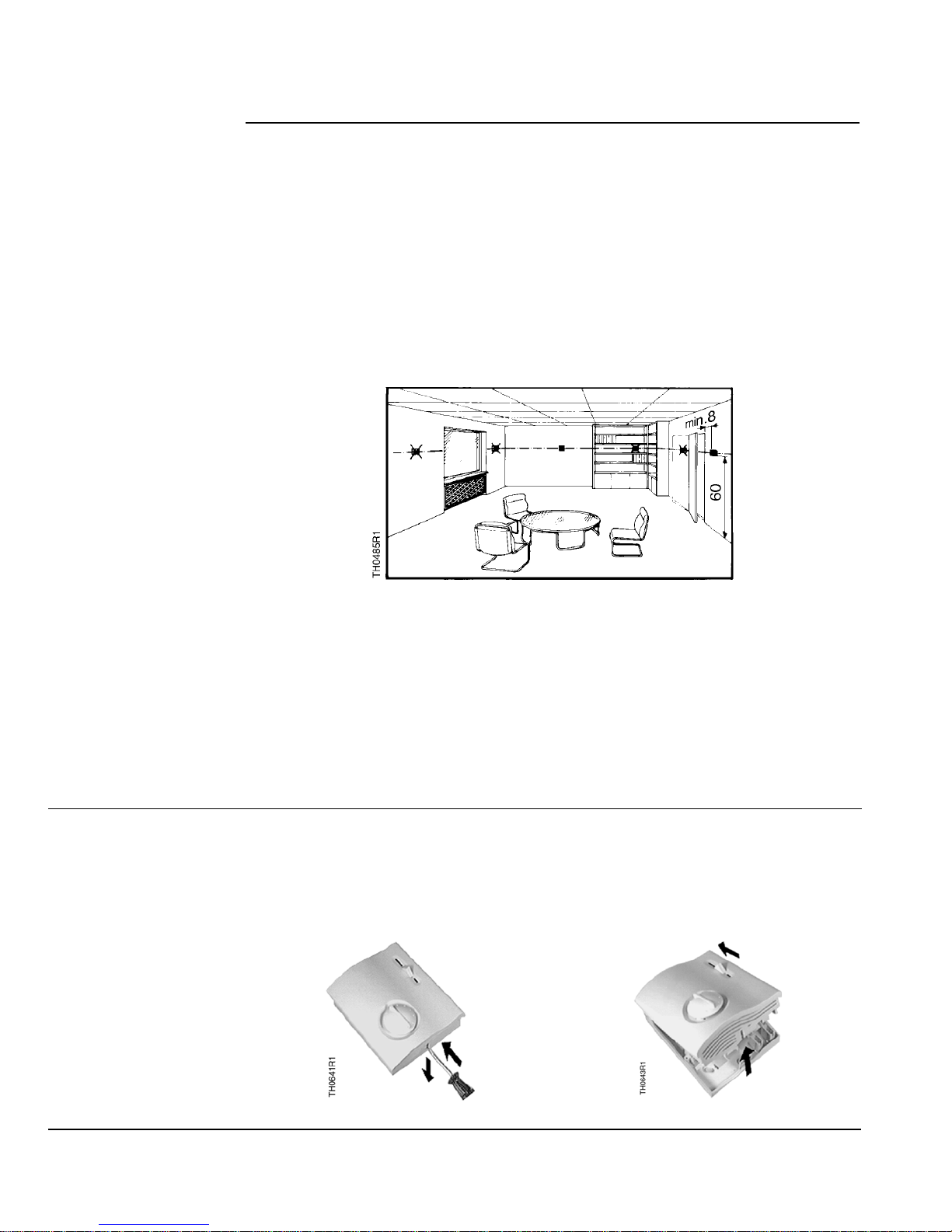

Figure 8. Acceptable Mounting Height.

• When mounting the unit, attach the controller base first. Then, make the electrical

connections and fit and secure the cover.

• The controller must be mounted on a flat wall and in compliance with local

regulations.

• Any radiator valves in the room must be set to their fully open positions upon start-

up.

• User input via set point knob or operating mode/fan speed selector (RCU50.2U

only) results in instantaneous response. There is a one-minute delay before

changes made to temperature sensing and changeover are implemented.

Drywall Mounting 1. Insert a small screwdriver into the bottom of the controller and press in the tab

located in center of the controller.

2. Lift the bottom of the controller from the controller base and push up to remove

cover from two tabs located at the top of the controller base.

3. Separate the controller base from the controller.

Figure 9. Thermostat Cover Separation.

RCU50U and RCU50.2U Room Temperature Controllers Technical Instructions

For VAV Systems Document Number 155-327P25

Rev. 1, March, 2002

Siemens Building Technologies, Inc. Page 7

Drywall Mounting,

Continued 4. Using the controller base as a template, mark the hole locations with a pencil.

5. Drill two 1/4-inch diameter holes for plastic wall anchors.

6. Using a mallet, tap in the plastic wall anchors flush with wall.

7. Pull the wiring through the opening in the upper portion of the controller base.

8. Level mounting plate.

9. Using the two wood screws provided, fasten controller base to wall. Thermostat is

not position sensitive.

10. Pull the wiring through the controller base.

11. Position controller housing over the two mounting lugs located at the top of the

controller base, and press down on cover until bottom lugs snap in place.

12. Terminate wires per wiring instructions located above the terminal block.

Figure 10. Wiring Termination.

13. Reattach the controller to the controller base.

Figure 11. Controller Reattachment.

14. Return selector switches to the normal position (RCU50.2U only). Adjust set point

dial to desired setting.

The installation is now complete.

Technical Instructions RCU50U and RCU50.2U Room Temperature Controllers

Document Number 155-327P25 for CAV Systems

Rev. 1, March, 2002

Page 8 Siemens Building Technologies, Inc.

4 × 4-inch Electrical Wal

Box Mounting An ARG70 wall plate adapter is required to mount an RCU50U or RCU50.2U controller

to a 4 × 4-inch electrical wall box. The ARG70 wall plate adapter is included with

electrical wall box mount models.

1. Insert a small screwdriver into the bottom of the controller and press in the tab

located in center of the controller.

2. Lift the bottom of the controller from the controller base and push up to remove

cover from two tabs located at the top of the controller base.

3. Separate the controller base from the controller.

4. Using the four screws provided, fasten wall box adapter (3) to plaster ring (2).

(Plaster ring supplied by others.)

5. Flex adapter mask (4) and snap in place inside wall box adapter (3).

6. Fasten the controller base (5), included with controller, to wall box adapter

assembly (3) and (4) with the two screws provided.

7. Pull wires through plaster ring (2).

8. Follow Drywall Mounting Steps 6 through 15.

The installation is now complete.

TH0567R1

Figure 12. 4 × 4-inch Electrical Wall Box Installation.

1 Electrical wall box

2 Plaster ring

3 Wall box adapter *

* Included with ARG70

4 Adapter mask *

5 Controller base

6 Controller

RCU50U and RCU50.2U Room Temperature Controllers Technical Instructions

For VAV Systems Document Number 155-327P25

Rev. 1, March, 2002

Siemens Building Technologies, Inc. Page 9

2 × 4-inch Electrical Wal

Box Mounting An ARG70 wall plate adapter is required to mount an RCU50U or RCU50.2U controller

to a 2 × 4-inch electrical wall box. The ARG70 wall plate adapter is included with

electrical wall box mount models.

1. Insert a small screwdriver into the bottom of the controller and press in the tab

located in center of the controller.

2. Lift the bottom of the controller from the controller base and push up to remove

cover from two tabs located at the top of the controller base.

3. Separate the controller base (5) from the controller (6).

4. Using the two screws provided, fasten wall box adapter (3) to plaster ring (2).

(Plaster ring supplied by others.)

5. Flex adapter mask (4) and snap in place inside wall box adapter (3).

6. Pull wires through plaster ring (2).

7. Fasten the controller base (5) to wall box adapter assembly (3) and (4) with the two

screws provided.

8. Follow Drywall Mounting Steps 6 through 15.

The installation is now complete.

TH0568R1

Figure 13. 2 × 4-inch Electrical Wall Box Installation.

1 Electrical wall box

3 Wall box adapter *

4 Adapter mask *

* Included with ARG70

5 Controller base

6 Controller

Technical Instructions RCU50U and RCU50.2U Room Temperature Controllers

Document Number 155-327P25 for CAV Systems

Rev. 1, March, 2002

Page 10 Siemens Building Technologies, Inc.

Specifications

Power Supply

Operating voltage 24 Vac ±20%

Control action (P) Proportional

Frequency 50/60 Hz

Functional Data Set point setting range 50°F to 85°F (10°C to 30°C)

P-band in heating mode

RCU50U 2°F or 7°F (1°C or 4°C)

RCU50.2U (fixed) 7°F (4°C)

P-band in cooling mode

RCU50 1°F or 3.5°F (0.5°C or 2°C)

RCU50.2 (fixed) 3.5°F (2°C)

Set point (Energy Saving Mode ), heating 61°F (16°C)

Set point (Energy Saving Mode ), cooling 82°F (28°C)

Set point Frost Protection 46°F (8°C)

Set point shift temperature @ 72°F (22°C) ±22.5°F (±40°C)

Control outputs, terminals 4 and 5

Voltage 0 to 10 Vdc

Current ±1 mA

Status input D1 (RCU50U)

Contact sensing 6 to 15 Vdc/3 to 6 mA

Insulation against live voltage 4 kV

Maximum number of contacts connected 50

in a panel

Status inputs 1 and 2 (RCU50U)

Set point shift of ± 22.5°F @ 72°F (22°C) 0 to 10 Vdc

Neutral position (no set point shift) 5 Vdc

Signal input terminals 2 and 3 for changeover QAH11.1 safety class 2

sensor

NTC resistor 3K Ω@ 77°F (25°C)

Maximum copper cable length 16 AWG

For Input Signal terminals 1 & 2 (RCU50U) 262 feet (80m)

For Input Signal D1 (RCU50U) 262 feet (80m)

Environmental

Conditions Operation

Temperature 32°F to 122°F (0°C to 50°C)

Humidity <95% rh

Shipping and storage

Temperature –13°F to 158°F (–25°C to 70°C)

Humidity <95% rh

Agency Approvals UL listed UL 873

Conforms to CE requirements

cUL certified to Canadian Standard

C22.2 No. 24-93

General Connection terminals Use solid wires or prepared stranded

wires. 2 × 16 AWG or 1 × 14 AWG

Maximum 20 AWG

Weight

RCU50U 0.5 lb (0.23 kg)

RCU50.2U 0.5 lb (0.23 kg)

Housing color

Cover White

Base Gray

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siemens Régulateurs de température

Siemens

Siemens RDF110 Manuel utilisateur

Siemens

Siemens SITRANS T Series Guide de l'administrateur

Siemens

Siemens REA23.03RF Manuel utilisateur

Siemens

Siemens RLM162 Manuel utilisateur

Siemens

Siemens RDD310 Manuel utilisateur

Siemens

Siemens Free Energy Band RCU61U Manuel du propriétaire

Siemens

Siemens SITRANS TS100 Guide de l'administrateur

Siemens

Siemens 24RFDC/SET Manuel utilisateur

Siemens

Siemens RDF300 Series Manuel de l'opérateur

Siemens

Siemens Polygyr-Compact Manuel du propriétaire

Siemens

Siemens RVL470 Manuel de l'opérateur

Siemens

Siemens Synco 900 Mode d’emploi

Siemens

Siemens REV23 Manuel utilisateur

Siemens

Siemens RDX Series Manuel utilisateur

Siemens

Siemens RDJ10RF/SET Manuel utilisateur

Siemens

Siemens QAA2290.EWSC Manuel utilisateur

Siemens

Siemens Landis & Staefa REV11 Series Manuel utilisateur

Siemens

Siemens RDF20U Manuel utilisateur

Siemens

Siemens REV23RF16A Manuel utilisateur

Siemens

Siemens QAA70 Manuel utilisateur

Siemens

Siemens REV23 Manuel utilisateur

Siemens

Siemens Expert Series Guide de démarrage rapide

Siemens

Siemens 5TC9774-5 Series Manuel utilisateur

Siemens

Siemens 5TC9774-4 Series Manuel utilisateur

Manuels Régulateurs de température populaires d'autres marques

Swegon

Swegon LUNAd MB Manuel utilisateur

Lucky Reptile

Lucky Reptile Thermo Control II Manuel utilisateur

SENSORMETRIX

SENSORMETRIX Argon 100 Manuel utilisateur

Fuji Electric

Fuji Electric PXE4 Manuel utilisateur

Yuyao gongyi

Yuyao gongyi XMT-808 series Manuel utilisateur

Selec

Selec TC544C Manuel utilisateur

P.W. KEY

P.W. KEY rt-208gt Manuel utilisateur

Future Design

Future Design FDC-9200 Manuel utilisateur

BH Thermal

BH Thermal BriskONE Manuel utilisateur

Omron

Omron E5EX-H Manuel utilisateur

West Control Solutions

West Control Solutions KS 45 Guide de démarrage rapide

MCS

MCS RITC-15B Manuel utilisateur

SMC Networks

SMC Networks Thermo-con INR-244-639 Manuel utilisateur

eltherm

eltherm Ex-TC It Series Manuel utilisateur

Omron

Omron C200H-TV Series Manuel utilisateur

industrie technik

industrie technik CA1 Manuel utilisateur

KRAL

KRAL EET 32 Manuel utilisateur

dixell

dixell XR420C Schéma de câblage
