SpeedStream®

Residential Gateway

6500 Series

Quick-Start Guide

Part # 007-6510-001

• •

Before you begin,

Verify that the following items came with your DSL kit:

1 SpeedStream® Device

2 Documentation

3 Software Manual CD-ROM

(Router model only)

4 Power supply

5 RJ-45 Straight-through

Ethernet cable

6 RJ-11 DSL cable

Your service provider may include an Ethernet adapter, a line lter, and a wall-mount

lter in your DSL kit. If you received any of these items, follow the instructions

provided in this guide for basic installation. If you need further assistance installing

these items, please contact your service provider.

A PCI Ethernet adapter

B Line lter(s)

C Wall-mount lter

Step 1 >

Install Line Filters

Stand-alone Line Filter

Wall-mount Filter

Devices such as fax machines, caller

ID boxes, or phones that share

the same phone line as your DSL

account require a line lter, which

prevents noise from disrupting the

DSL signal on the phone line. Filters

can be in the form of a stand-alone

line lter or a wall-mount lter.

Stand-alone Line Filter

For each device that shares the

DSL phone line:

1. Unplug the device’s cord from

the phone jack.

2. Plug the lter into the

phone jack.

3. Plug the phone cord (or other

device cord) into the lter.

Wall-mount Filter

For a wall-mount phone, install a

wall-mount lter.

1. Remove the phone.

2. Connect the wall-mount lter

to the wall plate.

3. Reconnect the phone.

Step 2 >

Choose an Installation Method

The SpeedStream® 6500 and 6515 devices can only be connected to an Ethernet port;

the SpeedStream® 6520, 6530, and 6540 devices can be connected to an Ethernet

port and/or a USB port. To connect to an Ethernet port, compete the steps in Option A.

To connect to a USB port, complete the steps in Option B.

Connect the SpeedStream® Device

1. Connect the straight-

through Ethernet cable

(RJ-45) to the Ethernet

port on the SpeedStream®

device (yellow port).

2. Connect the other end

of the straight-through

Ethernet cable (RJ-45)

to the Ethernet port

on your computer.

3. Plug the DSL cable (RJ-11)

into the DSL port on the

SpeedStream® device

(gray port).

4. Plug the other end of

the DSL cable (RJ-11)

into the phone jack.

5. Plug the power adapter

into the power outlet

and SpeedStream® device

(black port).

6. Ensure the SpeedStream®

device is powered on (power

switch located on right side

of back panel).

Option A >

Ethernet Installation Method

Install Ethernet Adapter

You will need to install an Ethernet

adapter if your computer does not

already have one installed. Refer to

your Ethernet adapter manufacturer’s

documentation for complete

installation instructions.

Internet connection

Ethernet connection

to computer RJ-45

Straight-through

Ethernet cable

Optional:

use crossover

(Xover) cable when

connecting to a hub

or switch without an

“uplink” port

Power supply

Hub

RJ-11 DSL cable

You have completed the installation of your SpeedStream®

hardware. There is no software installation required when

using the Ethernet connection method. If you have the

router model, proceed to Step 3 to congure your router

and connect to the Internet.

1. Connect the USB cable to the

USB port at the rear of the

SpeedStream® device (blue port).

2. Connect the other end to the USB

port on your computer.

3. Plug the DSL cable (RJ-11) into the

DSL port on the SpeedStream® device.

4. Plug the other end of the cable

(RJ-11) into the phone jack.

5. Plug the power adapter into the

power outlet and SpeedStream®

device.

6. Ensure the SpeedStream® device is

powered on (power switch located

on right side of back panel).

Connect the SpeedStream® Device

You have completed the installation of your SpeedStream

DSL hardware.

Install the USB driver software on your PC using one of the procedures below.

Internet connection

RJ-11 DSL cable

USB connection

to computer

Power supply

Software Installation

Before installing the software, make sure your Mac is running OS 8.6 or above. This procedure

will restart your computer to complete the installation.

1. Insert the SpeedStream

Installation CD into your CD-ROM drive.

2. Open the SpeedStream

Icon from the desktop.

3. Click Readme.txt.

4. Follow the directions in the Readme.txt to complete the software installation.

After the USB driver is installed, continue with PC Conguration Procedures described

on the next page.

Software Installation

You will need to install USB drivers if you are connecting the SpeedStream® device to your computer

via the USB port.

Before installing the software, make sure your PC is equipped with the following:

Windows® 98, Windows® 98 Second Edition (SE), Windows® 2000 Professional, Windows® Millennium Edition

(Me), or Windows® XP; 32 MB RAM; Pentium-compatible 166 MHz or faster processor; 12 MB available

hard disk space.

1. Insert the SpeedStream® Installation CD into your CD-ROM drive. This will

automatically start the software installation program. Follow the on-screen

directions to complete the software installation.

2. After the USB driver is installed, continue with PC Conguration Procedures

described on the next page.

If the software installation program does not automatically start, you can manually start it using the

following procedure.

1. Click Start > Run.

2. Browse to setup.exe on the CD and double-click it. This will start the software installation program.

3. Follow the on-screen directions to complete the software installation.

Option B >

USB Installation Method

Windows USB Driver Installation

Macintosh USB Driver Installation

Congratulations! You have

completed the installation of

your SpeedStream® device.

Step 3 >

PC Conguration Procedures

Windows Configuration

In order to setup the SpeedStream

device,

your PC must rst be congured to obtain

an IP address from a DHCP server. Follow the

procedure below:

Note: The following procedures cover conguration of a PC

running Windows

XP. Please refer to the User Guide on the

CD-ROM for help conguring other operating systems.

1. Click Start > Control Panel.

2. Double-click the Network

Connections icon.

3. Double-click your Network Card.

4. Click Properties.

5. Select Internet Protocol (TCP/IP).

6. Click Properties.

7. Select Obtain an IP address

automatically.

8. Select Obtain DNS server address

automatically.

9. Click OK and exit out of the Control Panel.

10. Congure Internet Access using the

procedure that follows.

Internet Access

Next, make sure your PC will use the

SpeedStream

device (and not Dial-Up

Networking) when connecting to the

Internet. Follow the procedure below:

1. Click Start > Control Panel.

2. Double-click the Internet Options icon.

3. Click the Connections tab.

4. Click Setup.

5. Click Next

6. Click Connect to the Internet

7. Click Next

8. Click Setup my connection manually

9. Click Next

10. Select Connect using a broadband

connection that is always on

11. Click Next

12. Click Finish

13. Congure the Gateway using the

Gateway Conguration procedure

that follows.

Congure the Gateway

Windows Me and XP users: If you have

Universal Plug and Play (UPnP) enabled,

Windows may detect the SpeedStream®

device upon startup and provide a Shortcut

to the device on the desktop or system task

tray. The icon will be labeled as “Residential

Gateway.” Double-click the icon and skip

to step 3.

1. Start your Web browser. In the Address box,

enter the following: http://speedstream.

2. Press Enter. The SpeedStream

Simple Setup

Wizard will launch.

3. At the end of the Setup Wizard, you will be

given the option to either connect to

the Internet or further congure the optional

settings of the gateway.

4. If additional conguration is desired, select

the icon for the service or option

you wish to congure: the gateway’s rewall

and security settings, User Proles and

content ltering, or home network options.

For non-standard congurations or troubleshooting procedures,

consult the User Guide on CD-ROM.

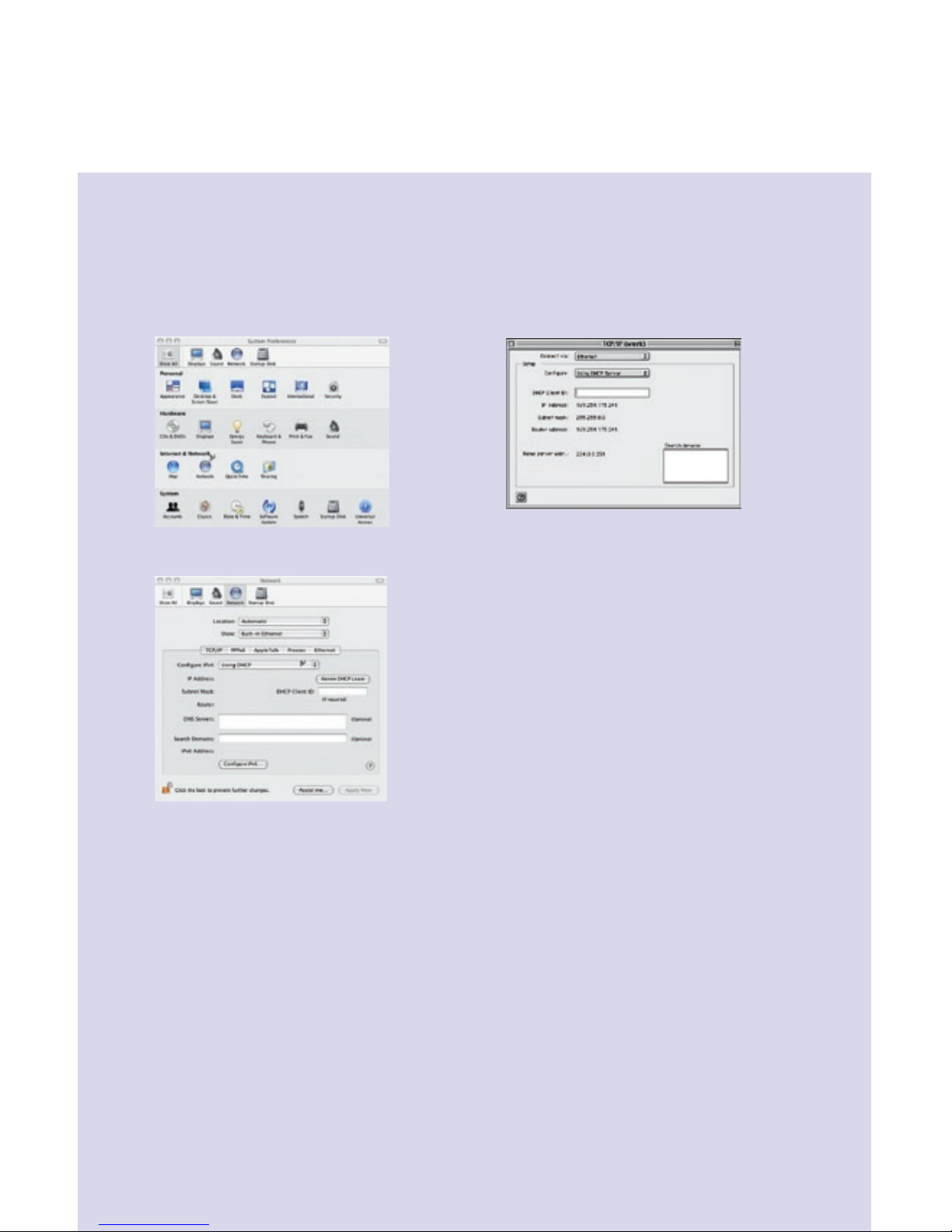

Macintosh Configuration

In order to setup the SpeedStream® device, your computer must rst be congured to obtain

an IP address from a DHCP server.

Follow the procedure below for OSX:

1. Click Apple -> System Preferences.

2. Select the Network icon under the

Internet & Network section.

3. Select Built-in Ethernet from the

Show drop-down menu.

4. Select Using DHCP Server from the

Congure IPv4 drop-down menu.

5. Click Apply Now and exit out of

System Preferences window.

6. Congure the Gateway using the

Gateway Conguration procedure

that follows.

Follow the procedure below for OS9:

1. Click Apple -> Control Panels -> TCP/IP.

2. Select Ethernet from Connect via

drop-down menu.

3. Select Using DHCP Server from the

Congure drop-down menu.

4. Close window and save changes.

5. Congure the Gateway using the

Gateway Conguration procedure

that follows.

Congure the Gateway

If your PC has not been connected to a

broadband modem or other network device,

you will need to perform the PC conguration

procedure below. Remember to restart each

PC when nished.

1. Start your Web browser. In the Address box,

enter the following: http://speedstream.

2. Press Enter. The SpeedStream

Simple

Setup Wizard will launch.

3. At the end of the Setup Wizard, you will

be given the option to either connect to

the Internet or further congure the

optional settings of the gateway.

4. If additional conguration is desired,

select the icon for the service or option

you wish to congure: the gateway’s rewall

and security settings, User Proles and

content ltering, or home network options.

For non-standard congurations or troubleshooting procedures,

consult the User Guide on CD-ROM.

Macintosh Conguration Procedures

Congratulations! You have

completed the installation of

your SpeedStream® device.

Troubleshooting

LED Off Green Blinking

Green

Blinking

Red/Green

Red

Power - Power not

applied

Normal system

operation

N/A Flash write

in progress

- POST in

progress

- POST error

occurred (if

persistent)

Ethernet - Power not

applied

- No link

Normal Ethernet

operation,

Link okay

User trafc

owing in either

direction

N/A N/A

Wireless - Power not

applied

- No link

Normal wireless

operation,

Link okay

Wireless user

trafc owing

in either direction

N/A N/A

DSL - Power not

applied

- DSL signal

not detected

DSL line is

trained and

ready for trafc

Steady blinking-

DSL line is

attempting

to train

N/A N/A

Internet - Power not

applied

- No LAN

data activity

- DSL link is up and

- WAN interface is

up and

- WAN interface

has IP Address

N/A N/A N/A

Activity

(if present)

- Power not

applied

- No WAN or

LAN activity

N/A LAN user trafc

owing in either

direction

N/A N/A

USB

(if present)

- Power not

applied

- No link

USB connected USB trafc

owing in

either direction

N/A N/A

HPNA

(if present)

- Power not

applied

- No link

- Normal HPNA

operation

- Link okay

HPNA trafc

owing in either

direction

N/A N/A

Home Plug

(if present)

- Power not

applied

- No link

- Normal Home

Plug operation

- Link okay

Home Plug trafc

owing in either

direction

N/A N/A

Siemens Subscriber Networks, Inc.

4849 Alpha Road

Dallas, TX 75244

(972) 852-1000

Fax (972) 852-1001

[email protected]

http://www.icn.siemens.com/subscriber

logo are trademarks of Siemens AG, Germany. All other trademarks are held by their respective companies.

Siemens reserves the right to make changes to product specications at any time without notice.

Autres manuels pour SpeedStream 6500 Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Siemens Porte

Siemens

Siemens SIMATIC RTLS Series Guide d'application

Siemens

Siemens WTT563 Series Manuel utilisateur

Siemens

Siemens SIMATIC IOT2050 Manuel utilisateur

Siemens

Siemens Tiastar LV MCC Manuel utilisateur

Siemens

Siemens FDCW241 Manuel utilisateur

Siemens

Siemens SIMATIC RTLS Series Manuel utilisateur

Siemens

Siemens NK8225 Manuel d'exploitation

Siemens

Siemens 5WG1 141-1AB31 Manuel de service

Siemens

Siemens FDCW241 Mode d’emploi

Siemens

Siemens Sinamics Connect Series Manuel utilisateur

Siemens

Siemens NK8237 MP4.81-02 Guide rapide

Siemens

Siemens Gigaset SE567 Manuel utilisateur

Siemens

Siemens DCW1151 Manuel utilisateur

Siemens

Siemens SCALANCE X-200 Manuel utilisateur

Siemens

Siemens 5935 Manuel utilisateur

Siemens

Siemens SIMATIC PN/M-Bus LINK Manuel utilisateur

Siemens

Siemens FDCW221 Manuel utilisateur

Siemens

Siemens DESIGO RXC Manuel utilisateur

Siemens

Siemens SIMATIC PN/J1939 LINK Manuel utilisateur

Siemens

Siemens OCT200.KNBA Manuel utilisateur

Siemens

Siemens Gigaset Optical LAN Adapter Duo Manuel utilisateur

Siemens

Siemens MindConnect Nano Manuel utilisateur

Siemens

Siemens SIMATIC NET IE/WSN-PA Link Guide de l'administrateur

Siemens

Siemens GAMMA 5WG1 143-1AB01 Manuel de service

Manuels Porte populaires d'autres marques

LST

LST M500RFE-AS Manuel utilisateur

Kinnex

Kinnex Media Gateway Manuel utilisateur

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuel utilisateur

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuel utilisateur

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuel utilisateur

Telsey

Telsey CPVA 500 - SIP Manuel utilisateur

RTA

RTA 460A-NNA4 Fiche technique

Shaw

Shaw Gateway HDPVR Manuel utilisateur

ABB

ABB VSN900 Guide de démarrage rapide

Commander

Commander Pulse Manuel utilisateur

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuel utilisateur

NETGEAR

NETGEAR C6300BD Manuel utilisateur

Amit

Amit CDW531AM Manuel utilisateur

HMS

HMS Netbiter EasyConnect EC150 Manuel utilisateur

Huawei

Huawei EchoLife HG620 Manuel utilisateur

AT&T

AT&T U-verse 3801 Manuel d'utilisation et d'entretien

Logic IO

Logic IO RTCU MX2 turbo Manuel utilisateur

Suttle

Suttle MediaMAX MXM-521 Manuel utilisateur
