Show Tec Galactic G-30 Manuel utilisateur

VERSION:2.0

This manual contains important laser system safety and operation

information. Read and understand all instructions prior to powering on

laser unit the first time, to avoid laser eye injury and to avoid breaking

the law. Keep this manual in a safe place for future reference.

USER MANUAL

1. FEATURES

zThis device has been designed to produce decorative effect lighting and is used

light show systems.

zSPARK is done with bran-new metal mode design, big difference from

traditional mini laser projector.

zThe high quality open loop 5kpps scanner is small size ,fast speed, stable

scanning, never missing step and fleshing.

zControlled by our new analogy driver and feed back PCB, it has faster and

better quality pattern.

zSeveral working modes:

{DMX controlled, 8channels

{Stand-alone with built-in microphone

{Stand-alone automatic mode

{Master/Slave mode(automatic&sound)

{Easy remote control

zDMX-addressing with LED display

zLaser Safety key switch

zComplies to EN/IEC 60825-1 for Laser Safety

2. BEFORE USE

zBefore you start using this unit, please check if there’s no transportation

damage. Should there be any, do not use the device and consult your dealer

first.

zImportant: This device left our factory is in perfect condition and well packaged,

It is absolutely necessary for the user to strictly follow the safety instruction and

warnings in this user manual. Any damage caused by mishandling is not

subject to warranty. The dealer will not accept responsibility for any resulting

defects or problems caused by disregarding this user manual.

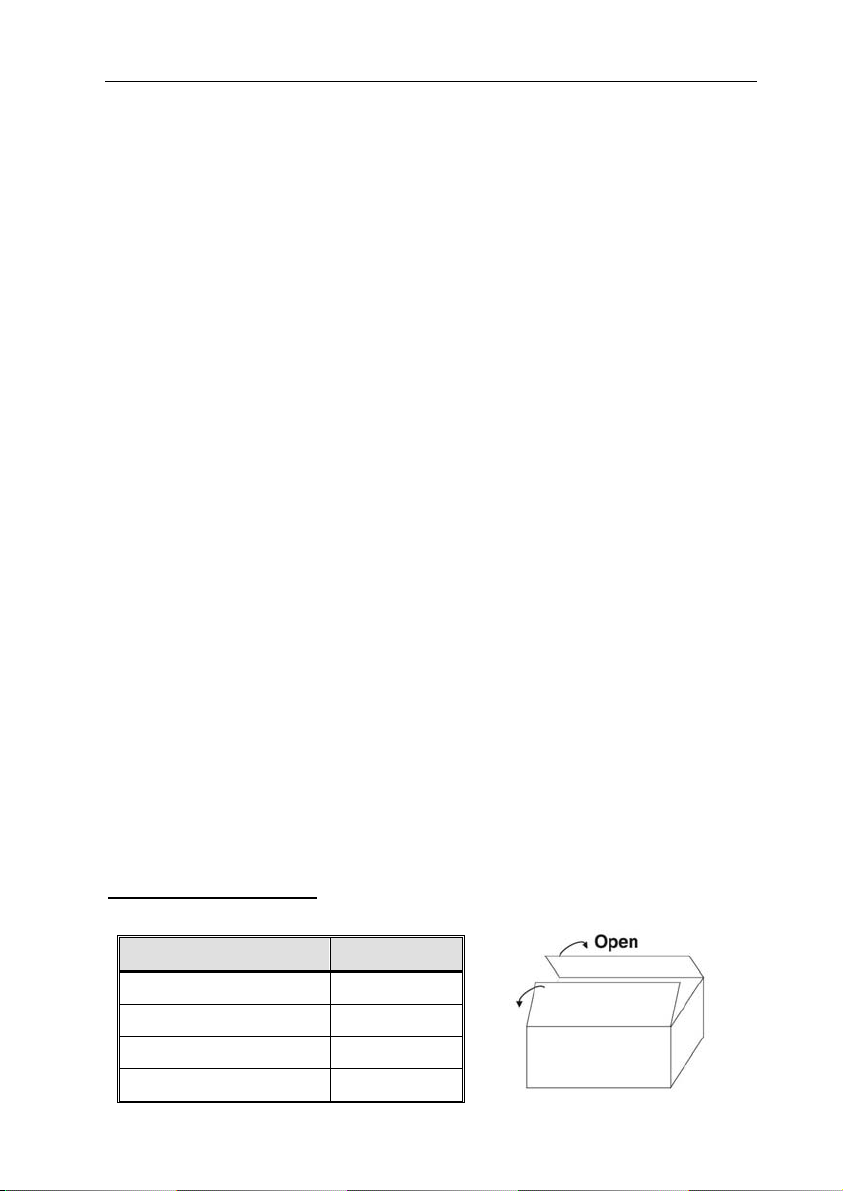

Check the contents:

The carton contains the following items：

NAME QTY

Laser Light 1 PCS

KEYS (for key switch) 2 PCS

Mains Cable 1 PCS

USER MANUAL 1 PCS

USER MANUAL

3. SAFETY INSTRUCTIONS:

Every person involved with installation and maintenance of this device have to:

-be qualilfied

-follow the instructions of this manual

zTo protect the environment, please try to recycle the packing material as much

as possible.

zTo prevent fire or shock hazard, do not expose this appliance to rain or

moisture.

zTo avoid condensation to be formed inside, allow this unit to adapt to the

surrounding temperatures when bringing it into a warm room after transport.

Condense sometimes prevents the unit from working at full performance or may

even cause damages.

zThis unit is for indoor use only.

zDon’t place metal objects or spill liquid inside the unit. Electric shock or

malfunction may result. If a foreign object enters the unit, immediately

disconnect the mains power.

zLocate the fixture in a well ventilated spot, away from any flammable materials

and/or liquids. The fixture must be fixed at least 50cm from surrounding walls

zDon’t cover any ventilation openings as this may result in overheating.

zPrevent use in dusty environments and clean the unit regularly.

zKeep the unit away from children.

zInexperienced persons should not operate this device.

zMaximum save ambient temperature is 45 degree Don’t use this unit at higher

ambient temperatures.

zMake sure the area below the installation place is free from unwanted persons

during rigging, de-rigging and servicing.

zAllow the device about 10 minutes to cool down before replacing the bulb or

start servicing.

zAlways unplug the unit when it is not used for a longer time or before replacing

the bulb or start servicing.

zThe electrical installation should be carried out by qualified personal only,

according to the regulations for electrical and mechanical safety in your country.

CAUTION! Be careful with your operations. Witch a high

voltage you can suffer a dangerous electric shock

when touchin

th wires

USER MANUAL

zCheck that the available voltage is not higher than the one stated on the rear

panel of the unit.

zThe power cord should always be in perfect condition: switch the unit

immediately off when the power cord is squashed or damaged.

zNever let the power-cord come into contact with other cables.

zThis fixture must be earthed to in order comply with safety regulations.

zDon’t connect the unit to any dimmer pack.

zAlways use an appropriate and certified safety cable when installing the unit.

zIn order to prevent electric shock, do not open the cover, Apart from the lamp

and mains fuse there are no user serviceable parts inside.

zNever repair a fuse or bypass the fuse holder. Always replace a damaged fuse

with a fuse of the same type and electrical specifications!

zIn the event of serious operating problems. stop using the fixture and contact

your dealer immediately

zThe housing and the lenses must be replaced if they are visibly damaged.

zPlease use the original packing when the device is to be transported.

zDue to safety reasons it is prohibited to make unauthorized modifications to the

unit.

4. LASER SAFETY INSTRUCTIONS:

zAccording to the EN 60825-1：1994 + A2：2002 regulations, this laser fall under

the classification 3B.Direct eye exposure can be dangerous.

zThis is so-called show laser, emitting radiation with a wavelength spectrum

between 400 and 700nm and producing lighting effects for shows.

zDue to the instruction of this laser, the beam is moved so fast, that it can only hit

the eye very short. This is why the use of this laser for a laser-light show can be

regarded as save.

zNever direct the laser beam to people or animals and never leave this device

running unattended.

Important: Never look directly into the light source! Don’t use the effect

in the presence of persons suffering from epilepsy.

USER MANUAL

zThis laser may only be used for shows. The operation of a class 3B show laser

is only allowed if the operation is controlled by a skilled and well-trained

operator.

zDepending on the classification, operating a laser product can produce laser

radiation that may cause permanent eye damage and /or skin damage. The

legal instructions for using a laser product vary from country to country. The

user must always inform himself on the legal instructions valid in his country

and apply them to his situation.

Please note that the laser light can not be made liable for damages caused

by incorrect installations and unskilled operation!

5. OVERHEAD RIGGING

zImportant: The installation must be carried out by qualified service

personal only. Improper installation can result in serious injuries and /or

damage to property. Overhead rigging required extensive experience!

Working load limits should be respected, Certified installation materials

should be used, the installed device should be inspected regularly for

safety.

zMake sure the area below the installation place is free from unwanted persons

during rigging, de-rigging and servicing.

zLocate the fixture in a well ventilated spot, far away from any flammable

materials and /or liquids. The fixture must be fixed at least 50cm from

surrounding walls.

zThe device should be installed out of reach of people and outside areas where

persons may walk by or be seated.

USER MANUAL

zBefore rigging make sure that the installation area can hold a minimum point

load of 10 times the device’s weight.

zAlways use a certified safety cable that can hold 12 times the weight of the

device when installing the unit. This secondary safety attachment should be

installed in a way that no part of the installation can drop more than 20cm if the

main attachment fails.

zThe device should be well fixed; a free swinging mounting is dangerous and

may not be considered!

zDo not cover any ventilation openings as this may result in overheating.

zThe operator has to make sure that the safety relating and machine technical

installations are approved by an expert before using them for the first time. The

installations should be inspected every year by a skilled person to be sure that

safety is still optimal.

5.1 Connection to the mains

if you wish to change the power supply settings, see the chapter below.

Connect the fixture to mains with the

enclosed power cord and pulg.

The earth has to be connected!

The occupation of the connection-cables is as follows:

Cable(EU) Cable(US) Pin International

Brown Black Live L

Liht blue White Neutral N

Yellow/Green Green Earth

Verify the power supply settings before applying power!

CAUTION EYEDAMAGE: Always position the laser in a way that

prevents the audience from looking directly into the laser beams. The

installation should assure that the beam will not strike the audience.

USER MANUAL

5.2 DMX-512 connection/connection between fixtures

zThe fixture is equipped with 3-pin XLR sockets for DMX input and output. The

sockets are wired in parallel. Only use a shielded twisted-pair cable designed

for 3-pin XLR-plugs and connectors in order to connect the controller with the

fixture or one fixture with another.

Occupation of the XLR-connection:

Building a serial DMX-chain:

zIf you are using the standard DMX-controllers, you can connect the DMX-output

of the controller directly with the DMX-input of the first fixture in the DMX-chain.

If you wish to connect DMX-controllers with other XLR-outputs, you need to use

adapter cables.

zConnect the DMX-output of the first fixture in the DMX-chain with the

DMX-input of the next fixture. Always connect output with the input of the next

fixture until all fixtures are connected.

Caution: At the laser fixture, the DMX-cable has to terminated

with a terminator. Solder a 120 Ohm resistor between Signal (-)

and Signal (+) into a 3-pin XLR-plug and plug and plug it in the

DMX-output of the last fixture.

USER MANUAL

Building a master/slave-chain:

Connect the DMX-output of the master fixture in the data-chain with the

DMX-input of the first slave, Always connect output with the input of the next slave

until all slaves are connected.

Caution: It’s necessary to insert the XLR termination plug (with 120Ohm) into the

input of the master fixture and into the output of the last slave fixture in the link in

order to ensure proper transmission on the data link.

6. DESCRIPTION:

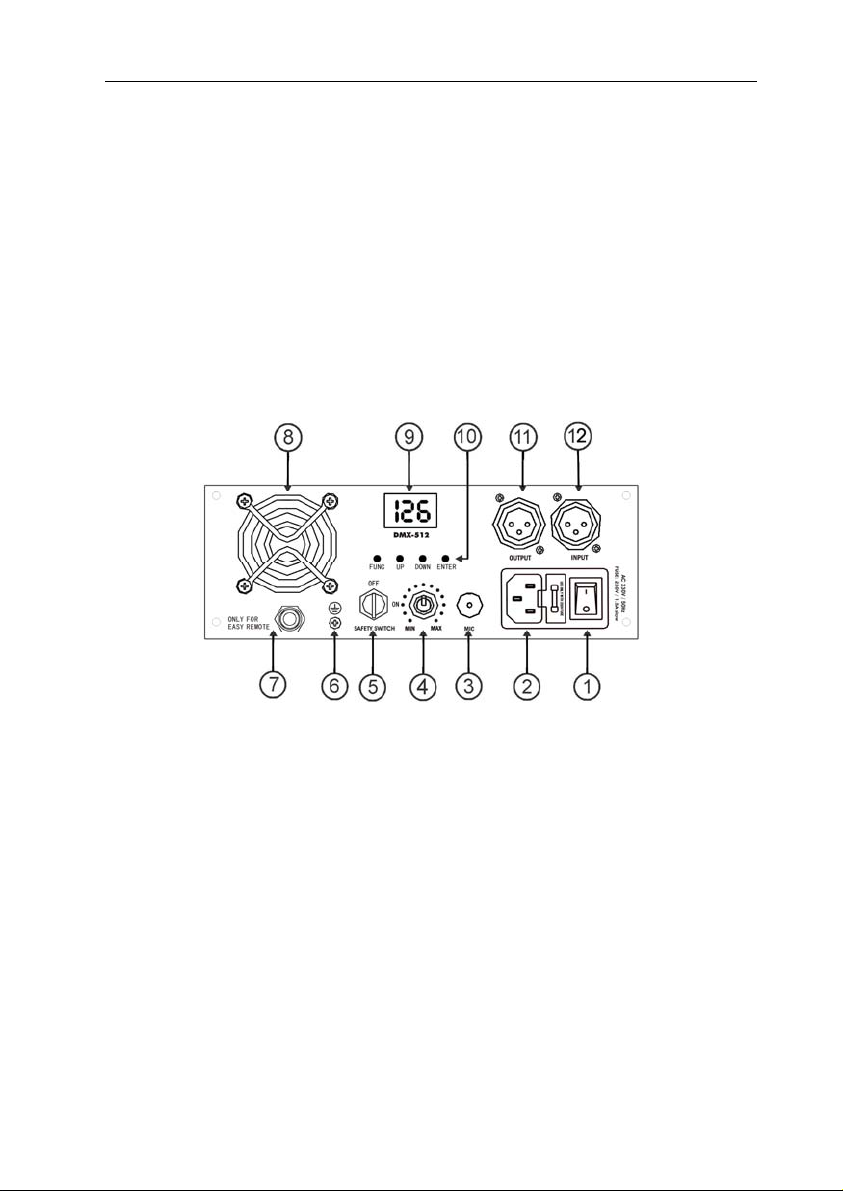

6.1 Back panel of the fixture

1. POWER Switch: Switch on and off the power

2. MAINS INPUT: with IEC socket and integrated fuse holder, connect the

supplied mains cable here.

3. INTERNAL MICROPHONE: the built- in microphone is used to synchronize the

laser show to the beast of the music

4. MUSIC INPUT SENSITIVITY: This potentiometer is used to adjust the music

input sensitivity. Turn the potentiometer until the laser works in sync with the

music.

5. INTERLOCK: used to connect the optional emergency stop switch (see

picture). When you push this switch the laser beam will disappear

immediately.

USER MANUAL

6. Earth Enclose: Used to connect to the earth.

7. Easy Controller: Used to connect to optional easy controller CA-8.

8. COOLING FAN: used to cool the components inside the enclosure. Make sure

to never cover this fan outlet!

9. LED DISPLAY: Show the operating mode and DMX address

10. Control Panel: Used to set operating mode and DMX address

11. DMX OUTPUT: 3pin female XLR-connector used to connect the space color

laser with the next unit in the DMX chain.

12. DMX INPUT: 3pin male XLR- connector used to connect universal

DMX-cables. This input receives instructions from a DMX-controller.

6.2 Front panel of the fixture

13. POWER LED: indicates that the unit is switched on.

14. MUSIC LED: flashes to the sound of the music detected by the mic.

15. LASER OUTPUT: here the laser beam leaves the enclosure, make sure to

never look inside the unit through this opening while the laser effect is

switched on!

16. HANGING BRACKTET: with 2knob on both sides to fasten the unit and a

mounting hole to fix a mounting hook.

USER MANUAL

7. HOW TO SET UP AND CONTEROL THE UNIT

zRegular breaks during operation are essential to maximize the life of this device

as it is not designed for continual use.

zDo not switch the unit on and off in short time intervals as this reduces the lamp

life.

zAlways unplug the unit when it is not used for a longer time. Or before replacing

the bulb or star servicing.

zIn the event of serious operating problems, stop using the fixture and contact

your dealer immediately.

zImportant: Never look directly into the laser beam! Don’t use the effect in the

presence of persons suffering from epilepsy.

You can operate the unit in 5 Modes:

7.1 MUSIC CONTROLLED STAND-ALONE MODE:

zPress “FUNC” button till to the “MUS” letter is shown on LED DISPLAY.

zPress “ENTER” to select this “MUS” mode.

When “MUS” mode is selected, the laser is operating in MUSIC CONTROLLED

STAND-ALONE MODE. It is running laser show with music volume and speed.

The laser is operating this mode until next setting.

CAUTION

！

The laser will be automatically block out in 5 second if there

is no Music (Sound) signal is detected.

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Spectral 2500 Zoom Tour Manuel utilisateur

Show Tec

Show Tec EVENTLITE 6/3 Manuel utilisateur

Show Tec

Show Tec Data Flash Strobe Manuel utilisateur

Show Tec

Show Tec Mirrorball 15 cm Manuel utilisateur

Show Tec

Show Tec Cameleon Spot 12 Q6 Manuel utilisateur

Show Tec

Show Tec Arc-Bar 3 Manuel utilisateur

Show Tec

Show Tec D-Pack 6 Classic Manuel utilisateur

Show Tec

Show Tec LED Powerline 64 Manuel utilisateur

Show Tec

Show Tec Data Flash Strobe V1 Manuel utilisateur

Show Tec

Show Tec EventSpot 1600 Q4 Manuel utilisateur

Show Tec

Show Tec Studio Beam 575 Manuel utilisateur

Show Tec

Show Tec Dataflower Manuel utilisateur

Show Tec

Show Tec Compact Lightset MKII Manuel utilisateur

Show Tec

Show Tec Octopod 30 Manuel utilisateur

Show Tec

Show Tec spectral 260 white Manuel utilisateur

Show Tec

Show Tec Spectral M400 IP67 Manuel utilisateur

Show Tec

Show Tec INDOOR DMX LED BAR 8 Manuel utilisateur

Show Tec

Show Tec FLEXSTRIP SET IP4RGB Manuel utilisateur

Show Tec

Show Tec Unicorn Manuel utilisateur

Show Tec

Show Tec Cyclone 4 Manuel utilisateur

Show Tec

Show Tec Spectral 300 Q4 MKIII V1 Manuel utilisateur

Show Tec

Show Tec Sustrip II Stageblinder Manuel utilisateur

Show Tec

Show Tec Par 64 Short Q4-18 Manuel utilisateur

Show Tec

Show Tec Star Dream 6x3m 128 LED RGB Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
