Show Tec Spectral 260 white Manuel utilisateur

Spectral 260 White V1

Highlite International B.V. –Vestastraat 2 –6468 EX –Kerkrade –the Netherlands

Ordercode: 43518

MANUAL

ENGLISH

Ordercode: 43518

Spectral 260 White

Table of contents

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Connection with the mains.........................................................................................................................................5

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

Description of the device.................................................................................................................................................6

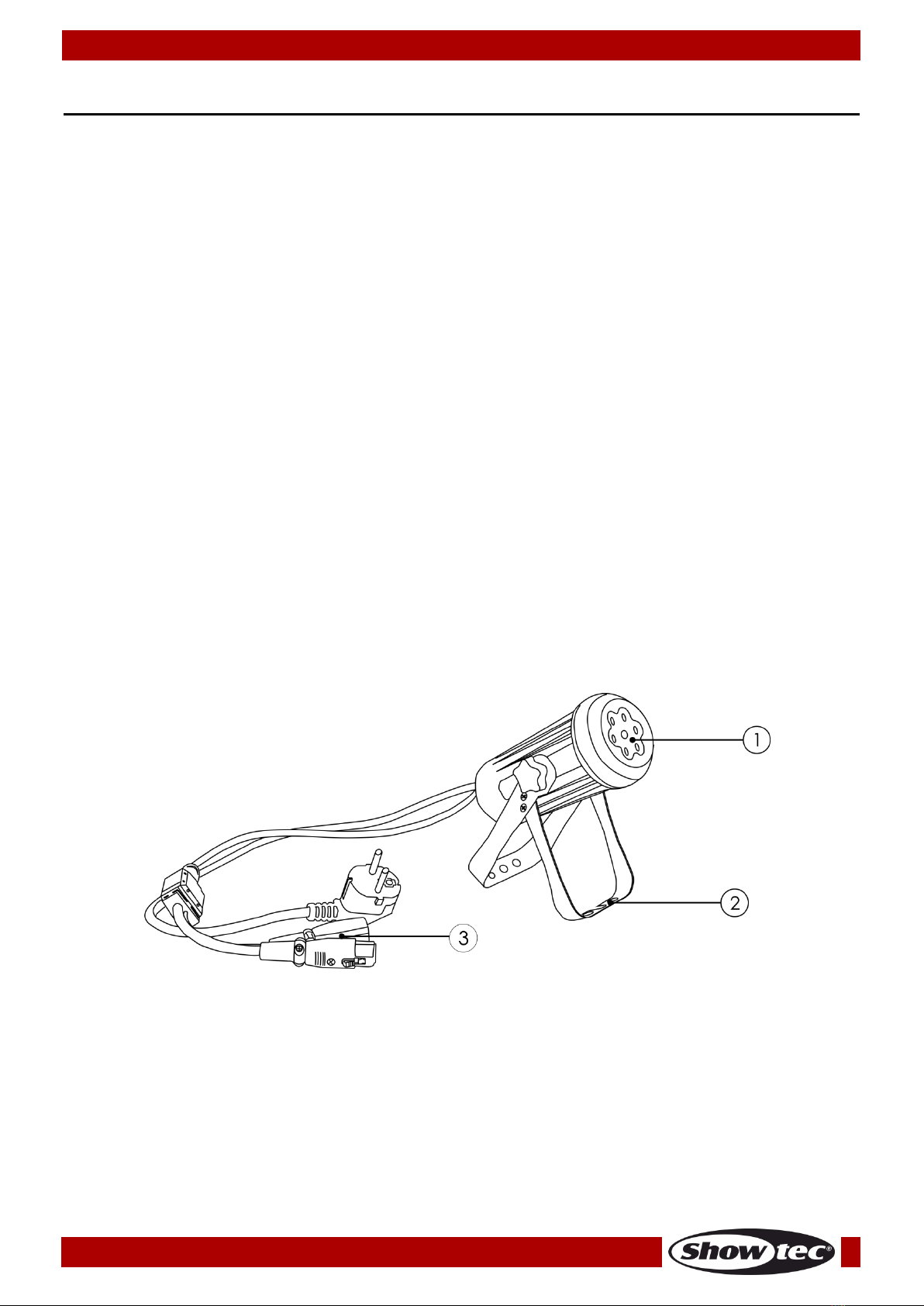

Overview ........................................................................................................................................................................6

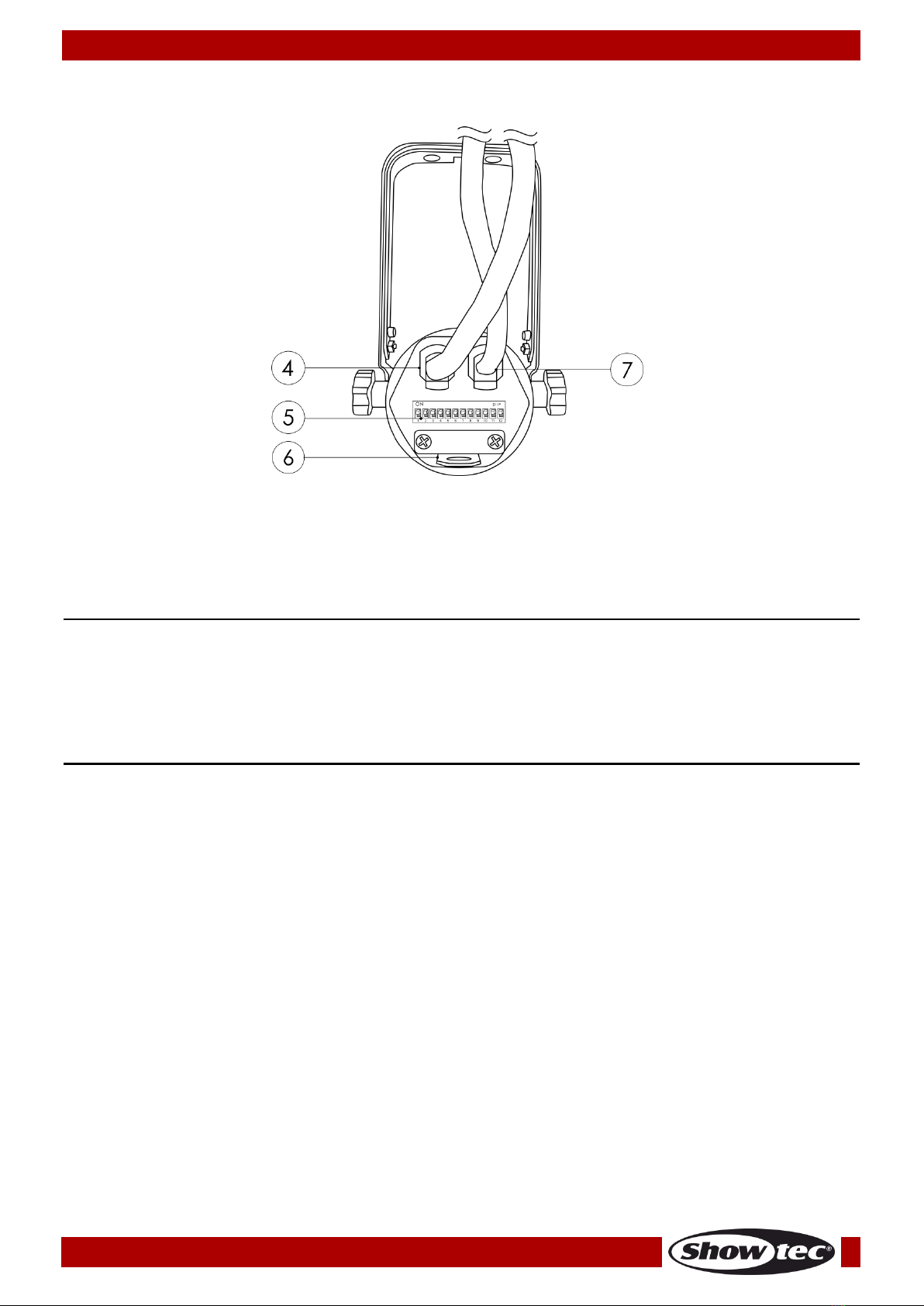

Backside .........................................................................................................................................................................7

Installation...........................................................................................................................................................................7

Set Up and Operation .......................................................................................................................................................7

Control Modes...............................................................................................................................................................7

One Spectral Auto (Built-in programs)...................................................................................................................7

One Spectral (Static colors).....................................................................................................................................8

Multiple Spectrals (Master/Slave control) .............................................................................................................9

Multiple Spectrals (DMX512 Mode)......................................................................................................................10

Dipswitch setting for DMX mode .............................................................................................................................11

DMX Address Quick Reference chart.....................................................................................................................12

Fixture Linking ...............................................................................................................................................................13

Data Cabling...............................................................................................................................................................13

DMX Modes..................................................................................................................................................................14

DMX Configurations ........................................................................................................................................................15

2 Channels (STD.W).....................................................................................................................................................15

2 Channels (STD.1) ......................................................................................................................................................15

3 Channels (STD.D) .....................................................................................................................................................15

5 Channels (S1.DS)......................................................................................................................................................15

Maintenance....................................................................................................................................................................16

Troubleshooting ...............................................................................................................................................................16

No Light.........................................................................................................................................................................16

No Response to DMX..................................................................................................................................................16

Product Specifications....................................................................................................................................................18

Dimensions........................................................................................................................................................................19

Notes ..................................................................................................................................................................................20

Ordercode: 43518

Spectral 260 White

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear to be damaged from shipping or the carton

itself shows signs of mishandling. Save the carton and all packing materials. In the event that the fixture

must be returned to the factory, it is important that the fixture be returned in the original factory box and

packing.

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. If improving the lifespan is of higher priority, place care in providing for lower

operational temperatures. This may include climatic-environmental and the reduction of overall

projection intensity

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

●be qualified

●follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

Your shipment includes:

Spectral 260 White

1X special 3-pin to DMX IN and 3-pin DMX OUT

1X Schuko power cable

Safety cable

User manual

Ordercode: 43518

Spectral 260 White

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

Never let the power cord come into contact with other cables! Handle the power cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Never use anything to cover the ground contact.

Never lift the fixture holding it by the projector-head, as the mechanics may be damaged. Always

hold the fixture by the transport handles.

Never place any material over the lens.

Never look directly into the light source.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the device’s lifespan.

Do not touch the device’s housing bare-handed during its operation. Allow the fixture to cool for at

least 5 minutes before handling.

Do not shake the device. Avoid brute force when installing or operating the device.

Only use device indoor, avoid contact with water or other liquids.

Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power cord by the plug. Never pull out the plug by tugging the power cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power cord is never crimped or damaged. Check the device and the power

cord from time to time.

If the lens is obviously damaged, it has to be replaced to prevent its functions from being impaired,

due to cracks or deep scratches.

If device was dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Device must be installed out of reach of children. Never leave the unit running

unattended.

Never attempt to bypass the thermostatic switch or fuses.

For replacement, use fuses of same type and rating only.

The user is responsible for correct positioning and operating of the Spectral.

The manufacturer will not accept liability for damages caused by the misuse or incorrect installation

of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

Repairs, servicing and electrical connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

Ordercode: 43518

Spectral 260 White

Operating Determinations

●This device is not designed for permanent operation. Regular operation breaks will ensure that the

device will serve you for a long time without defects.

●The minimum distance between light-output and the illuminated surface must be bigger than 0,5

meter.

●The maximum ambient temperature ta = 40°C must never be exceeded.

●The relative humidity must not exceed 50 % with an ambient temperature of 40° C.

●If this device is operated in any other way than the one described in this manual, the product may

suffer damages and the warranty becomes void.

●Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all

other safety issues.

Do not attempt the installation yourself!

Always let the installation be carried out by an authorized dealer!

Procedure:

If the Spectral is lowered from the ceiling or high joists, professional trussing systems have to be

used.

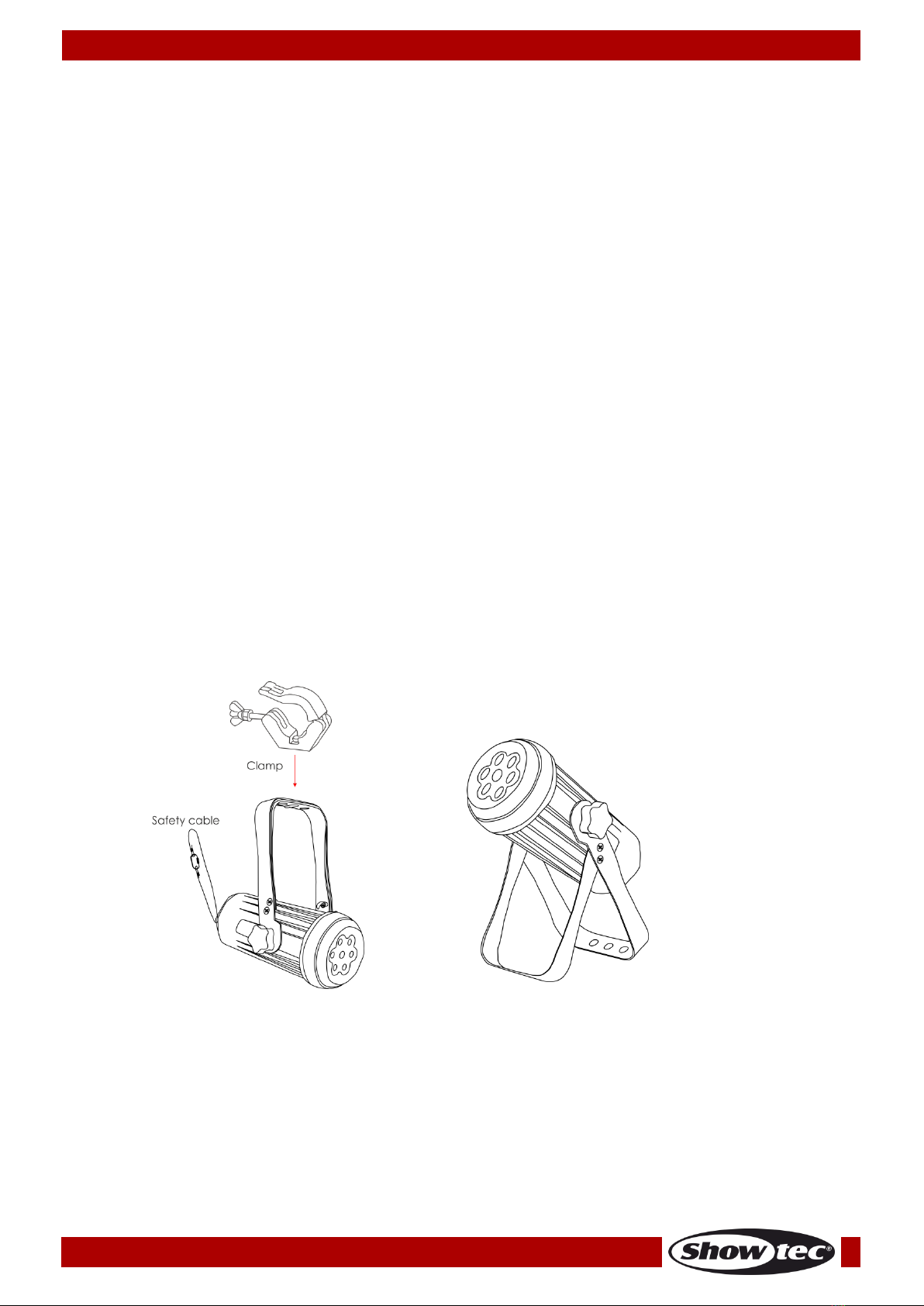

Use a clamp to mount the Spectral, with the mounting-bracket, to the trussing system.

The Spectral must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the Spectral, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

The Spectral can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

Improper installation can cause serious injuries and/or damage of property!

Ordercode: 43518

Spectral 260 White

Connection with the mains

Connect the device to the mains with the power plug.

Always check if the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

PHASE

BLUE

BLACK

SILVER

NEUTRAL

YELLOW/GREEN

GREEN

PROTECTIVE GROUND

Make sure that the device is always connected properly to the earth!

Improper installation can cause serious damage to people and property!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause of the

return. Be sure to properly pack fixture as any shipping damage resulting from inadequate packaging is

the customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

01) Your name.

02) Your address.

03) Your phone number.

04) A brief description of the symptoms.

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that the fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

agreed otherwise in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period, complaints will not be handled anymore.

Complaints will only be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Ordercode: 43518

Spectral 260 White

Description of the device

Features

The Spectral 260 White is a compact indoor LED fixture from Showtec with 4x warm white and 3x cool

white LEDs.

●Input Voltage: 100-240V AC Multi voltage

●Power consumption: 8 Watt at full output

●Drive current: 350mA

●Light Source: 4x Warm white and 3x Cool white LEDs

●Beam Angle: 35°

●Output Lumen: 160+

●Output Lux (@ 2 meter): 2600+

●Max distance: 10 meter

●Dimmer: 0-100%

●Strobe: 0-20Hz

●Control On-Board: DMX Dipswitches for Auto, Static and DMX control

●Program: 4 different DMX Operating modes

●Control protocol: DMX 512

●2, 2, 3 or 5 DMX channels

●Fixture connections: XLR Data in/out (XLR 3-pin), Schuko power cable

●Control: Auto, Static colors, Master/Slave, DMX-512

●Cooling: Convection (no fans)

●Housing: Die cast aluminum powder coated finish

●Bracket: Double-bracket function, which can also be used as a floor stand

●Dimensions: 175 x 110 x 155mm (LxWxH))

●Weight: 0,74 kg

Note: Knowledge of DMX is required to fully utilize this unit.

Overview

Fig. 01

01) 4x warm white and 3x cool white LEDS

02) Mountingbracket for truss mounting

03) Schuko power cable with a special DMX In/DMX Out cable

Ordercode: 43518

Spectral 260 White

Backside

Fig. 02

04) Schuko Powercable

05) DMX DIP Switches

06) Safety Eye

07) Special DMX-IN/ DMX-OUT cable

Installation

Remove all packing materials from the Spectral 260 White.

Check that all foam and plastic padding is removed. Connect all cables.

Do not supply power before the whole system is set up and connected properly.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Follow the directions below, as they pertain to your preferred operation mode.

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the device to the main power supply.

Control Modes

There are 4 modes:

Auto (Built-in programs)

Static Colors (manual)

Master/Slave

DMX512 (2, 2, 3 or 5 Channels)

One Spectral Auto (Built-in programs)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Use the safety cable which is included.

03) When the Spectral is not connected by a DMX-cable, it functions as a stand-alone device.

Dipswitch #12 must always be set to ON for Automatic control.

04) Use dipswitch 1-4 to set one of the 12 programs.

Program / No function

Dipswitches ON:

No function

#1, #2, #3, #4 and #12

Program 1 (static)

#1, #2, #3 and #12

Program 2 (static)

#1, #2, #4 and #12

Program 3 (fast fade in to slow fade out)

#1, #2 and #12

Ordercode: 43518

Spectral 260 White

No function

#1, #3, #4 and #12

Program 4 (strobe)

#1, #3 and #12

Program 5 (static)

#1, #4 and #12

Program 6 (cool white)

#1 and #12

No function

#2, #3, #4 and #12

Program 7 (random strobe)

#2, #3 and #12

Program 8 (static)

#2, #4 and #12

Program 9 (static)

#2 and #12

No function

#3, #4 and #12

Program 10 (fast fade in to fast fade out)

#3 and #12

Program 11 (static)

#4 and #12

Program 12 (warm white)

#12

Example:

Program 2

One Spectral (Static colors)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Use the safety cable which is included.

03) When the Spectral is not connected by a DMX-cable, it functions as a stand-alone device. Dipswitch

#10 and #12 must always be set to ON for Static colors control.

04) Use dipswitch 1-4 to set the luminous intensity.

Luminous Intensity

Warm white

Cool white

DIP 1

DIP 2

DIP 3

DIP 4

OFF

30%

OFF

60%

OFF

100%

0% luminous intensity

60% luminous intensity

Ordercode: 43518

Spectral 260 White

Multiple Spectrals (Master/Slave control)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

02) Use the safety cable which is included.

03) Use a 3-p XLR cable to connect the Spectral and other devices.

The pins:

1. Earth

2. Signal (-)

3. Signal (+)

04) Link the units as shown in (Fig. 03), connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. Dipswitch

#10 must always be set to ON for Slave control.You can use the same functions on the master device

as described on page 7+8 (Auto and Static colors). This means you can set your desired operation

mode on the master device and all slave devices will react the same as the master device.

Master control (Auto programs): Dipswitch #12 should be on.

Use dipswitch 1-4 to set the desired program.

Master control (Static colors): Dipswitch #10 and#12 should be

on. Use dipswitch 1-4 to set the luminous intensity of the fixture.

Slave control: Dipswitch #10 should be on.

Multiple Spectrals (Master/Slave control)

Fig. 03

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec ACT Fresnel 150 WW Manuel utilisateur

Show Tec

Show Tec Performer 1500 Fresnel Daylight Manuel utilisateur

Show Tec

Show Tec Star Sky Pro Manuel utilisateur

Show Tec

Show Tec Spectral PC 400Z IP65 Manuel utilisateur

Show Tec

Show Tec Spectral PC 1800Z IP Manuel utilisateur

Show Tec

Show Tec Media Panel 100 V1 Manuel utilisateur

Show Tec

Show Tec Trackpod 90 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 11CW V1 Manuel utilisateur

Show Tec

Show Tec Octopod 30 Manuel utilisateur

Show Tec

Show Tec ColorCue 1 AIR Manuel utilisateur

Show Tec

Show Tec The Moustache Manuel utilisateur

Show Tec

Show Tec Luna Par 60 Q4 Manuel utilisateur

Show Tec

Show Tec cameleon bar 24/1 UV Manuel utilisateur

Show Tec

Show Tec Sustrip II Stageblinder Manuel utilisateur

Show Tec

Show Tec Phantom 70 Beam RGBW V1 Manuel utilisateur

Show Tec

Show Tec Airstrike V2 Manuel utilisateur

Show Tec

Show Tec Bumper Strobe V1 Manuel utilisateur

Show Tec

Show Tec Mirrorball 20 Sm V1 Manuel utilisateur

Show Tec

Show Tec Powerbeam 10 LED Manuel utilisateur

Show Tec

Show Tec Powerspot 10 SW White Manuel utilisateur

Show Tec

Show Tec FLEXSTRIP SET IP4RGB Manuel utilisateur

Show Tec

Show Tec Aura 4 Manuel utilisateur

Show Tec

Show Tec FX Shot Manuel utilisateur

Show Tec

Show Tec 60413 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur

Show Tec spectral 260 white Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques
