Show Tec Cyclone 4 Manuel utilisateur

Cyclone 4

ORDERCODE 43087

Highlite International B.V.

Vestastraat 2

6468 EX Kerkrade

The Netherlands

Phone: +31 45-5667700

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Cyclone 4 brings excitement to any venue. Whether you want simple plug-&-play action or

a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Cyclone 4 ™ Product Guide

Warning ...............................................................................................................................................................................2

Safety Instructions .........................................................................................................................................................2

Operating Determinations ..........................................................................................................................................4

Rigging ............................................................................................................................................................................4

Return Procedure..........................................................................................................................................................5

Claims..............................................................................................................................................................................5

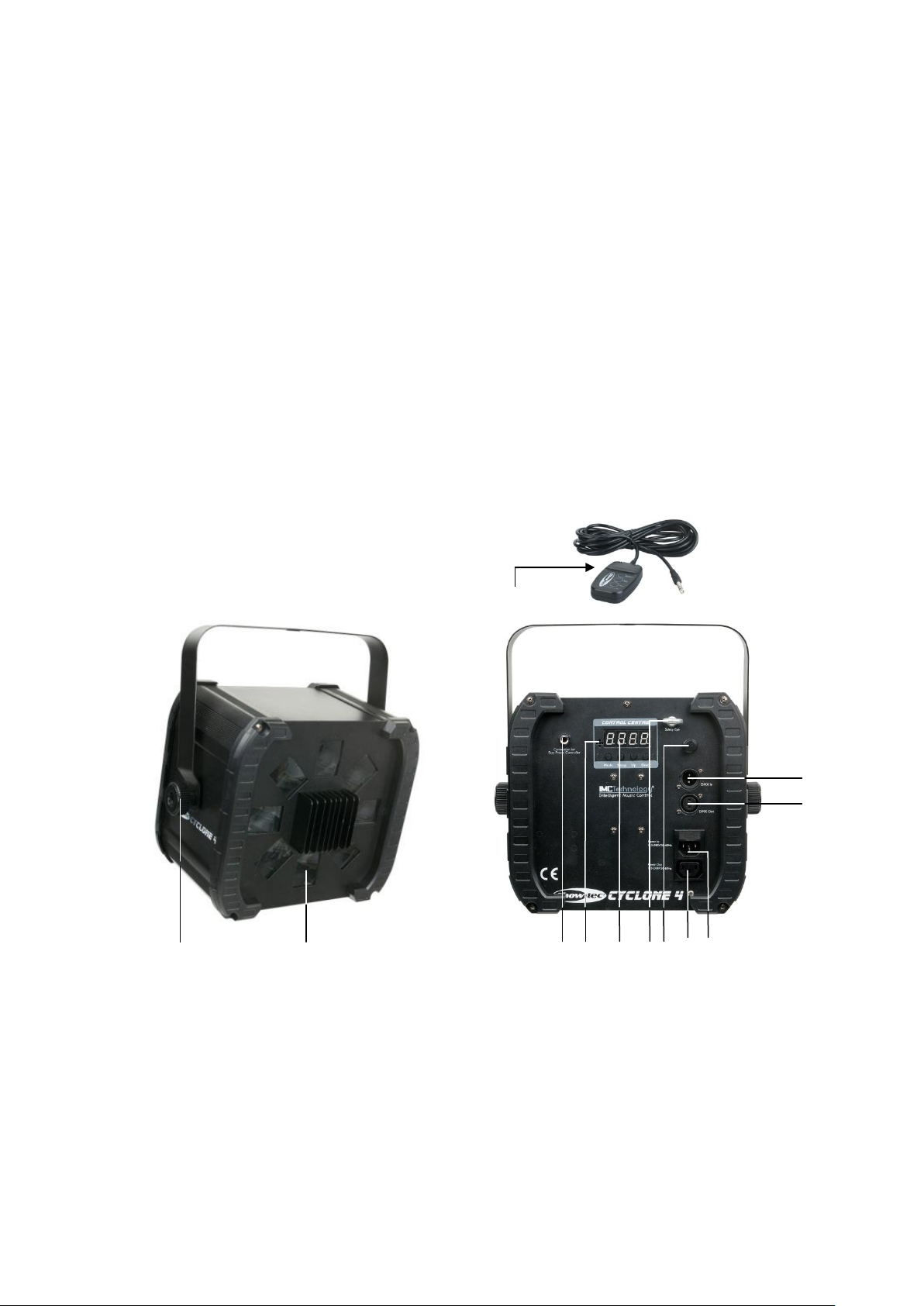

Description of the device.................................................................................................................................................6

Overview ........................................................................................................................................................................6

Set Up and Operation .......................................................................................................................................................7

Control Modes...............................................................................................................................................................7

One Cyclone (Auto Run Programs)......................................................................................................................7

One Cyclone (Sound-control) ...............................................................................................................................7

Multiple Cyclones (Master/Slave control) ...........................................................................................................7

Multiple Cyclones (DMX Control)..........................................................................................................................8

Fixture Linking.................................................................................................................................................................9

Data Cabling.................................................................................................................................................................9

Control Panel ...............................................................................................................................................................10

DMX Control Mode.....................................................................................................................................................10

DMX Addressing ..........................................................................................................................................................10

Menu Overview...........................................................................................................................................................11

Main Menu Options....................................................................................................................................................11

1. Auto Run Programs ............................................................................................................................................12

2. DMX Mode ..........................................................................................................................................................12

3. Slave Mode .........................................................................................................................................................12

4. Sound control Mode..........................................................................................................................................12

5. LED Display Mode ..............................................................................................................................................12

6. Display Reverse...................................................................................................................................................12

7. Version Number ..................................................................................................................................................12

DMX Channels .............................................................................................................................................................13

4 Channels...............................................................................................................................................................13

Maintenance....................................................................................................................................................................14

Replacing a Fuse ........................................................................................................................................................14

Troubleshooting ...............................................................................................................................................................14

No Light.........................................................................................................................................................................14

No Response to DMX..................................................................................................................................................14

Product Specification .....................................................................................................................................................16

Warning

Unpacking Instructions

Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure

that all parts are present, and have been received in good condition. Notify the dealer immediately and

retain packing material for inspection if any parts appear damaged from shipping or the carton itself

shows signs of mishandling. Save the carton and all packing materials. In the event that a fixture must be

returned to the factory, it is important that the fixture be returned in the original factory box and packing.

Your shipment includes:

• Showtec Cyclone 4 including hanging bracket

• IEC powercable 1,5m

•User manual

LED Expected Lifespan

LEDs gradually decline in brightness over time. HEAT is the dominant factor that leads to the acceleration

of this decline. Packaged in clusters, LEDs exhibit higher operating temperatures than in ideal or singular

optimum conditions. For this reason when all color LEDs are used at their fullest intensity, life of the LEDs is

significantly reduced. It is estimated that a viable lifespan of 40,000 to 50,000 hours will be achieved

under normal operational conditions. If improving on this lifespan expectancy is of a higher priority, place

care in providing for lower operational temperatures. This may include climatic-environmental and the

reduction of overall projection intensity.

Safety Instructions

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

CAUTION!

Keep this device away from rain and moisture!

Unplug mains lead before opening the housing!

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Do not open the device and do not modify the device.

Never use anything to cover the ground contact.

Never leave the device run without a lamp!

Never look directly into the light source.

Never leave any cables lying around.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the device’s life.

Do not shake the device. Avoid brute force when installing or operating the device. The Cyclone

4 reacts very sensitive to movement.

Never use the device during thunderstorms, unplug the device immediately.

Only use device indoor, avoid contact with water or other liquids.

Do not touch the device’s housing bare-handed during its operation (housing becomes hot).

Only operate the device after having familiarized with its functions.

Avoid flames and do not put close to flammable liquids or gases.

Always keep case closed while operating.

Always allow free air space of at least 50 cm around the unit for ventilation.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Only install the device with the hanging-bracket.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If the external cable is damaged, it has to be replaced by a qualified technician.

If the lens or glass is obviously damaged, it has to be replaced. So that its functions are not

impaired, due to cracks or deep scratches.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

For adult use only. Lighteffect must be installed out of the reach of children. Never leave the unit

running unattended.

For replacement use fuses of same type and rating only.

Allow time to cool down, before replacing lamp.

The user is responsible for correct positioning and operating of the Cyclone 4. The manufacturer

will not accept liability for damages caused by the misuse or incorrect installation of this device.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

Repairs, servicing and electric connection must be carried out by a qualified technician.

WARRANTY: Till one year after date of purchase.

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(meant especially for epileptics) !

Operating Determinations

•This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

•The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.

•The maximum ambient temperature ta= 45°C must never be exceeded.

•The relative humidity must not exceed 50 % with an ambient temperature of 45° C.

•If this device is operated in any other way, than the one described in this manual, the product may

suffer damages and the warranty becomes void.

•Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.

You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other

safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

If the Cyclone 4 is lowered from the ceiling or high joists, professional trussing systems have to be

used.

Use a clamp to mount the Cyclone 4, with the mounting-bracket, to the trussing system.

The Cyclone 4 must never be fixed swinging freely in the room.

The installation must always be secured with a safety attachment, e.g. an appropriate safety net

or safety-cable.

When rigging, derigging or servicing the device, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The Showtec Cyclone 4 is a light effect with high output and great effects.

•New generation dynamic LED light-effect, which creates big coverage range on the dance floor.

•Intelligent Music Control (IMC), that reacts to your music like a real light-jockey.

•If you are playing easy-listening music different nice slow programs will be selected.

•If you are playing party music, IMC will select uplifting programs and different strobe patterns

•Power Supply: 100-230V 50/60 Hz

•Long LED lifetime.

•Creates laser-sharp beams through 8 optimized lenses

•Light Source: 1 x 10W 4-in1 RGBW Chip

•Peak Power 110 Watt; Continuous Power 45 Watt

•Control: Auto Run, Sound, Master/Slave, DMX

•Sound-active program selectable by DMX

•Music-controlled via built-in microphone

•DMX Channels: 4

•Control Display: 4 Digits LED

•Power Connector: IEC In/Out

•Data Connector: In/Out (XLR 3 Pin)

•Digital Addressing

•Strobe: 0-20Hz

•Plug & Play

•Stand-alone

•Fuse 1A / 250V

•Dimensions: 210 x 270 x 245 mm LxWxH (excl. bracket)

•Weight: 3,62 kg

•Optional Accessories: IEC cables, 90465, 90446, 90466, 43098

Overview

1 2 3 4 5 6 7 8 9

Fig. 1

1) Adjustment screw 7) Audio Sensitivity

2) 8 Lenses 8) IEC Power OUT

3) Jack for Preset Controller (43098)9) IEC Power IN +Fuse 1A 250V

4) Built-in Microphone 10)3-pin DMX In

5) LCD Display with menu buttons 11) 3-pin DMX Out

6) Safety eye

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Remove all packing materials from the Cyclone 4. Check that all foam and plastic padding is removed.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Control Modes

There are 4 modes: • Auto Run Programs

• Sound-controlled

• Master/Slave

• DMX512

One Cyclone (Auto Run Programs)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Plug the end of the electric mains power cord into a proper electric power supply socket.

3. When the Cyclone is not connected by a DMX-cable, it functions as a stand-alone device.

Please see page 12 for more information about the Auto Run Programs.

One Cyclone (Sound-control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Plug the end of the electric mains power cord into a proper electric power supply socket.

3. Turn on the music. If device is set to (Audio) and you have pressed enter, then the fixture

will react to the beat of the music. Please see page 12 for more information about the Sound-control

options.

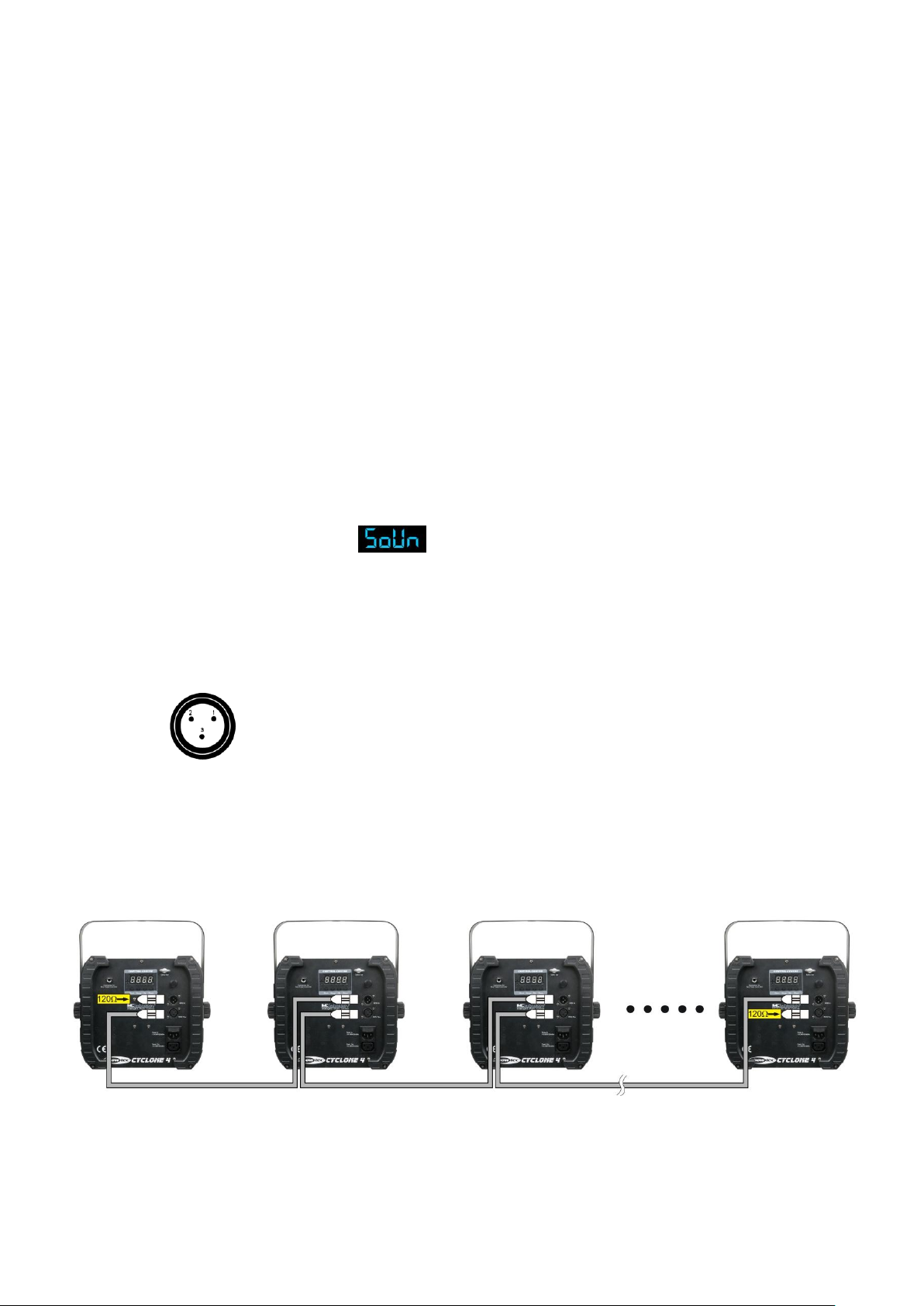

Multiple Cyclones (Master/Slave control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Plug the end of the electric mains power cord into a proper electric power supply socket.

3. Use a 3-p XLR cable to connect the Cyclone.

The pins: 1. Earth

2. Signal -

3. Signal +

4. Link the units as shown in (Fig. 2), Connect a DMX signal cable from the first unit's DMX "out" socket to

the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. You can

use the same functions on the master device as described on page 12 (Auto Run or Music control).

This means on the master device you can set your desired operation Mode and all slave devices will

react the same as the master device.

Multiple Cyclones (Master/Slave control)

Fig. 2

Multiple Cyclones (DMX Control)

1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.

2. Always use a safety cable (ordercode 70140 / 70141).

3. Use a 3-p XLR cable to connect the Cyclone and other devices.

4. Link the units as shown in (figure 3), Connect a DMX signal cable from the first unit's DMX "out" socket

to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.

5. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the

other end of the mains power cord into proper electric power supply sockets, starting with the first

unit. Do not supply power before the whole system is set up and connected properly.

Multiple Cyclones DMX Set Up

Fig. 3

Note : Link all cables before connecting electric power

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Phantom 120 LED Wash V1 Manuel utilisateur

Show Tec

Show Tec Helix S5000 Q4 Manuel utilisateur

Show Tec

Show Tec 60406 Manuel utilisateur

Show Tec

Show Tec Pixel Square 25 COB Manuel utilisateur

Show Tec

Show Tec Followspot LED 120W Manuel utilisateur

Show Tec

Show Tec Unicorn Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 Blaze Manuel utilisateur

Show Tec

Show Tec Pinspot Bar 4 RGBW Manuel utilisateur

Show Tec

Show Tec Pinspot Bar 4 WW V1 Manuel utilisateur

Show Tec

Show Tec HIP HOP Manuel utilisateur

Show Tec

Show Tec Star Sky Pro Manuel utilisateur

Show Tec

Show Tec Luna Par 60 Q4 Manuel utilisateur

Show Tec

Show Tec LED Powerbrick Set Manuel utilisateur

Show Tec

Show Tec SHARK SPOT ONE Manuel utilisateur

Show Tec

Show Tec Stage Blinder 4 DMX Black Manuel utilisateur

Show Tec

Show Tec Performer Profile 700 Q6 Manuel utilisateur

Show Tec

Show Tec Energetic V3 Manuel utilisateur

Show Tec

Show Tec Spectral D5000 Manuel utilisateur

Show Tec

Show Tec Spectral PC 400Z IP65 Manuel utilisateur

Show Tec

Show Tec Dataflower Manuel utilisateur

Show Tec

Show Tec LED Sphere Direct Control 100 V2 Manuel utilisateur

Show Tec

Show Tec ColorCue 1 AIR Manuel utilisateur

Show Tec

Show Tec Energetic V1 Manuel utilisateur

Show Tec

Show Tec Vintage Blaze 33 Value Line V2 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
