Show Tec Octopod 30 Manuel utilisateur

Octopod 30

ORDERCODE 30985

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec Octopod 30 brings excitement to any venue. Whether you want simple plug-&-play action or a

sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: [email protected]

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec Octopod 30™Product Guide

Warning..…...................................................................................………………………………………….

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features…….……………………………………………………………………………………….……...….

Overview………………………………………………………………………………………………………..

Installation...............................................................................…...…………………………………….…...

Set Up and Operation.....................................................................……..…………………………….……

Panel Functions……..……………………………………………………………………………….……...….

- Mode…...............................................………….........................……………………....…………..

- F / S…..............................................................................….....………….........………………….

Stand-Alone…………………………..…………………………………………………………….……...….

Sound-Active……..…………………..…………………………………………………………….……...….

DMX Operation…………..…………..…………………………………………………………….……...….

- DMX Modes..…...............................………….........................……………………....……………

Maintenance...................................................................................………..………….…….………………

Changing the Fuse........................................................................…………………….………….………

Troubleshooting............................................................................………………….………………….…..

Product Specifications.................................................................……………….…….…………………..

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never leave any cables lying around.

•Do not insert objects into air vents.

•Do not open the device and do not modify the device.

•Do not connect this device to a dimmerpack.

•Do not shake the device. Avoid brute force when installing or operating the device.

•Do not switch the device on and off in short intervals, as this would reduce the system’s life.

•Only use device indoor, avoid contact with water or other liquids.

•Only operate the fixture after having checked that the housing is firmly closed and all screws are

tightly fastened.

•Only operate the device after having familiarized with its functions.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used or before cleaning! Only handle

the power-cord by the plug. Never pull out the plug by tugging the power-cord.

•Make sure that the device is not exposed to extreme heat, moisture or dust.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For adult use only. The device must be installed out of the reach of children. Never leave the unit

running unattended.

•For replacement use fuses of same type and rating only.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Description of the device

Features

The Octopod 30 is a LED system from Showtec.

• Sound-controlled via built-in microphone

• 3 Modes: Stand-alone, DMX-controlled or Sound-controlled

NOTE: Knowledge of DMX is required to fully utilize this unit.

Overview

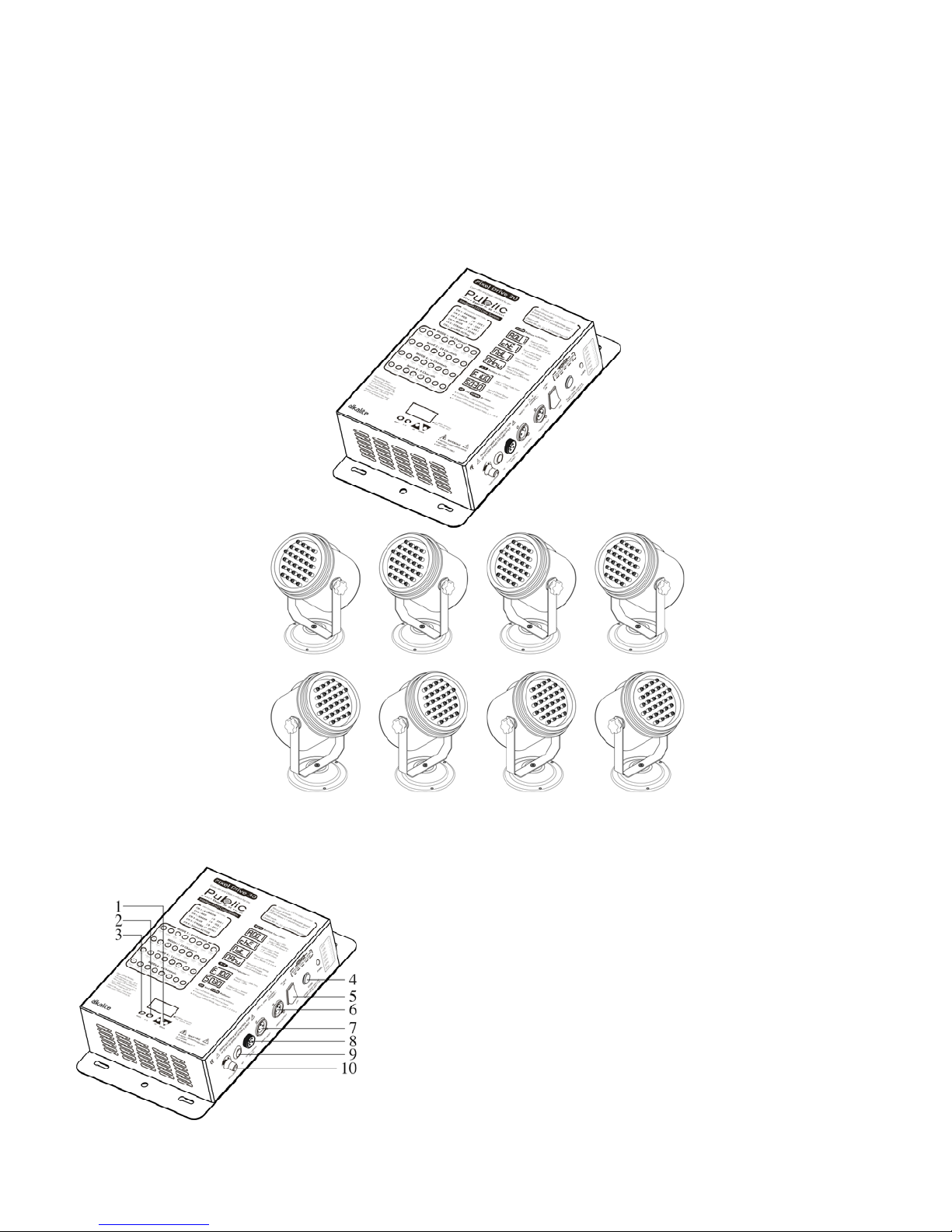

Fig. 1

1) Mode

2) F / S

3) Up / Down

4) Fuse

5) Power On/ Off

6) DMX Output

7) DMX Input

8) Power cord

9) MIC

10) Audio Level

Fig. 2

Installation

Remove all packing materials from the Octopod 30. Check that all foam and plastic padding is removed.

Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Before plugging the unit in, always make sure that the power supply matches the product specification

voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa.

Connect the Octopod fixtures using the supplied DC / Signal cables and set each fixture address as

illustrated below.

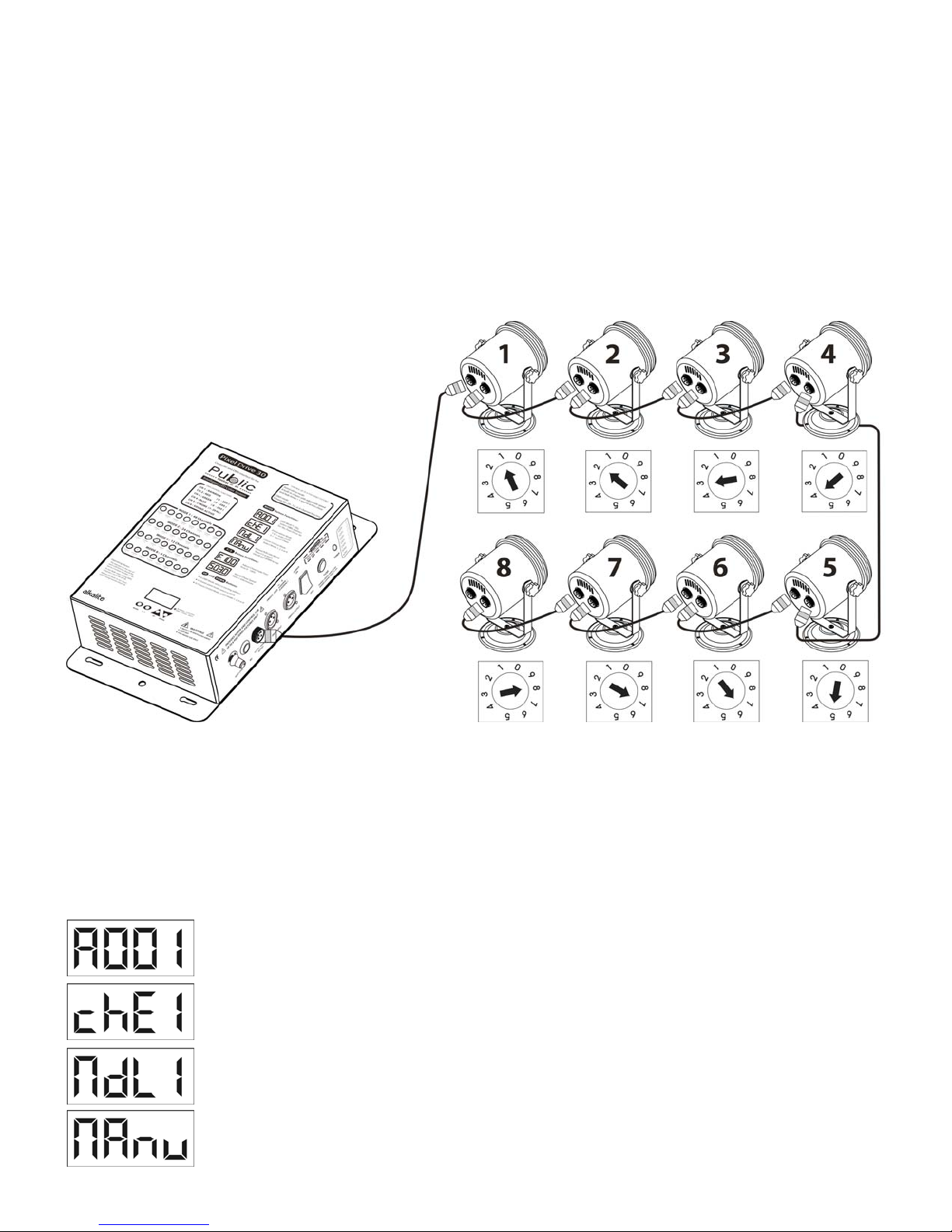

Fig. 3

Note : Link all cables before connecting electric power.

Ensure that the power supply is off before unplugging the Pixel Drive 30 or before

connecting / disconnecting fixtures.

Panel Functions

1) Mode

DMX Mode (1-255)

Select DMX address for the Pixel Drive 30.

Stand-alone Mode

1-8 = auto-chase

9 = sound-chase

Fixture Control Mode

Select Mode 1, 2, 4 or 8

Manual RGB Color Mixing

2) F / S

Adjust Chase Fade Time from 0-100%.

Adjust Chase Speed from 1-500/min.

Stand-alone Operation

Refer to the four buttons on the front panel of the Pixel Drive 30: Mode

F / S

Down

Press the MODE button to view the Chase menu:

Select Chases 1-9 using the UP and DOWN buttons.

Chases 1-8 run according to the Fade and Speed values.

Chase 9 is sound-active.

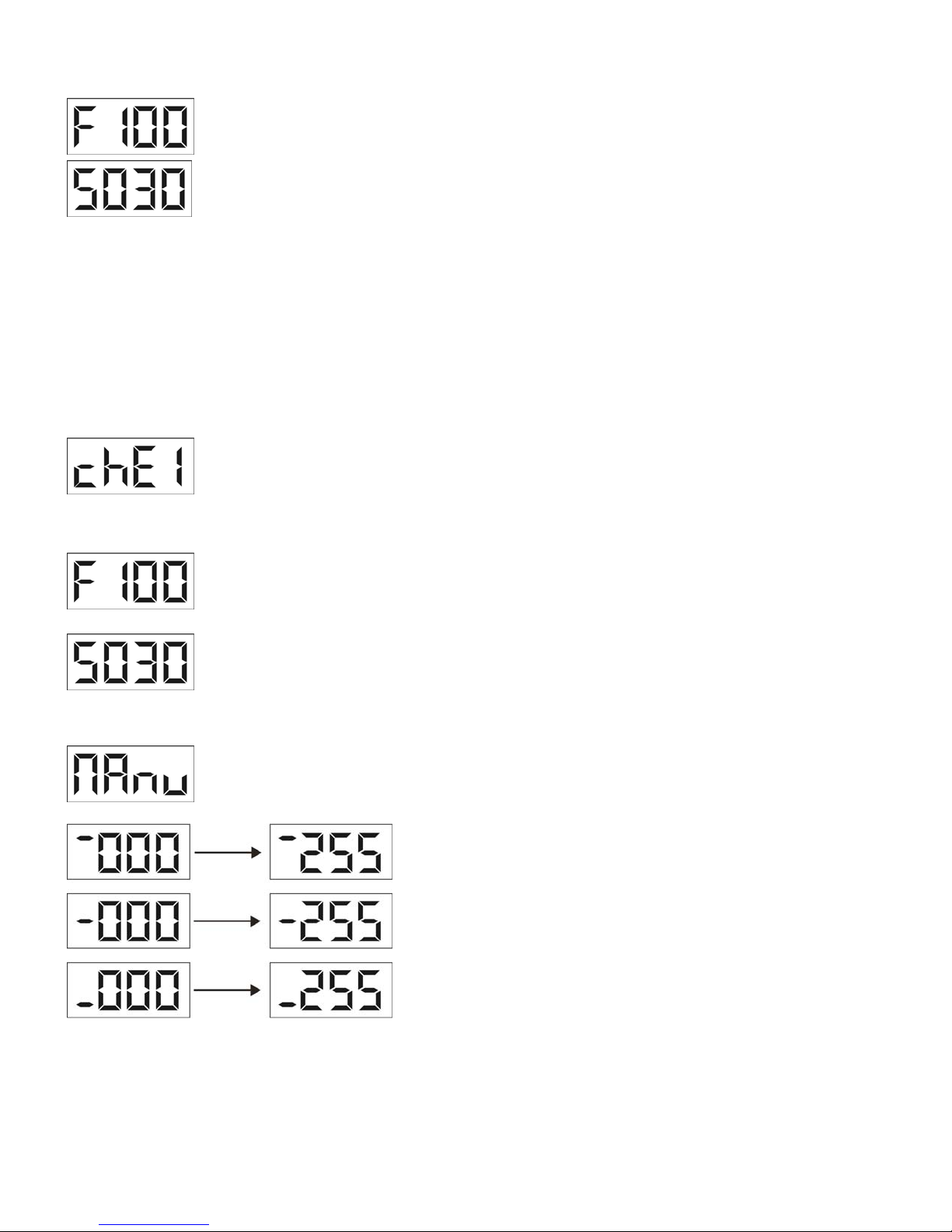

Press the F/S button to set the Fade and Speed values:

Adjust Chase Fade Time from 0-100%.

Adjust Chase Speed from 1-500 steps per minute.

Press the MODE button to view the Manual Color Mixing menu:

Press F/S to select the color you want to adjust.

Use UP and DOWN to mix the RGB colors and change their values.

Indicates Red with value from Dark (0) to Bright (255).

Indicates Green with value from Dark (0) to Bright (255).

Indicates Blue with value from Dark (0) to Bright (255).

Sound-active Operation

In Stand-alone mode, select Chase 9 and adjust the audio input level using the sensitivity control dial on the

side panel of the Pixel Drive 30.

In DMX mode, use Channel 6 to select Sound-active operation and to adjust the audio sensitivity.

DMX Operation

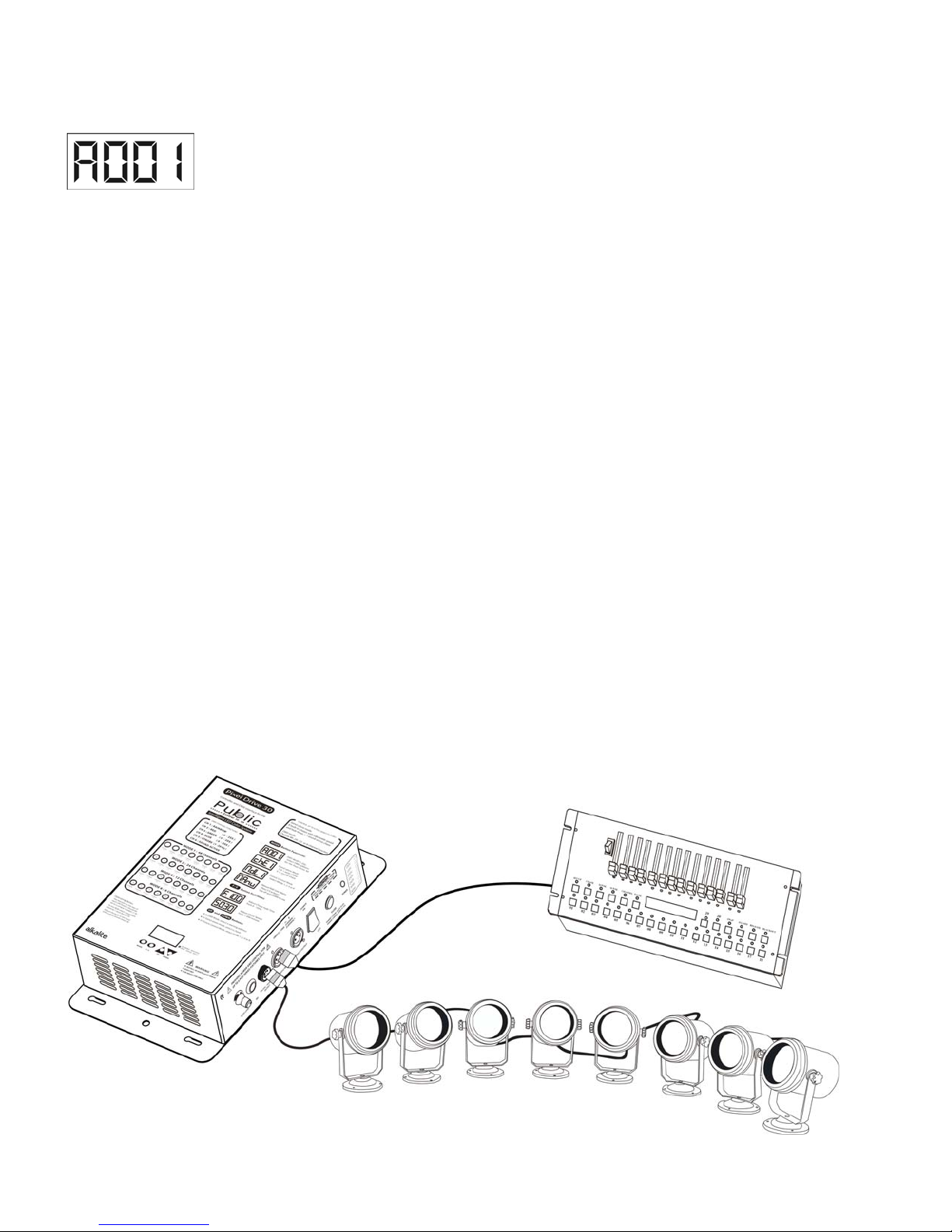

Press the MODE button to view the DMX address setting rnenu:

Select the DMX starting address for the Pixel Drive 30 using the

UP and DOWN buttons.

The DMX Channel functions are:

Channel 1: Rainbow

Channel 2: Red (0-255)

Channel 3: Green (0-255)

Channel 4: Blue (0-255)

Channel 5: Strobe (1-20HZ)

Channel 6: Sound-active/ Audio sensitivity

There are 8 modes of self-running programs (0-220) and 1 sound-active program (241-255) in Channel 6.

Chase 1: 1-30

Chase 2: 31-60

Chase 3: 61-90

Chase 4: 91-120

Chase 5: 121-150

Chase 6: 151-180

Chase 7: 181-210

Chase 8: 211-240

Sound-Active: 241-255

The Pixel Drive 30 will automatically detect the presence of a DMX signal.

IF a DMX signal is present, the front panel LED display will blink.

In order to receive a DMX signal, the Pixel Drive 30 must be attached to a DMX controller by a 3-pin DMX

cable and the DMX controller must be turned on.

To mix RGB color using DMX, Channel 1 (Rainbow) must be off (0).

When programming your own DMX sequences, note that Channel 6 must be off (0) to avoid activating

Sound-active mode during playback.

The Octopod system can operate as a 48-, 24-, 12- or 6- channel DMX fixture. Select DMX Mode 1, 2, 3 or

4 as described on the facing page.

Fig 4

DMX Modes

Press the MODE button to view the DMX mode selection menu. Use the UP and DOWN buttons to select

the DMX mode.

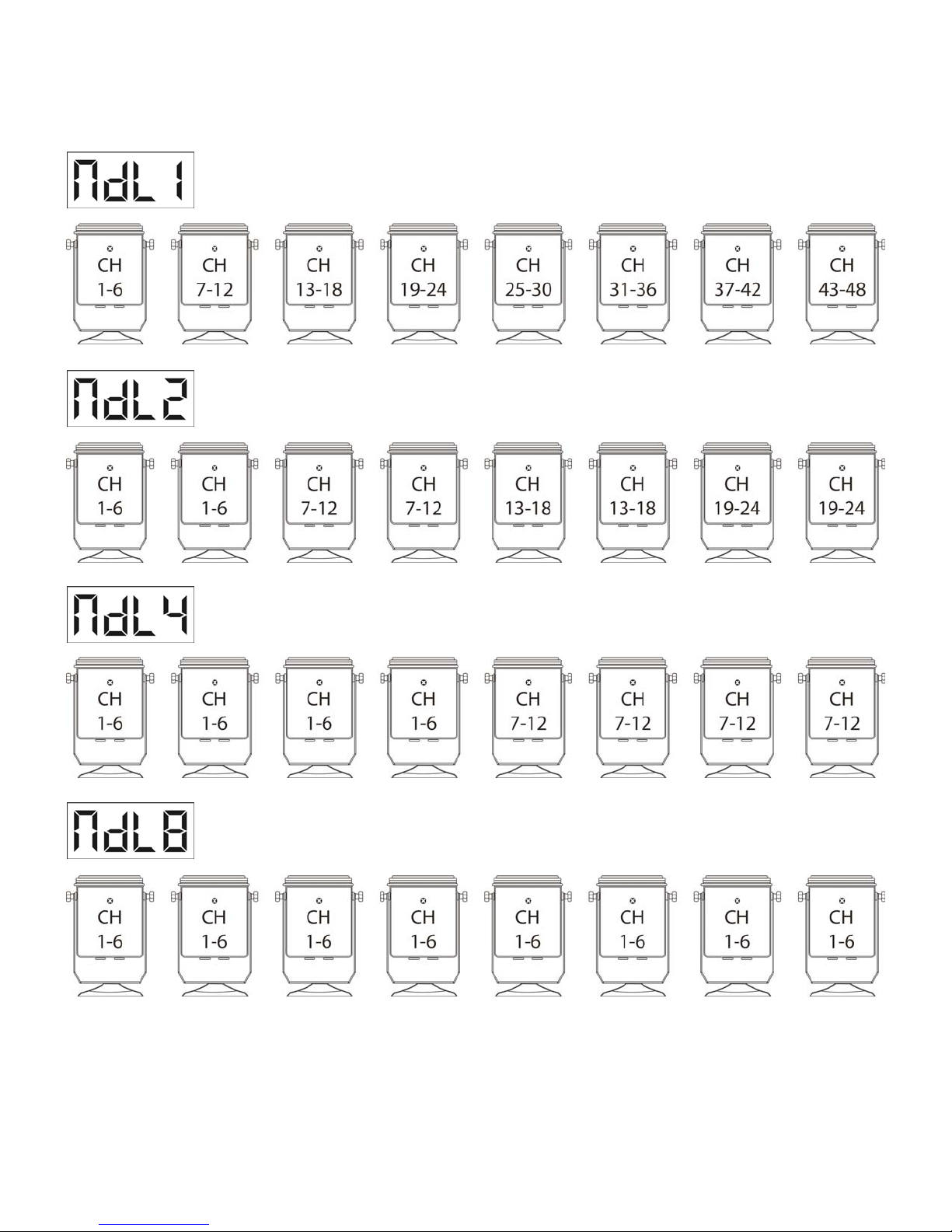

DMX Mode 1 : 48-channel operation (Control each Octopod fixture independently)

DMX Mode 2 : 24-channel operation (Control 4 sets of 2 Octopod fixtures)

DMX Mode 4 : 12-channel operation (Control 2 sets of 4 Octopod fixtures)

DMX Mode 8 : 6-channel operation (Control 8 Octopod fixtures in unison)
