D-Pack 6 Classic

ORDERCODE 50315

Congratulations!

You have bought a great, innovative product from Showtec.

The Showtec D-Pack 6 Classic brings excitement to any venue. Whether you want simple plug-&-play

action or a sophisticated DMX show, this product provides the effect you need.

You can rely on Showtec, for more excellent lighting products.

We design and manufacture professional light equipment for the entertainment industry.

New products are being launched regularly. We work hard to keep you, our customer, satisfied.

For more information: iwant@showtec.info

You can get some of the best quality, best priced products on the market from Showtec.

So next time, turn to Showtec for more great lighting equipment.

Always get the best -- with Showtec !

Thank you!

Showtec

Showtec D-Pack 6 Classic™Product Guide

Warning..…...................................................................................…………………………………………....................

Safety-instructions…………………………………………………………………………………….…........................

Operating Determinations…………………………………………………………………………….........................

Return Procedure……………………………………………………………………………........................................

Claims……………………………………………………………………………...........................................................

Description..…..............................................................................……….……………………………….…..................

Features…….……………………………………………………………………………………….……....…..................

Overview………………………………………………………………………………………………………...................

Front.......................................................................................................................................................................

Backside................................................................................................................................................................

Installation................................................................................…...……………………………………..…...................

Set Up and Operation.....................................................................……..…………………………….…....................

Connecting the in and outputs…………………….........................................……….........................................

DMX control……………....................................................................................……….........................................

Analog control.....................................................................................................................................................

Maintenance.................................................................................………..………….…….…………….....................

Troubleshooting............................................................................………………….………………….….....................

Product Specifications.................................................................……………….…….………………….....................

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device has to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to

follow the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to

warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-

observance of this manual or any unauthorized modification to the device.

Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

Never remove warning or informative labels from the unit.

Do not open the device and do not modify the device.

Do not insert objects into air vents.

Do not connect this device to a dimmerpack.

Do not switch the device on and off in short intervals, as this would reduce the device’s life.

Only use device indoor, avoid contact with water or other liquids.

Avoid flames and do not put close to flammable liquids or gases.

Always disconnect power from the mains, when device is not used or before cleaning! Only

handle the power-cord by the plug. Never pull out the plug by tugging the power-cord.

Make sure that the device is not exposed to extreme heat, moisture or dust.

Make sure that the available voltage is not higher than stated on the rear panel.

Make sure that the power-cord is never crimped or damaged. Check the device and the power-

cord from time to time.

If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do

not switch it on immediately. The arising condensation water might damage your device. Leave

the device switched off until it has reached room temperature.

If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

CAUTION!

Keep this device away from rain and moisture!

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dangerous electric shock when touching the wires!

Repairs, servicing and electric connection must be carried out only by Showtec.

For replacement use fuses of same type and rating only.

This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the

device will serve you for a long time without defects.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash

etc.

You endanger your own safety and the safety of others!

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

International

EU Cable

UK Cable

US Cable

BROWN

RED

YELLOW/COPPER

FASE

BLUE

BLACK

SILVER

NUL

YELLOW/GREEN

GREEN

EARTH

Make sure that the device is always connected properly to the earth!

Return Procedure

Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued.

Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned

without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture.

Be prepared to provide the model number, serial number and a brief description of the cause for the

return. Be sure to properly pack fixture, any shipping damage resulting from inadequate packaging is the

customer’s responsibility. Highlite reserves the right to use its own discretion to repair or replace

product(s). As a suggestion, proper UPS packing or double-boxing is always a safe method to use.

Note: If you are given an RMA number, please include the following information on a piece of paper

inside the box:

1) Your name

2) Your address

3) Your phone number

4) A brief description of the symptoms

Claims

The client has the obligation to check the delivered goods immediately upon delivery for any short-

comings and/or visible defects, or perform this check after our announcement that the goods are at their

disposal. Damage incurred in shipping is the responsibility of the shipper; therefore the damage must be

reported to the carrier upon receipt of merchandise.

It is the customer's responsibility to notify and submit claims with the shipper in the event that a fixture is

damaged due to shipping. Transportation damage has to be reported to us within one day after receipt

of the delivery.

Any return shipment has to be made post-paid at all times. Return shipments must be accompanied with

a letter defining the reason for return shipment. Non-prepaid return shipments will be refused, unless

otherwise agreed in writing.

Complaints against us must be made known in writing or by fax within 10 working days after receipt of the

invoice. After this period complaints will not be handled anymore.

Complaints will only then be considered if the client has so far complied with all parts of the agreement,

regardless of the agreement of which the obligation is resulting.

Description of the device

Features

The D-Pack 6 Classic is a light controller from Showtec and features:

• LED indicator and dimmer-fader for each channel

• Preheat 0-50% adjustable

•3 phase input and 20A per phase

• AC 230V, 50/ 60 Hz

• Power output: 10A per channel max. Total 60A max.

• Fuse: 10A circuit breaker

• Dimensions: 482 x 430 x 89mm

• Weight: 7.1 kg

Note:

Knowledge of DMX is required to fully utilize this unit.

Overview

Front

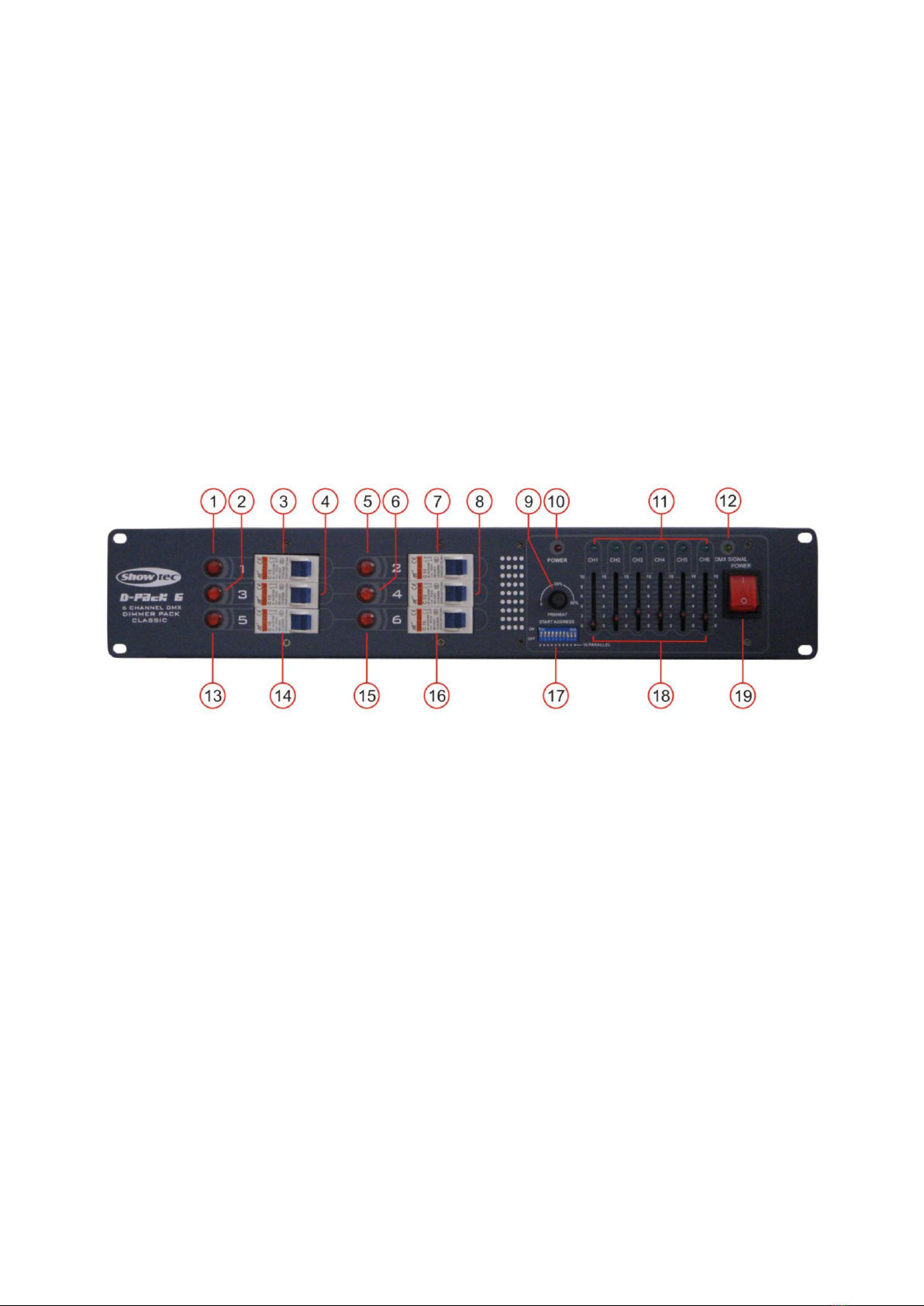

Fig. 1

1) Channel 1 indicator

This indicator lights if there is no load connected

2) Channel 3 indicator

This indicator lights if there is no load connected

3) Channel 1 circuit breaker

This circuit breaker will cut off the power supply if the load current exceeds 10A

4) Channel 3 circuit breaker

This circuit breaker will cut off the power supply if the load current exceeds 10A

5) Channel 2 indicator

This indicator lights if there is no load connected

6) Channel 4 indicator

This indicator lights if there is no load connected

7) Channel 2 circuit breaker

This circuit breaker will cut off the power supply if the load current exceeds 10A

8) Channel 4 circuit breaker

This circuit breaker will cut off the power supply if the load current exceeds 10A

9) Preheat control

This control is used to adjust the initial lightning point

10) Power LED

11) Channel 1-6 dimmer indicator

12) DMX indicator

13) Channel 5 indicator

This indicator lights if there is no load connected

14) Channel 5 circuit breaker

circuit breaker will cut off the power supply if the load current exceeds 10A

15) Channel 6 indicator

This indicator lights if there is no load connected

16) Channel 6 circuit breaker

circuit breaker will cut off the power supply if the load current exceeds 10A

17) DMX channel Dip switch

These switches are used to set the DMX start channel

18) Channel 1-6 dimmer control

Use to adjust the according dimmer level

19) Power switch

Backside

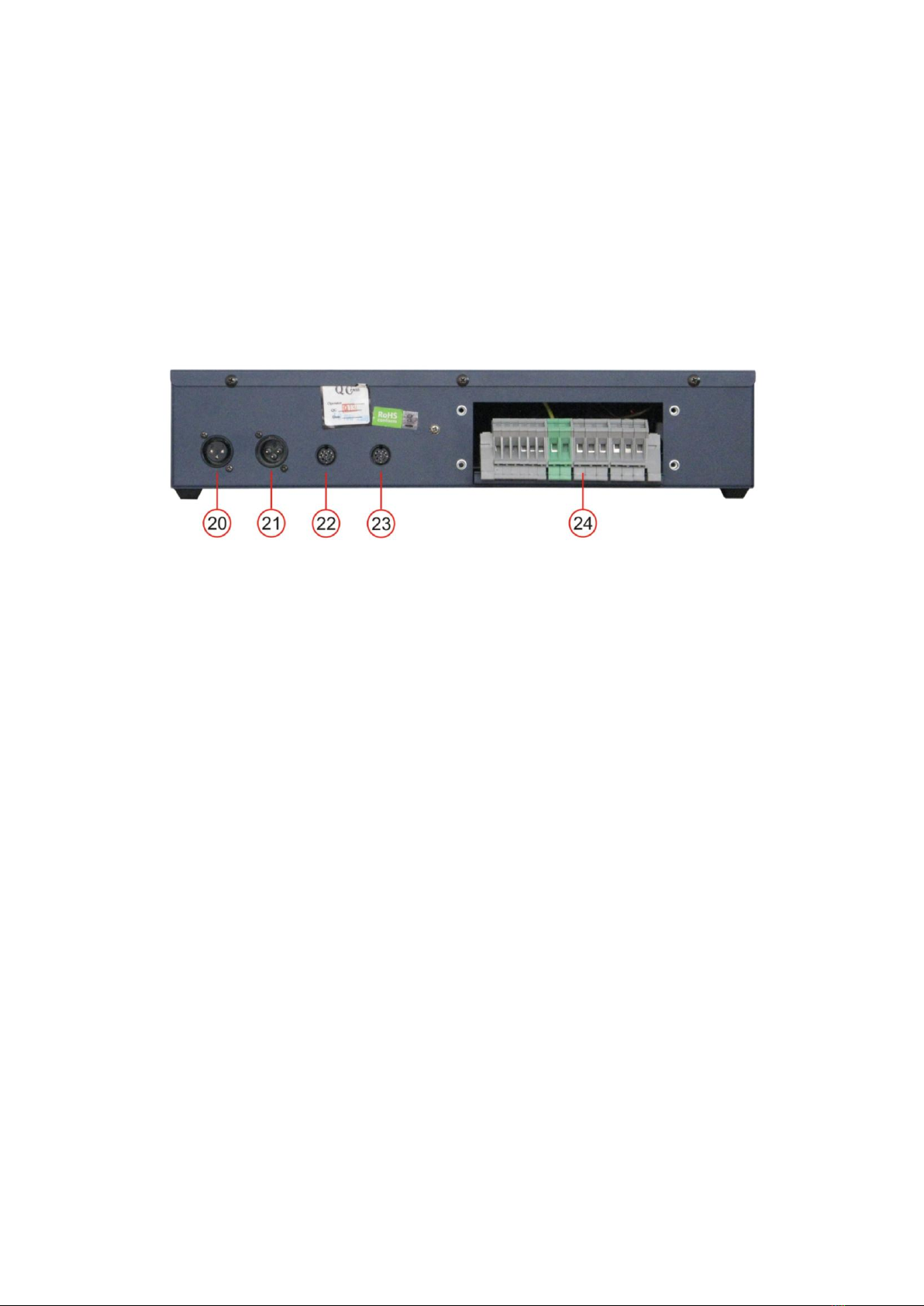

Fig. 2

20) 3-pin DMX output connector

21) 3-pin DMX input connector

22) ANALOG input port (8-pin DIN socket)

23) ANALOG output port (8-pin DIN socket)

24) Output wiring port

Installation

Remove all packing materials from the D-Pack 6 Classic. Check that all foam and plastic padding is

removed. Screw the equipment into a 19" rack. Connect all cables.

Always disconnect from electric mains power supply before cleaning or servicing.

Damages caused by non-observance are not subject to warranty.

Set Up and Operation

Fig. 3

Unplug the unit from mains before making any connections

Connecting the in and outputs

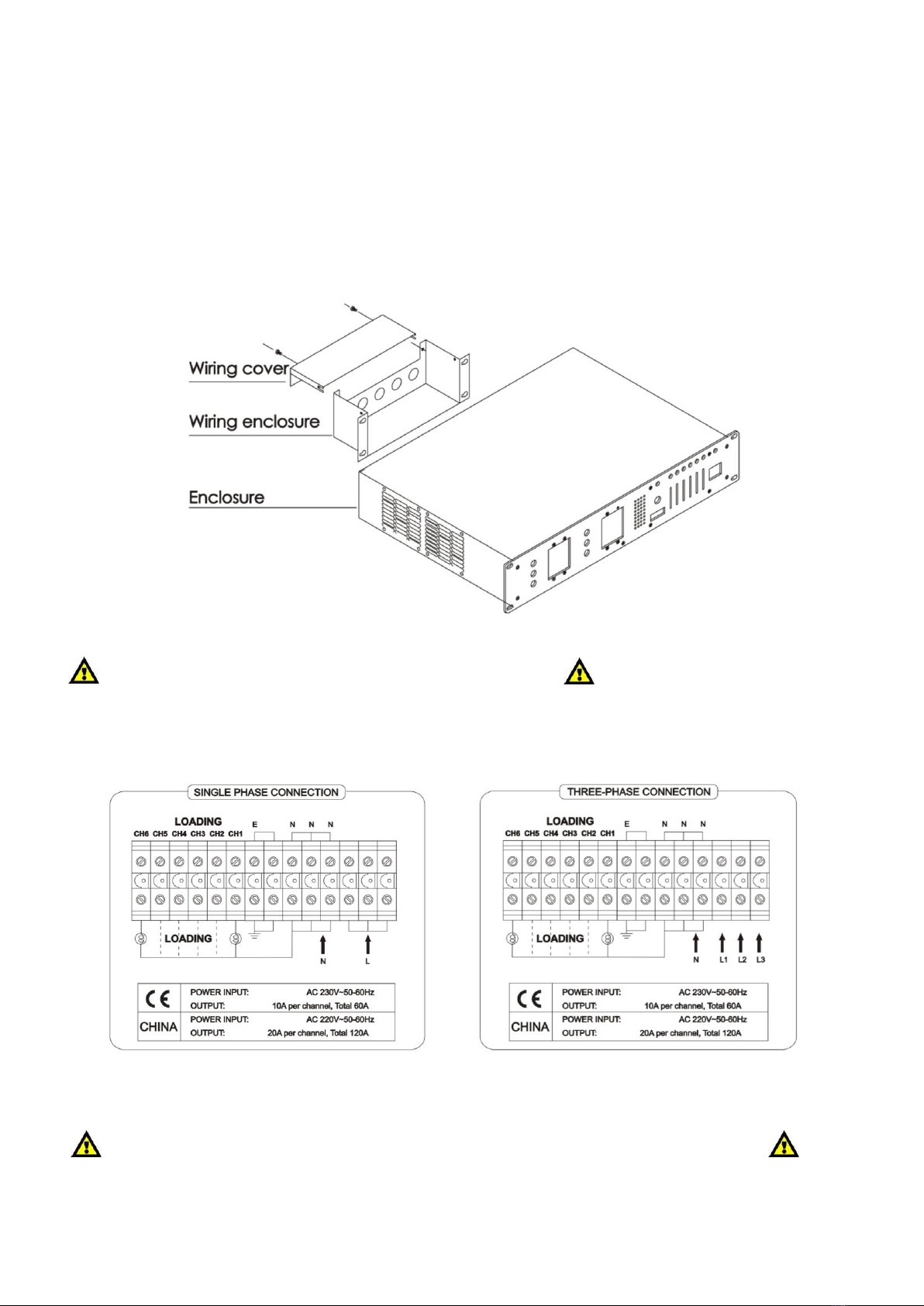

The terminal block is located behind the wiring enclosure/cover. For proper connections see figure 4.

Fig. 4

Make sure to mount the wiring enclosure/cover again before connecting to the mains

DMX Control

When dipswitch #10 is turned OFF all dimmers are controlled by a separate DMX channel. If dipswitch

#10 is turned ON all dimmers are controlled by a single DMX channel (parallel).

Example: normal mode

DMX CH 1: dimmer channel 1 DMX CH 4: dimmer channel 4

DMX CH 2: dimmer channel 2 DMX CH 5: dimmer channel 5

DMX CH 3: dimmer channel 3 DMX CH 6: dimmer channel 6

Example: parallel mode

DMX CH 1: dimmer channel 1 DMX CH 1: dimmer channel 4

DMX CH 1: dimmer channel 2 DMX CH 1: dimmer channel 5

DMX CH 1: dimmer channel 3 DMX CH 1: dimmer channel 6

DMX Dipswitch Settings

DMX products must have their own "address" to receive DMX signals. Addresses on the controller are set

by flipping the appropriate DMX dipswitches.

You need to know that DMX address settings are the sum of the dip switch values where switch 1 = 20,

switch 2 = 21, switch 3 = 22,, switch 4 = 23 etc., finally switch 9 = 28.

Example

Switch Value

#1 (20) 1

#5 (24) 16 +

Total sum 17

A much better approach is using the DMX Address Quick reference Chart as shown in figure 5 on the

following page.

Example:

1. If you want to give an LED Wash Ultra DMX address133, you first have to find the number 133 in the

DMX Chart.

2. Then look at the left side (Dip Switches #1-#5) horizontally from 133.

In the Table you’ll see #1=ON, #2=OFF, #3=ON, #4=OFF, #5=OFF.

3. Finally look at the upper side of the table (Dip Switches #6-#9) vertically from 133.

In the Table you’ll see #6=OFF, #7=OFF, #8=ON, #9=OFF.

DMX Address Quick Reference Chart

#9 0 0 0 0 0 0

#8 0 0 0 0 1 1

#7 0 0 1 1 0 0

#6 0 1 0 1 0 1

#1 #2 #3 #4 #5

0 0 0 0 0 32 64 96 128 160

1 0 0 0 0 1 33 65 97 129 161

0 1 0 0 0 2 34 66 98 130 162

1 1 0 0 0 3 35 67 99 131 163

0 0 1 0 0 4 36 68 100 132 164

1 0 1 0 0 5 37 69 101 133 165

0 1 1 0 0 6 38 70 102 134 166

DMX DIPSWITCH SET

0=OFF

1=ON

Table des matières

Autres manuels Show Tec Matériel de DJ

Show Tec

Show Tec Luna Par 120 Q4 Manuel utilisateur

Show Tec

Show Tec Starzone Gobo Quake DMX Manuel utilisateur

Show Tec

Show Tec PIXEL BAR 12 MKII Manuel utilisateur

Show Tec

Show Tec Performer Profile Mini MKII 3200K Manuel utilisateur

Show Tec

Show Tec Powerbeam 10 LED Manuel utilisateur

Show Tec

Show Tec Parcan 64 Short Incl. Parsafe Manuel utilisateur

Show Tec

Show Tec Helix M1100 Q4 Mobile Manuel utilisateur

Show Tec

Show Tec Shogun Club G-40 Manuel utilisateur

Show Tec

Show Tec Polar 100 Beam Manuel utilisateur

Show Tec

Show Tec Media Panel 100 V1 Manuel utilisateur

Show Tec

Show Tec Mirrorball 15 cm Manuel utilisateur

Show Tec

Show Tec Club Par Dizzy 3/8 Manuel utilisateur

Show Tec

Show Tec Cameleon Flood 6 Q4 Tour Manuel utilisateur

Show Tec

Show Tec EventBAR 100IR Manuel utilisateur

Show Tec

Show Tec POWERBOX 3 Manuel utilisateur

Show Tec

Show Tec LED Tube Basic Square Manuel utilisateur

Show Tec

Show Tec Spectral M800 Q4 Tour Manuel utilisateur

Show Tec

Show Tec Arc-Bar 3 Manuel utilisateur

Show Tec

Show Tec Mad Mood Manuel utilisateur

Show Tec

Show Tec Performer Profile Zoom 150 Q6 Manuel utilisateur

Show Tec

Show Tec Spectral PC 400Z IP65 Manuel utilisateur

Show Tec

Show Tec 42669 Manuel utilisateur

Show Tec

Show Tec Parcan 56 Short V1 Manuel utilisateur

Show Tec

Show Tec Edison Bar E6 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
