Showtec Unicorn™Product Guide

Warning..…...................................................................................…………………………………………..

Safety-instructions………………………………………………………………………………………….….

Operating Determinations…………………………………………………………………………………….

Rigging………………………………………………………………………………………………………….

Description..…..............................................................................……….…………………………………

Features and Overview ………………………………...….……………….………….………………….….

Backside…………………………………………………...…...….……………….…………………...….….

Installation...............................................................................…...…………………………………….…..

Installing the Lamp ........................................................………………………………………..…………

Lamp Adjustment.….......................................................………………………………………..…………

Set Up and Operation.....................................................................……..……………………………….…

One Unicorn ............................................................................……………………………………………

Multiple Unicorns..............................................................................……………………………………..

Operating Modes…...................................................……………………………………………………….

Control Panel….............……....................................……………………………………………………….

Self Control…..………...............................................……………………………………………………….

Control by Controller…...................................................……………….…………………………………..

DMX Channel Chart.......................……...............................................……………………………………..

Maintenance...................................................................................………..………….…….……………..

Changing the Lamp........................................................................…………………….………………..

Replacing the Fuse........................................................................…………………….………………..

Replacing a Gobo….......................................................................…………………….………………..

Troubleshooting............................................................................………………….………………….….

No Light, No Movement - All Products............................................………………….………………….

No Response to DMX ....................................................................………………….………………….

Product Specifications.................................................................……………….…….………………….

WARNING

FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY

BEFORE YOUR INITIAL START-UP!

SAFETY INSTRUCTIONS

Every person involved with the installation, operation and maintenance of this device have to:

-be qualified

-follow the instructions of this manual

Before your initial start-up, please make sure that there is no damage caused by transportation. Should

there be any, consult your dealer and do not use the device.

To maintain perfect condition and to ensure a safe operation, it is absolutely necessary for the user to follow

the safety instructions and warning notes written in this manual.

Please consider that damages caused by manual modifications to the device are not subject to warranty.

This device contains no user-serviceable parts. Refer servicing to qualified technicians only.

IMPORTANT:

The manufacturer will not accept liability for any resulting damages caused by the non-observance of

this manual or any unauthorized modification to the device.

•Never let the power-cord come into contact with other cables! Handle the power-cord and all

connections with the mains with particular caution!

•Never remove warning or informative labels from the unit.

•Never use anything to cover the ground contact.

•Do not insert objects into air vents.

•Do not connect this device to a dimmerpack.

•Never look directly into the light source

•Do not switch the device on and off in short intervals, as this would reduce the lamp’s life.

•Do not touch the device’s housing bare-handed during its operation (housing becomes very hot).

•Only use device indoor, avoid contact with water or other liquids.

•Avoid flames and do not put close to flammable liquids or gases.

•Always keep case closed while operating.

•Always allow free air space of at least 50 cm around the unit for ventilation.

•Always disconnect power from the mains, when device is not used, before cleaning or when

replacing lamp! Only handle the power-cord by the plug. Never pull out the plug by tugging the

power-cord.

•Make sure that the available voltage is not higher than stated on the rear panel.

•Make sure that the power-cord is never crimped or damaged. Check the device and the power-cord

from time to time.

CAUTION!

Keep this device away from rain and moisture!

mains lead before o

enin

the housin

CAUTION! Be careful with your operations.

With a dangerous voltage you can suffer

a dan

erous electric shock when touchin

the wires!

•If device is dropped or struck, disconnect mains power supply immediately. Have a qualified

engineer inspect for safety before operating.

•If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not

switch it on immediately. The arising condensation water might damage your device. Leave the

device switched off until it has reached room temperature.

•If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely

(preferably in the original packing material), and return it to your Showtec dealer for service.

•For replacement use lamps and fuses of same type and rating only.

•Allow time to cool down, before replacing lamp.

•This device falls under protection class I. Therefore it is essential to connect the yellow/green

conductor to earth.

•During the initial start-up some smoke or smell may arise. This is a normal process and does not

necessarily mean that the device is defective.

•Repairs, servicing and electric connection must be carried out by a qualified technician.

•WARRANTY: Till one year after date of purchase.

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the device

will serve you for a long time without defects.

The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.

If this device is operated in any other way, than the one described in this manual, the product may suffer

damages and the warranty becomes void.

Any other operation may lead to dangers like short-circuit, burns, electric shock, lamp explosion, crash etc.

You endanger your own safety and the safety of others!

CAUTION ! EYEDAMAGES !.

Avoid looking directly into the light source.

(

meant es

eciall

for e

ile

tics

)

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other safety issues.

Do not attempt the installation yourself !

Always let the installation be carried out by an authorized dealer !

Procedure:

•If the projector is lowered from the ceiling or high joists, professional trussing systems have to be

used.

•Use a clamp to mount the projector, with the mounting-bracket, to the trussing system.

•The projector must never be fixed swinging freely in the room.

•The installation must always be secured with a safety attachment, e.g. an appropriate safety net or

safety-cable.

•When rigging, derigging or servicing the projector, always make sure, that the area below the

installation place is blocked and staying in the area is forbidden.

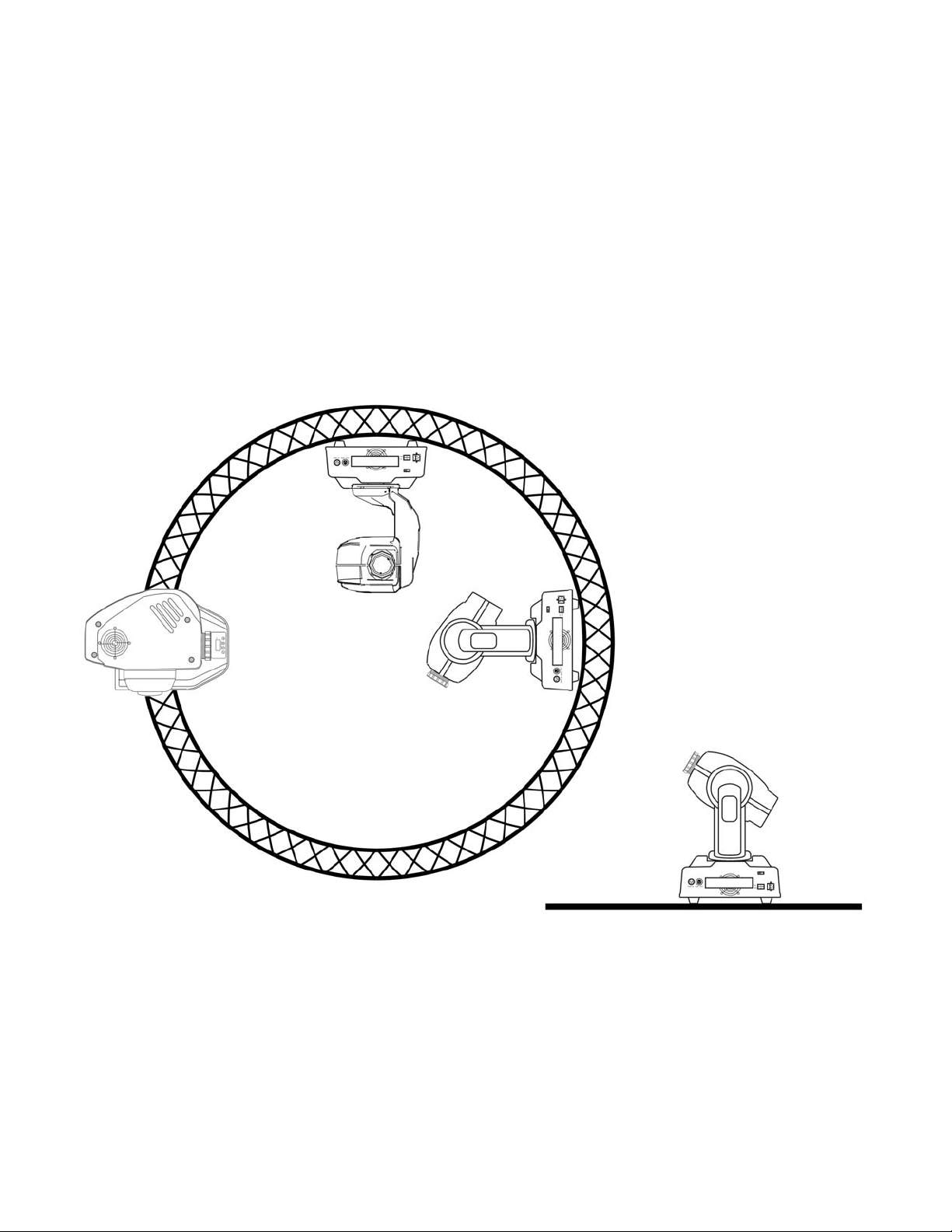

The Unicorn can be placed on a flat stage floor or mounted to any kind of truss by a clamp.

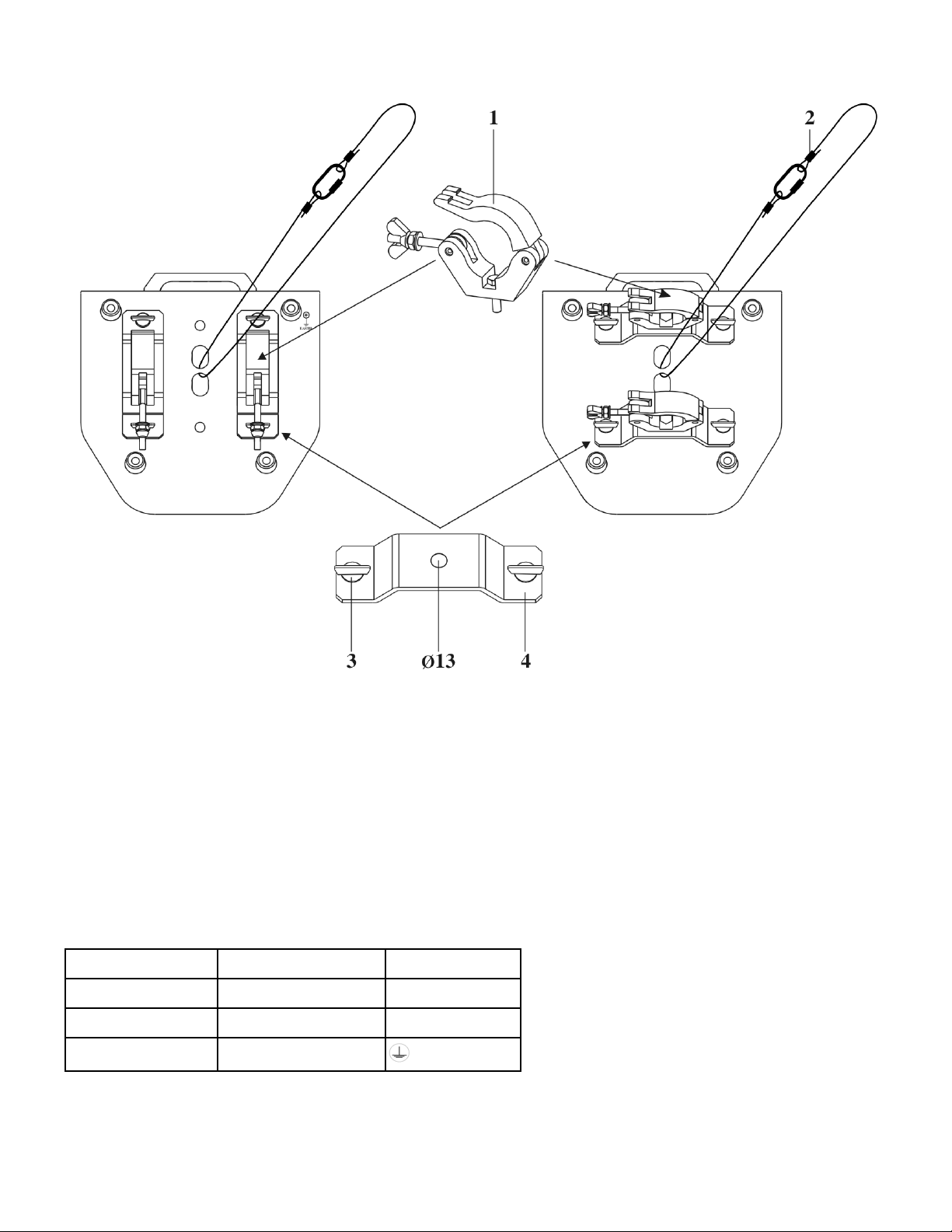

Mounting a clamp to the underside of the Unicorn moving head

1) Clamp

2) Safety-cable

3) Screw

4) Omega

Improper installation can cause serious damage to people and property !

Connection with the mains

Connect the device to the mains with the power-plug.

Always pay attention, that the right color cable is connected to the right place.

Cable Pin International

BROWN FASE L

BLUE NUL N

YELLOW/GREEN EARTH

Make sure that the device is always connected properly to the earth!

Description of the device

Features

The Showtec Unicorn is a one-arm moving head with high output and great effects.

• 1 Color-wheel with 11 coloured gobos, and open

• 1 Gobo-wheel with 7 interchangeable rotating gobos plus open

• DMX-control via standard DMX-controller

• 8 DMX-control channels required

• Strobe-effect with adjustable speed (1 - 10 flashes/sec.)

• Sound-controlled via built-in microphone

• Manual focus

• Pan 0º -- 540º

• Tilt 0º -- 270º

• Lamp CMH 150 or HSD 150/70

• Fuse T6,3A / 250V

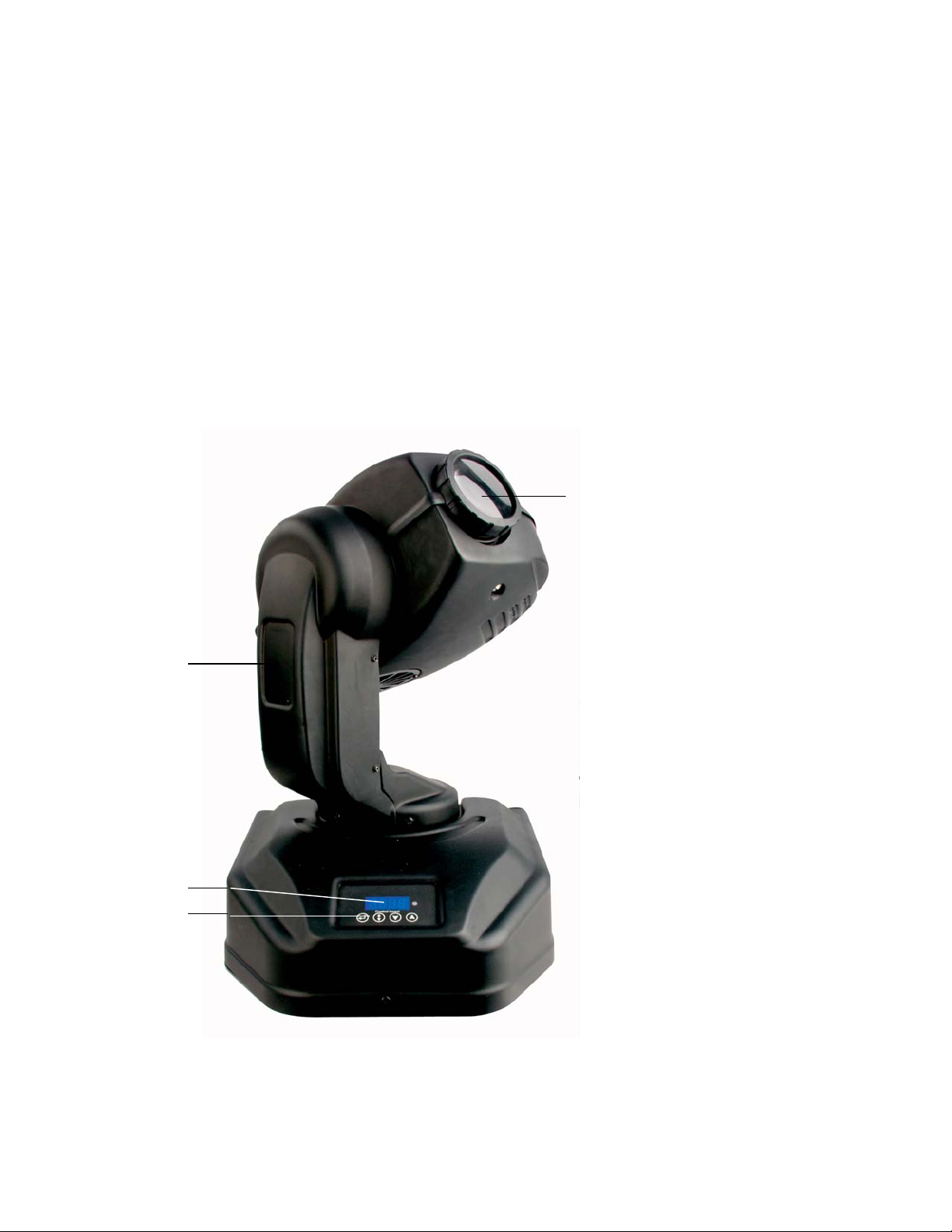

Overview

Fig. 1

1) Lens

2) Carrying handle

3) Display

4) Menu / Select buttons

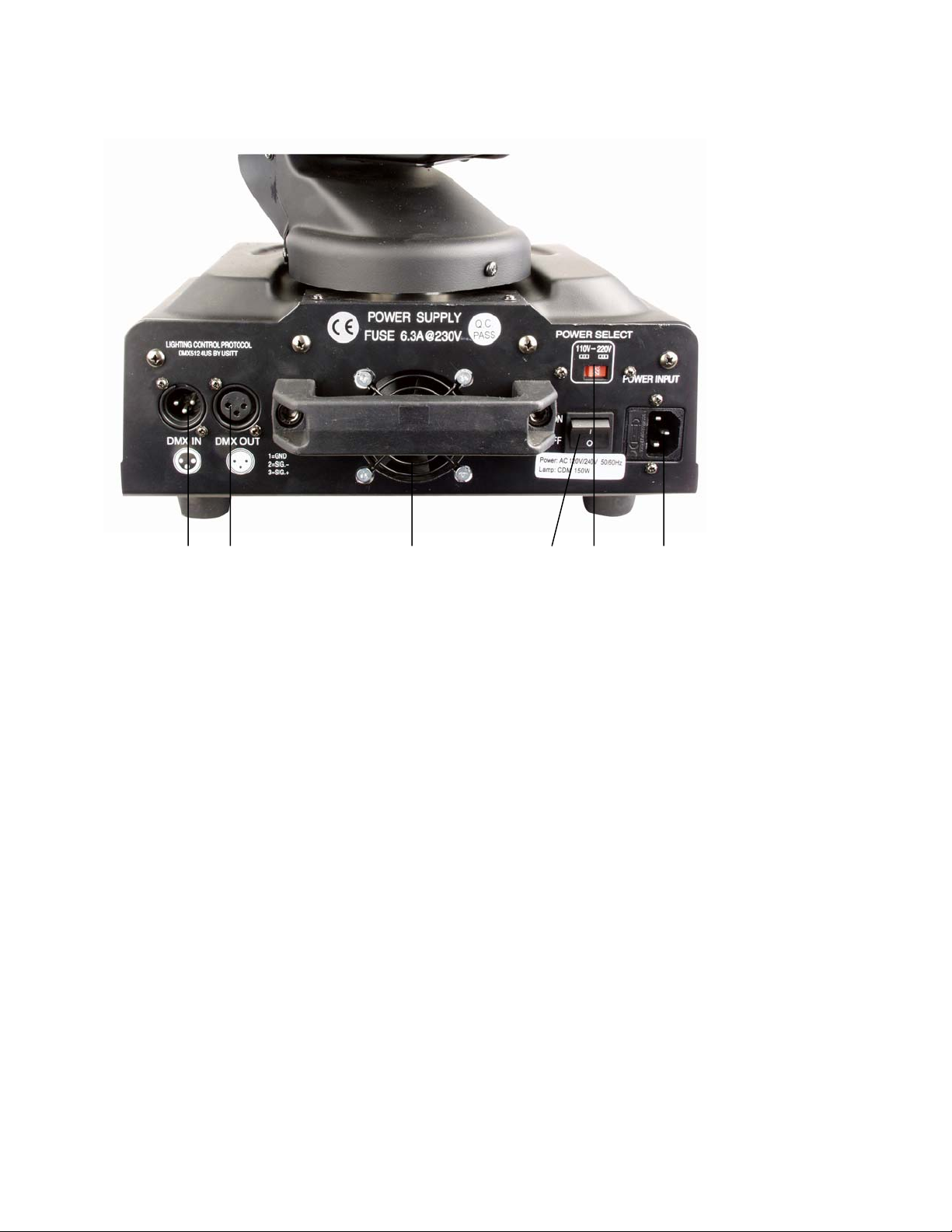

Backside

1 2 3 4 5 6 Fig. 2

1) DMX signal connector (IN)

2) DMX signal connector (OUT)

3) Ventilation

4) ON / OFF

5) Power Select 110V/ 220V

6) IEC power connector

Installation

Installing the Lamp

The Showtec Unicorn uses the CMH 150 (ordercode 80925) or HSD 150/70 (ordercode 80940) reflectorbulb

as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit.

Note that, product versions that use other lamps, may be offered in the future. Check your product

specification label for information.

Always disconnect from electric mains power supply before changing lamps.

The lamp has to be replaced when it is damaged or deformed due to the heat.

Do not install lamps with a higher wattage! Lamps with a higher wattage generate temperatures the

device was not designed for.

Damages caused by non-observance are not subject to warranty.

Procedure :

1. Loosen the screws ( W, X, Y, Z) on the backside of the lamp cover. See Backpanel Fig. 4

2. Gently pull out the lamp board. Read lamp instructions. Do not touch the lamp bulb glass. (See Figure 3.)

Oil on hands shortens the lamp life. (If you touch the bulb glass, wipe off the glass with a clean, lint-free

towel and rubbing alcohol.)

3. Hold the lamp socket with one hand. Insert the lamp pins into the holes in the lamp socket.

4. Push the lamp in to the lamp board. You can adjust the distance between the lamp and the lens (screw A)

5. Put the backpanel back and fasten the screws snugly.

Lamp board Lamp holder

1 2 3 4

Fig. 3

Backside Lamp Board

Fig. 4
