Shining 3D einstart-c Manuel utilisateur
Einstart®-C
Quick Start Guider
HANGZHOU SHINING3D TECH CO., LTD.
STOCK CODE：830978
1. Printer and Accessories
2. Preparation
Step 1: Unpack the inner and outer packaging.
Step 2: Remove the cushioning foam.

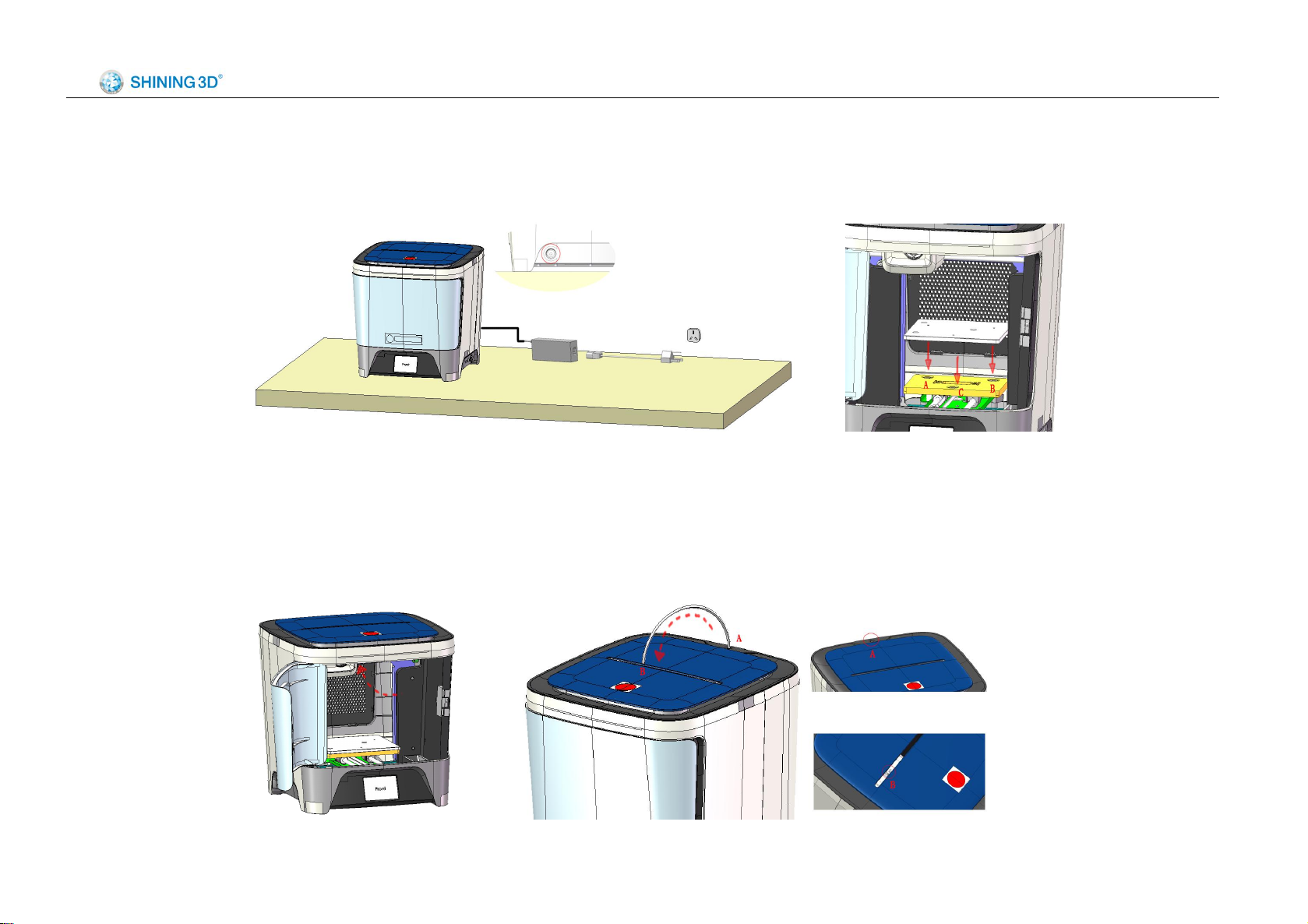

Step 3: Place the printer on a leveled desktop and connect the power supply as demonstrated by the picture below.
Step 4: Install the print bed following these steps.
(1) Remove the print bed from its box. Open the door to the printer and slide the platform holder forward to the middle of the printer.
(2) Fit the print bed to the platform holder. Allow the magnets and positioning block to cooperate and align with one another.
Step 5: Install the Bowden Tube and Filament as shown below.
(1) Find the Bowden Tube in the printer (one end is already installed in the printer) and lead the tube to go through hole A to the outside.
(2) Take out and unpack the filament. Place the filament reel on the filament holder located inside the printer on the right-hand side.
(3) Then feed the filament through the hole inside the printer and into the Bowden tube until it reaches the extruder. (The filament should
stick out of the unconnected end of Bowden Tube)
(5) Load the filament referring to the instructions in Chapter 3.
(6) Once the filament is extruded smoothly from the nozzle, insert the Bowden Tube into the extruder through the quick connector in B.

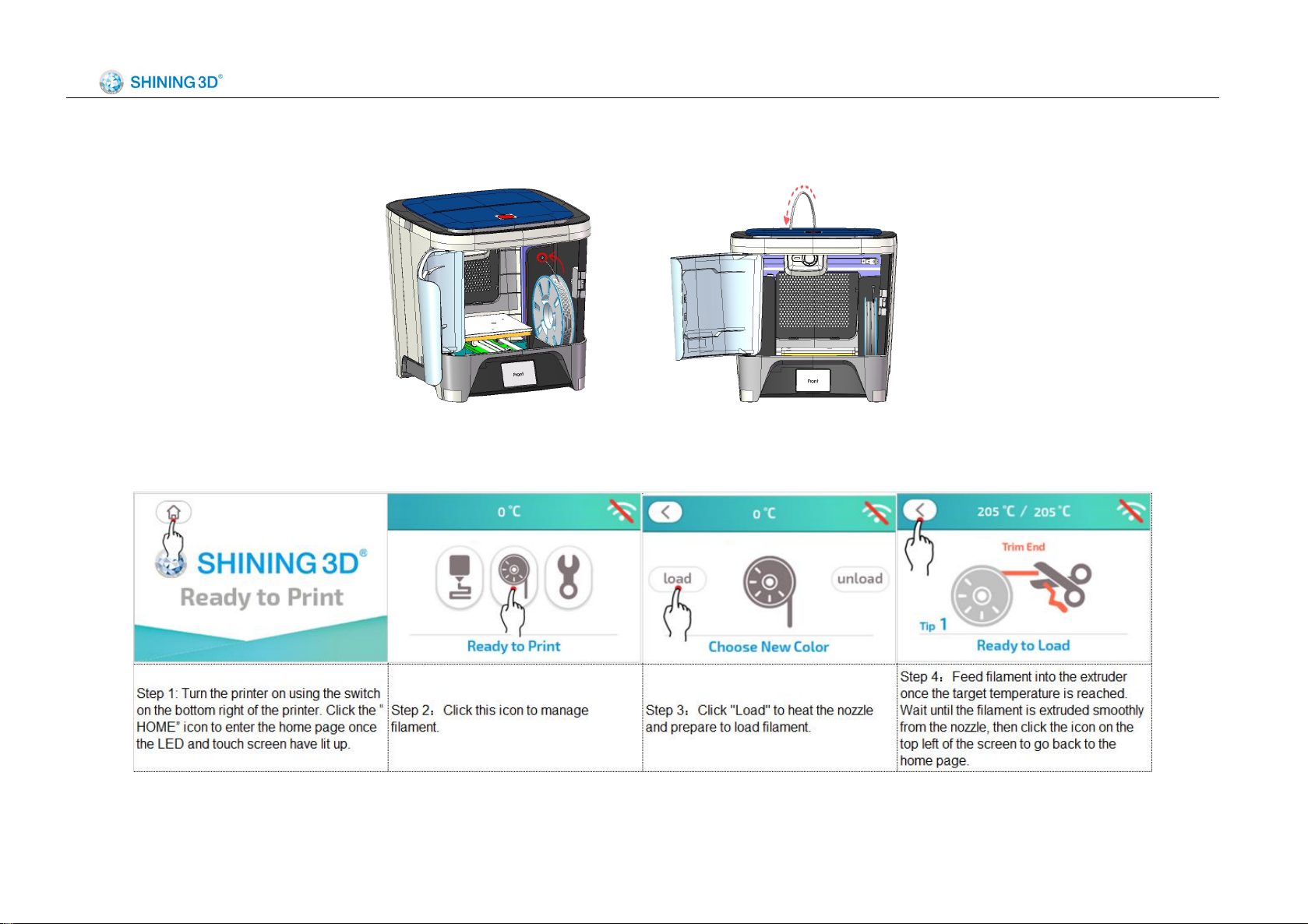

3. Quick Start
1. Turn on the printer and load the filament.
Please continue feeding the filament by hand until the extruder catches the filament and extrudes it smoothly.
2. Print the local data once the filament loading is completed.
For more instruction, please refer to the User Manual.
