Foreword

General

The Manual introduces functions, installation, usage and maintenance of the printer (hereinafter referred to

as "the Printer").

Safety Instructions

Signal

Meaning

Additional information for particular situation.

Improper actions or conditions that may damage the product or injury, and

consequently void your warranty or service contract or lose the patient data or

system data.

The safety instructions that you must precisely follow to avoid injury. Failure to

observe can cause damages to your product, or result in personal injuries, or even

death.

Revision History

No.

Version

Revision Content

Release Date

V3.2.20

First release.

June, 2021

FCC Regulations

Please note that changes or modifications not expressly approved by the party responsible for

compliance could void the user’s authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference to

radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the interference by

one or more of the following measures:

⚫Reorient or relocate the receiving antenna.

⚫Increase the separation between the equipment and receiver.

⚫Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

⚫Consult the dealer or an experienced radio/TV technician for help.

RF exposure statement

AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021 2

⚫This equipment complies with radio frequency exposure limits set forth by the FCC for an

uncontrolled environment.

⚫This equipment should be installed and operated with a minimum distance of 20 cm between the

device and the user or bystanders.

⚫This device must not be co-located or operating in conjunction with any other antenna or

transmitter.

To Users

Dear users:

Thank you for choosing SHINING 3D AccuFab 3D printer (hereinafter referred to as the "Printer") and for your

support of SHINING 3D brand. We will adhere to the enterprise tenet of "Creating Value for Customers" to bring

better service for every user of this product. We declare that the AccuFab 3D printer is independently developed by

SHINING 3D TECH CO., LTD. with imported projection device, independently designed software, and hardware

systems, which provides reliable technical solutions for the application of the dental industry.

Supporting high-quality digital model printing, the Product is designed to assist clinics and dental Labs to quickly

complete digital printing of dentistry, with a wide application range and high printing precision. It also supports

unattended offline printing and online transmission control printing to fully meet users’ needs for convenient

operation and high accuracy of 3D printing.

This User Manual mainly introduces the installation, use, and maintenance of this Product for your quick

understanding of AccuFab. Read the User Manual carefully before using, and keep it properly for future reference.

AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021 3

Table of Contents

FOREWORD ...............................................................................................................................................1

1. SAFETY ...............................................................................................................................................1

1.1. PRINTING MATERIAL..................................................................................................................................1

1.2. EMERGENCY MEASURES.............................................................................................................................1

1.3. LIGHT SOURCE..........................................................................................................................................1

1.4. ALCOHOL (ETHANOL)SOLVENT....................................................................................................................1

1.5. SHARP ACCESSORIES..................................................................................................................................1

1.6. ELECTROMAGNETIC INTERFERENCE...............................................................................................................1

2. INSTRUCTIONS FOR OPERATION ENVIRONMENT .................................................................................2

2.1. SITE REQUIREMENTS..................................................................................................................................2

2.2. COMPUTER RECOMMENDED CONFIGURATION ...............................................................................................2

2.3. MATERIAL STORAGE ..................................................................................................................................2

2.4. OTHERS...................................................................................................................................................2

3. PRODUCT INTRODUCTION...................................................................................................................4

3.1. ACCUFAB PRINTER ....................................................................................................................................4

3.1.1. Structure Preview ...........................................................................................................................4

3.1.2. Technical Parameters......................................................................................................................5

3.2. STANDARD ACCESSORIES ............................................................................................................................5

3.3. PREVIEW OF CURING BOX STRUCTURE ..........................................................................................................6

4. INSTALLATION ....................................................................................................................................7

4.1. UNPACK THE PACKAGE...............................................................................................................................7

4.2. INSTALL THE PRINTER.................................................................................................................................7

4.3. ADD MATERIAL.........................................................................................................................................8

4.4. NETWORK CONNECTION.............................................................................................................................9

4.4.1. Network Cable Connection .............................................................................................................9

4.4.2. Wi-Fi Connection.......................................................................................................................... 10

4.5. SOFTWARE UPDATE FUNCTION................................................................................................................. 11

4.6. ACCUWARE SOFTWARE .......................................................................................................................... 11

4.6.1. Installation ................................................................................................................................... 11

4.6.2. Interface....................................................................................................................................... 12

4.6.3. Function Description.................................................................................................................... 13

4.6.4. Use Description............................................................................................................................ 15

4.7. PRINTING FLOW CHART........................................................................................................................... 27

4.8. LOCAL DISK PRINTING ............................................................................................................................. 28

4.9. USB FLASH DRIVE PRINTING.................................................................................................................... 28

4.10. PRINTING STATUS VIEW AND CONTROL...................................................................................................... 29

5. PROCESS MODEL...............................................................................................................................31

AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021 4

5.1. TAKE OUT MODEL ................................................................................................................................. 31

5.2. CLEAN.................................................................................................................................................. 32

5.2.1. Model........................................................................................................................................... 32

5.2.2. Build Platform .............................................................................................................................. 32

5.3. CURE MODEL ........................................................................................................................................ 34

5.4. STRIPING SUPPORT................................................................................................................................. 36

6. PRODUCT CARE AND MAINTENANCE .................................................................................................37

7. FAQS AND TROUBLESHOOTING .........................................................................................................38

CONTACT US ............................................................................................................................................40

AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021 1

1. Safety

1.1. Printing Material

The printing material of AccuFab printer is a photo-polymerized resin material independently developed by

SHINING 3D. The resin solution is stable, safe, and no substances harmful to the human body were found in the test,

but direct contact with skin may cause adverse irritating reactions. During use, operators should strictly follow of the

Material Safety Data Sheet (MSDS) instructions for each material.

1.2. Emergency Measures

Direct skin contact may cause skin irritation dermatitis. During use, operators should wear rubber oil-resistant

disposable gloves.

⚫Skin contact: Take off contaminated clothing and wash skin thoroughly with soap and clean water.

⚫Eye contact: Open the upper and lower eyelids immediately, rinse with running clean water or normal

saline for at least 15 minutes, and seek medical attention.

⚫Ingestion: Rinse mouth and drink water immediately, induce vomiting, perform lavage and seek medical

attention.

Note:

For resin material contact and leakage hazard treatment, please refer to the latest Material Safety Data Sheet

(MSDS) or call the National Chemical Accident Emergency Response Hotline.

Warning:

No smoking, eating, or drinking in the workplace. Keep the resin solvent properly and keep it away from children.

1.3. Light Source

⚫During the printer and post-curing box device operation, the light source emits light with a wavelength of

405 nm, which is harmful to your eyes. Please avoid direct contact.

⚫Do not open the chamber door during printing.

1.4. Alcohol (Ethanol) Solvent

⚫Alcohol solvent is a flammable and explosive chemical. Please store in a cool and ventilated environment,

and keep the bottle cap of the container closed. Keep away from children.

⚫Alcohol solvent is used as the recommended solution to clean the liquid resin (the recommended

concentration is 95% or above) for post-processing of the printed parts of AccuFab.

⚫Wear disposable gloves when treating parts and surfaces with alcohol or uncured resin. Avoid direct skin

contact.

1.5. Sharp Accessories

AccuFab 3D printer accessories include sharp tools such as flat-headed tweezers, cleaning shovels, and utility

knives. Personal safety protection is required when using these tools for model stripping and support removal.

1.6. Electromagnetic Interference

Electromagnetic, produced by AccuFab 3D printer and Fab Cure post-curing box products during operation, has

passed CE/FCC standard test and is complied with Class A digital device limits, and will not cause harm to the human

body.

AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021 2

2. Instructions for Operation Environment

2.1. Site Requirements

AccuFab 3D Printer

Power Supply

100-240V/360W

Temperature

20°C-30°C

Humidity

40%-60%

Printing Environment

The working platform shall be clean and smooth, avoid direct sunlight and

strong light, and keep away from the dust-borne device.

Frequency Range

2400–2483.5MHz

Maximum Output

Power

18dBm

Fab Cure Post-Curing Box

Power Supply

100-240V

Temperature

20°C-30°C

Humidity

40%-60%

Working Environment

The working platform shall be clean and level, avoid direct sunlight and

strong light, and keep away from the dust-borne device.

2.2. Computer Recommended Configuration

AccuWare

Operation System

Win10 (Recommended)

CPU

E3-1230 3.30GHz and above (Recommended configuration: I5 8500)

Memory

8G and above (Recommended configuration: 16G)

Graphics Card

GTX 750 Ti and above (Recommended configuration: GTX1050)

2.3. Material Storage

Resin Materials

Temperature

10° C -30° C

Storage Conditions

Storage conditions: Store in a cool and ventilated room and avoid direct

sunlight.

Other instructions: The storage container shall be kept closed at all times

to avoid contact with fire sources. The resin material is a mixture, and it is

easy to form a small amount of sediment after standing for a while. It is

recommended to shake the storage container before use to reduce the

probability of sediment formation.

2.4. Others

⚫Ensure that the AccuFab 3D printer only uses the original consumables and accessories. Any change to the

printer without the manufacturer's permission will result in device failure, which will invalidate your warranty.

⚫Ensure that the AccuFab 3D printer works in the recommended printing environment, and the incongruent

AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021 3

printing environment will affect the printing accuracy and printing success rate.

⚫To guarantee the printing quality of the model, keep the chamber door closed during operation or just

finished the operation, and do not touch the model, resin tank, platform, or other parts of the device by hand.

AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021 4

3. Product Introduction

3.1. AccuFab Printer

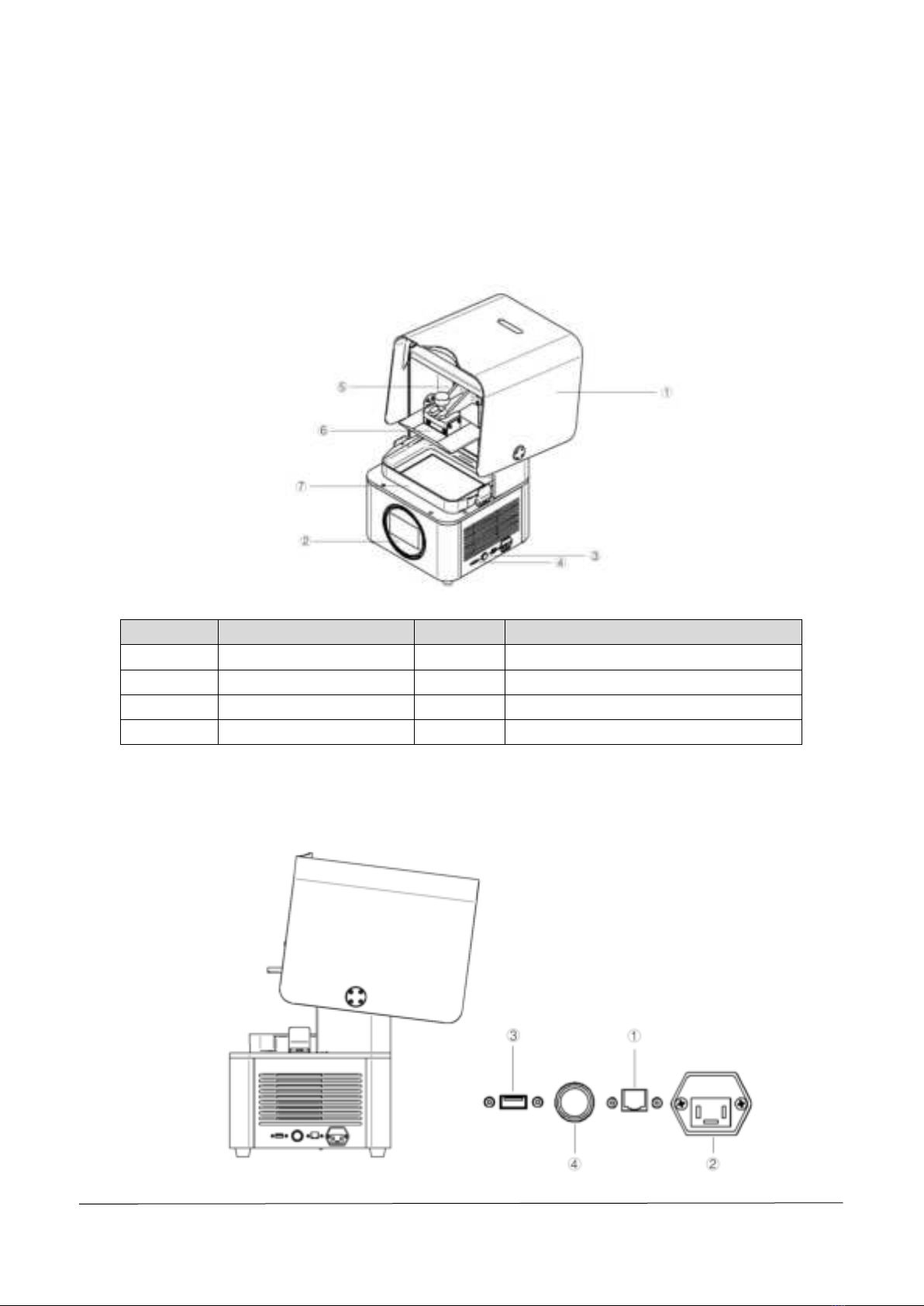

3.1.1. Structure Preview

Front view

Printer components

No.

Name

No.

Name

Light shield

Touch screen

Power button

USB port

Build platform bracket

Build platform

Resin tank

—

Note:

Take proper protective measures as the surfaces of the build platform and resin tank is easy to wear. Slight dirt

and scratches on the surfaces will not cause printing failure.

Side view

AccuFab-L4D & L4K_User Manual_V3.2.20_June 2021 5

Printer components

No.

Name

No.

Name

Network port

Power port

B-type USB port

Power button

3.1.2. Technical Parameters

Parameter

Description

Model

AccuFab-L4D；AccuFab-L4K

Optics

Light Engine

Mono LCD

Resolution

3840 × 2400

Pixel Size

0.05 mm

Light Source

LED

Wavelength

405 nm

Light Intensity

>3 mw/cm^2

Print Volume (W x D x H)

192 mm × 120 mm × 180 mm

Print Speed

10 mm/h-50 mm/h. Print speed varies on materials and layer

thickness.

Print Accuracy

±0.05 mm

Layer Thickness

0.025 mm/0.05 mm/0.075 mm/0.1 mm

Material Compatibility

Shining 3D material; certified 3rd party material

Printer

Printer Dimensions

360 mm × 360 mm × 530 mm

Weight

19 kg

Operating Temperature

20℃-30 ℃

Operating Humidity

40%-60%

Power Requirements

100 V-240V AC; 50/60 Hz; 360 W

Connectivity

USB dongle; Wi-Fi; Ethernet

Printer Control

5" touchscreen

Alerts

Touchscreen alerts; LED status indicators; buzzer alerts

Packing Dimensions

480 mm × 480 mm × 660 mm

Packing Weight

25 kg

Certification

FCC/CE/ROHS

3.2. Standard Accessories

Device Module

Components

Quantity

Printer Host

Printer

220V power adapter

Build platform

Build platform bracket

Accessories

Warranty card

Manufacturer certificate

Autres manuels pour AccuFab-L4D

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Shining 3D Imprimante 3D

Shining 3D

Shining 3D AccuFab-D1s Manuel utilisateur

Shining 3D

Shining 3D einstart-c Manuel utilisateur

Shining 3D

Shining 3D EinScan-SE Manuel utilisateur

Shining 3D

Shining 3D AccuFab-L4D Manuel utilisateur

Shining 3D

Shining 3D Einstart Manuel utilisateur

Shining 3D

Shining 3D einstart-c Manuel utilisateur

Shining 3D

Shining 3D AccuFab L4D Manuel utilisateur

Shining 3D

Shining 3D Transcan-C Manuel utilisateur

Shining 3D

Shining 3D AccuFab-D1s Manuel utilisateur

Shining 3D

Shining 3D einstart-c Manuel utilisateur

Manuels Imprimante 3D populaires d'autres marques

Ultimaker

Ultimaker S5 Material Station Manuel utilisateur

EcubMaker

EcubMaker TOYDIY Manuel utilisateur

AnyCubic

AnyCubic Kossel Plus Manuel utilisateur

ReDeTec

ReDeTec ProtoCycler Manuel utilisateur

Kywoo3D

Kywoo3D Tycoon IDEX Manuel utilisateur

CraftBot

CraftBot PLUS PRO Manuel utilisateur

3DGence

3DGence INDUSTRY F340 Manuel utilisateur

HP Jet Fusion 4200 Mode d'emploi

Rokit

Rokit AEP Series Manuel utilisateur

AnkerMake

AnkerMake M5 Manuel utilisateur

DIYElectronics

DIYElectronics PRUSA I3 Instructions de montage

Ackuretta

Ackuretta FreeShape 120 Manuel utilisateur

LONGER

LONGER LK5Pro Manuel utilisateur

Stratasys

Stratasys J850 Manuel utilisateur

MakerBot

MakerBot Replicator Manuel utilisateur

Stratasys

Stratasys FDM Vantage Series Manuel utilisateur

ZYYX

ZYYX Pro II Manuel utilisateur

FLASHFORGE 3D PRINTER

FLASHFORGE 3D PRINTER Creator Guide de l'utilisateur
