Smart Cabling & Transmission Corp.

HDMI Extender Series

User Manual

Model : HE05C

HDMI over Coaxial 500M Extender (Digital RF DVB-T)

User Manual

HE05C

Introduction

HE05C is a point-to-point HDMI extender that applies DVB-T RF modulator and can use an RG59/ RG6

coaxial cable to send an HDMI signal for up to 500M. The extender can also work with either a splitter to

distribute one HDMI signal to multiple displays or a combiner to integrate various HDMI input/ output

sources for channel selection. It can widely apply in CCTV, CATV, large outdoor screen, and shopping

mall advertisements.

Features

Resolution up to 1080p@60Hz.

Signal extension up to 500M over a coaxial cable.

Built-in local loop out port for an extra HDMI display at TX side.

Supports up to 99 channel for both TX & RX with frequency range 142-950MHz.

Supports HDMI distribution and martix via CATV RF splitter/ DTV Mixer.

Built-in LCD display at TX & RX for channel setting.

Managed via front panel buttons and IR remote.

Installation View

User Manual

HE05C

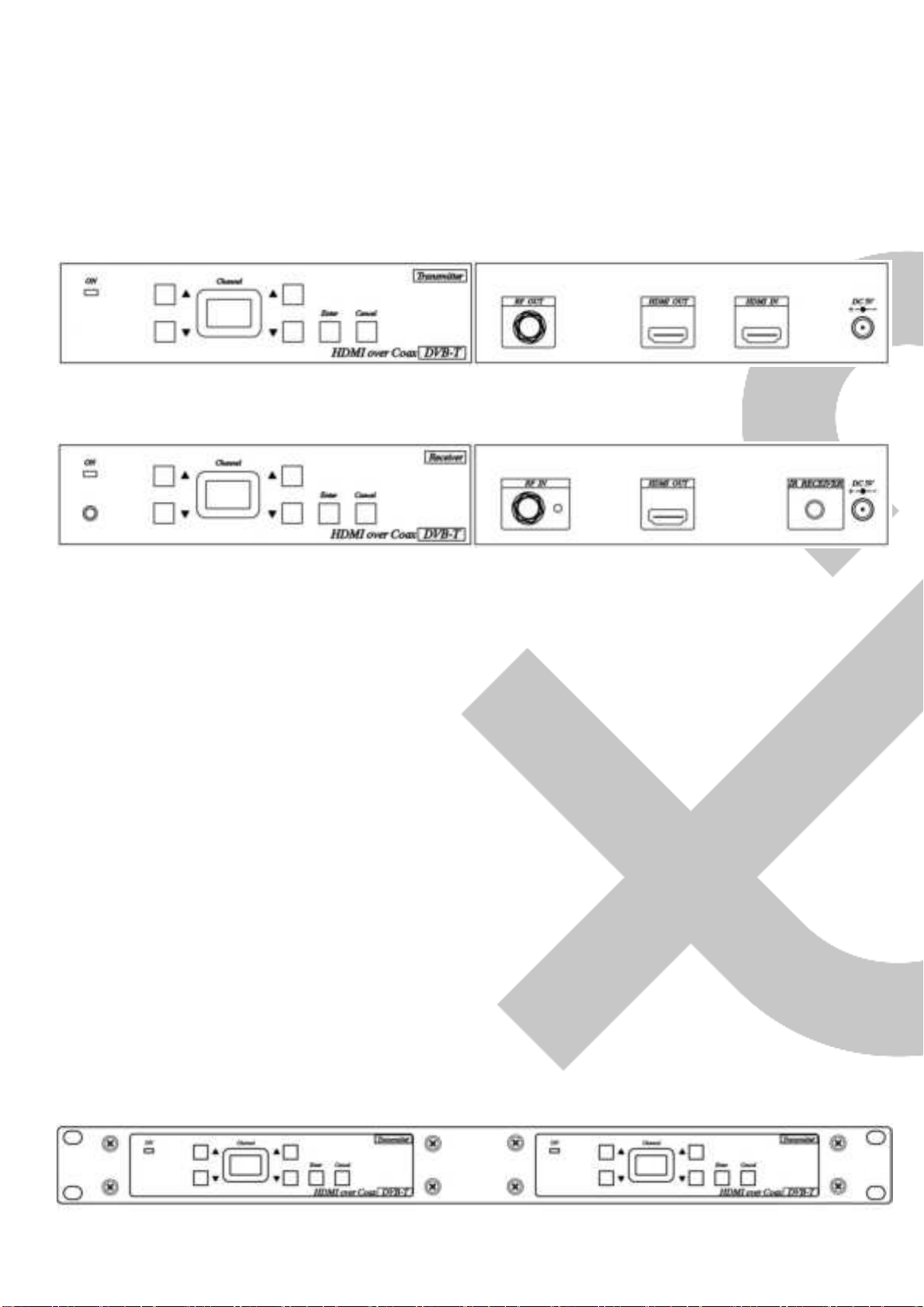

Panel View

HE05CT

HE05CR

LED Indication

HE05CT LED

Green ON/OFF Power on/off

HE05CR LED

Green ON/OFF Power on/off

Blue ON Video signal received

Blue Flash Video signal not stable

Button Function

▲▼single digit channel selecting key

▲▼two-digital channel selecting Key

ENTER channel selection confirm

CANCEL channel selection cancel

Option Model

TPN002U 1U 19” Rack Mounting Panel

Allow to fit two pieces of HE05CT/CR in 1U Rack Mounting Panel

User Manual

HE05C

IR01 Remote Controller

When using multiple source with HE05CT transmitter, HE05CR receiver input source selection could be

using optional IR remote controller for easy operation.

Remote Control Function

Initial the first time using the remote control or after change battery of remote control,

both need setting the IR remote controller ID.

To setting the Remote ID, Press and hold power button, then press button 0 to complete

the setting. + (for example)

Remote Controller Key Function

▲,▼Channel Switching Key ,

0~9 Channel input Key

ENTER Channel Selecting confirm key

,A, B,MENU,＃,＊,◀,▶Reserve( no function)

Cable and Transmission

Recommend to use use high quality 75ΩCoaxial Cable and F connector, low quality

coaxial cable and channel selection may case signal loss and effect transmission distance and

reliability.

Point to Point transmission distance up to 500M (Max) ,the channel selection must be

0-12 channel or 81-94 channel.

For multiple TX, RX working distance around 200M and must work with CATV splitter/amplifier or DTV

mixer.

Package Include

HE05CT HDMI Transmitter x 1 pcs

HE05CR HDMI Receiver x 1 pcs

Mounting Screw pack x 1 bags

Power Adapter x 2 pcs

User Manual

HE05C

Specification

ITEM NO.

HE05CT

HE05CR

Support

Compliance

HDMI 1.3, HDCP 1.4, DVI 1.0

Max. Video Resolution

1080p@60Hz

Max. Transmission Distance

500M over Coaxial Cable

IR Receiver

38 KHz

Ports & Interfaces

Video Input

1 x HDMI Type A

1 x 75ΩBNC

Video Output

1 x 75ΩBNC

1 x HDMI Type A

Video Loop-out

1 x HDMI Type A

IR Interface

1 x 3.5mm Phone Jack

Power

Power Supply

DC 5V 1A

Power Consumption

750mA

600mA

Ambient Temperature

Operation

0 to 70℃

Storage

-40 to 90℃

Humidity

up to 85%

Physical Characteristics

Dimensions

167 x 110.5 x 40mm

Weight

450g
