SC&T HE02EIXP Manuel utilisateur

Smart Cabling & Transmission Corp.

V1.0_190815B

HDMI over HDBaseT Extender

User Manual

Model : HE02EIXP

4K 60Hz 4:4:4 HDMI & IR/R232/POH CAT5e Extender 70M

User Manual

HE02EIXP

Introduction

HE02EIXP is a 4K HDMI over HDBaseT™ extender that can use an Ethernet cable to send uncompressed

HDMI and bi-directional IR signals with resolution up to 4K@60Hz 4:4:4 and transmission distance up to

70M. The extender also supports PoH (Power over HDBaseT), designed to provide power from one side

(TX/ RX) to another.

Features

Resolution up to 4K@60Hz 4:4:4.

Signal extension up to 70M over CAT5e/6 cable.

Supports PoH (Power over HDBaseT™), power from either TX or RX.

Supports bi-directional IR, RS232 transmission.

Support CEC pass through, EDID management.

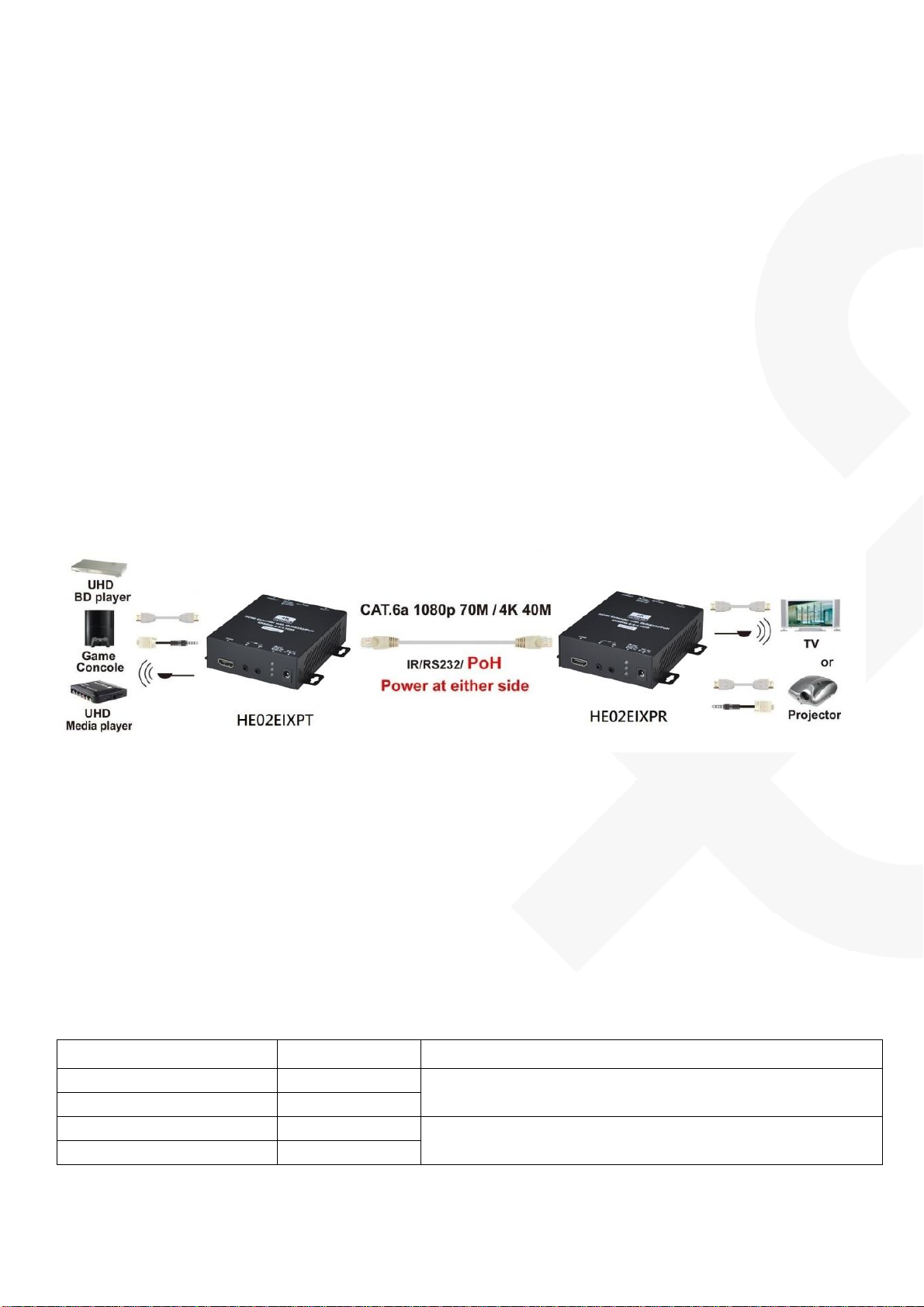

Installation view

Cable

Link cable recommend use high quality CAT5e, CAT6, CAT6a, CAT7 UTP / STP or FTP cable. Poor quality

cable or network connection or improper construction will cause unstable connection, video or sound

disruptions, picture noise appears.

HDBaseT Distance Chart by Different Cable

Cable Type

Range

Supported Video

CAT5e / CAT6

60m

Up to

1080p 60Hz 12bit

CAT6e / CAT7

70m

CAT5e / CAT6

35m

Up to 4096x2160@60Hz 4:4:4

CAT6a / CAT7

40m

If connection through the wall socket, the cable length must less 5 meters between HDMI extender and

wall jack, as below drawing

User Manual

HE02EIXP

MAX 70M

5M MAX 5M MAX

RJ45 Define

Video Link (TIA/EIA-568-B)

1. Orange-white DATA0 +

2. Orange DATA0 -

3. Green-white DATA1 +

4. Blue DATA2 +

5. Blue-white DATA2 -

6. Green DATA1 -

7. Brown-white DATA3 +

8. Brown DATA3 -

Panel view

HE02EIXPT HE02EIXPR

LED Instruction

Color

Status

HE02EIXPT

HE02EIXPR

HE02EIXPT

Wall Jack

HE02EIXPR

Wall Jack

User Manual

HE02EIXP

Firmware updated Switch

1. Reserved

2. FW1 updated

3. FW2 updated

4. FW3 updated

RS232 Define

DB9 FEMALE DB9 MALE

RS232

Footprint

Define

Footprint

Define

Pin 2

Pin 3

Pin 5

GND

Pin 5

GND

Package Include

HE02EIXPT x 1

HE02EIXPR x 1

DC12V 1.5A Adapter x 1

IR Receiver Cable x 1

IR Emitter Cable x 1

Mounting Screw pack x 2

Trouble Shooting

1. The wiring must away from any equipment with electromagnetic wave, i.e.: mobile phone, microwave,

radio equipment, fluorescent lamp, high voltage power lines.

2 Under HDMI 2.0 mode, must use Premium certified HDMI cable.

3. Under HDCP 2.2 mode: any one monitor HDCP authorization failed will cause no video status, other

connecting monitors will be also failed. Then monitor testing must be one by one to find which monitor

HDCP failed.

GREEN

LINK

ON: HDBaseT Linking

BLUE

N/A

Reversed

RED

FW UP

ON: Firmware Update

Color

Status

HE02EIXT

HE02EIXR

GREEN

ON: Power normal

BLUE

IR RX

ON: Receiving IR signal

RED

IR TX

ON: Sending IR signal

User Manual

HE02EIXP

4. This device HDBaseT port is not general Ethernet signal; do not connect with Network devices to avoid

damage.

5. IR transmitter do not put near from receiver to avoid mutual interference.

Specification

ITEM NO.

HE02EIXPT

HE02EIXPR

Support

Compliance

HDMI 2.0, HDCP 2.2, 1.4, DVI

Max. Video Resolution

4K@60Hz 4:4:4

Max. Transmission Distance

70M at 1080p@60Hz, 40M at 4K@60Hz 4:4:4

Video Bandwidth

10.2 Gbps

Audio Format

LPCM 7.1 192KHz, Dolby Trued, DTS-HD MA

IR Support

30-60Khz, ±15°, 5M, Bi-directional

30-60Khz, ±55°, 5M,

Bi-directional

RS232 Baud Rate

115200 bps/ Full Duplex

Ports & Interfaces

Video Input

1 x HDMI Type A

1 x HDBaseT

Video Output

1 x HDBaseT

1 x HDMI Type A

RS232 Interface

1 x DB9 Female

1 x DB9 Male

IR Interface

1 x 3.5mm Phone Jack

Power

Power Supply

DC 24V 1.5A

Power Consumption

5.4W

7.32W

Ambient Temperature

Operation

0 to 55℃

Storage

-20 to 85℃

Humidity

up to 90%

Physical Characteristics

Dimensions

109.6 x 109.5 x 30mm

Weight

260g

275g
