SC&T DKM01 Manuel utilisateur

Smart Cabling & Transmission Corp.

V1.0_2008241

DVI Repeater

User Manual

Model : DKM01

DVI USB/Audio/RS232 CAT5e KVM Extender

User Manual

DKM01

Introduction

DKM01 is a DVI extender that can not only carry DVI signal but USB, analog audio, RS232 ones using a

cost-effective Ethernet cable with transmission distance up to 140M. You can easily control a PC where is

far away from you while having an additional DVI monitor along side using the loop-out port at TX unit. It

is an ideal solution for industrial, hospital, and education fields.

Features

Resolution up to 1080p or 1920x1200@60Hz.

Signal extension up to 140M over CAT6, 120M over CAT5e.

Built in DVI loop-out port at TX unit..

Optional Model: SR01X Gigabit Ethernet Repeater

Extend TCP/IP signal for extra 120meters.

Chainable with multiple SR01X for long distance transmission.

Plug and play for easy installation.

Installation view

Work with SR01X Gigabit Ethernet repeater

User Manual

DKM01

Panel View

DKM01T

No.

Interface

Function

Power LED

To Indicate the status of power

LINK LED

To Indicate the status of data transmission

Rotary Switch

To set up the grouping function

DIP Switch

To set up the grouping, EDID, RS232 functions

EDID

To set up EDID function

RS232

To connect a RS232 device

LINE OUT

To connect a 3.5mm jack for a speaker

LINE IN

To connect a 3.5mm jack for a microphone

USB HOST

To connect an USB-B cable

RJ45 Connector

To connect a DKM01T/R

DVI IN

To connect a DVI source

DVI LOOPOUT

To connect a DVI display

Power Jack

To connect a DC5V 2A power adapter

User Manual

DKM01

DKM01R

No.

Interface

Function

To check the status of MAC, IP, Baud Rate and EDID

SELECT

To set up Baud Rate

USB

To connect 4 ports of USB devices (ie. Keyboard, mouse)

DVI OUT

To connect a DVI display

MIC IN

To connect a 3.5mm jack for Microphone

Description

1LED Indication Status:

Power On

Link On

Green ON

Blue On

User Manual

DKM01

2RJ45

2.1 RJ45 Indication Status:

Link On

Data Transferring

Green ON

Yellow On

2.2 RJ45 Pinout

3RS232

3.1 RS232 Define

Color

Data

Orange-white

DATA0 +

Orange

DATA0 -

Green-white

DATA1 +

Blue

DATA2 +

Blue-white

DATA2 -

Green

DATA1 -

Brown-white

DATA3 +

Brown

DATA3 –

User Manual

DKM01

DB9 (F)/3.5mm STEREO PHONE JACK DB9 (M)/3.5mm STEREO PHONE JACK

RS232

3.5 mm Phone Jack

RS232

3.5 mm Phone Jack

Footprint

Define

Footprint

Define

Footprint

Define

Footprint

Define

Pin 2

Pin 1

Pin 2

Pin 1

Pin 3

Pin 2

Pin 3

Pin 2

Pin 5

GND

Pin 3

GND

Pin 5

GND

Pin 3

GND

3.2 RS232 Baud Rate Setting

3.2.1 Enable RS232 function

3.2.2 Press “Menu” button of Rx (DKM01R) to select “Baud Rate”

3.2.3 Press “Select” button of Rx (DKM01R) to choose Baud Rate parameter

3.2.4 Press “Menu” button again to confirm the parameter

3.2.5 Supported Baud rates: 115200, 38400, 19200, 14400, 9600, 4800, 2400, 1200

4Grouping

4.1 Set up the switch of Tx and Rx (DKM01T/R) to choose a group.

4.2 Set up the rotary switch (the switch of Tx and Rx should be at the same position)

DKM01T

SWITCH

RS232 / Settings

SW2

RS232 On

(Default)

OFF↑

SW3

OFF↑

DKM01R

SWITCH

RS232 / Settings

SW2

RS232 On

(Default)

OFF↑

SWITCH

Group / Settings

SW1

Group 0

OFF↑

Group 1

ON↓

SW2

OFF↑

User Manual

DKM01

4.3 Remove the power jack and plug it in again.

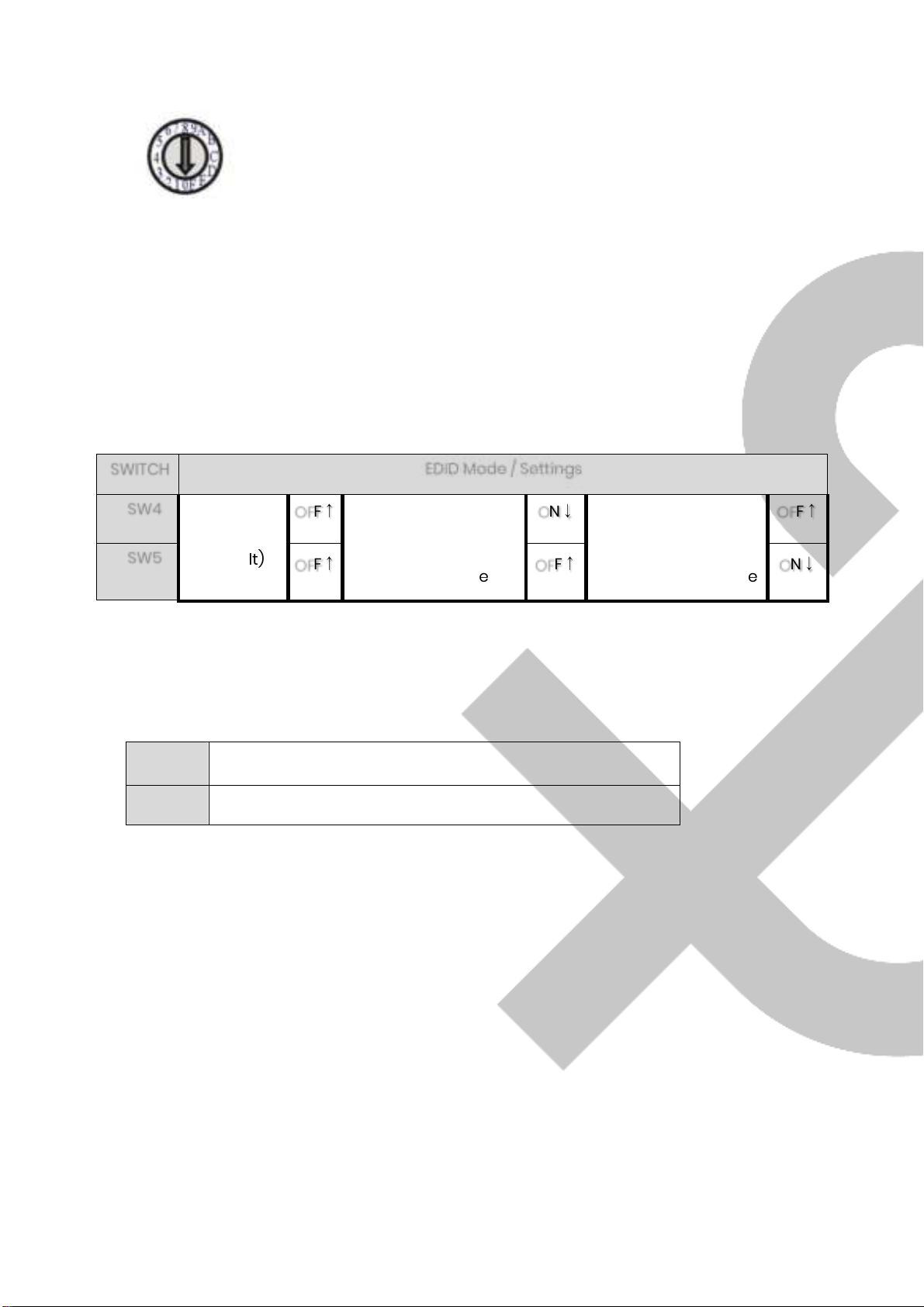

5EDID Copy

Based on your requirement, you can set up EDID from either TX or RX.

5.1 Remove all the DVI cables.

5.2 Set up the DIP switch of Tx.

5.3 Press EDID Button of the DKM01T to confirm the change.

5.4 You can also set up EDID from RX (DKM01R) to copy the resolution of connected

monitor from RX side as below.

Step 1

Press “MENU”button from RX to select EDID.

Step 2

Press “Select”button from RX to confirm the change.

Trouble Shooting

1. We strongly recommend using high quality CAT5e, CAT6 UTP/STP/FTP cable. Improper

installation may cause unstable connection, and video & audio interruption.

2. DKM01 transmission data rate up to 850Mbps Max.

3. Do not connect general LAN to avoid data transmission slow down other LAN devices. 。

4. Analog audio of Rx (MIC IN) is mono sound for microphone use only, not stereo audio (Line

in)

5. Every port of USB at receiver side has max output power at 500mA, and 4 ports of USB can

SWITCH

EDID Mode / Settings

SW4

1080p

(Default)

OFF↑

Copy

the resolution

from Rx side

ON↓

Copy

the resolution

from TX loop out side

OFF↑

SW5

OFF↑

ON↓

(Up to 32 pairs of Tx and Rx can be set)

User Manual

DKM01

output up to 1500mA.

Package Include

No.

Item

Amount

DKM01T (Tx)

DKM01R (Rx)

USB A/B cable

DB9 male to 3.5mm phone jack cable

DB9 female to 3.5mm phone jack cable

DC 5V 2A power adapter

Screw

Screw plug

Rubber gasket

User Manual

DKM01

Specification

ITEM NO.

DKM01T

DKM01R

Support

Compliance

HDCP 1.4, USB 2.0, USB 1.1, USB 1.0

Max. Video Resolution

1920 x 1200@60 Hz

Max. Transmission Distance

140M over CAT6 or Greater

Video Bandwidth

10.2 Gbps

Ports & Interfaces

Video Input

1 x DVI-D (Digital Only)

1 x RJ45

Video Output

1 x RJ45

1 x DVI-D (Digital Only)

Video Loop-out

1 x DVI-D (Digital Only)

Analog Audio Input

1 x (3.5mm) Stereo Phone Jack

(Line In)

1 x (3.5mm) Stereo Phone Jack

(Mic In)

Analog Audio Output

1 x 3.5mm Stereo Phone Jack

USB Interface

1 x USB 2.0 Type B

4 x USB Type A

RS232 Interface

1 x (3.5mm) Phone Jack

Power

Power Supply

DC 5V 2A

Power Consumption

1000mA

400mA

Ambient Temperature

Operation

-20 to 60℃

Storage

-20 to 85℃

Humidity

Up to 95%

Physical Characteristics

Dimensions

125 x 140 x 30mm

Weight

400g

385g
